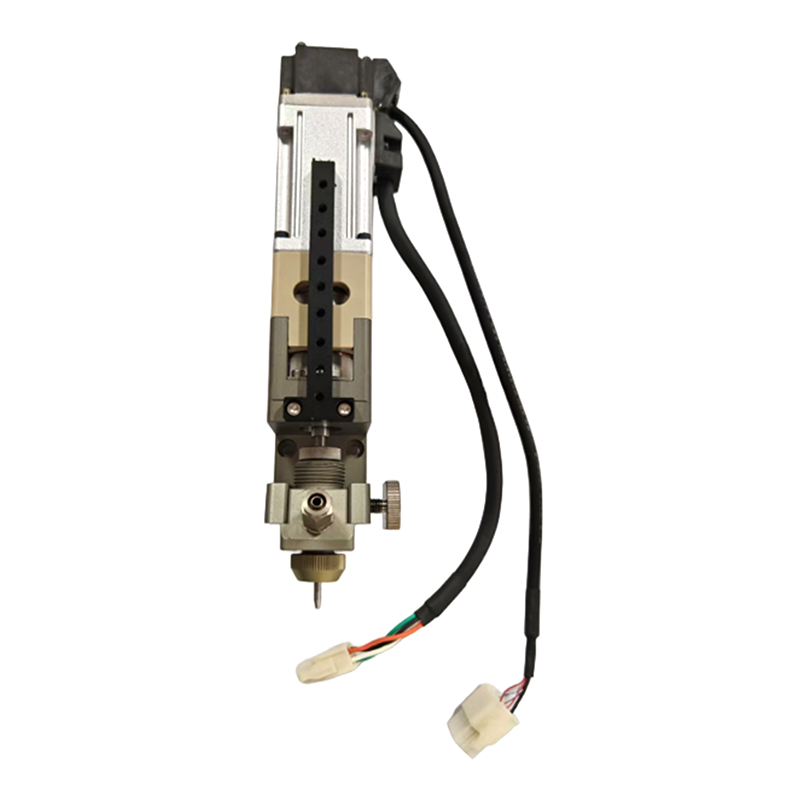

Low-volume fluid AG-700 screw valve for Automated glue application system

Product Description

AG-7000 single-component screw valve for a variety of

high-precision quantitative delivery occasions, which has the following

Features:

1 the use of high-precision servo motor drive, high precision screw feeding, to ensure that the adhesive can be continuously stable output

2 dispensing no pulling, dripping

3 the controller interface is simple, a variety of modes can be optional

4 the stator is resistant to corrosion of the media, the service life of a long time

Application areas

Automotive industry, electronics industry, food industry, pharmaceutical industry, aerospace, biotechnology, renewable energy

Viscosity of 1 ~ 100000mPa (cps) fluid platform compatibility: suitable for a variety of dispensing

platform (in-line or off-line)

Minimum amount of glue spit: 0.008ml

Maintenance offline cleaning: about 10 minutes

Cleaner: solvents compatible with dispensing fluids (developed by material suppliers) Cleaner: Solvent compatible with dispensing fluid (developed by material supplier)

The AG-700 is an advanced screw-driven dispensing valve designed for high-viscosity fluids requiring exceptional accuracy. Combined with its programmable controller, it delivers reliable, pulsation-free material deposition for demanding industrial applications.

Key Specifications:

Valve Type: Motorized screw valve

Dispensing Range: 0.001 – 500 mL/min

Max Pressure: 1.2 MPa

Fluid Viscosity: 5,000 – 500,000 cP

Repeatability: ±1%

Controller: Touchscreen with preset recipes & I/O control

Features & Benefits:

Smooth, Consistent Flow – Eliminates air bubbles and dripping

High-Viscosity Expertise – Ideal for epoxies, silicones, and thick pastes

Precision Metering – Adjustable screw speed for volume control

Easy Material Change – Quick disassembly for cleaning

Durable Construction – Stainless steel & hardened components

Typical Applications:

Electronics: Potting, encapsulation, underfill

Automotive: Battery sealing, structural adhesives

Energy: Solar panel sealing, fuel cell assembly

Industrial: Gasketing, heavy-duty bonding

Competitive Advantages:

Zero Waste – Precise shutoff prevents material leakage

Adaptable – Handles fill, dot, and bead patterns

Low Maintenance – No seals to replace

Smart Integration – Compatible with robots and PLCs

Perfect for thick material dispensing where control and consistency are critical. Custom configurations available.
