AC-T6441-1 Desktop Conformal Coating Machine

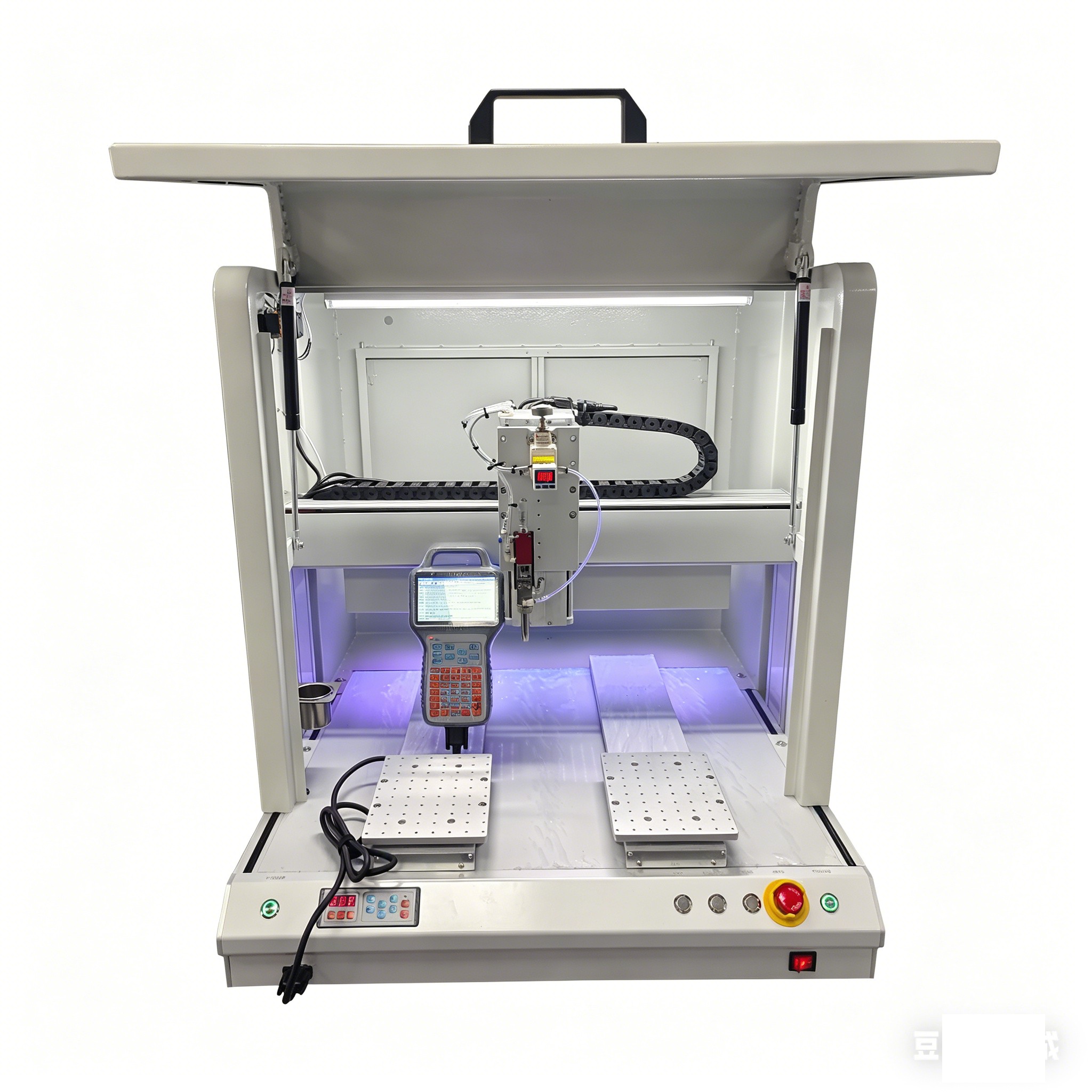

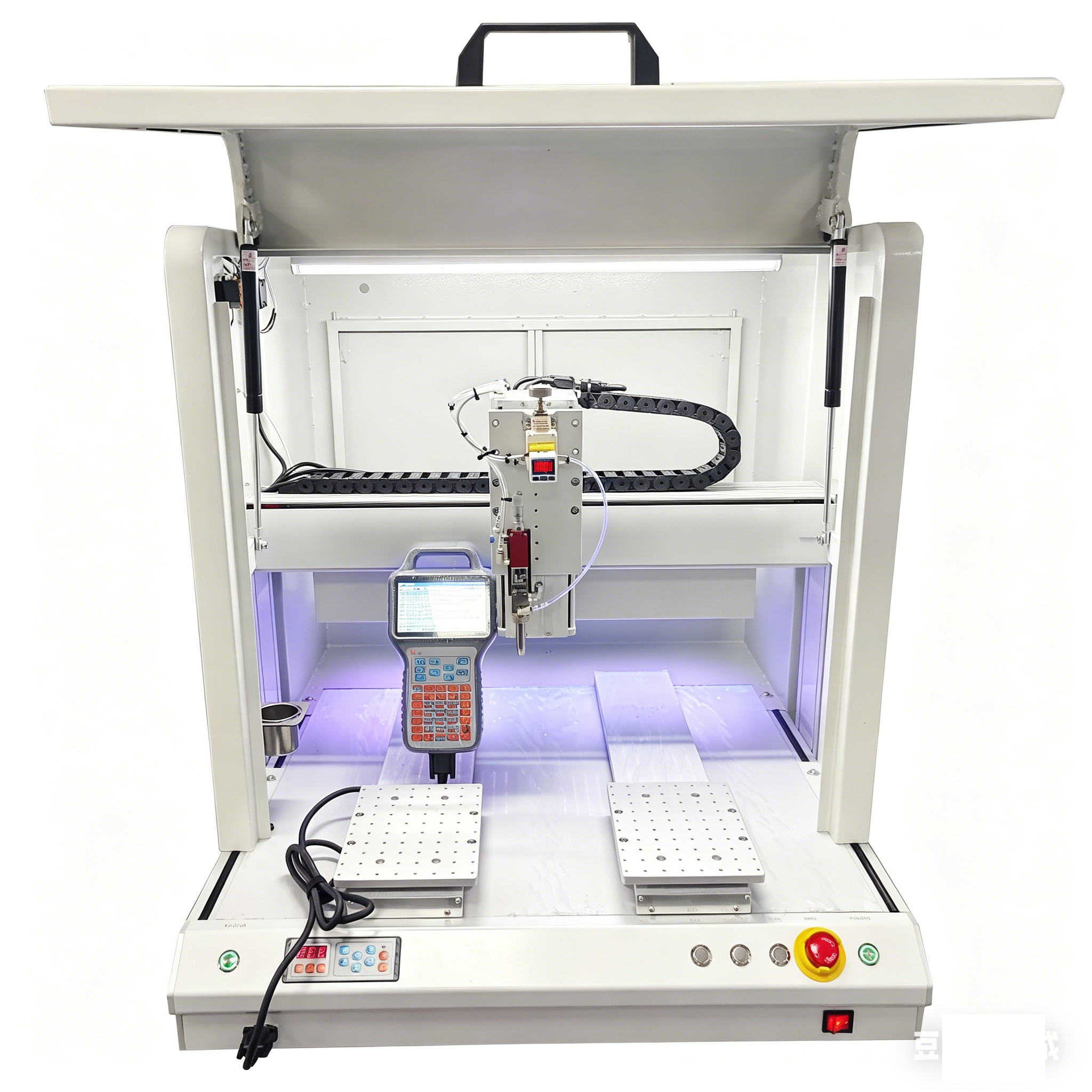

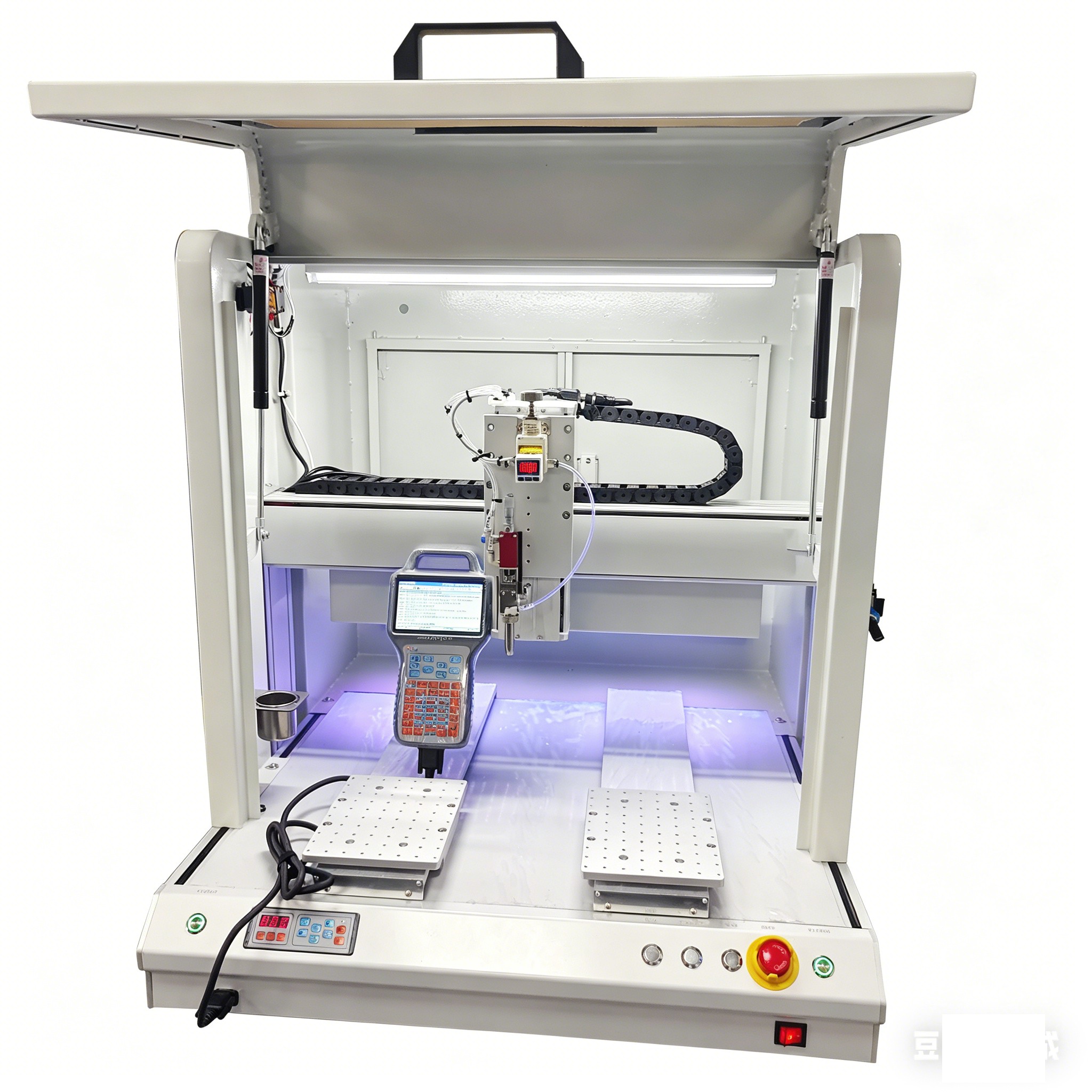

AC-T6441-1 Desktop Conformal Coating Machine: Compact Precision for Small-to-Medium Batch Production
Designed for small-to-medium batch coating applications, the AL-T6441-1 Desktop Conformal Coating Machine is a compact, high-performance solution tailored to the needs of electronics workshops, R&D labs, and small-scale manufacturers. As a direct factory with a 2-year Alibaba presence and exports to Southeast Asia, Europe, and America, we’ve optimized this desktop model for space efficiency, ease of use, and reliable performance—all while maintaining the precision required for delicate electronic components.
Specifications of the AL-T6441-1 are engineered for practicality and versatility. It boasts a maximum single-side coating area of 325mm × 245mm, perfectly suited for processing standard PCB boards, sensors, and small electronic assemblies. The machine weighs 100kg, making it easy to relocate within workshops without heavy lifting equipment, while its compact dimensions (L825mm × W750mm × H1200mm, based on desktop coating machine industry benchmarks) ensure it fits into tight production spaces—ideal for facilities with limited floor area. The worktable features a non-slip, heat-resistant surface that withstands temperatures up to 80°C, compatible with post-coating drying processes.
Core selling points of the AL-T6441-1 focus on precision, user-friendliness, and cost-effectiveness. It adopts a precision stepper motor drive system paired with imported linear guide rails, achieving a repeat positioning accuracy of ±0.03mm—sufficient for most electronic component coating requirements, including fine-pitch PCBs and miniaturized sensors. The coating head supports both spray and dispense modes, allowing for flexible application of different materials: from thin-film conformal coatings (for PCB protection) to thicker adhesives (for component sealing). Material viscosity compatibility ranges from 50 to 10,000 cP, covering most common coating fluids in the electronics industry.

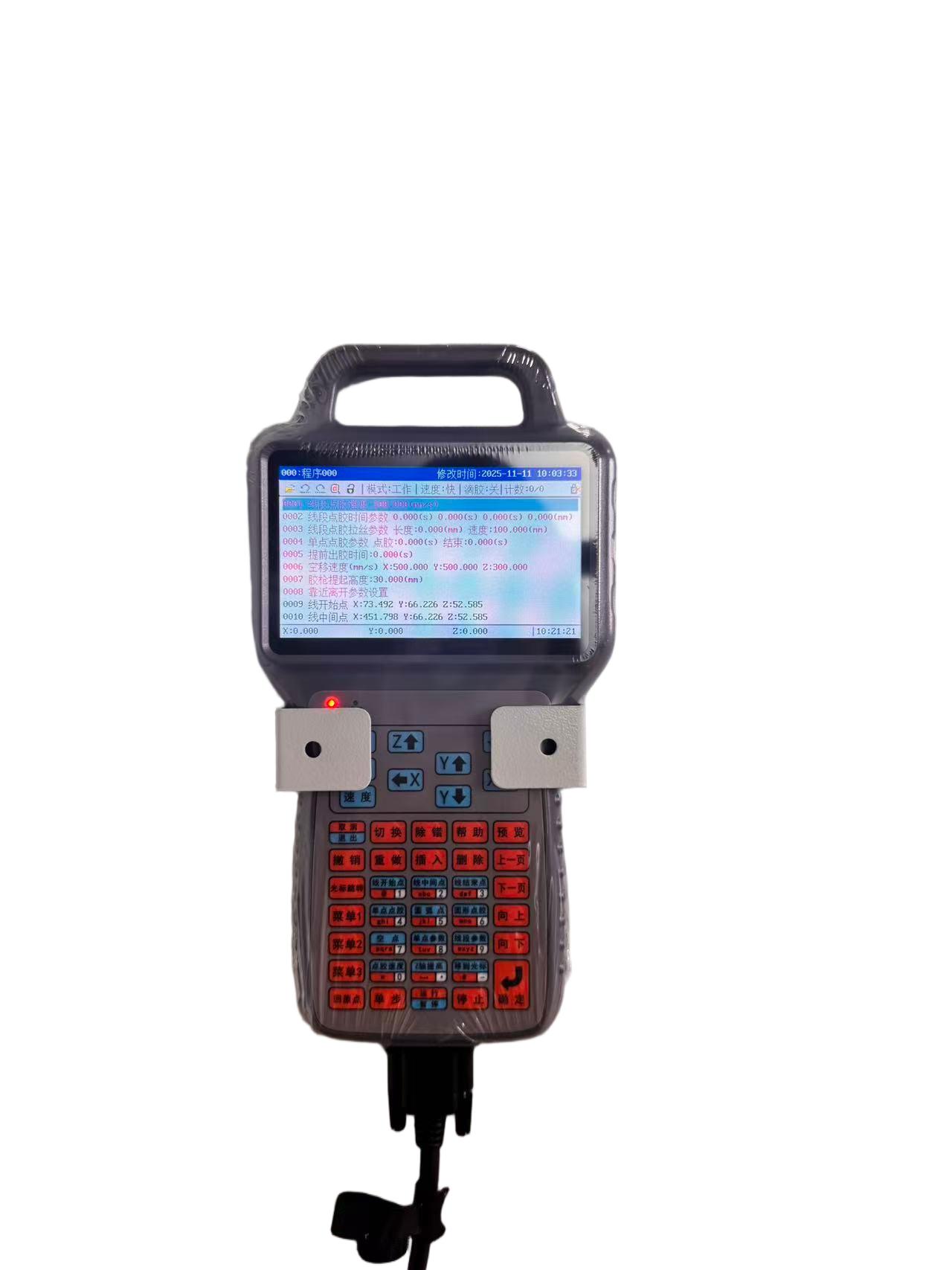

Another key advantage is its simplified operation design. The 7-inch color touchscreen interface displays real-time parameters (coating speed, area, material flow rate) and offers one-click recipe recall—reducing training time for operators to less than 2 hours. The machine also includes a built-in material level sensor that alerts users when fluid is low, preventing production interruptions and ensuring consistent coating quality. For safety, it’s equipped with an emergency stop button and overheat protection, complying with international safety standards to meet export requirements.
Compared to floor-standing models, the AL-T6441-1 offers lower initial investment and operational costs, making it accessible for small businesses while still delivering industrial-grade performance. Its modular design allows for easy upgrades, such as adding a UV curing module or vision alignment system, as production needs grow. This scalability is a major benefit for startups and medium-sized enterprises looking to expand their capabilities without replacing existing equipment.
As a factory that supports full customization, we can adjust the AL-T6441-1’s specifications to meet specific customer needs—whether modifying the coating area to fit oversized workpieces, adapting the power supply to 110V for North American markets, or integrating custom fixtures for specialized components. Our 2-year Alibaba store ensures transparent pricing and reliable after-sales service, including free technical support and a 12-month warranty, giving global customers peace of mind.

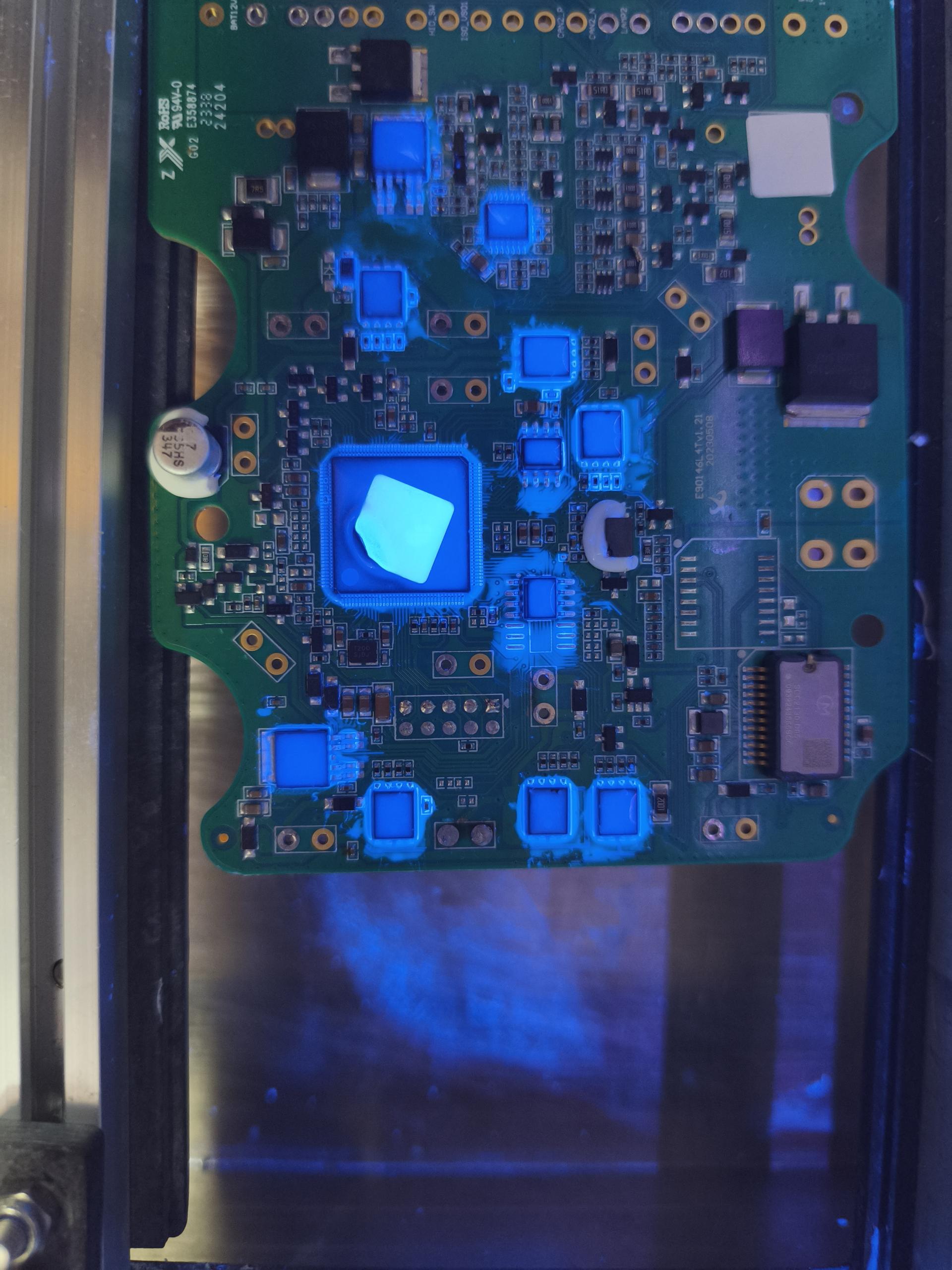

Ideal for applications like PCB coating, sensor protection, and small electronic assembly sealing, the AL-T6441-1 Desktop Conformal Coating Machine balances performance and practicality. It’s a testament to our commitment to providing tailored solutions that meet the diverse needs of our global customer base, from Southeast Asian electronics workshops to European R&D facilities.
