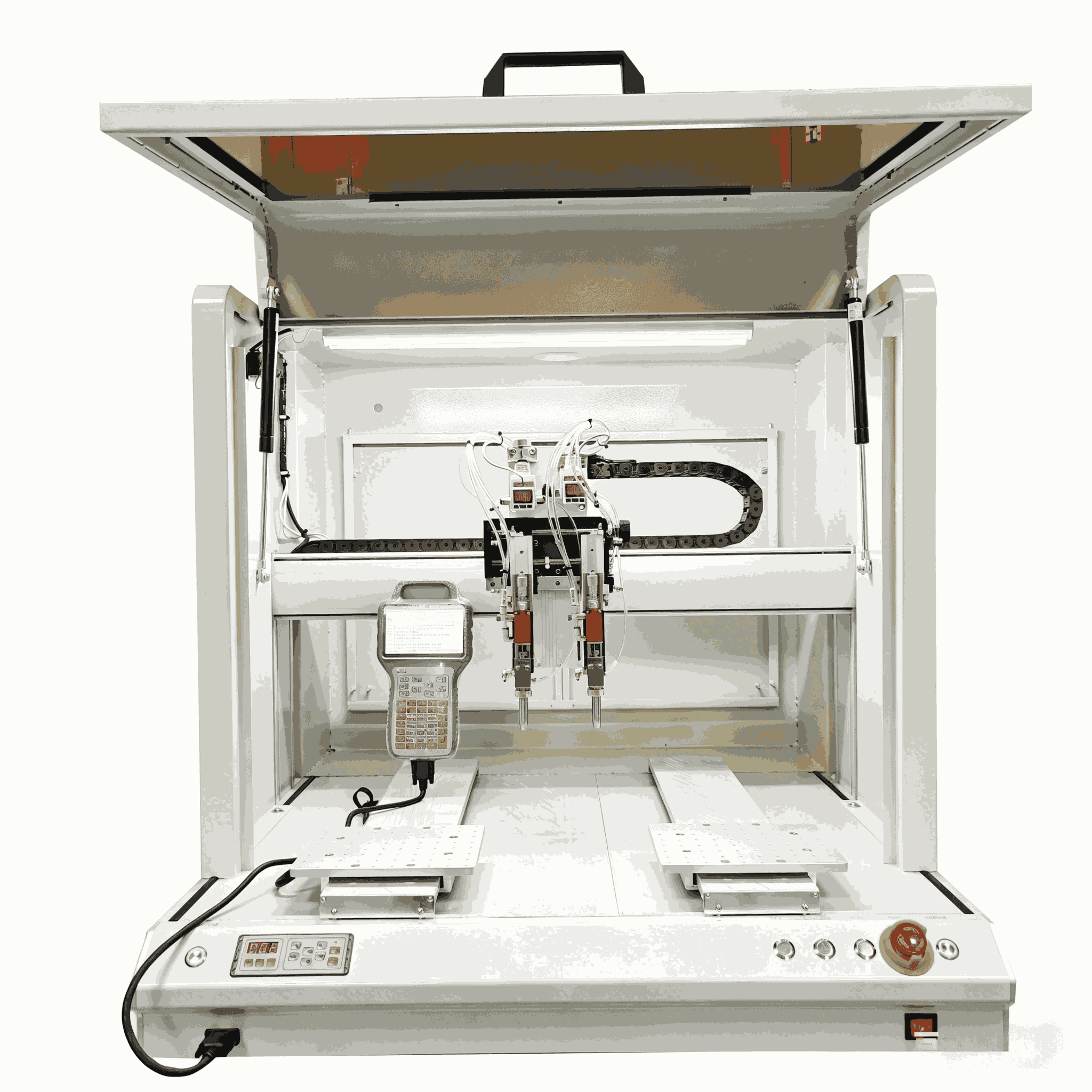

AC-T7441-2 Desktop Conformal Coating Machine
AC-T7441-2 Desktop Conformal Coating Machine: High-Speed Precision for Mid-Volume Production
The AC-T7441-2 Desktop Conformal Coating Machine bridges the gap between entry-level desktop models and heavy-duty floor-standing machines, designed for mid-volume production lines requiring high speed, precision, and reliability. As a direct manufacturer with a 2-year Alibaba store and exports to Southeast Asia, Europe, and America, we’ve optimized this machine to meet the demands of growing businesses—from medium-sized electronics manufacturers to contract coating service providers—who need to balance throughput with quality.
Specifications of the AC-T7441-2 are engineered for high-speed performance. It features a maximum coating area of 400mm × 300mm, suitable for processing standard and large PCB boards, automotive electronic modules, and industrial sensors. The machine weighs 130kg, with a reinforced frame that minimizes vibration during high-speed operation, and its overall dimensions (L900mm × W750mm × H1200mm) include a built-in material storage compartment and a larger worktable than entry-level models. The worktable is made of stainless steel (304 grade), offering superior chemical resistance and durability, with a maximum workpiece load of 40kg—sufficient for mid-volume production runs.
Core selling points of the AC-T7441-2 focus on speed, precision, and operational efficiency. It adopts a high-performance servo motor drive system (instead of standard stepper motors) that delivers a maximum coating speed of 500mm/s—twice as fast as entry-level models—while maintaining a repeat positioning accuracy of ±0.02mm. This combination of speed and precision reduces processing time per workpiece by 30% compared to single-head desktop machines, making it ideal for mid-volume production lines handling 500-2000 workpieces per day.
Another standout feature is its advanced material handling system. The AC-T7441-2 includes a 200ml material reservoir (expandable to 500ml) with a level sensor and automatic refilling capability, reducing the need for manual material checks and minimizing downtime. The coating head uses a piezoelectric dispensing system that delivers precise material flow control (0.001ml per shot), enabling ultra-thin coating (5-10μm) for delicate components and thick coating (50-150μm) for heavy-duty protection. The machine also supports inline material mixing for two-component coatings, with a digital mixing ratio controller (1:1 to 10:1) that ensures consistent material properties across production runs.
In terms of process control, the AC-T7441-2 offers several industry-leading features. Its 10-inch color touchscreen interface includes a real-time production dashboard, displaying key metrics like workpiece count, coating thickness, and material usage—allowing operators to monitor production efficiency at a glance. The system supports remote monitoring via a mobile app (compatible with iOS and Android), enabling managers to track production progress from anywhere. For quality control, the machine includes a built-in camera that captures images of each coated workpiece, storing them in a database for traceability—critical for industries like automotive and medical devices with strict compliance requirements.
As a factory that supports customization, we can tailor the AC-T7441-2 to specific mid-volume needs—whether adding a conveyor belt interface for automated loading/unloading, integrating a UV curing module for fast-drying materials, or modifying the coating head to handle specialized fluids like conductive inks. Our 2-year Alibaba store provides detailed technical specifications, certification documents (CE, ISO 9001), and customer case studies, ensuring global customers have confidence in the machine’s performance.
Backed by a 18-month warranty and a dedicated technical support team, the AC-T7441-2 Desktop Conformal Coating Machine is an ideal investment for businesses scaling up production. Whether you’re a Southeast Asian electronics manufacturer expanding your PCB coating line or a European contract coater handling diverse customer orders, this model delivers the speed, precision, and reliability to drive your business forward.
