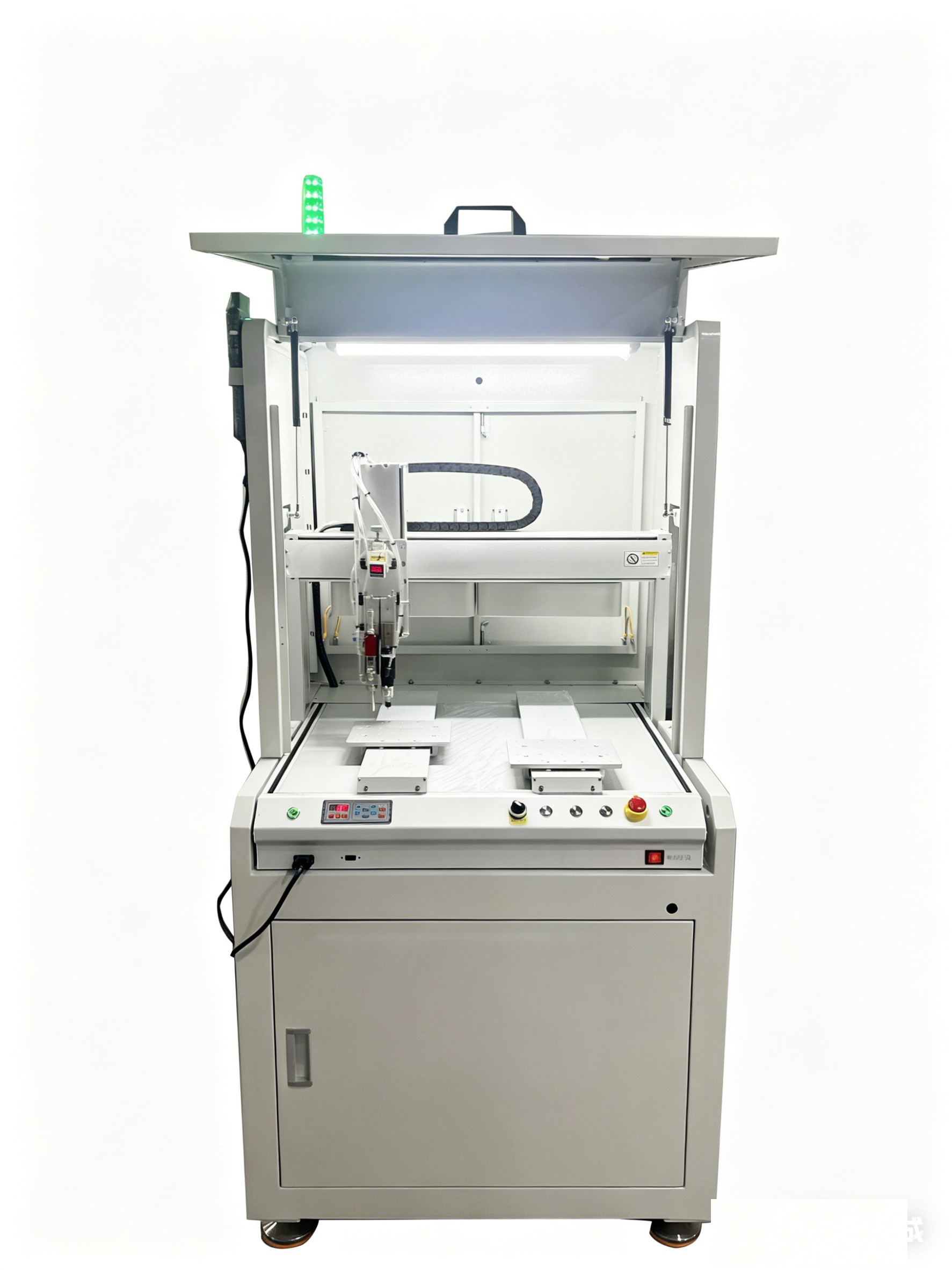

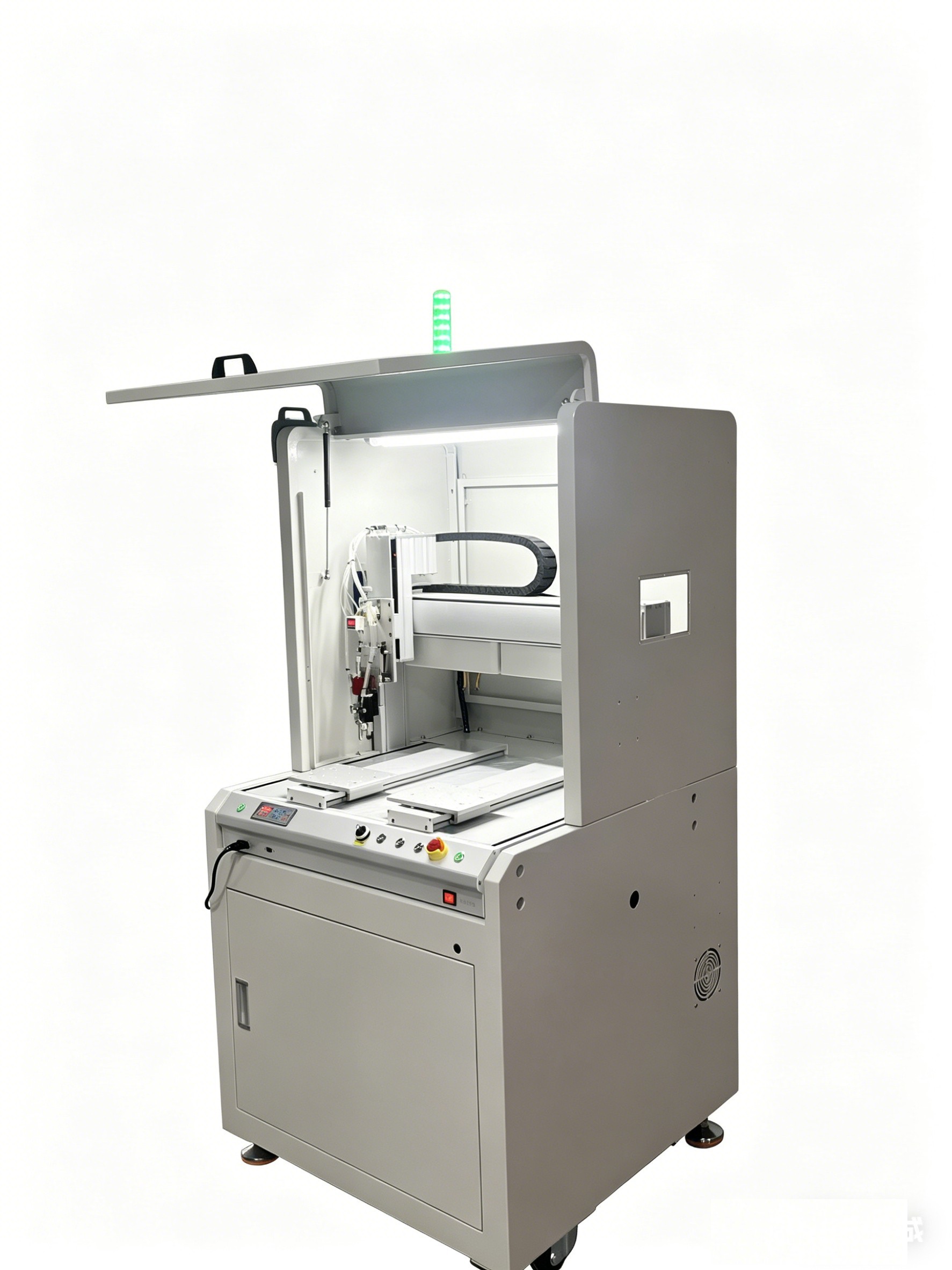

UV Curing Integrated Conformal Coating Machine
UV Curing Integrated Conformal Coating Machine: All-in-One Efficiency for Fast-Drying Applications
The UV Curing Integrated Conformal Coating Machine represents a breakthrough in all-in-one coating solutions, combining precision coating and instant UV curing into a single, streamlined process—eliminating the need for separate curing equipment and drastically reducing production time. As a direct manufacturer with a 2-year Alibaba store and exports to Southeast Asia, Europe, and America, we’ve designed this machine to meet the demands of industries like electronics assembly, optical components, and consumer goods, where fast turnaround and consistent curing quality are critical.
Specifications of the UV Curing Integrated model are optimized for integrated performance. While specific coating area dimensions are tailored to customer needs, the standard configuration supports a maximum coating area of 400mm × 300mm—suitable for standard PCB boards, optical lenses, and small electronic assemblies. The machine weighs approximately 150kg (estimated based on integrated coating-curing machine standards), with overall dimensions of L900mm × W800mm × H1500mm—compact enough to fit into most workshop spaces while housing both coating and curing modules. The UV curing system features a wavelength of 365nm (standard for most UV-curable coatings) and an illumination area matching the coating area, ensuring uniform curing across the entire workpiece surface.
Core selling points of this integrated machine revolve around efficiency, space savings, and curing quality. By combining coating and curing into one step, it reduces the production process time by 50% compared to separate coating and curing setups—critical for high-volume production lines where every minute counts. The coating module adopts a precision stepper motor drive system with ±0.02mm repeat positioning accuracy, ensuring uniform coating thickness (5-30μm) that’s essential for consistent curing results. The UV curing module uses a high-power LED light source (200W) with a lifespan of 30,000 hours—5 times longer than traditional mercury lamps—reducing replacement costs and downtime.
Another standout advantage is its process control capabilities. The machine’s integrated control system synchronizes coating and curing parameters, automatically adjusting UV light intensity (100-1000 mW/cm²) and curing time (1-60 seconds) based on the coating thickness and material type. This ensures complete curing without overexposure, preventing coating brittleness or workpiece damage. The system also includes a temperature monitoring function, keeping the workpiece surface temperature below 60°C during curing—safe for heat-sensitive components like LEDs and sensors.
Space efficiency is a major benefit for workshops with limited area. By eliminating the need for separate curing ovens or conveyors, the integrated design reduces the machine’s footprint by 60% compared to traditional two-step setups. This is particularly valuable for small to medium-sized manufacturers in Southeast Asia and Europe, where workshop space is often at a premium. The machine also features a modular design, allowing for easy maintenance of both coating and curing modules without disassembling the entire system.
As a factory that supports customization, we offer several upgrades for this integrated model—including a larger coating/curing area (up to 600mm × 400mm), multiple UV wavelength options (395nm for specific materials), and a nitrogen protection system for oxygen-sensitive coatings. Our 2-year Alibaba store provides detailed product videos, customer testimonials, and multilingual support, ensuring global customers have all the information they need to make informed decisions.
Backed by a 12-month warranty and global technical support, the UV Curing Integrated Conformal Coating Machine is an ideal solution for businesses looking to streamline production, reduce costs, and improve quality. Whether you’re a European electronics manufacturer needing fast PCB curing or a Southeast Asian optical component supplier requiring precise coating, this all-in-one machine delivers the efficiency and reliability to meet your production goals.
