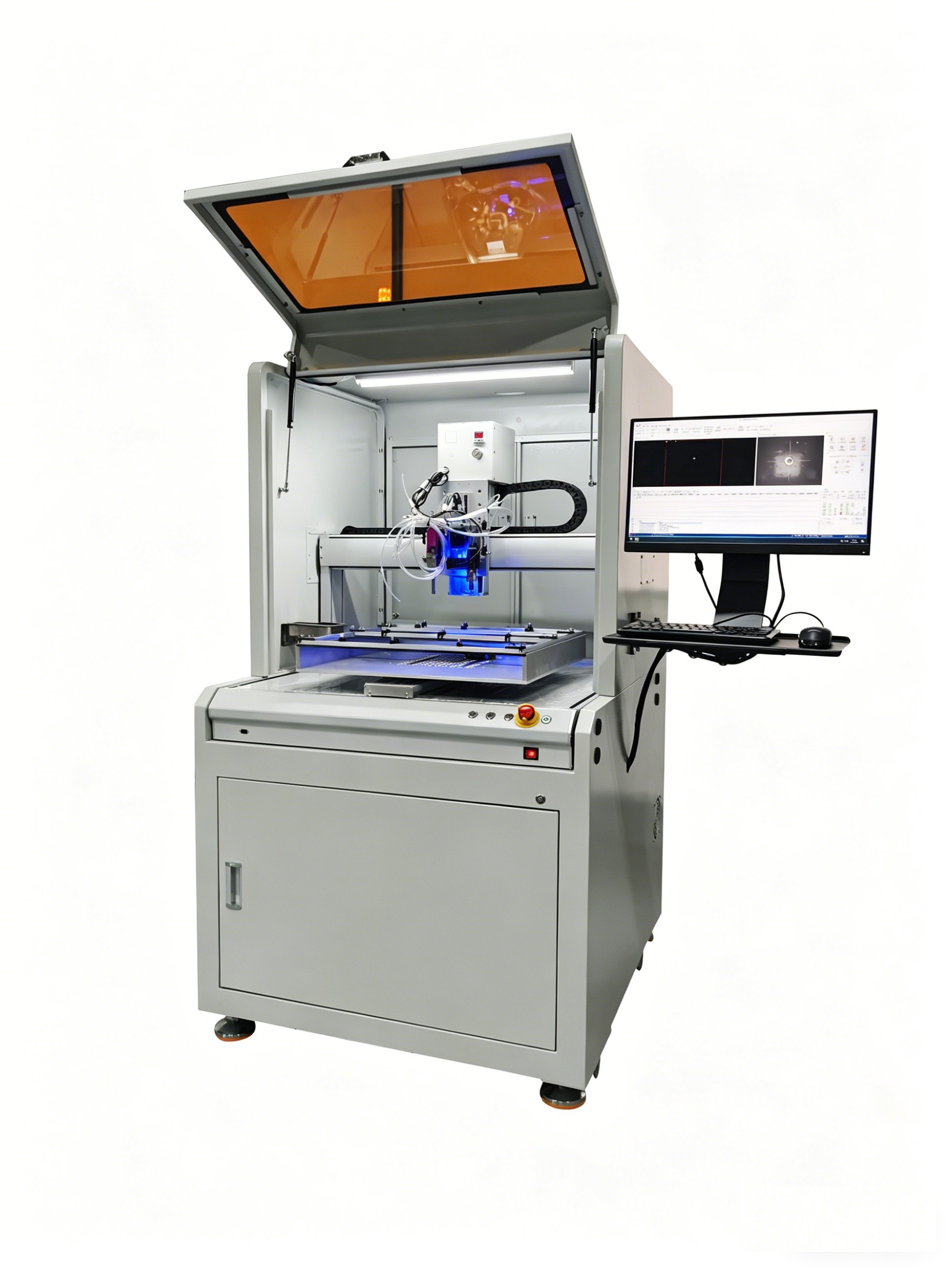

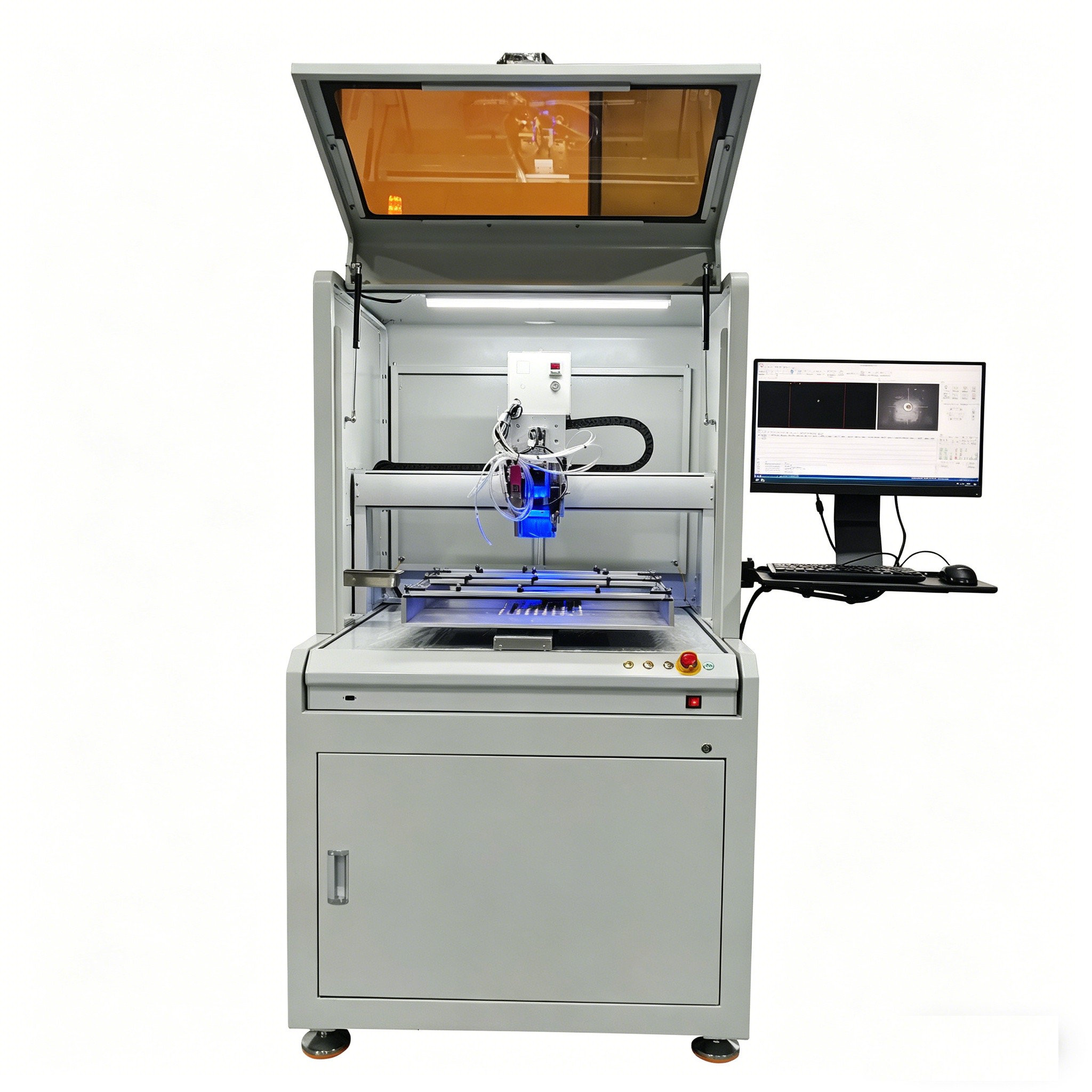

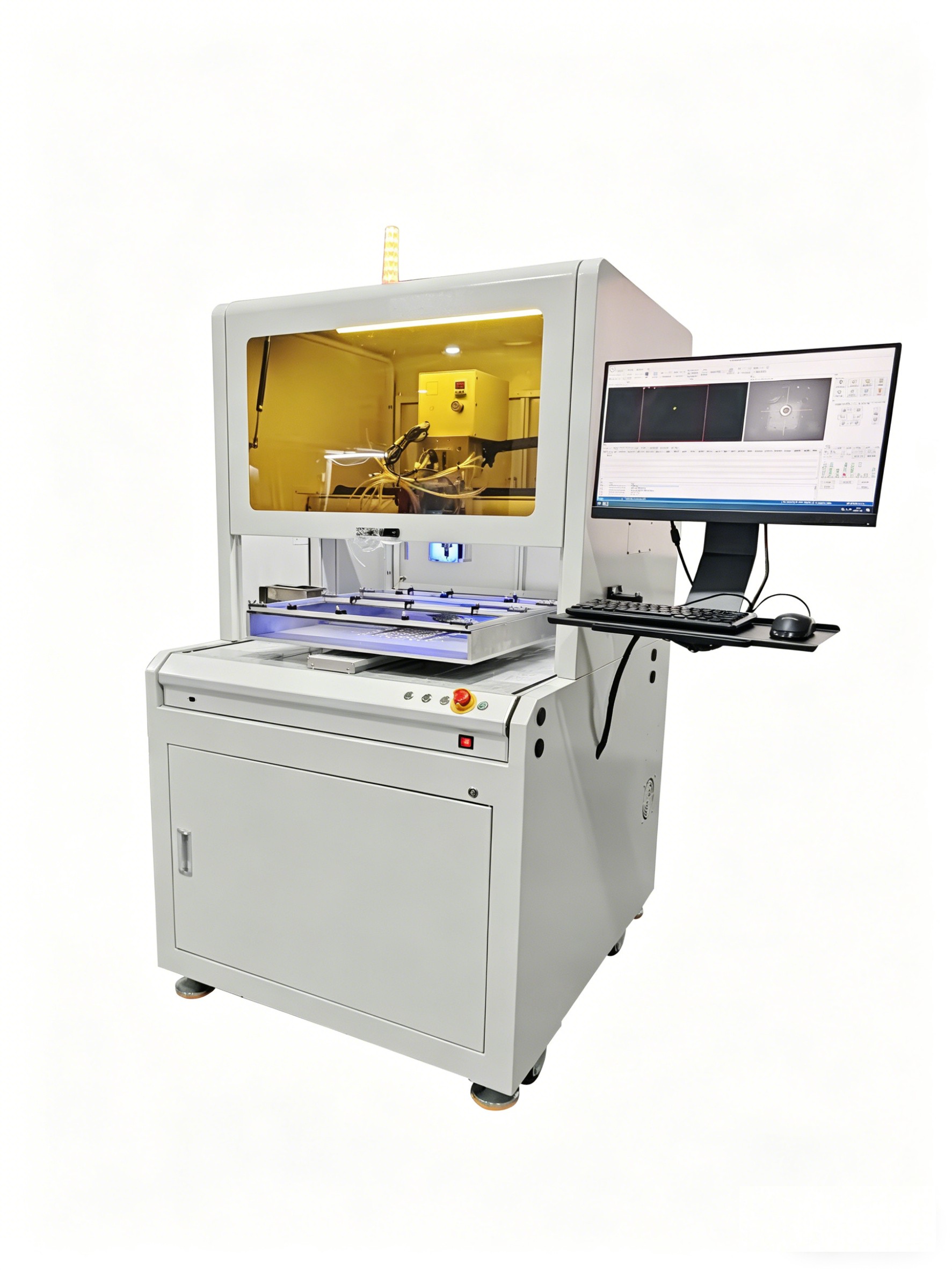

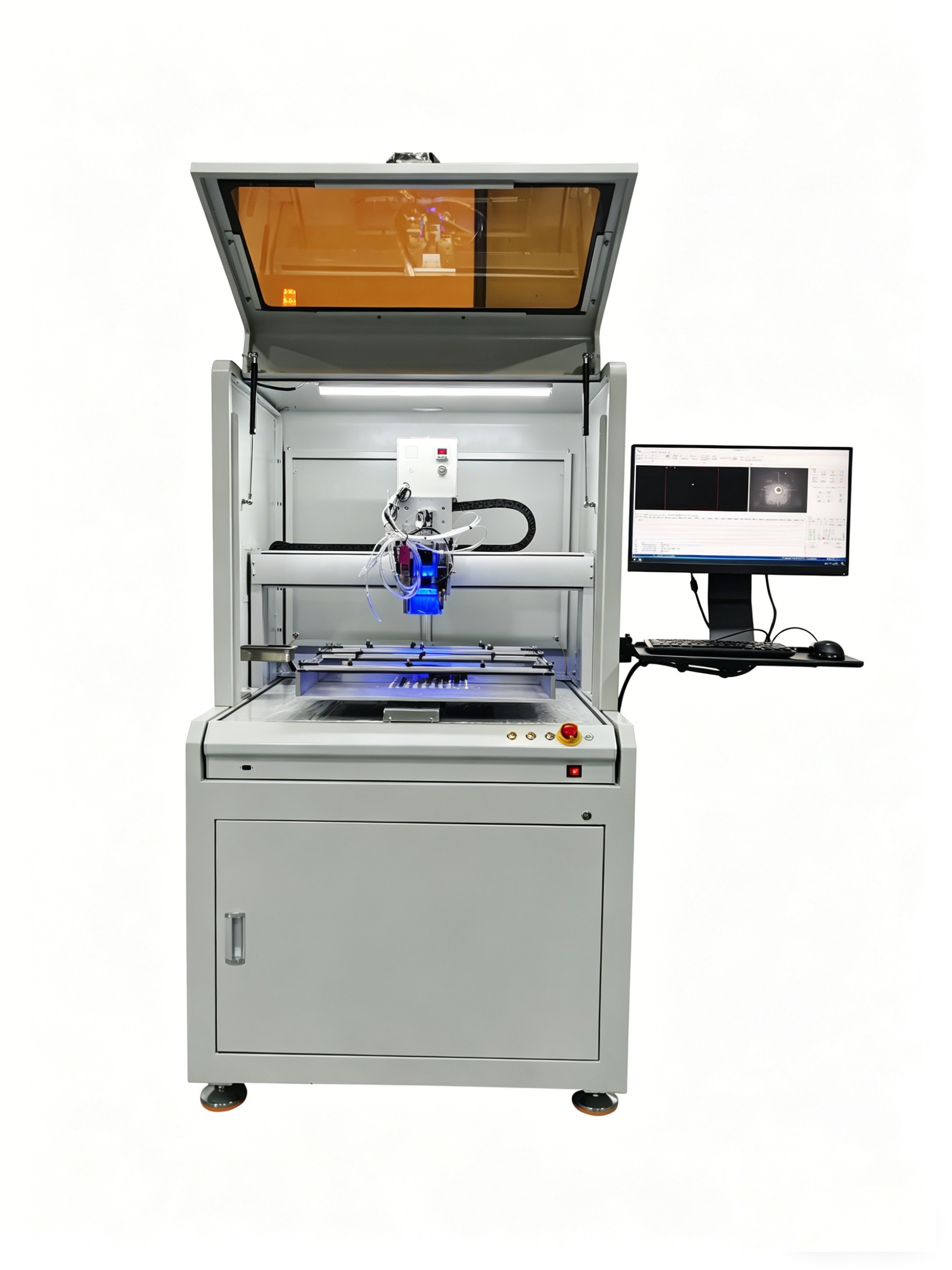

AC-T761-2 Floor-Standing Vision Conformal Coating Machine
AC-T761-2 Floor-Standing Vision Conformal Coating Machine: AI-Powered Precision for High-End Manufacturing
The AC-T761-2 Floor-Standing Vision Conformal Coating Machine sets a new standard for precision coating, integrating advanced AI vision technology with heavy-duty performance to meet the demands of high-end manufacturing industries like aerospace, medical devices, and industrial automation. As a direct manufacturer with a 2-year Alibaba store and exports to Southeast Asia, Europe, and America, we’ve engineered this model to address the need for ultra-precise, repeatable coating—critical for components where even microscopic inconsistencies can lead to catastrophic failures.
Specifications of the AC-T761-2 are designed for high-end performance. It features a maximum coating area of 500mm × 400mm (expandable to 600mm × 500mm via customization), capable of handling large PCB assemblies, medical device housings, and industrial control panels. The machine weighs 280kg, with a robust steel frame and anti-vibration feet that minimize operational noise (below 65dB) and ensure stability during high-speed operation. Its overall dimensions (1200mm × 1000mm × 2000mm) include a built-in vision system housing and a dust-proof enclosure, maintaining a clean coating environment that complies with ISO 14644-1 Class 8 standards for cleanrooms.
The core selling point of the AC-T761-2 is its advanced vision-guided coating system. Powered by AI algorithms, the machine’s high-resolution camera (5MP) and 3D laser scanner can identify workpiece features with a precision of ±0.005mm, automatically correcting for minor workpiece misalignment (up to ±2mm) and adapting to surface irregularities. This eliminates the need for manual fixturing adjustments, reducing setup time by 50% and ensuring consistent coating quality across thousands of workpieces. The vision system also supports “selective coating”—automatically avoiding areas like connectors, heat sinks, and test points that should not be coated—reducing material waste by up to 20% compared to full-area coating.

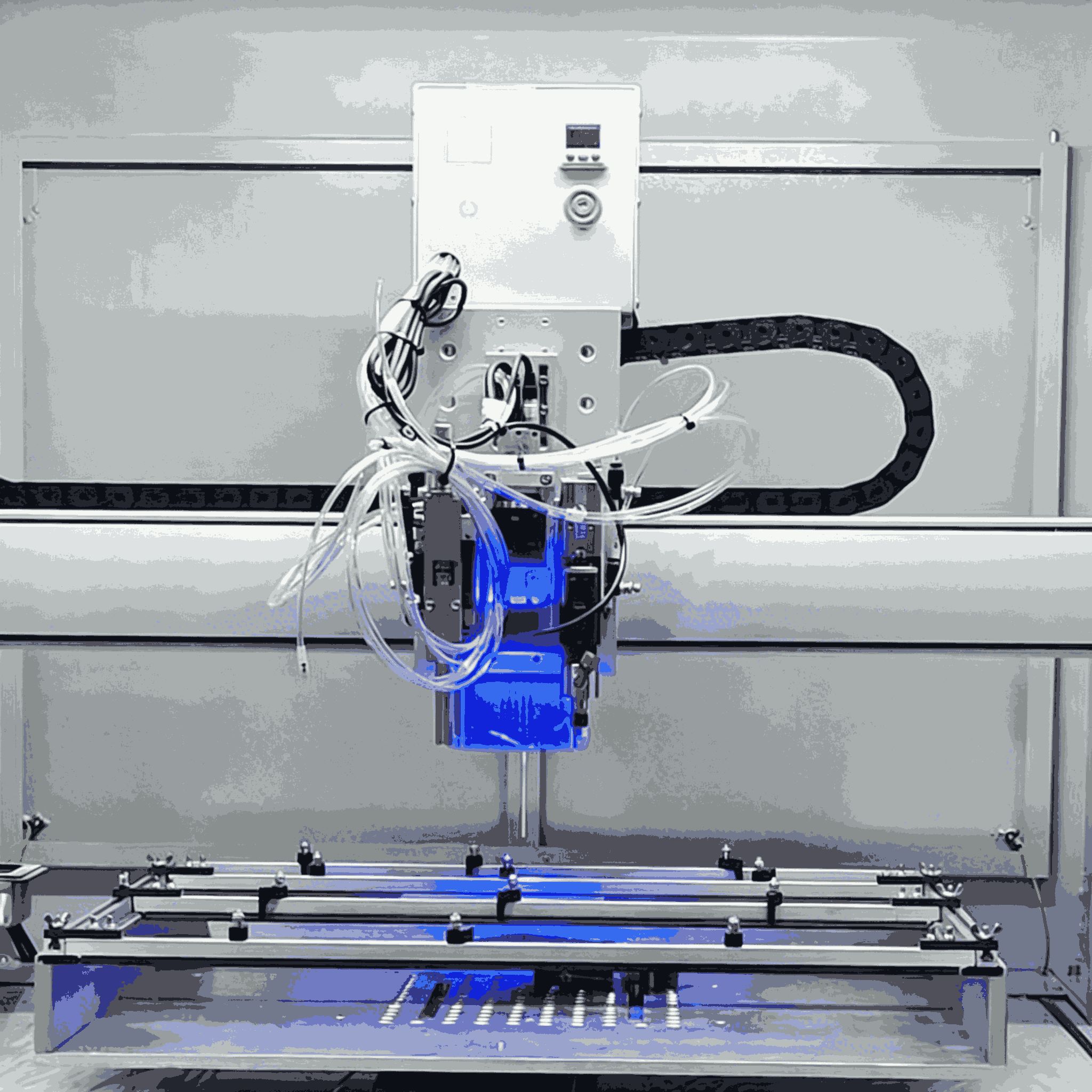

Another key advantage is its process flexibility and material compatibility. The AL-T761-2 supports a wide range of coating materials, including high-temperature-resistant ceramics, biocompatible coatings (for medical devices), and conductive inks, with a viscosity range of 50-20,000 cP. The coating head features a piezoelectric dispensing system that delivers precise material flow control (0.001ml per shot), enabling ultra-thin coating (3-10μm) for delicate components like MEMS sensors and thick coating (50-200μm) for heavy-duty protection. The machine also includes a material degassing module, removing air bubbles from coating fluids to prevent pinholes in the final coating layer.

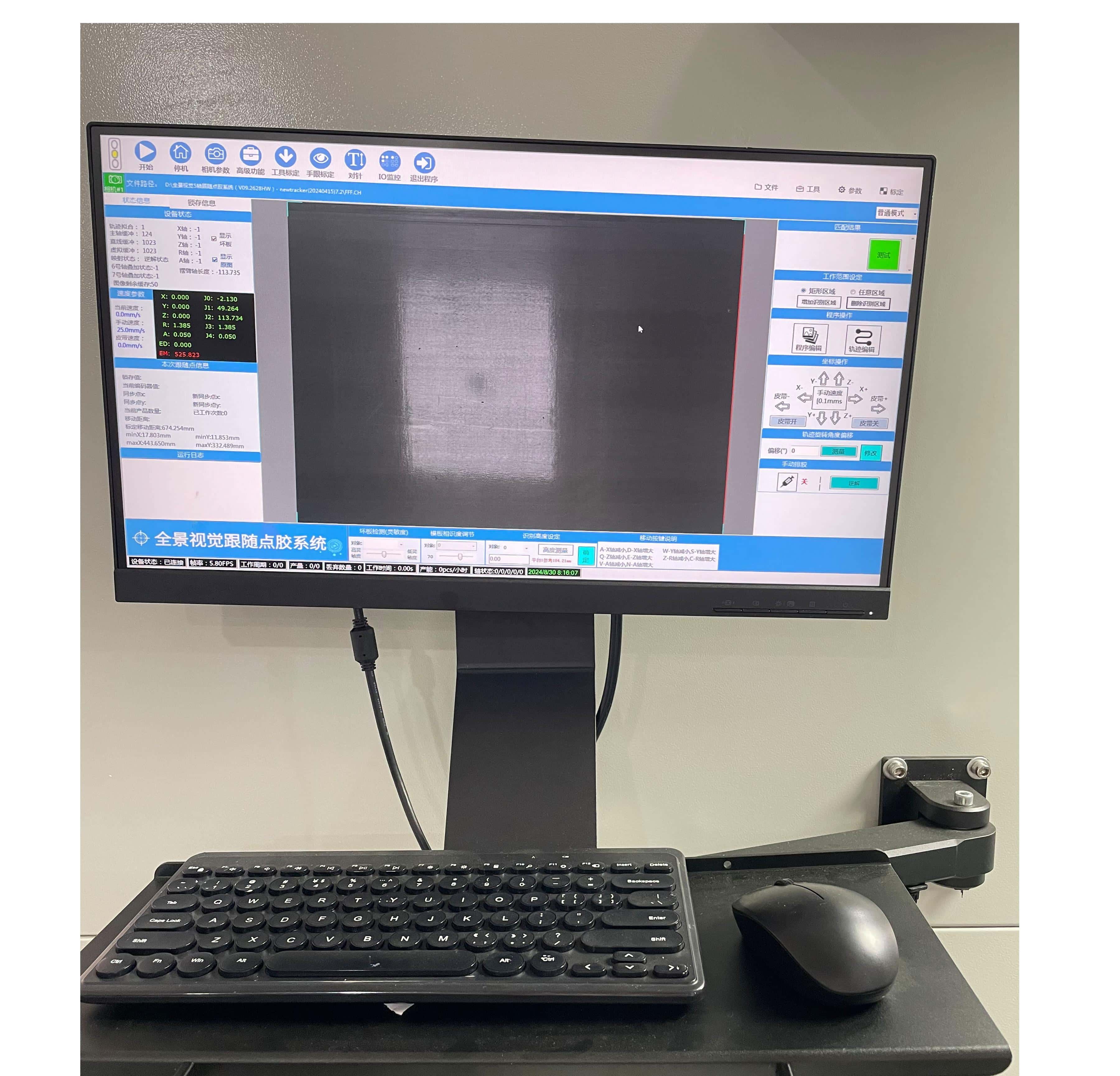

In terms of operational efficiency, the AL-T761-2 offers several industry-leading features. Its AI system can learn and store up to 200 workpiece profiles, with automatic recipe adjustment based on material type and environmental conditions (temperature, humidity). The machine’s touchscreen interface includes a real-time coating simulation function, allowing operators to preview the coating path before production—minimizing trial runs and material waste. For integration into smart factories, it supports Industry 4.0 protocols (Modbus, OPC UA), enabling remote monitoring, data collection, and predictive maintenance.
As a factory that prioritizes customization, we can tailor the AL-T761-2 to specific high-end applications—whether adding a Class 7 cleanroom enclosure for aerospace components, integrating a nitrogen purge system for oxygen-sensitive coatings, or modifying the vision system to handle transparent workpieces. Our 2-year Alibaba store provides detailed technical specifications, certification documents (CE, FDA, ISO 9001), and customer case studies, ensuring global customers have confidence in the machine’s performance.
Backed by a 24-month warranty and a dedicated team of application engineers, the AL-T761-2 Floor-Standing Vision Conformal Coating Machine is more than just equipment—it’s a strategic investment for businesses operating in high-stakes industries. Whether you’re a European medical device manufacturer needing biocompatible coating or a Southeast Asian aerospace supplier requiring ultra-precise PCB protection, this model delivers the precision, reliability, and intelligence to meet the most demanding production standards.
