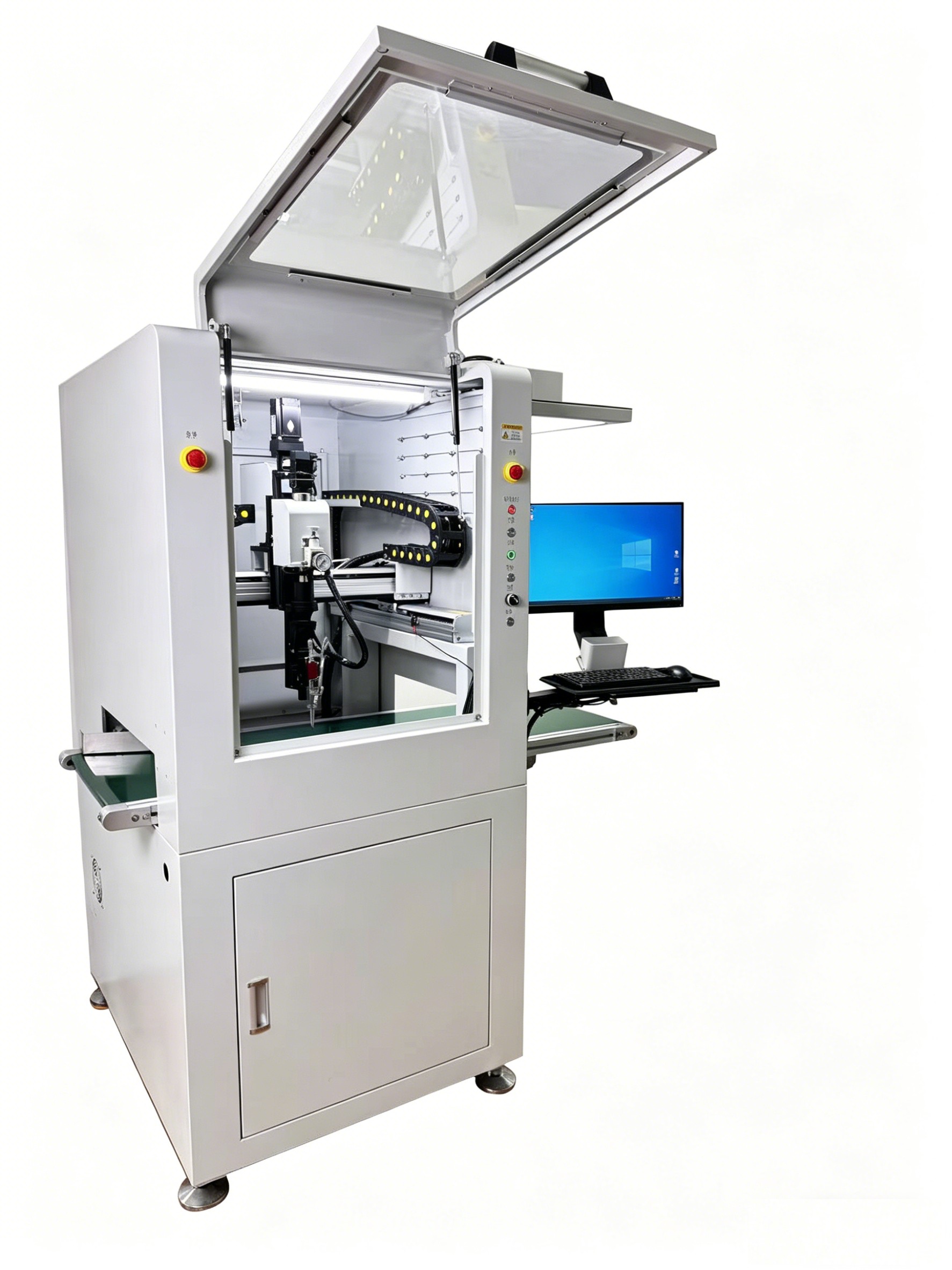

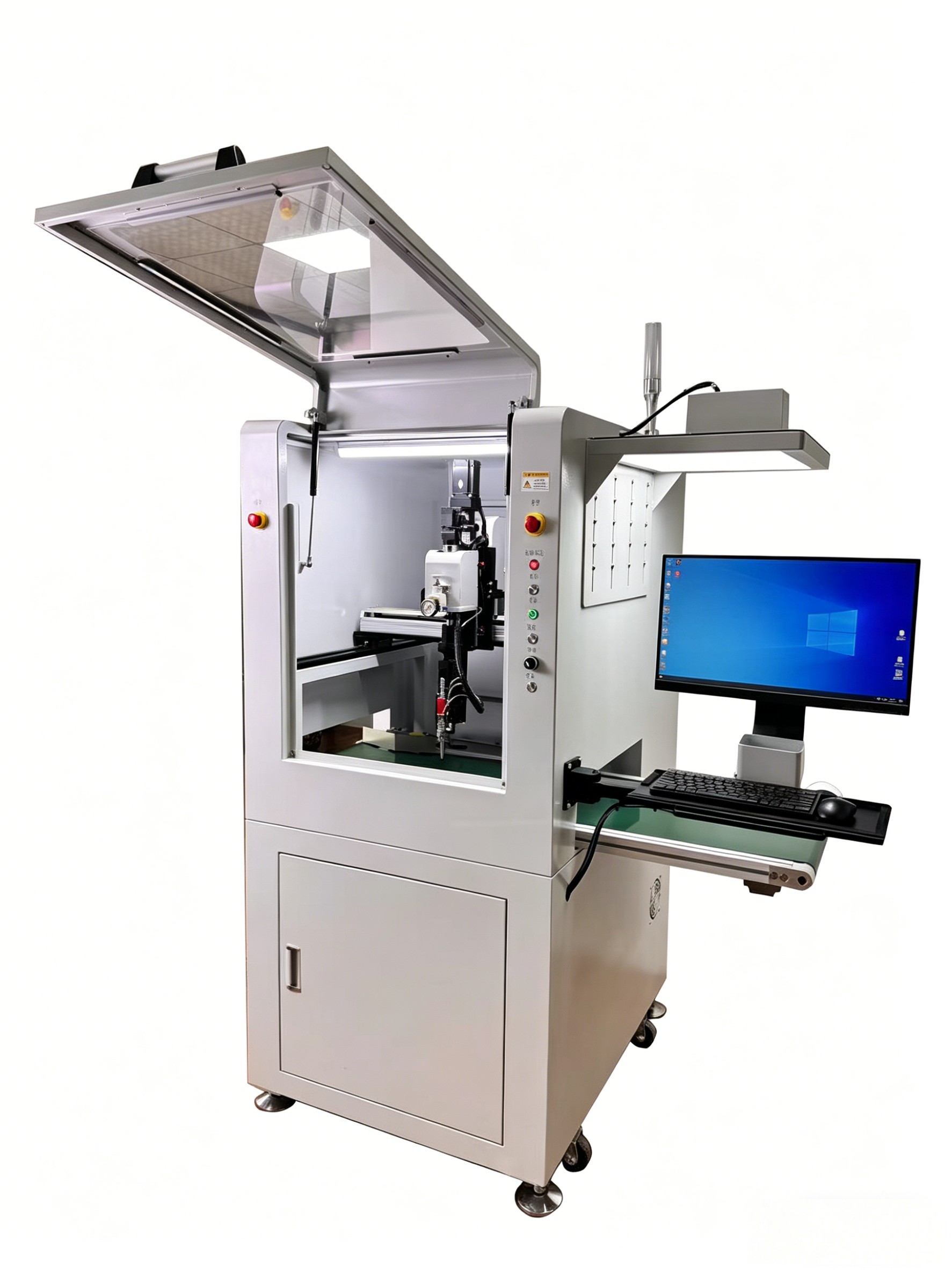

AC-M30 Follow-Up Conformal Coating Machine
AC-M30 Follow-Up Conformal Coating Machine: Flexible Solution for Irregularly Shaped Workpieces
The AC-M30 Follow-Up Conformal Coating Machine redefines flexibility in coating applications, specifically designed to handle irregularly shaped workpieces—from curved electronic components to complex mechanical parts—that challenge conventional fixed-path coating machines. As a direct manufacturer with a 2-year Alibaba store and exports to Southeast Asia, Europe, and America, we’ve engineered this model to address the unique needs of industries like consumer electronics, medical devices, and automotive components, where non-standard workpiece shapes demand adaptive coating solutions.
Specifications of the AL-M30 are tailored for versatility. While specific coating area dimensions are optimized for follow-up (dynamic) operation, it typically handles workpieces up to 300mm in maximum length and 200mm in width—covering a wide range of small to medium-sized irregular components. The machine weighs approximately 120kg (estimated based on follow-up coating machine industry standards), balancing portability with stability, and features a compact footprint (L750mm × W650mm × H1100mm) that fits into both standalone workstations and integrated production lines. The worktable is equipped with a high-precision vision system and adjustable fixtures, capable of securing workpieces of varying shapes and weights (up to 10kg) without damaging delicate surfaces.

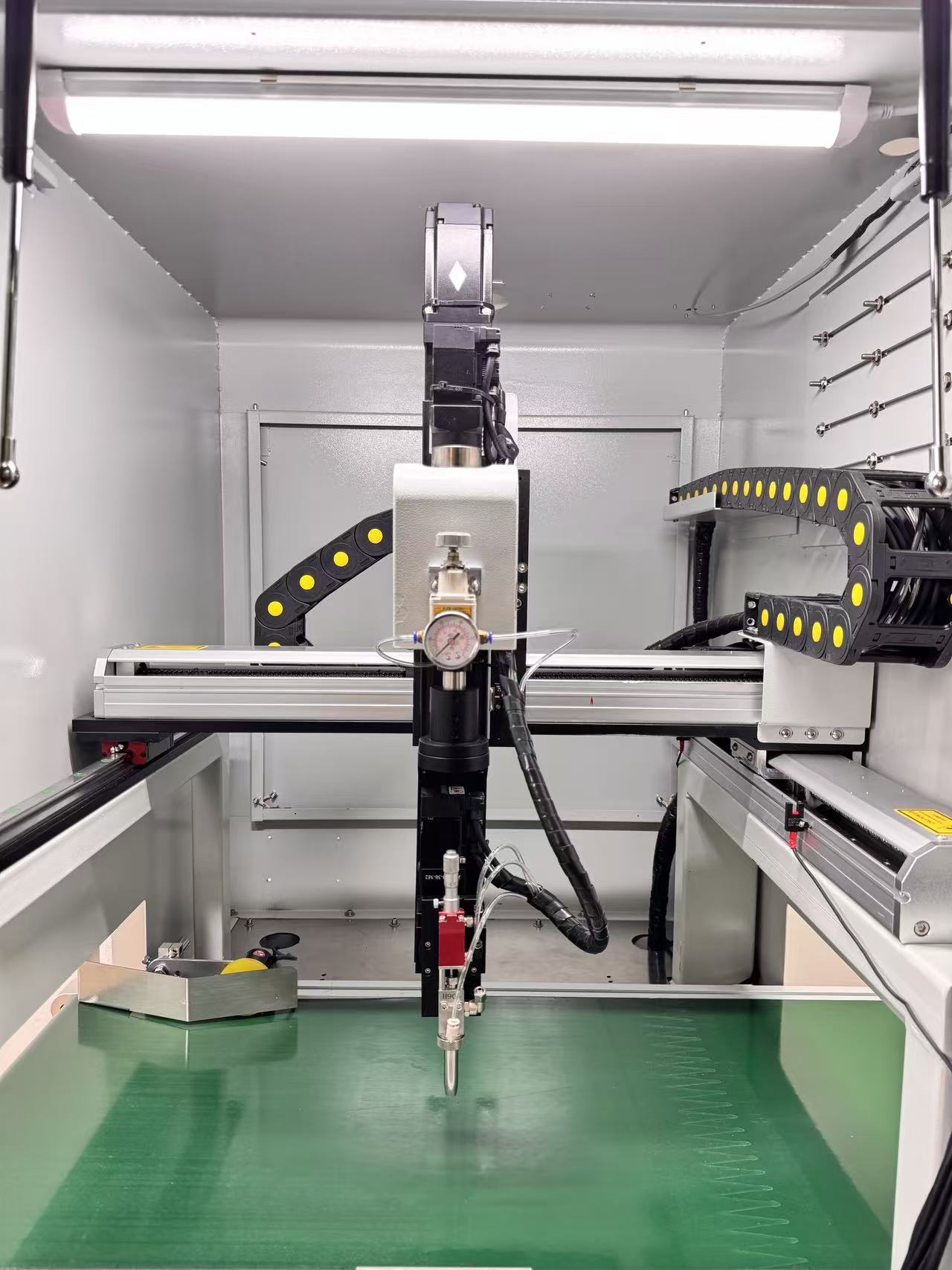

Core selling points of the AL-M30 focus on its follow-up technology, precision, and user adaptability. At the heart of the machine is its dynamic follow-up system, which uses a combination of vision recognition and force feedback to track the contours of irregular workpieces in real time. This allows the coating head to maintain a constant distance (0.5-5mm adjustable) from the workpiece surface, ensuring uniform coating thickness (5-50μm) even on curved or textured surfaces—something fixed-path machines cannot achieve.
The system supports both 2D and 3D workpiece scanning, with a scanning accuracy of ±0.02mm, making it suitable for complex components like medical device sensors and automotive dashboard electronics.

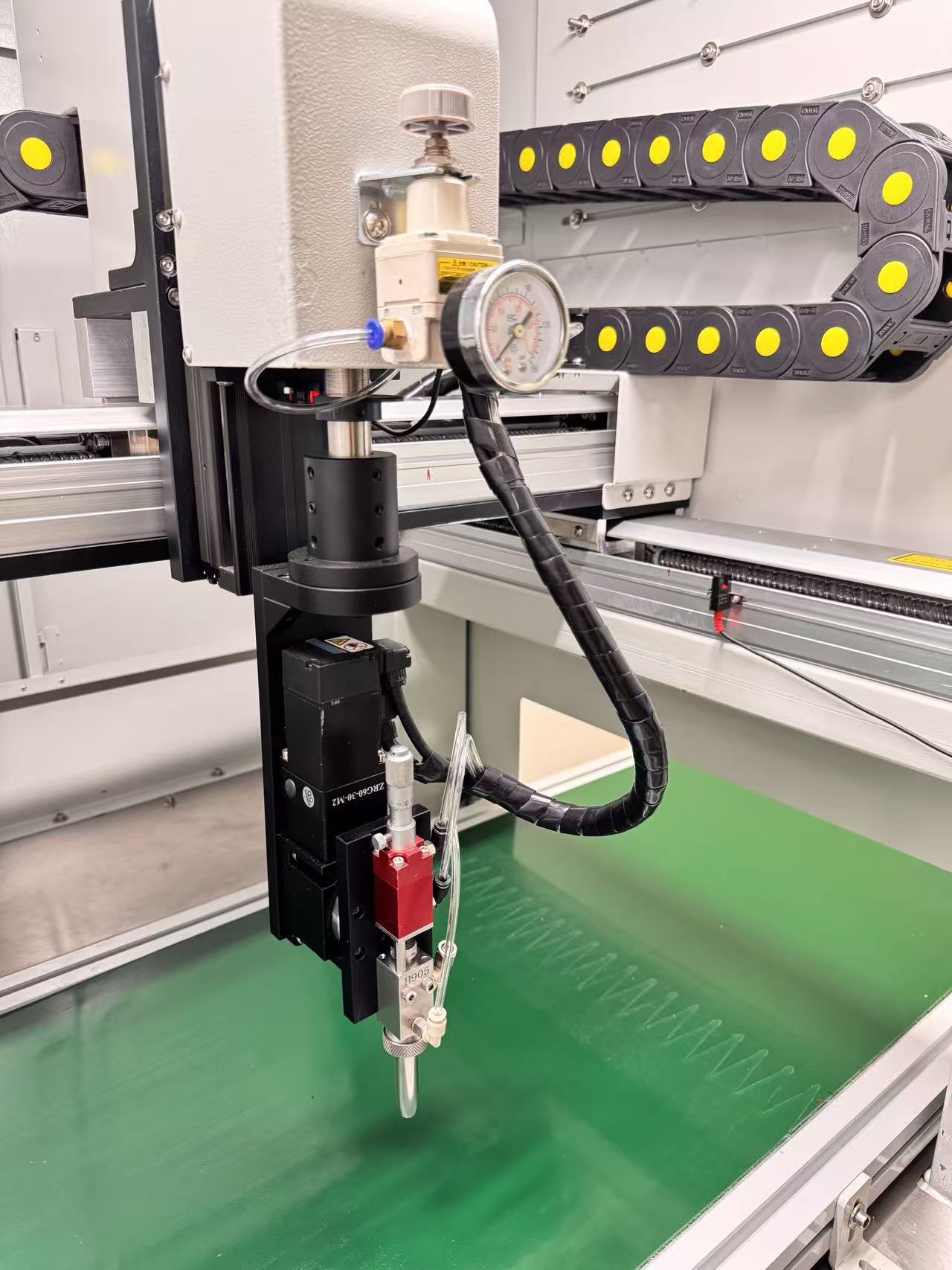

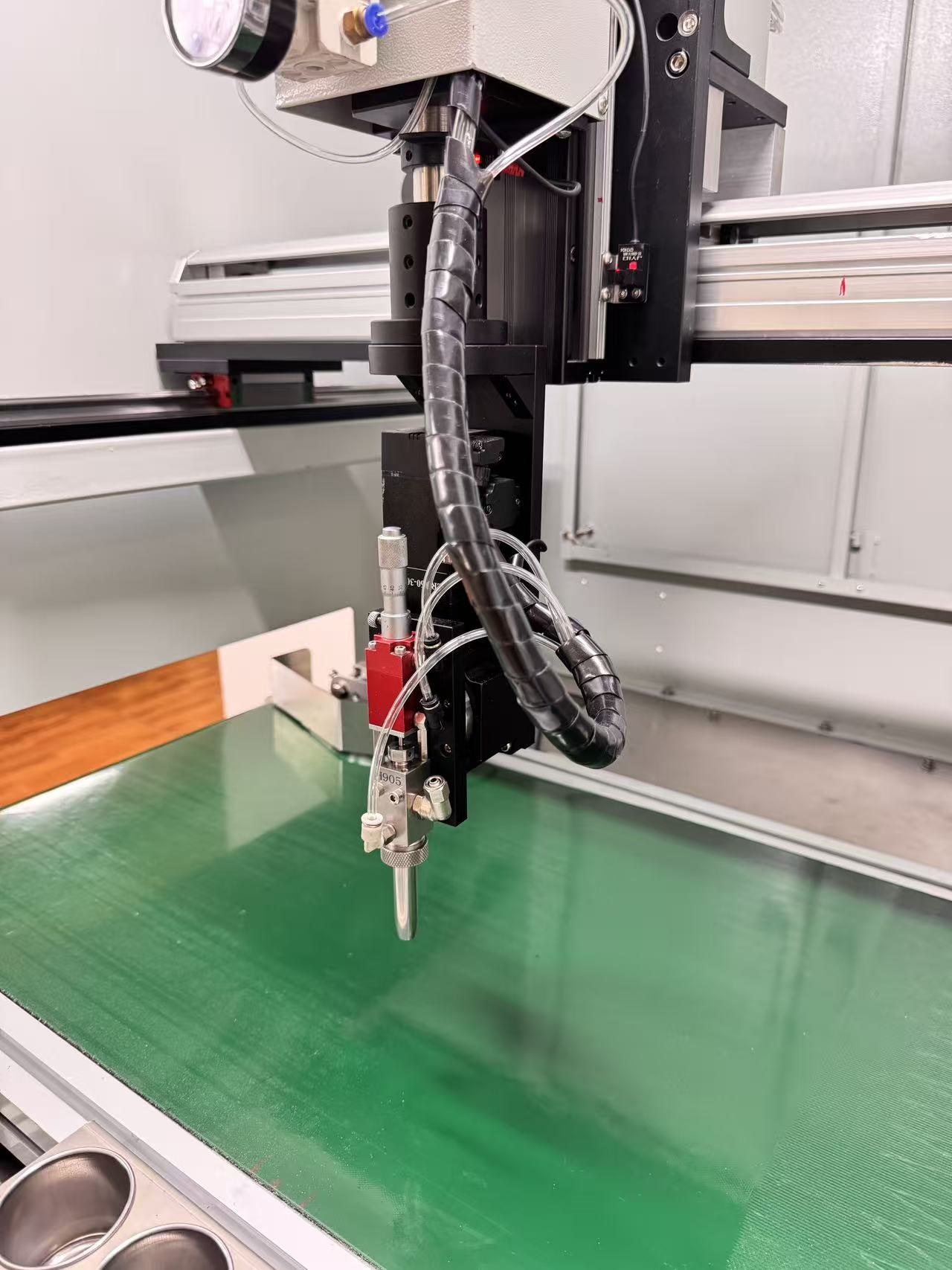

Another key feature is its material compatibility. The AL-M30 works with a wide range of coating fluids, including thin conformal coatings, thick adhesives, and conductive pastes, with a viscosity range of 100-50,000 cP. The coating head is interchangeable (spray, needle, or brush tips), allowing users to switch between application methods in less than 5 minutes—ideal for workshops handling diverse product lines. The machine also includes a material temperature control module, which maintains fluid temperature between 20°C and 40°C to ensure consistent viscosity, critical for achieving uniform coating results.

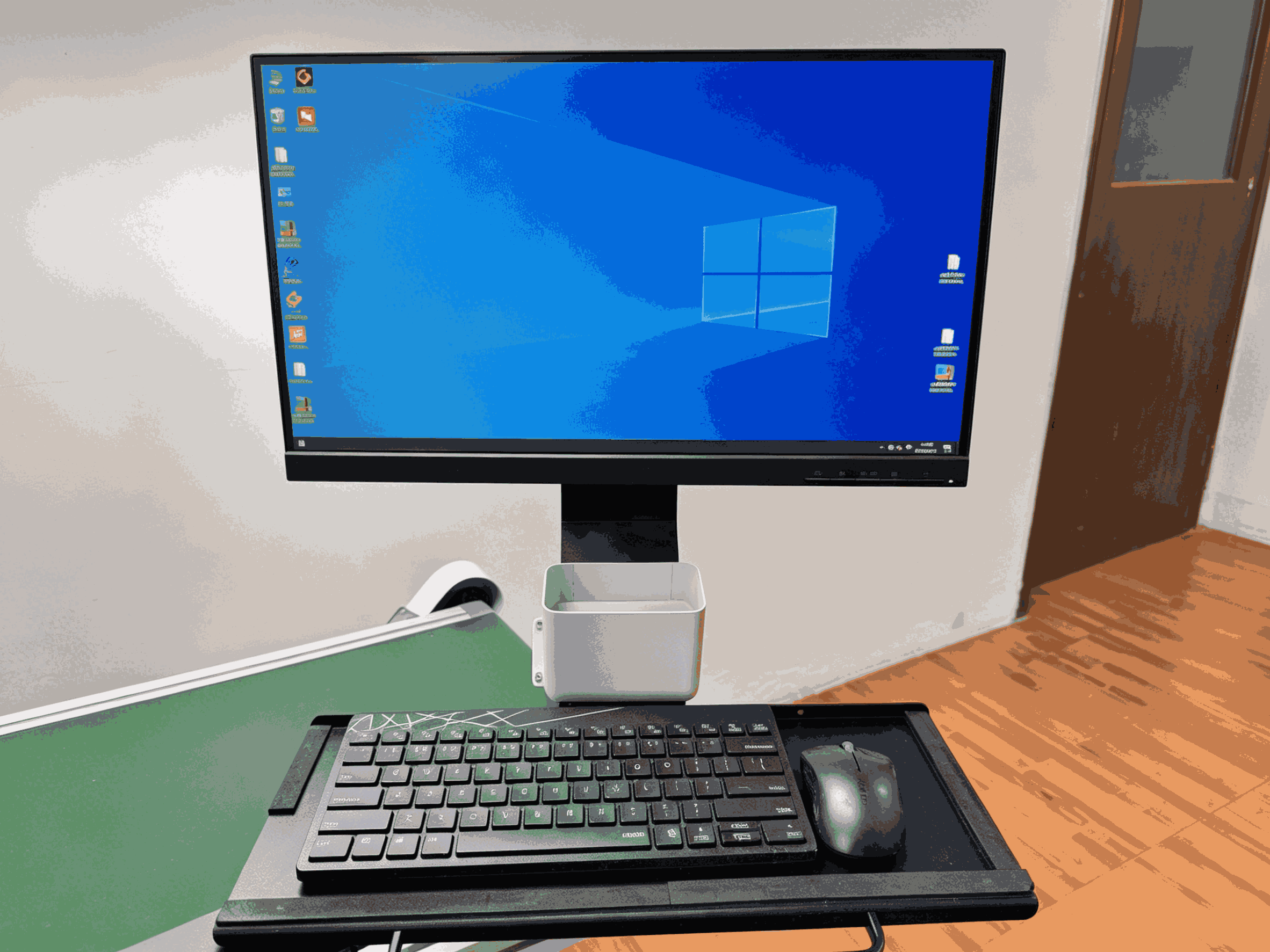

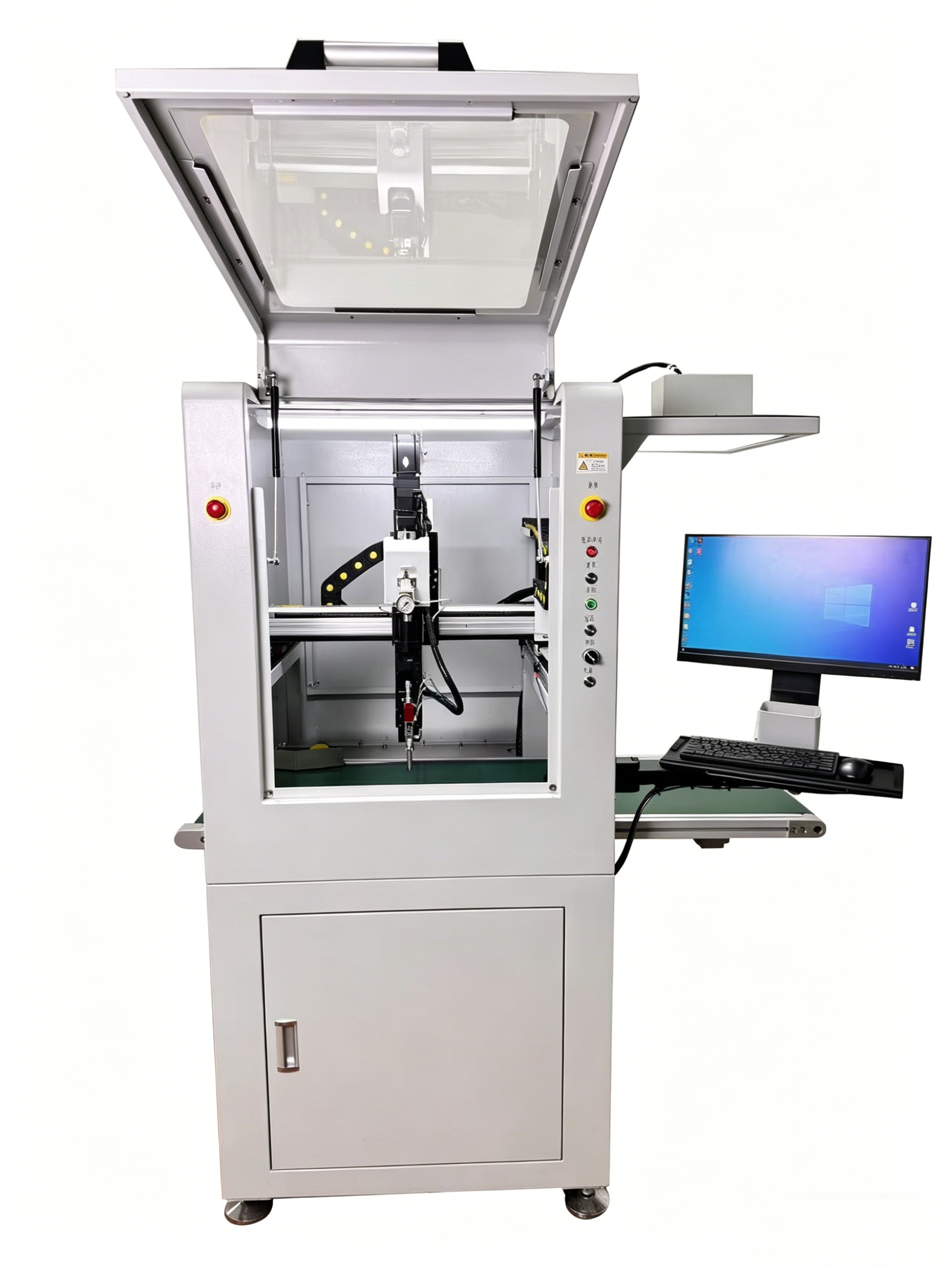

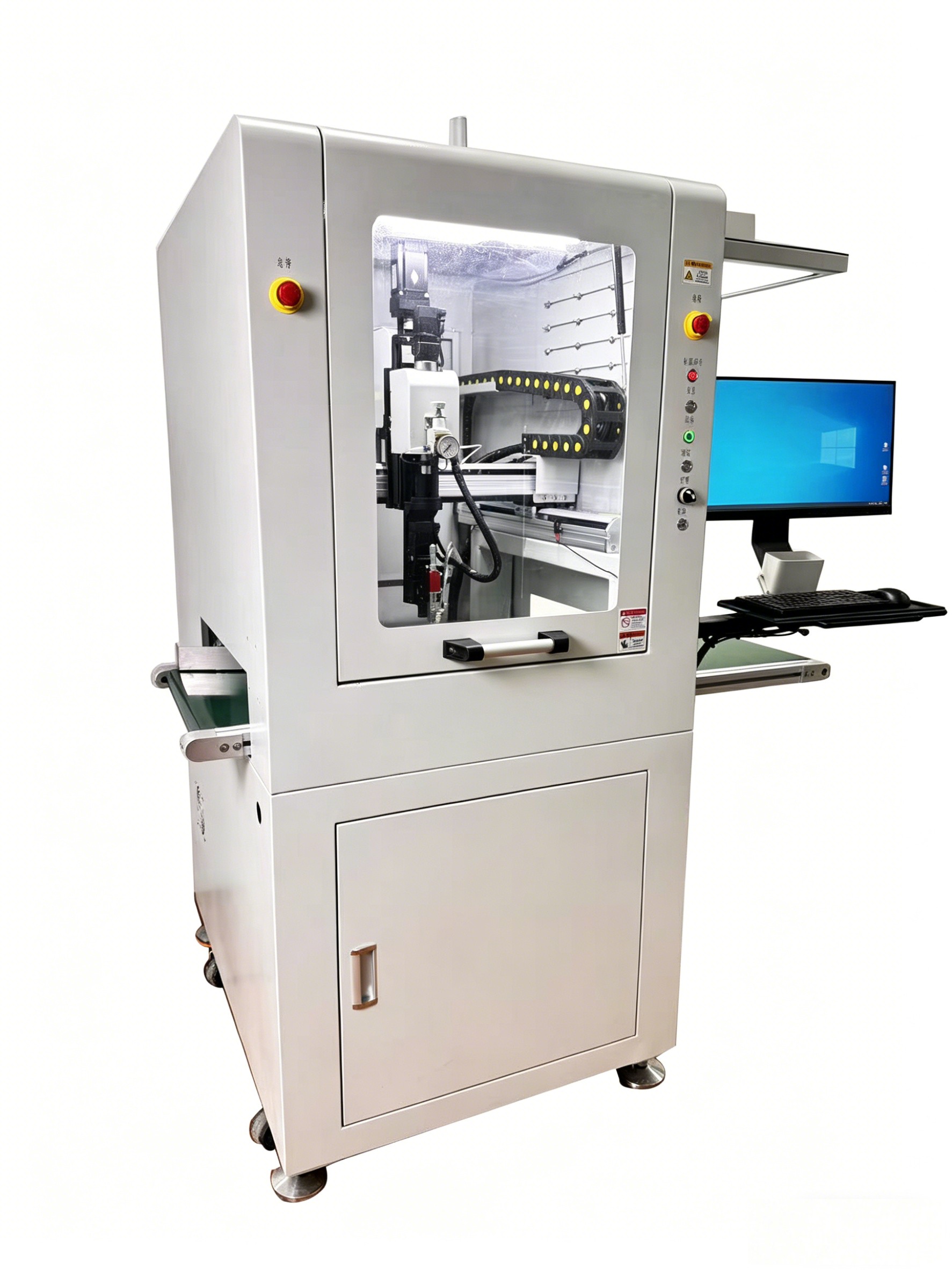

In terms of operational efficiency, the AL-M30 offers several advantages over conventional machines. Its vision system can store up to 50 workpiece profiles, enabling quick changeovers between different products—reducing setup time by 40% compared to manual programming. The intuitive touchscreen interface allows operators to adjust follow-up speed (10-200mm/s), coating thickness, and material flow rate with real-time previews, minimizing trial runs and material waste. For safety, the machine includes a transparent safety cover with interlock protection, preventing operator exposure to coating materials and complying with CE and FDA standards for medical device manufacturing.
As a factory that supports full customization, we can tailor the AL-M30 to specific customer needs—whether modifying the vision system to handle larger workpieces, adapting the power supply to 110V for North American markets, or integrating a UV curing module for fast-drying materials. Our 2-year Alibaba store ensures transparent pricing and reliable after-sales support, including free technical training and a 12-month warranty, with replacement parts shipped to global locations within 3-5 business days.
Ideal for applications like curved PCB coating, medical device protection, and automotive component sealing, the AL-M30 Follow-Up Conformal Coating Machine combines flexibility and precision to solve the most challenging coating problems. It’s a testament to our commitment to innovation, designed to help global customers stay competitive in industries where workpiece complexity is constantly increasing.
