Large-Area, Uniform Surface UV Curing Light for Flat Panel & Industrial Coatings
Applications:
Key Features & Benefits:
IR Cut Filter: Limits substrate temperature rise to <15°C for heat-sensitive materials.
Dual-Cure Mode: Combines UV + visible light for shadow area penetration.
Safety Compliance: EN 62471 certified with emergency light cutoff.
Industry Applications:
LCD Bezel Bonding: Cures 65" panels in 8 seconds with 100% shadow-free coverage.
Industrial Coatings: Fully cross-links powder adhesives on metal substrates.
Light Source: High-intensity LED array (365nm/385nm/405nm selectable) or mercury lamp (250-420nm broadband)
Irradiance: 50-500 mW/cm² adjustable (±3% uniformity)
Curing Area: Standard 400×300mm to 1200×800mm (custom sizes available)
Working Distance: 50-300mm adjustable with collimating optics
Cooling System: Active air/water cooling maintains <40°C surface temperature
Power Supply: 220V/380V AC, 2-10kW power consumption
Control Interface: Touchscreen with irradiance mapping and dosage control (0-5000mJ/cm²)
Frame Construction: Anodized aluminum with IP54 protection rating
Functional Description:
This large-area UV curing system delivers uniform irradiation for high-throughput adhesive curing in electronics assembly, display manufacturing and industrial coating applications.
Omnidirectional Curing - Multi-angle reflector design eliminates shadow areas for complex 3D geometries
Intelligent Control - Built-in radiometer with auto-compensation maintains consistent dosage despite lamp aging
Material Compatibility - Supports all major UV adhesives (epoxy, acrylic, silicone) with wavelength optimization
Key Applications:
Touch panel lamination (OCA curing)
Automotive light assembly (lens bonding)
PCB conformal coating
Technical Advantages:
50% energy savings vs traditional mercury systems
Instant on/off capability for JIT production
Modular design allows multiple units for conveyor systems
Why It Stands Out:
Our system doubles production speed versus IR ovens and includes automated intensity mapping for process validation.
Product parameters
Model |
YF100\200|300\400*100-F (length can be customized) |
Power |
300\600\900\1200W |
Optical power |
1.5w/cm2 |
Chip |
SA |
Wavelength |
365nm (optional wavelength 365-405nm) |
Control |
touch screen or knob |
Channel |
1-4 channels optional |
Mode |
automatic \ manual \ step mode (touch screen to have this function) |
Signal |
pulse \ level signal (touch screen only have this function) |
Lifespan |
20000H |
Energy Adjustment |
0-100% |

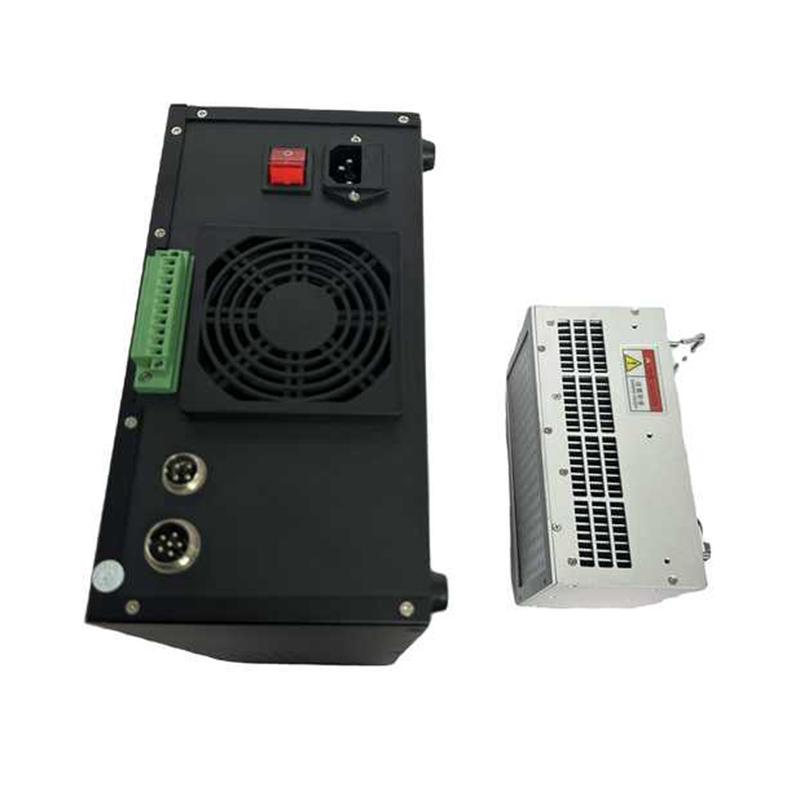

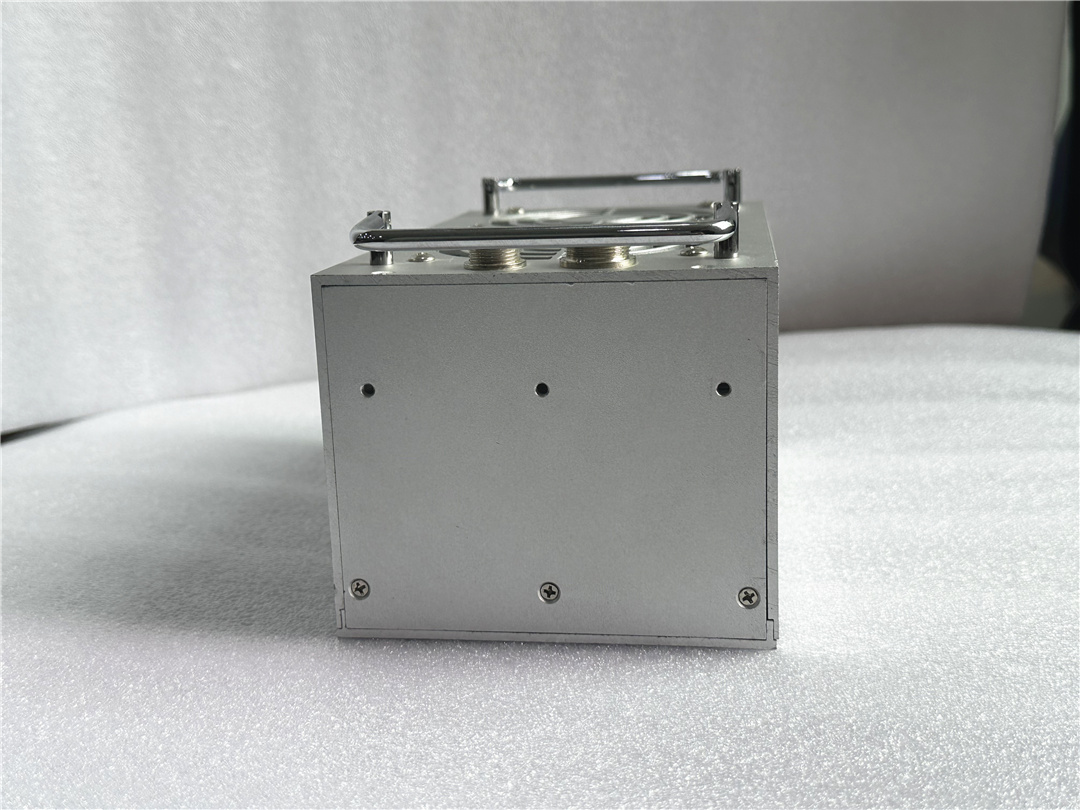

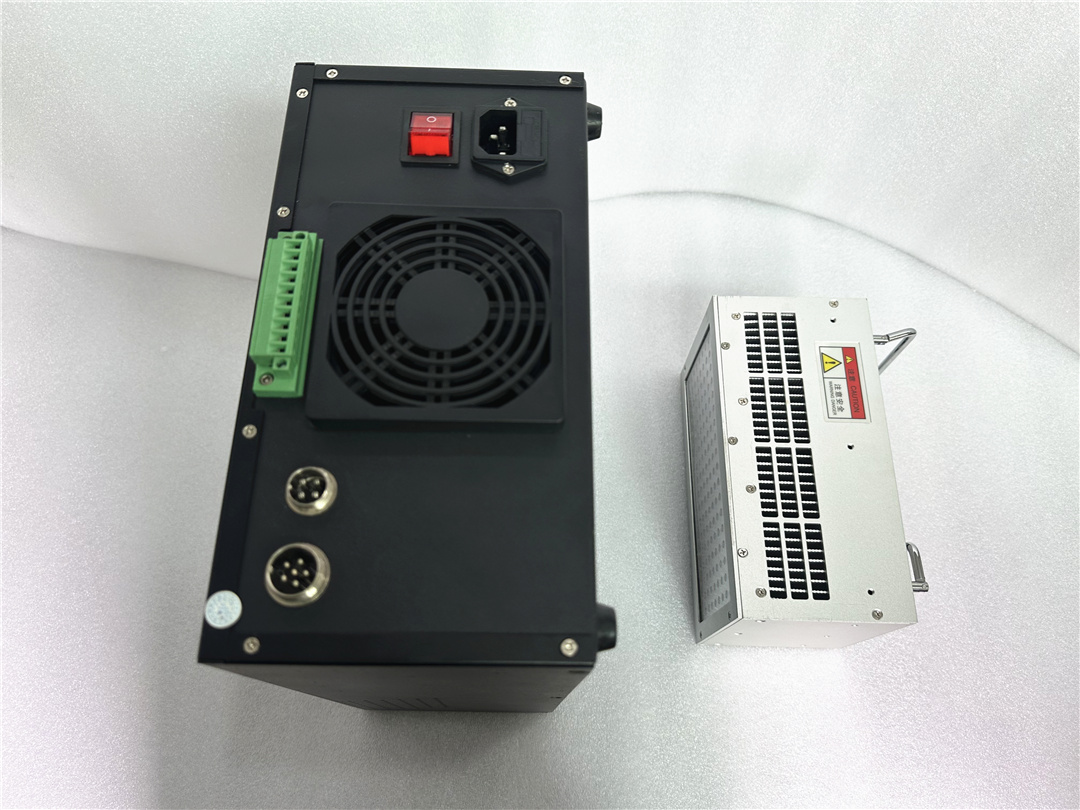

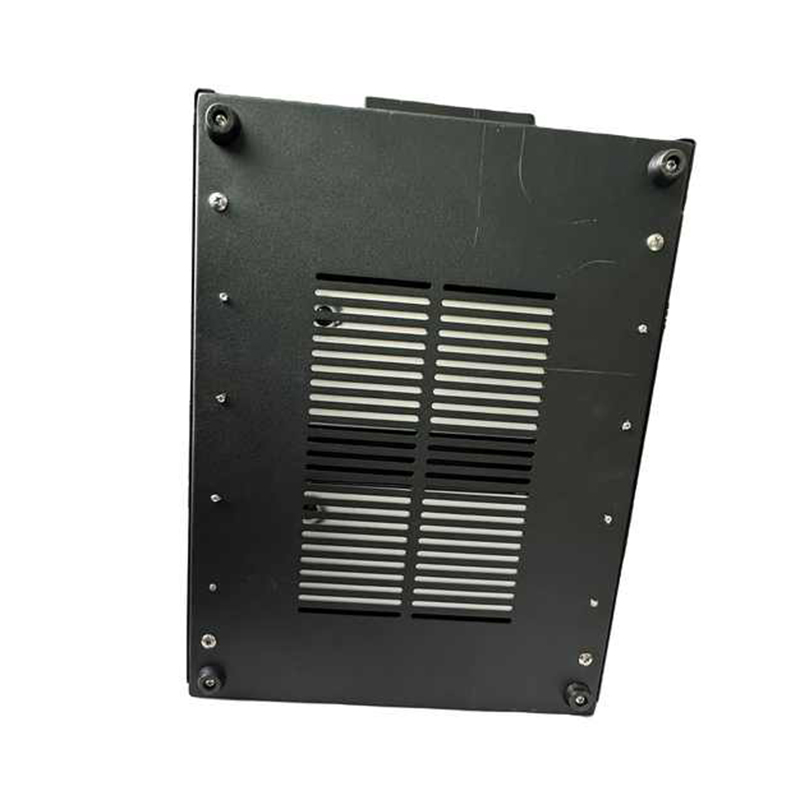

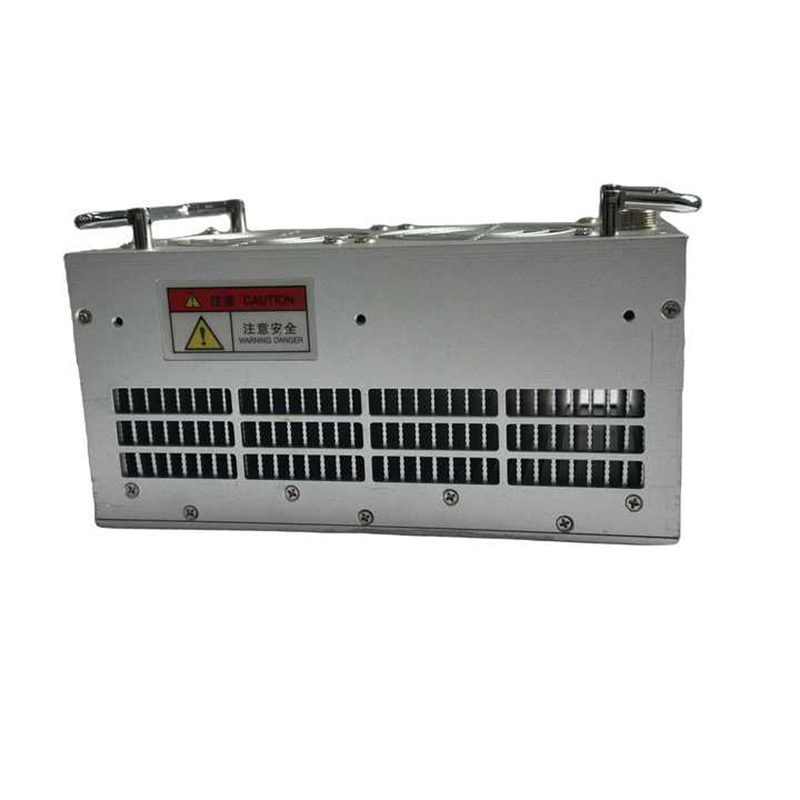

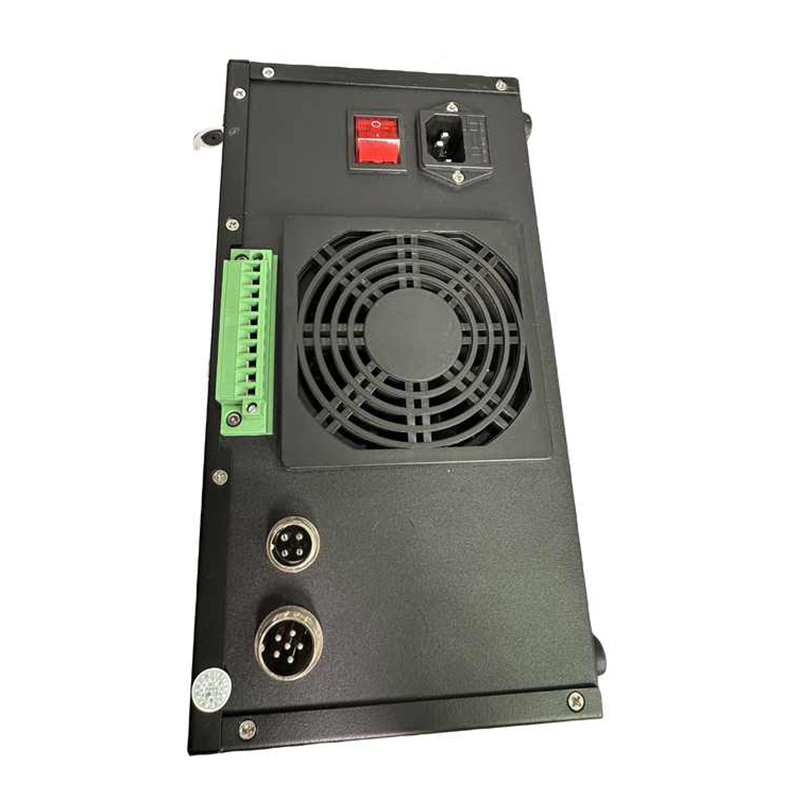

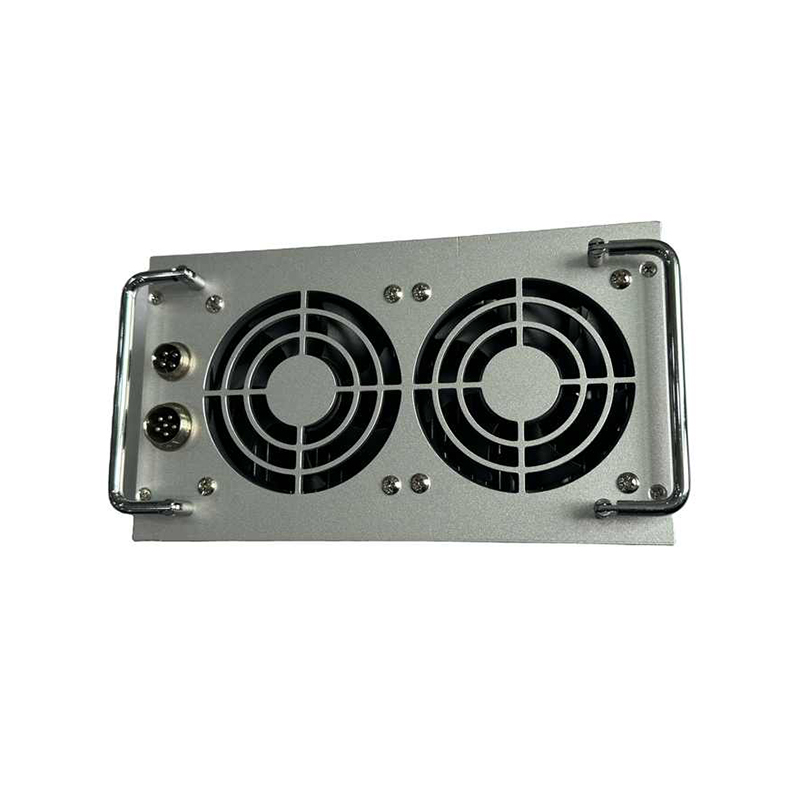

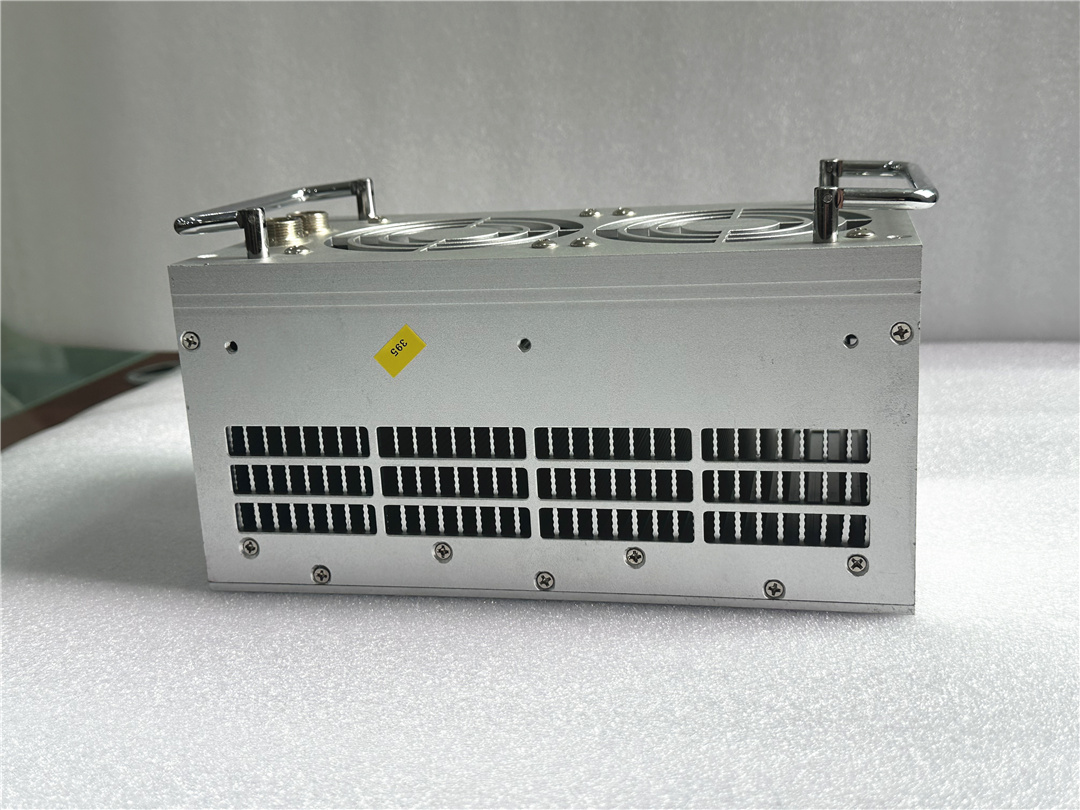

Product Details
