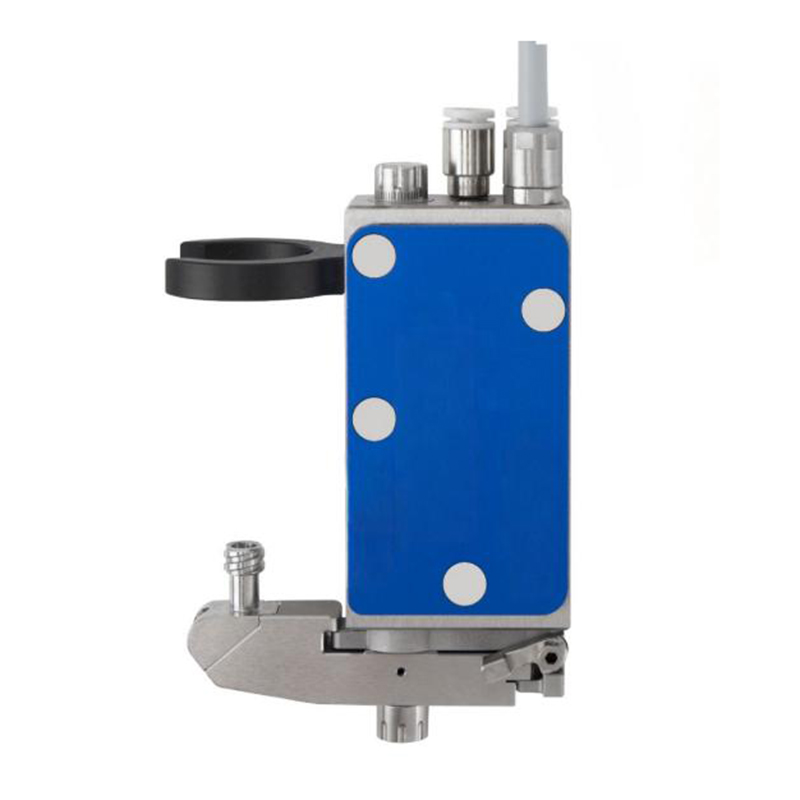

1800S Piezo-electric valve for UV adhesive

Voltage Range: 60–150 V (adjustable for precision control).

Response Time: <0.1 ms, enabling ultra-fast on/off switching.

Flow Rate: 0.001–10 mL/min (programmable for micro to macro dispensing).

Operating Pressure: 0.1–0.7 MPa, compatible with low-viscosity to high-viscosity fluids (1–1,000,000 cP).

Nozzle Sizes: 0.1–2.0 mm (interchangeable for diverse dot sizes).

Temperature Range: -20°C to 80°C (suitable for harsh environments).

Key Features:

High Precision: Sub-micron accuracy, ideal for micro-dot dispensing.

Non-Contact Operation: Prevents contamination, perfect for sensitive substrates.

Long Lifespan: >500 million cycles due to piezoelectric ceramic actuation (wear-free).

Adaptive Control: Supports analog/digital signals for dynamic pressure and flow adjustment.

Applications:

Electronics: Solder paste, underfill, and conformal coating for PCBs.

Medical: Bio-adhesive dispensing for catheters and sensors.

Automotive: Sealants, lubricants, and LED encapsulation.

Consumer Goods: Precision bonding in smartphone/components.

Competitive Advantages:

Speed & Accuracy: Outperforms solenoid valves in high-speed production (e.g., 1,000+ dots/sec).

Versatility: Handles fluids from solvents to thick epoxies without hardware changes.

Energy-Efficient: Low power consumption (<5W) vs. traditional valves.

Smart Integration: Compatible with PLCs and vision systems for Industry 4.0 automation.

Ideal for industries demanding repeatability, miniaturization, and zero downtime.

1800S piezoelectric valve is the third generation of piezoelectric injection system independently developed by our company, this product maintains excellent fluid injection performance based on the stability, consistency, and economy to further enhance the comprehensive service life of the product, and at the same time reduces the use of consumables to reduce the cost of maintenance for customers.

Suitable for fluids including but not limited to epoxy resin, UV adhesive, hot melt adhesive, red glue, silicone, ink, silver paste, solvent, flux.

Apply in Underfill, Hot Melt, Encapsulatin and Corner/Edge bonding,flux,sliver paste

Integrated nozzle holder design for quick disassembly/maintenance/upkeep.

Adjustable temperature control structure is equipped as standard, and the nozzle can be heated up to 150℃.

Quick nozzle calibration function

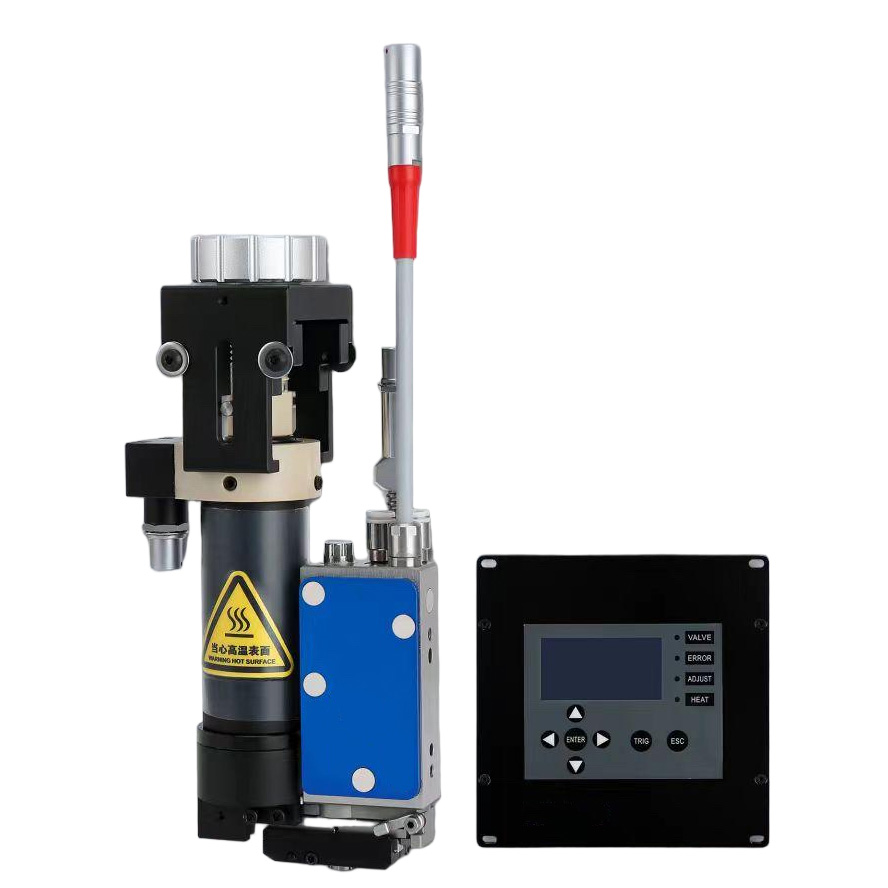

Easy-to-learn operation with 1600 piezo valve controller
