High-Speed Line UV Curing Light for Mass Production
Applications:
Key Features & Benefits:
Modular Design: Stackable units for multi-stage curing (pre-cure/full-cure/post-cure).
Dynamic Power Adjustment: Auto-compensates for conveyor speed variations.
Low-Ozone Operation: Eco-friendly UV-LED technology meets RoHS/REACH standards.
Smart Diagnostics: Predictive maintenance alerts via IoT-enabled monitoring.
Industry Applications:
Touch Panel Lamination: Uniform curing of optically clear adhesives (OCA) with zero bubbles.
Automotive Sealants: 3-second curing for headlight and windshield bonding.
Flexible Electronics: Low-heat output prevents PET film warping.
Competitive Edge:
Our system cuts energy costs by 50% versus mercury-based systems and features instant on/off for JIT production. The stainless steel frame withstands 150°C ambient temperatures, ideal for paint shop integrations.
Light Source: High-power LED array (365nm/385nm/405nm) or mercury lamp (320-420nm)
Irradiance: 80-300 mW/cm² adjustable (±5% along length)

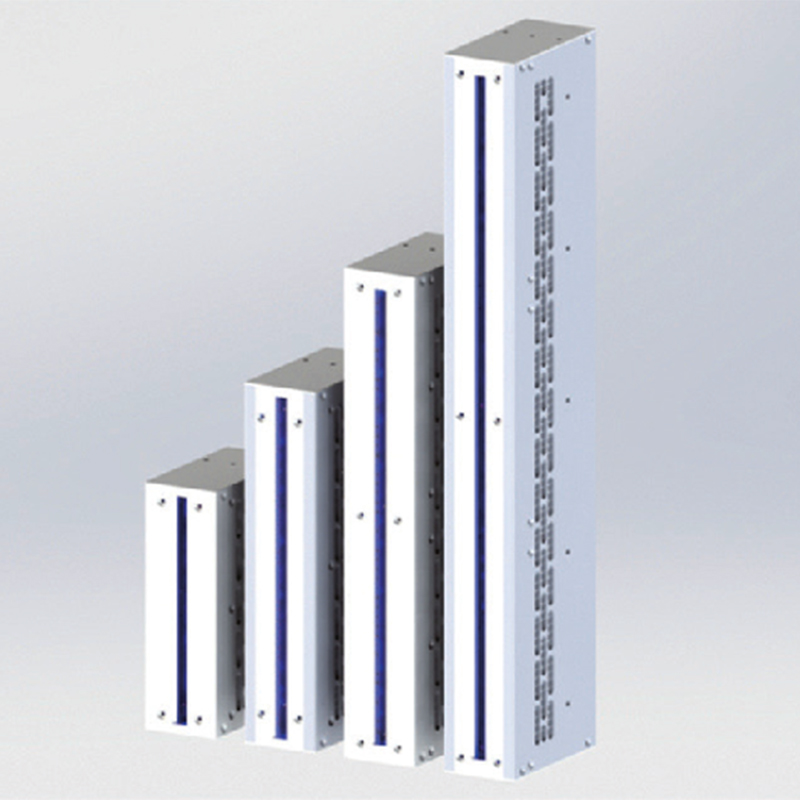

Effective Length: 100-1000mm (modular extension available)
Beam Width: 10-50mm adjustable via optical lenses
Cooling System: Forced air cooling with <45°C surface temperature
Power Supply: 220V AC, 1.5-6kW consumption

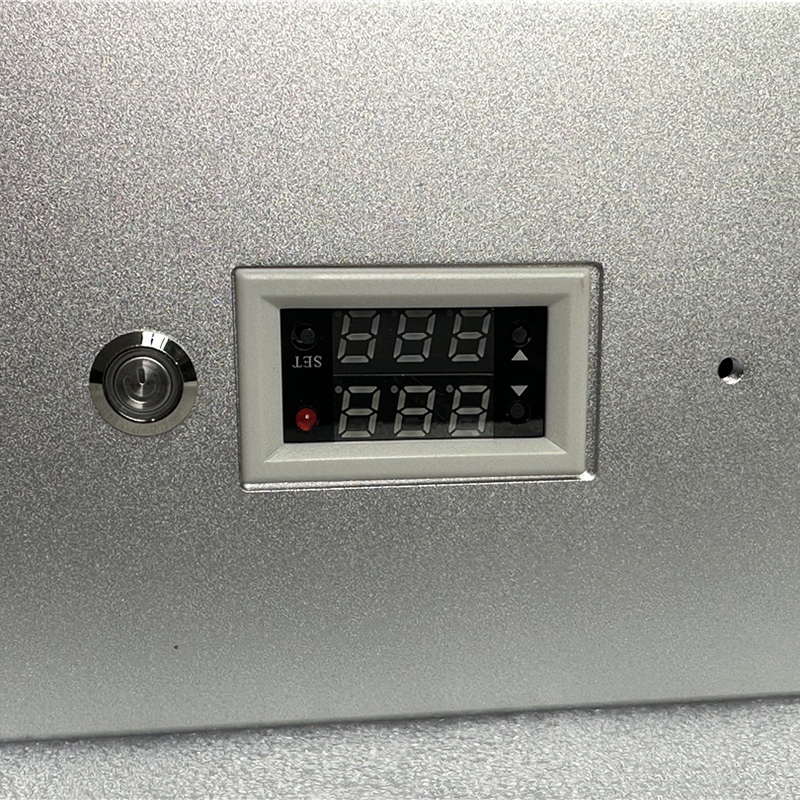

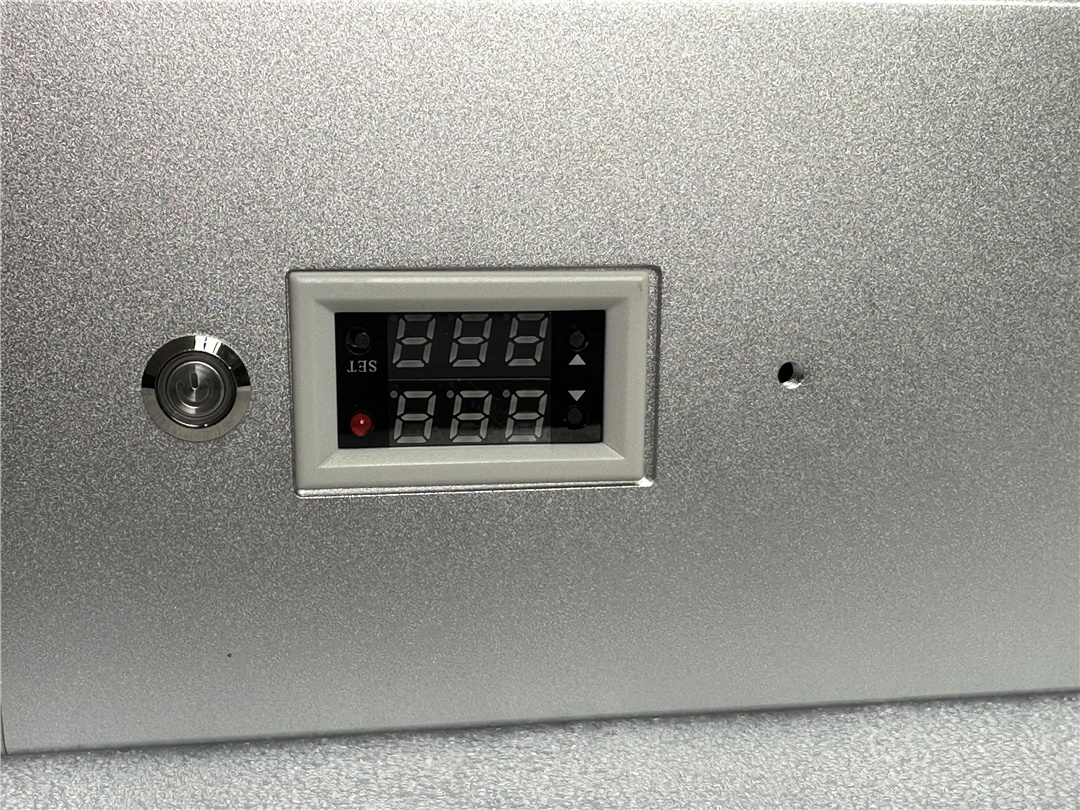

Control System: Digital display with speed-sync function (0.5-10m/min)
Mounting: 360° rotatable bracket with M6/M8 threaded holes
Functional Description:
This precision linear UV system provides continuous curing for conveyor-based production lines, featuring:
Uniform Irradiation - Patented optical design ensures <±8% intensity variance across entire length
Dynamic Curing - Automatic power adjustment synchronizes with conveyor speed variations
Instant Response - LED version achieves 100% output in <0.1 seconds
Key Applications:
PCB solder mask curing
Automotive sealant processing
Flexible circuit bonding
Technical Advantages:
60% longer service life than conventional mercury systems
Real-time UV intensity monitoring with alarm function
Tool-free width adjustment for different product sizes
Product parameters

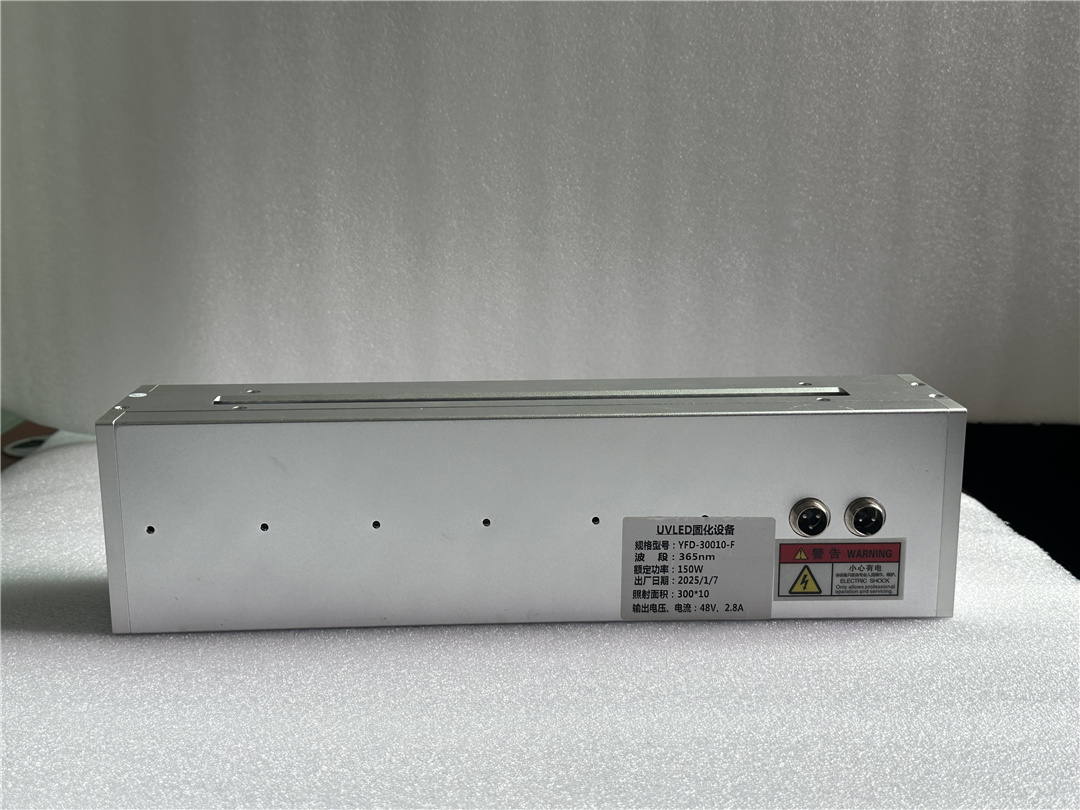

Model |
YF150\225\300\450*10-F (length can be customized) |
Power |
80\120\180\240W |
Light power |
4W\cm2 |
Chip |
SA |
Band |
365nm (optional band 365-405nm) |
Control |
touch screen or knob |
Channel |
1-4 channels optional |
Mode |
Auto\Manual\Ladder mode (touch screen only have this function) |
Signal |
pulse \ level signal (touch screen only have this function) |
Lifespan |
20000H |
Energy Adjustment |
0-100% |

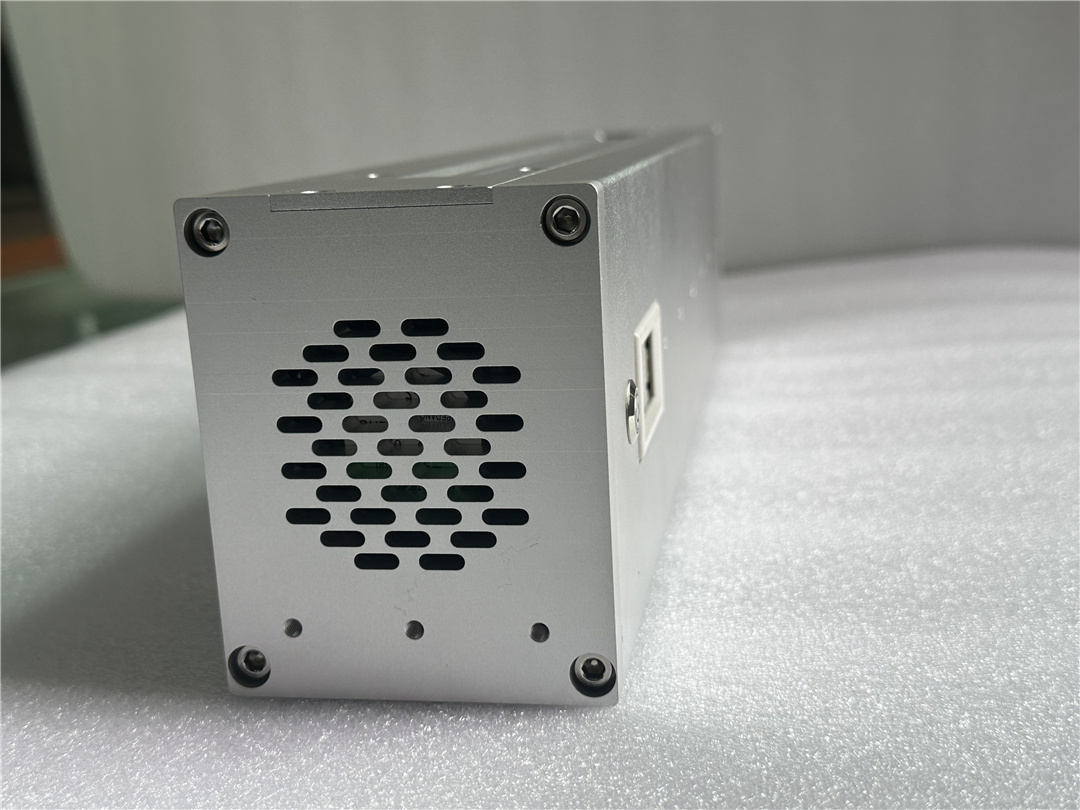

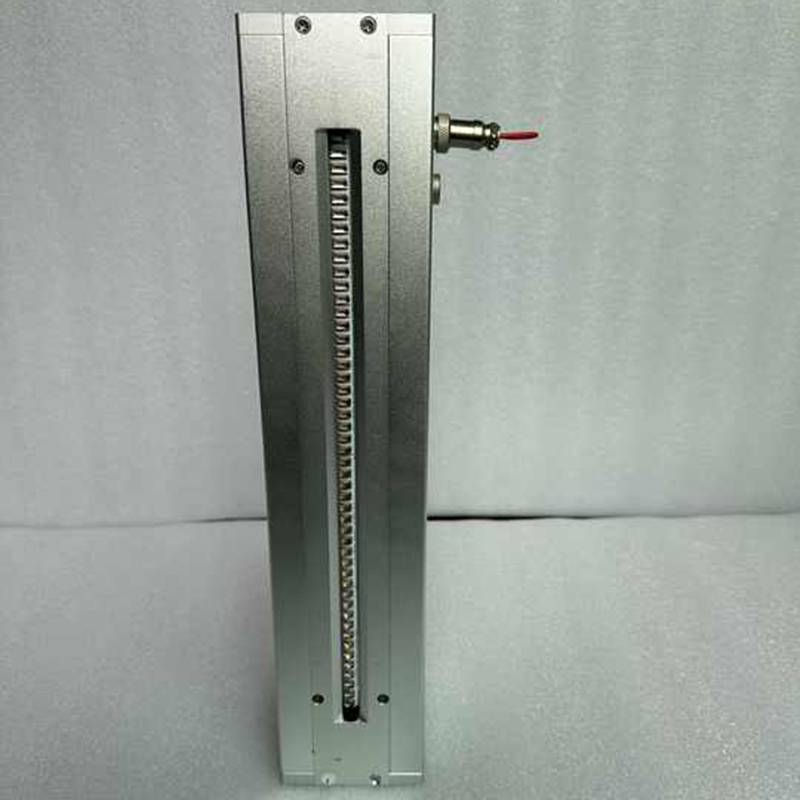

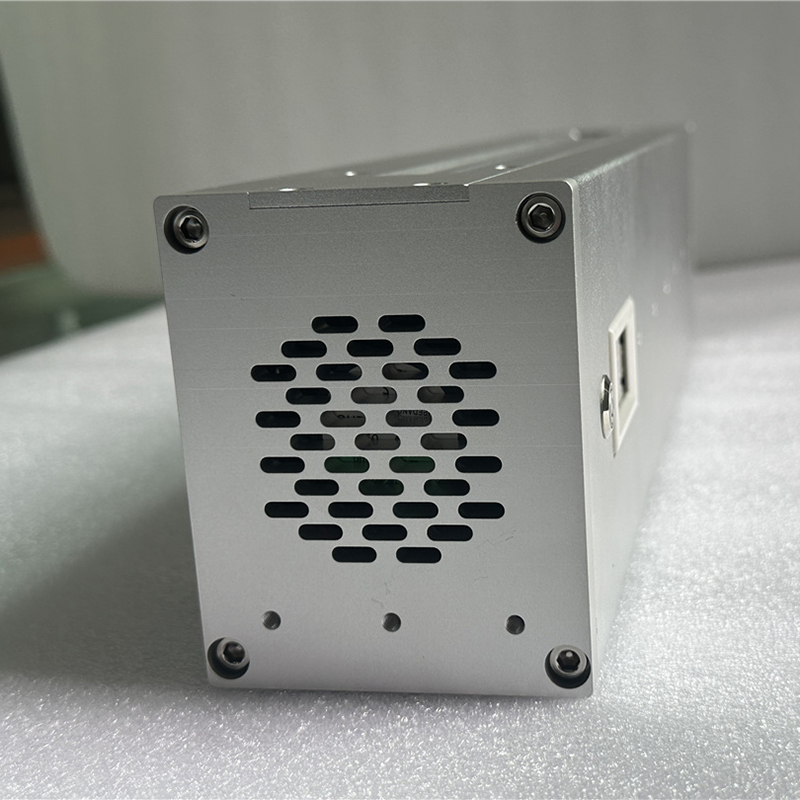

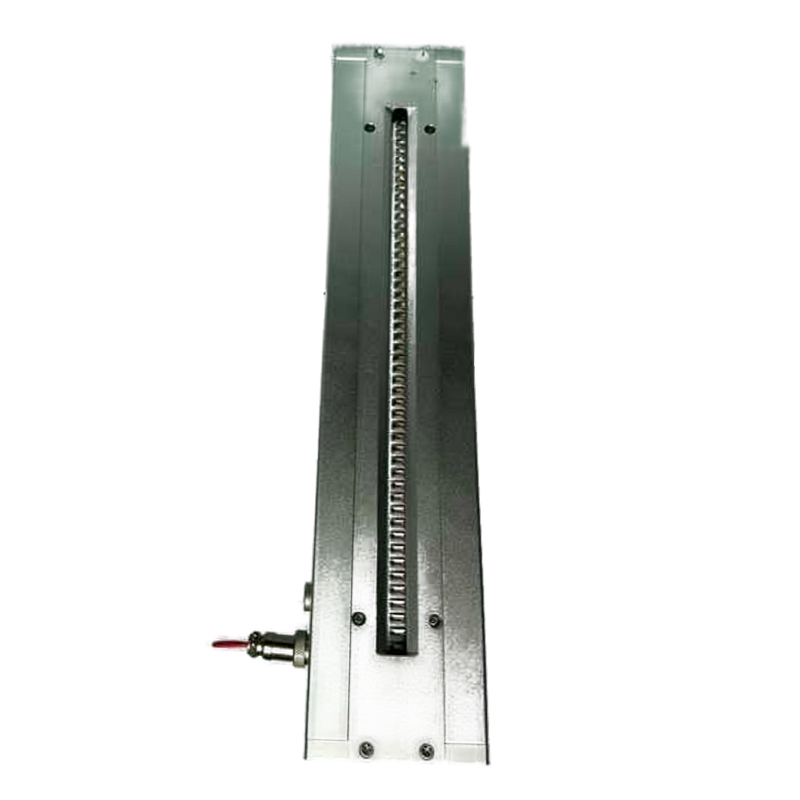

Product Details
