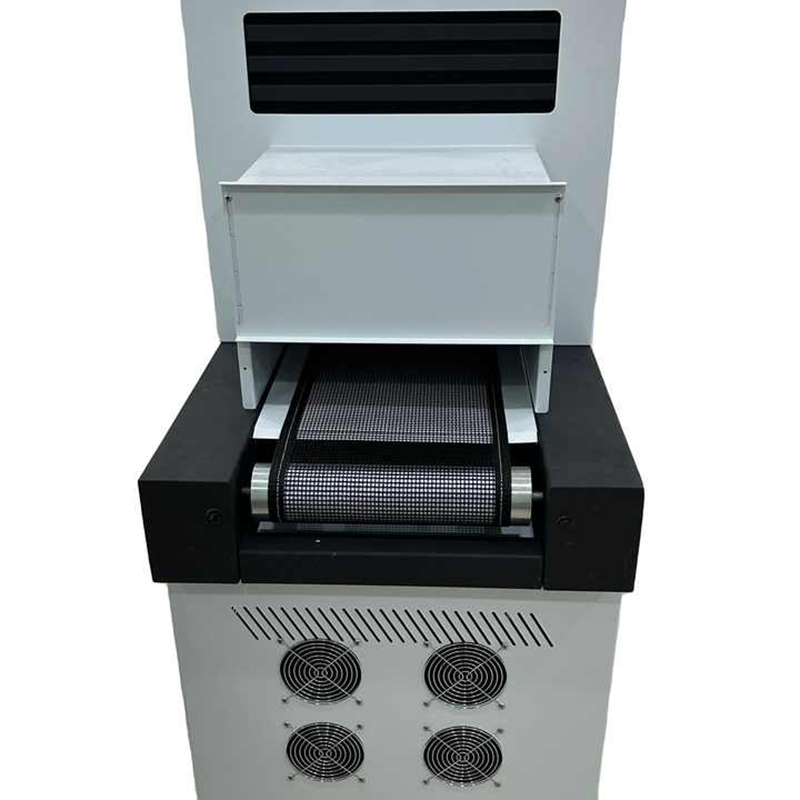

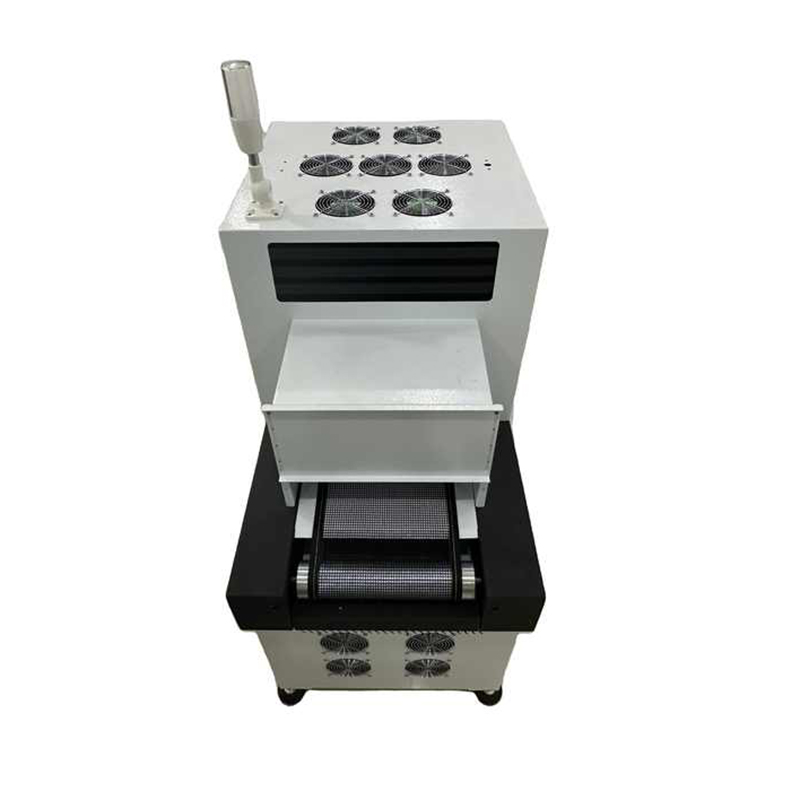

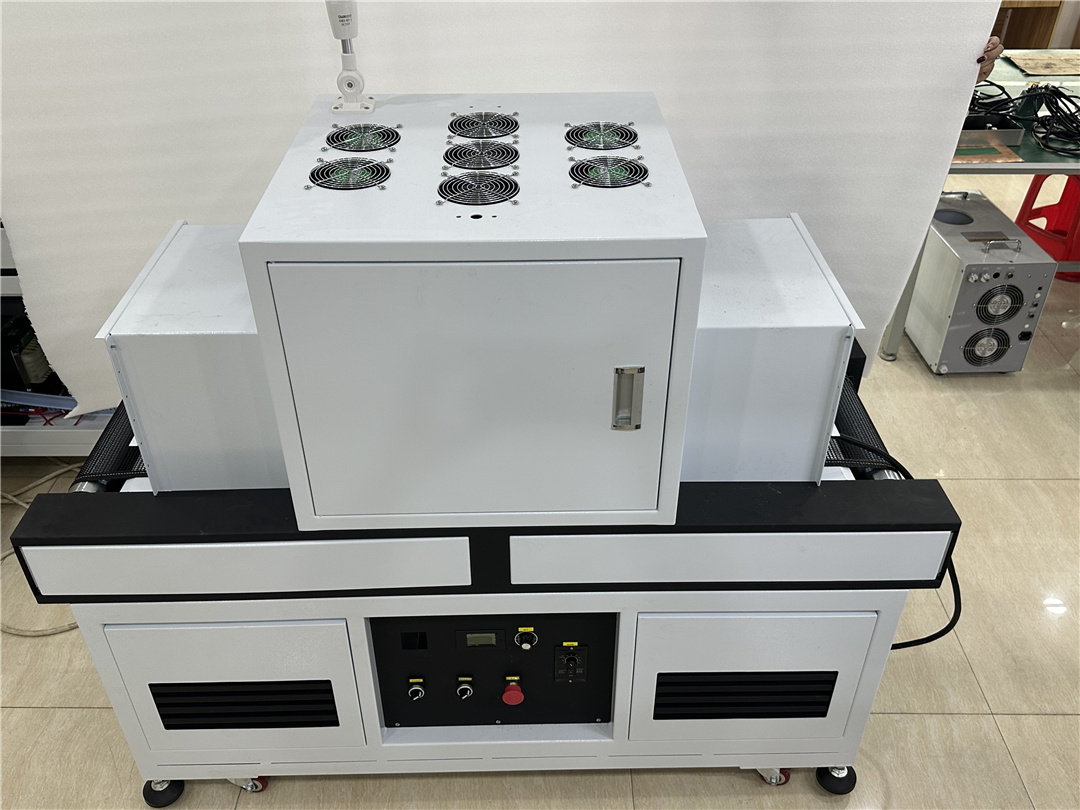

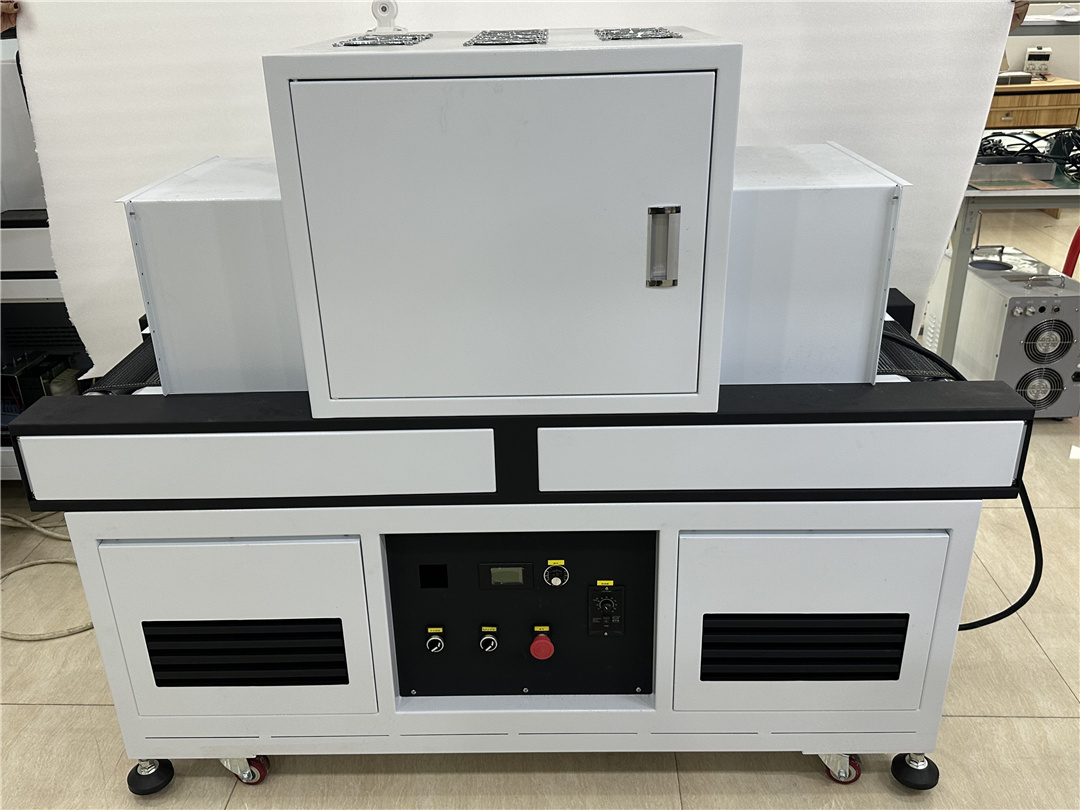

Heavy-Duty Sheet Metal UV Oven for Metal/Plastic Components
Applications:
Key Features & Benefits:
PLC Control: 7-inch HMI with 50+ programmable recipes.
Heat Recovery: 30% energy recycling via built-in heat exchanger.
Applications: Automotive Trim: Cures 15 truck handles/minute with 50% energy savings vs IR.
UV Spectrum: High-power mercury lamps (250-420nm broadband) or LED arrays (365/385/405nm)
Irradiance: 50-300 mW/cm² adjustable (±5% uniformity across curing zone)
Chamber Dimensions: 800×600×500 mm (standard), customizable up to 2000mm length
Temperature Range: Ambient to 180°C (PID-controlled with ±2°C stability)
Conveyor System: Variable speed 0.1-3 m/min (mesh belt or chain-driven)
Power Supply: 3-phase 380V, 15kW max (with power factor correction)
Control System: Industrial PLC with 7" HMI, 50+ programmable recipes
Construction: 304 stainless steel housing with ceramic insulation
Safety: Overheat protection, mechanical interlocks, and UV shielding (EN 62471 compliant)
Functional Description:
This heavy-duty UV curing oven is engineered for high-volume curing of coatings/adhesives on metal and plastic components in automotive, aerospace and industrial manufacturing.
Deep-Cure Performance – Broad-spectrum UV ensures complete polymerization of thick (up to 500μm) powder coatings and structural adhesives.
Thermal Management – Patented air-knife system prevents heat distortion (<5°C variation across 1m² area).
Process Integration – Compatible with robotic loading/unloading via PROFINET interface.
Key Applications:
Automotive: E-coat curing on chassis components
Electronics: Conformal coating on metal enclosures
Industrial: Pipe joint adhesive curing
Technical Advantages:
30% faster curing vs infrared alternatives
Integrated VOC exhaust system (optional)
Real-time UV intensity monitoring with data logging
Product parameters
Model |
YFSSJ300100-F |
Width of mesh belt |
300mm |
Mesh belt material |
Teflon |
Overall material |
sheet metal baking paint |
Conveyor speed |
0-5mlmin adjustable (can be selected according to customer requirements) |
Overall length |
1.5m (length can be customized) |
Transmission direction |
positive and negative adjustable |
Dimming |

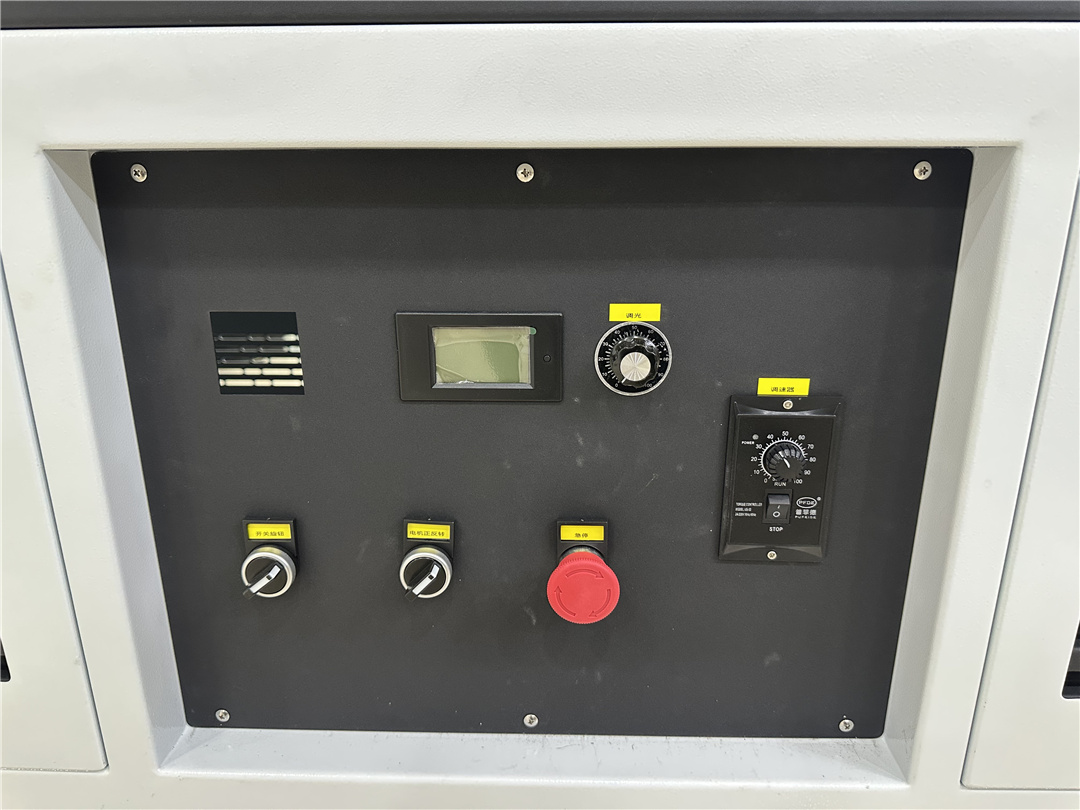

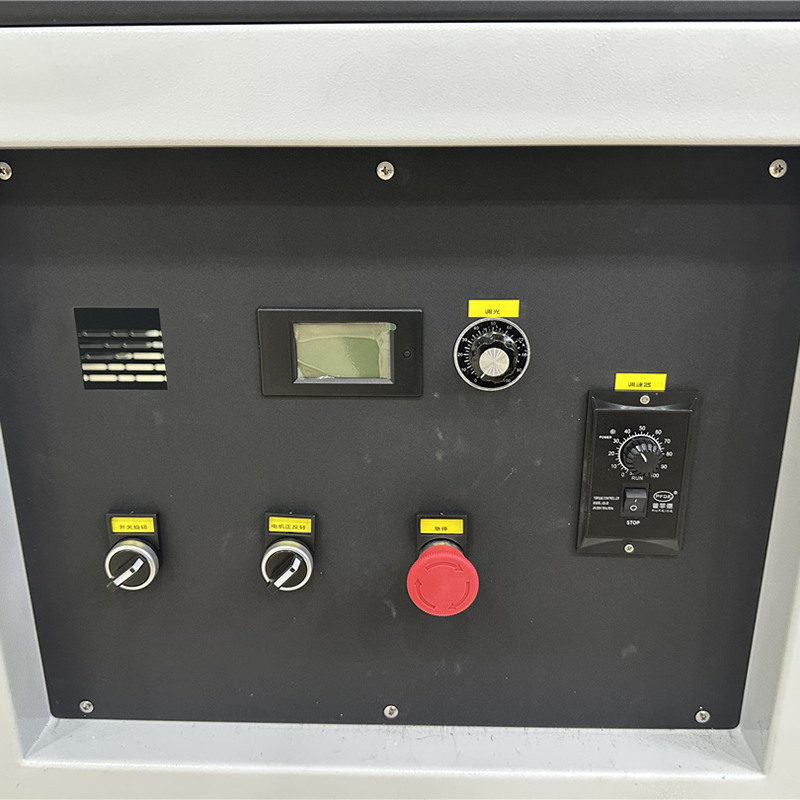

knob dimming, can add 7-inch touch screen |
Light height |
0-150mm adjustable |
Feeding height |
0-150mm adjustable |
Input voltage |
220VAC 50HZ |
Energy Adjustment |
0-100% |
UV lamp specifications size according to the actual requirements of customers to choose | |
PLC, handwheel adjustment height can be customized according to customer requirements | |
