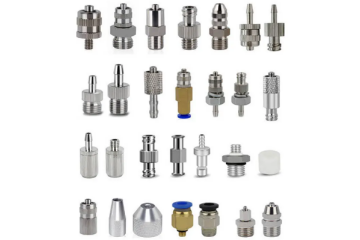

Industrial dispensing needles connector
Applications:
Leak-Proof Performance
Double O-ring seals withstand 10bar pressure (145psi)
PTFE-lined interior prevents adhesive buildup for 500+ reuse cycles
Precision Flow Control
0.01mm concentricity tolerance eliminates flow turbulence
Tapered internal channel maintains ±2% dispensing volume consistency
Durable Construction
316L stainless steel/ceramic composite resists:
Chemical corrosion (acids/solvents)
Abrasion from filled adhesives
Smart Productivity Features
Color-coded bands for instant size identification
RFID tag option (stores max pressure/viscosity data)
Technical Specifications
Temperature Range: -30°C to 200°C
Surface Finish: <0.8μm Ra for smooth material transition
Certifications: ISO 9001, RoHS, REACH
Ideal For:
Electronics: PCB underfill dispensing
Medical: Bio-adhesive transfer
Automotive: Glass primer applications
Why Choose Our Adapters?
30% longer lifespan than industry average
Reduced clogging with optimized internal geometry
24hr sample shipping for qualification testing
Product parameters

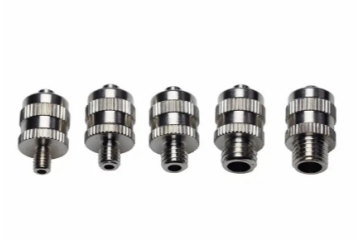

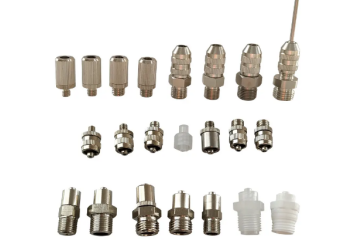

| M series adaptors/connector | model XZR-JT-001 name M4*0.7 inner diameter 2.2 model XZR-JT-003 name M6*1.0 inner diameter 2.5 |
| Male adapter to any needle 1/4 to standard cartridge, 1/8 to standard cartridge | model XZR-JT-006 name G1/8 tooth split connector model XZR-JT-007 name G1/4 tooth split connector |

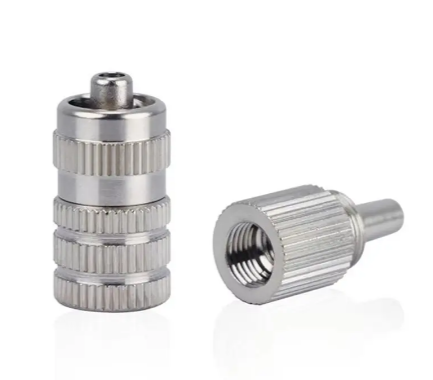

| Fitting Series,Luer End Fitting | model XZR-JT-010 name M5 Split Fittings L(Thread length) 6 D(Outer diameter) 11 model XZR-JT-011 M6 Split Fittings L(Thread length) 6 D(Outer diameter) 11 model XZR-JT-012 M8*1 Split Fittings L(Thread length) 6 D(Outer diameter) 11 |

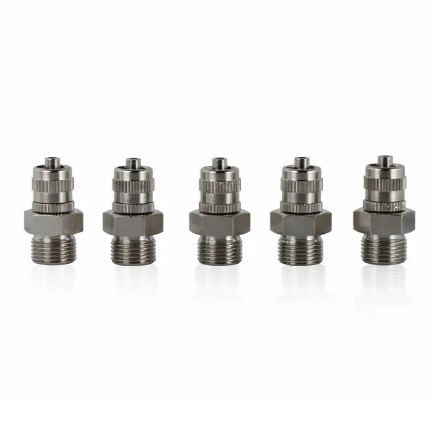

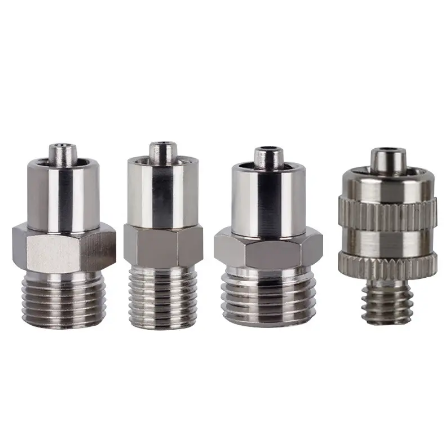

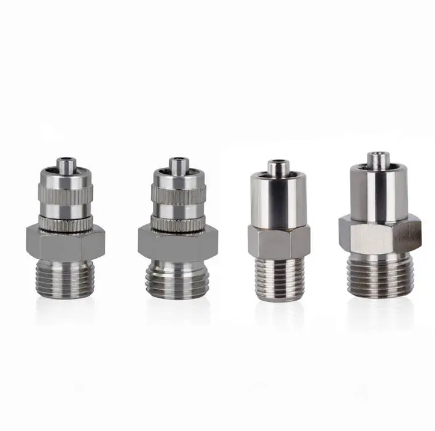

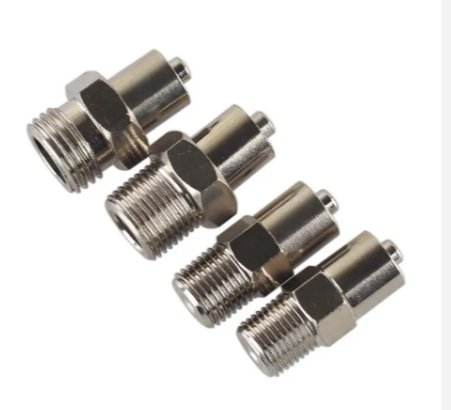

| Dispensing Valve Adapters 1/8 tooth ferrule type male threaded connecting pins | model XZR-JT-020 Thread Specification PT1/8-28（outer diameter of tooth 12.9） Thread length 8.5 Material width 12 model XZR-JT-021 Thread Specification PT1/4-19（outer diameter of tooth 9.4） Thread length 10.5 Material width 14 |

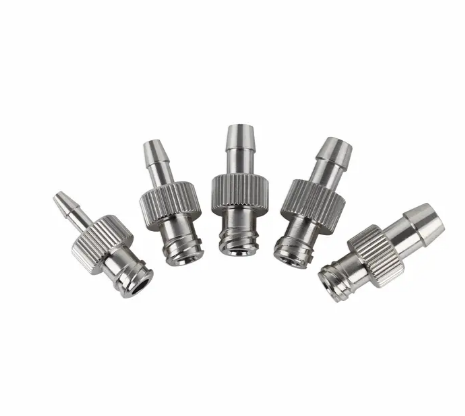

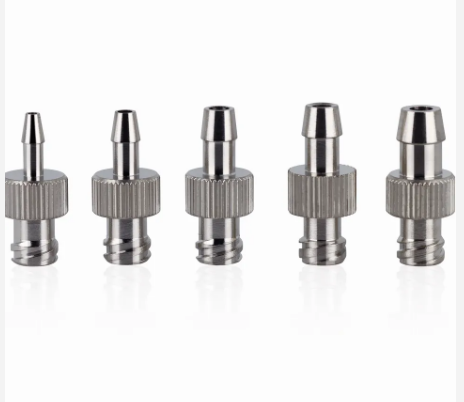

| Air Tube Extensions Luer head adapter air tube |
Air Tube Extension Fittings - Luer End model 4*2.5 XZR-JT-024 length 10 outer diameter 3.8 model 6*4 XZR-JT-025 length 10 outer diameter 4.8 |
| Air Tube Extension Fittings - needle End model 4*2.5 XZR-JT-029 length 10 outer diameter 3.8 model 6*4 XZR-JT-030 length 10 outer diameter 4.8 | |
| B-connector /adaptors |
model M5 XZR-JT-052 Thread Specification M5*0.8 model M6 XZR-JT-053 Thread Specification M6*1.0 model M8 XZR-JT-054 Thread Specification M8*1.0 |
| Syringe Connector | model XZR-JT-057 name Double Luer Connector model XZR-JT-058 name Bayonet Connector |
| Metal Plugs | model XZR-JT-074 |

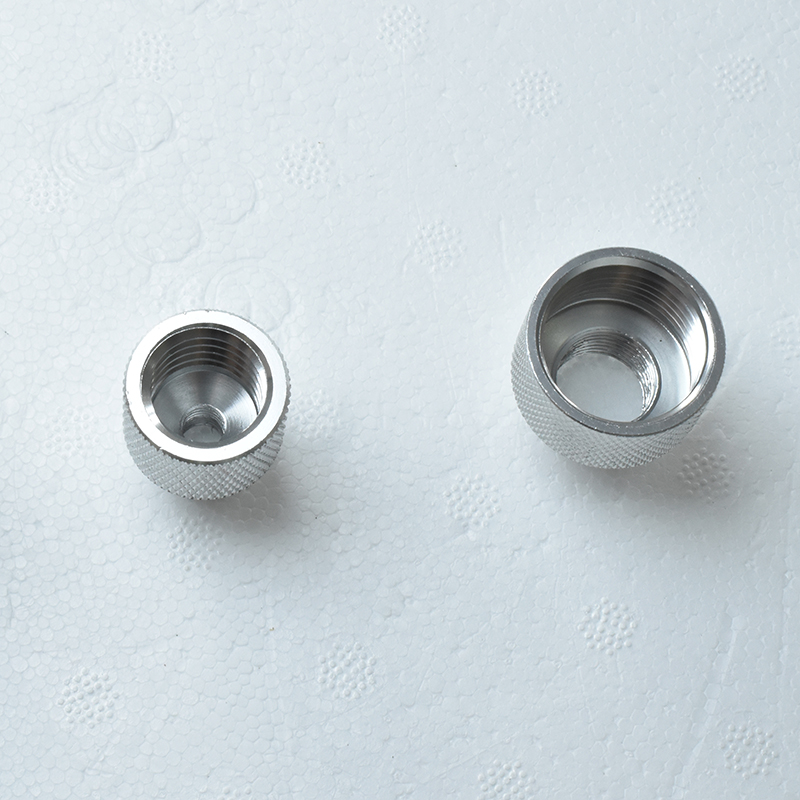

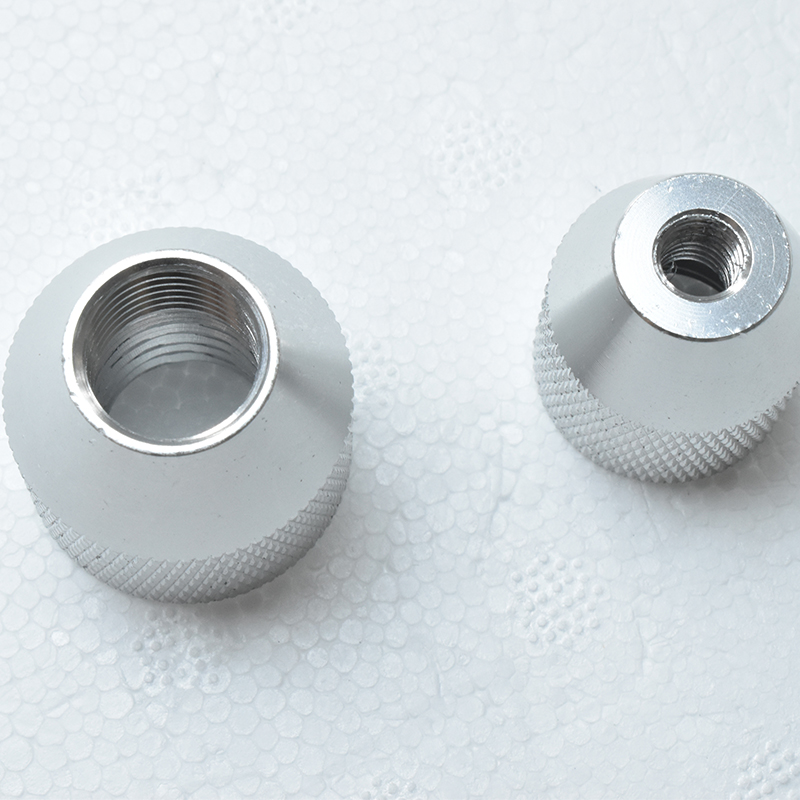

| Industrial dispensing mixing tube connector | model XZR-JT-064 Thread Specification M4*0.75 name 5.4-6.3 2-slot female thread M4 model XZR-JT-062 Thread Specification M5*0.8 name 6MM-8MM Non-slotted female thread M5 model XZR-JT-063 Thread Specification M6*0.8 name 10MM 1-slot female thread M6 |
| Silicone connector | model XZR-JT-066 M16 A-Short Silicone Fittings outer diameter 25 height 24 Thread Specification M16*2.5 model XZR-JT-067 M16 B-Short Silicone Fittings outer diameter 25 height 24 Thread Specification M16*2.5 model XZR-JT-070 M22 A-Short Silicone Fittings outer diameter 25 height 24 Thread Specification M22*2.0 model XZR-JT-071 M22 B-Short Silicone Fittings outer diameter 25 height 24 Thread Specification M22*2.0 |

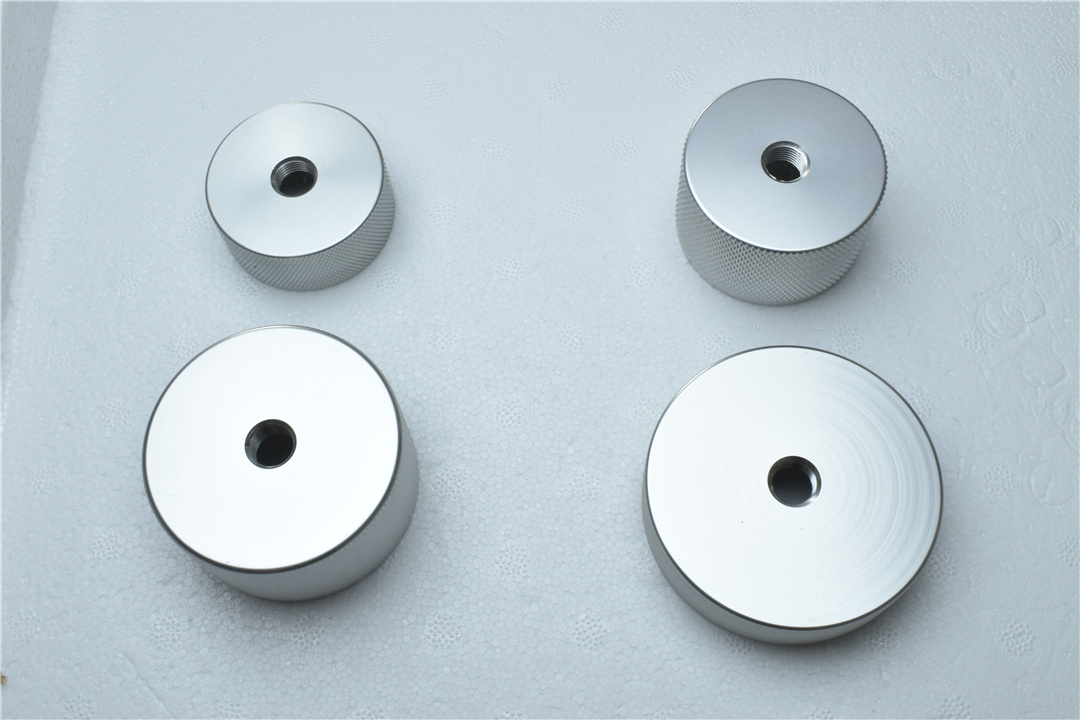

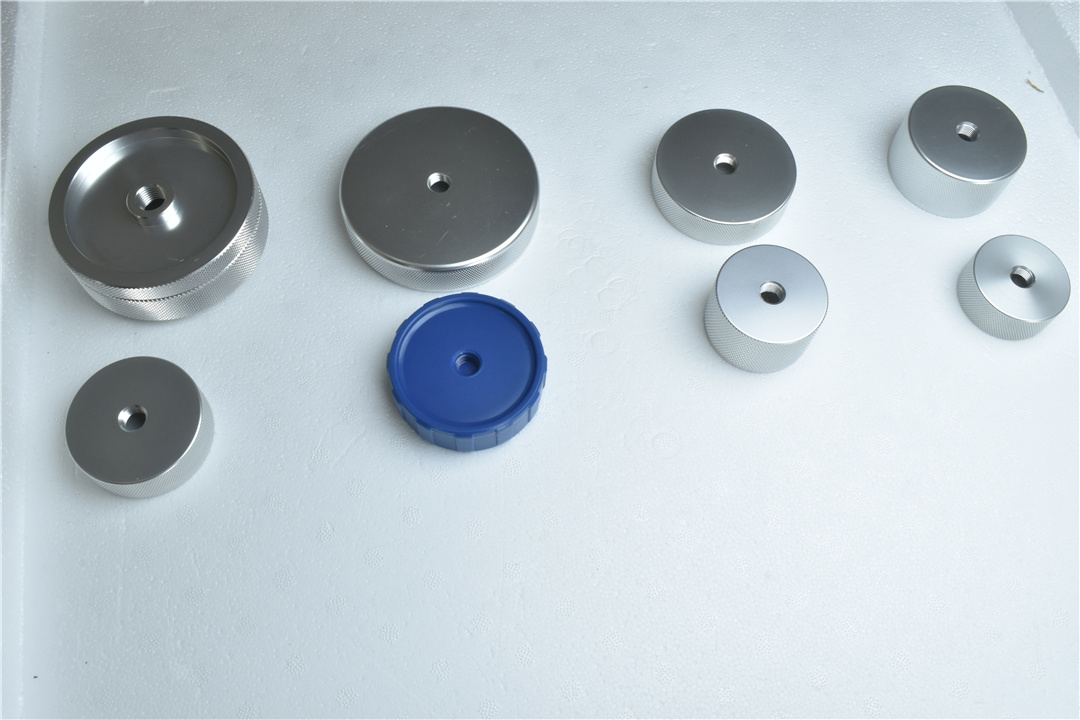

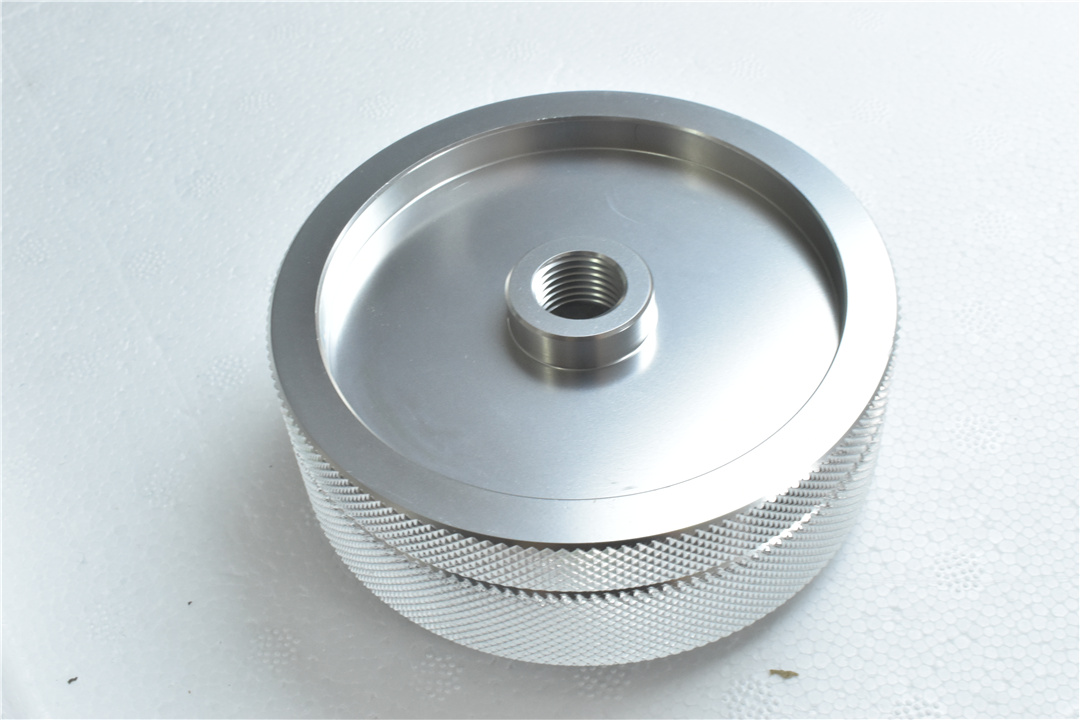

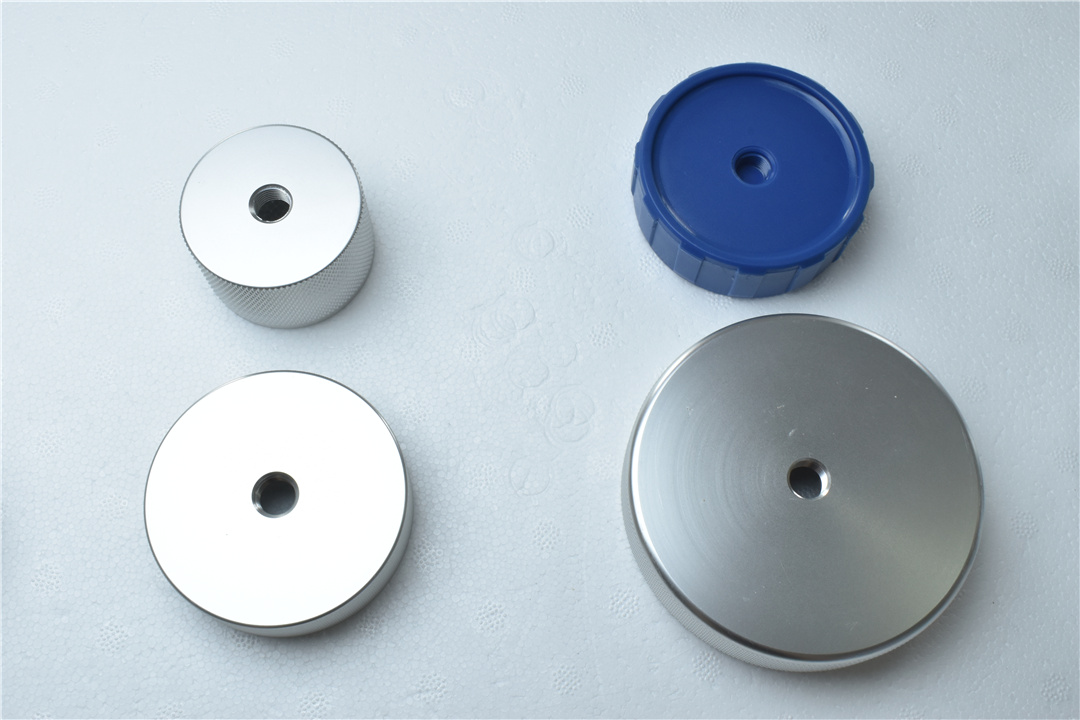

| Aluminum back cover double layer connector | old American style volume 100CC 200CC material Aluminum package 1/box back cover double volume 960CC material Aluminum package 1/box |
| old American style connector |
volume 100CC 200CC 300CC 500CC material Aluminum package 1/box |
| Plastic back cover connector | volume 300CC material Plastic package 1/box |
Product Details
