UV Curing Machine Factory Support Customization and Provide Satisfactory After-sales Service to Customers

2026-03-13

✓

The main wavelength is 365nm (optional 385nm, 395nm, 405nm) with a narrow spectral bandwidth, which can perfectly match most photoinitiators in the market, realizing fast and complete curing of materials and greatly improving production efficiency.

The UV intensity ranges from 50-7000mW/cm², which can be steplessly adjusted according to different curing requirements, and the energy dosage can be precisely controlled up to 999,900 microjoules per cm², ensuring consistent curing quality of each batch of products. The internal curing chamber dimensions are 250×200×180mm, with a removable rotating turntable that can rotate 360 degrees, achieving uniform curing of workpieces from all angles and eliminating shadow zones.

It adopts a microprocessor control system with a clear digital LED display, which can intuitively show parameters such as curing time, UV intensity, and temperature, and support adjustable curing time (0-999.9 minutes) and intelligent temperature control (25-45℃) via active air cooling system, effectively preventing heat damage to sensitive materials such as electronic components and optical products. The device is equipped with multiple safety protection mechanisms, including safety interlocks (the UV light will automatically turn off when the door is opened), a UV-blocking viewing window for real-time observation of curing status, and dual safety fuses to enhance operational safety. Power supply is 220V/50Hz, with low energy consumption and a LED lifespan of over 20,000 hours, reducing long-term use and maintenance costs. In addition, it supports customization of chamber size, wavelength, and intensity, and can be equipped with additional accessories such as a conveyor belt according to customer needs to meet diverse industrial production requirements.

⚡

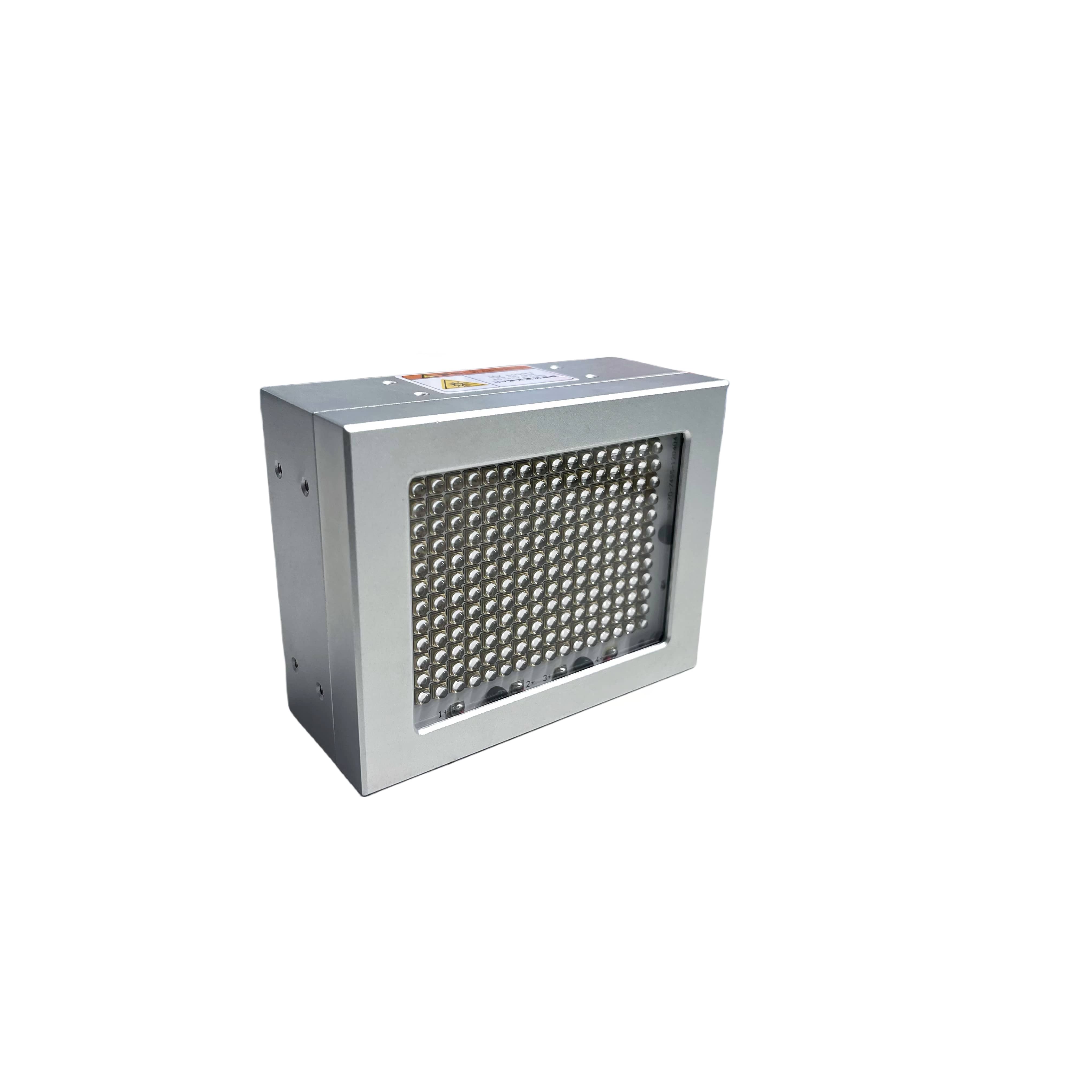

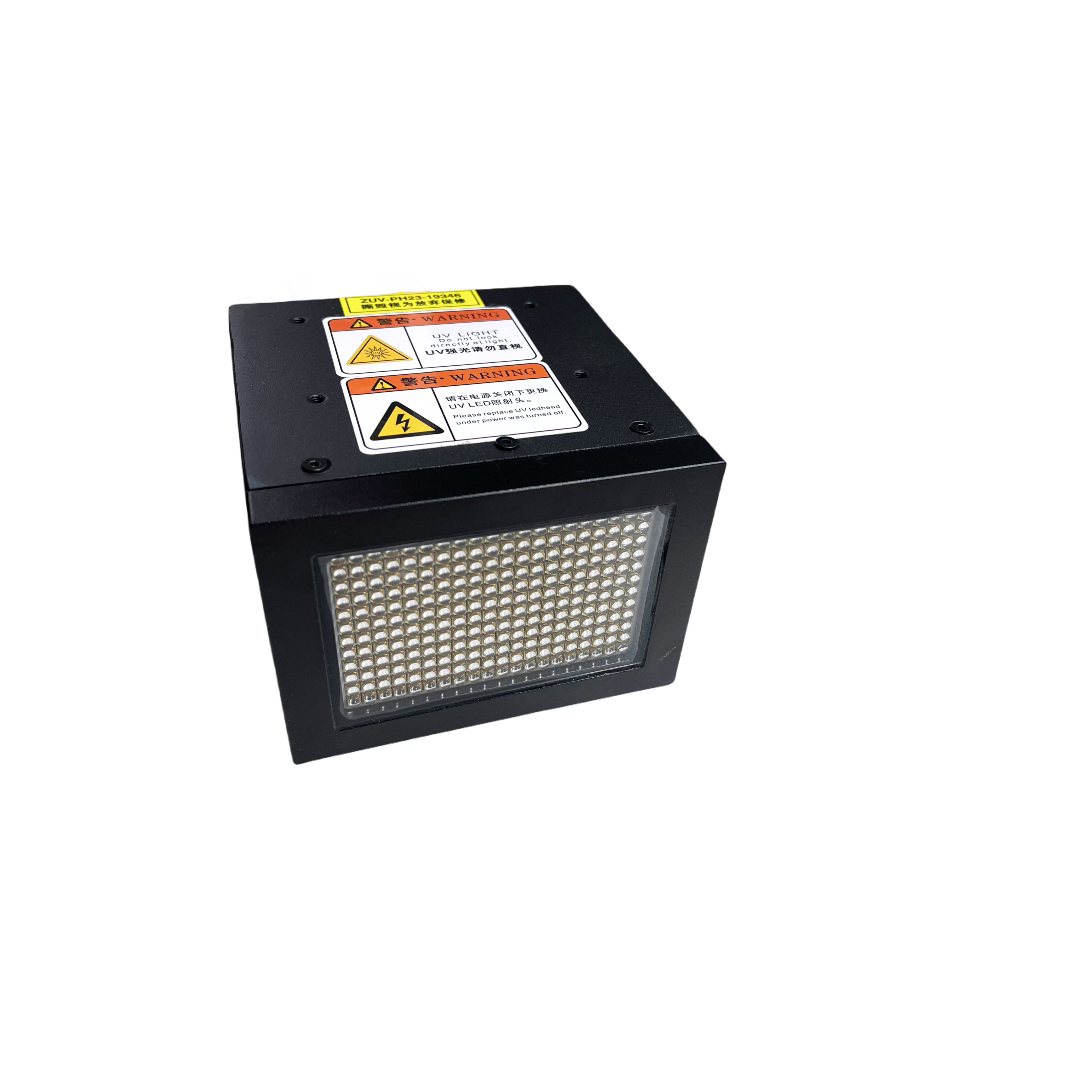

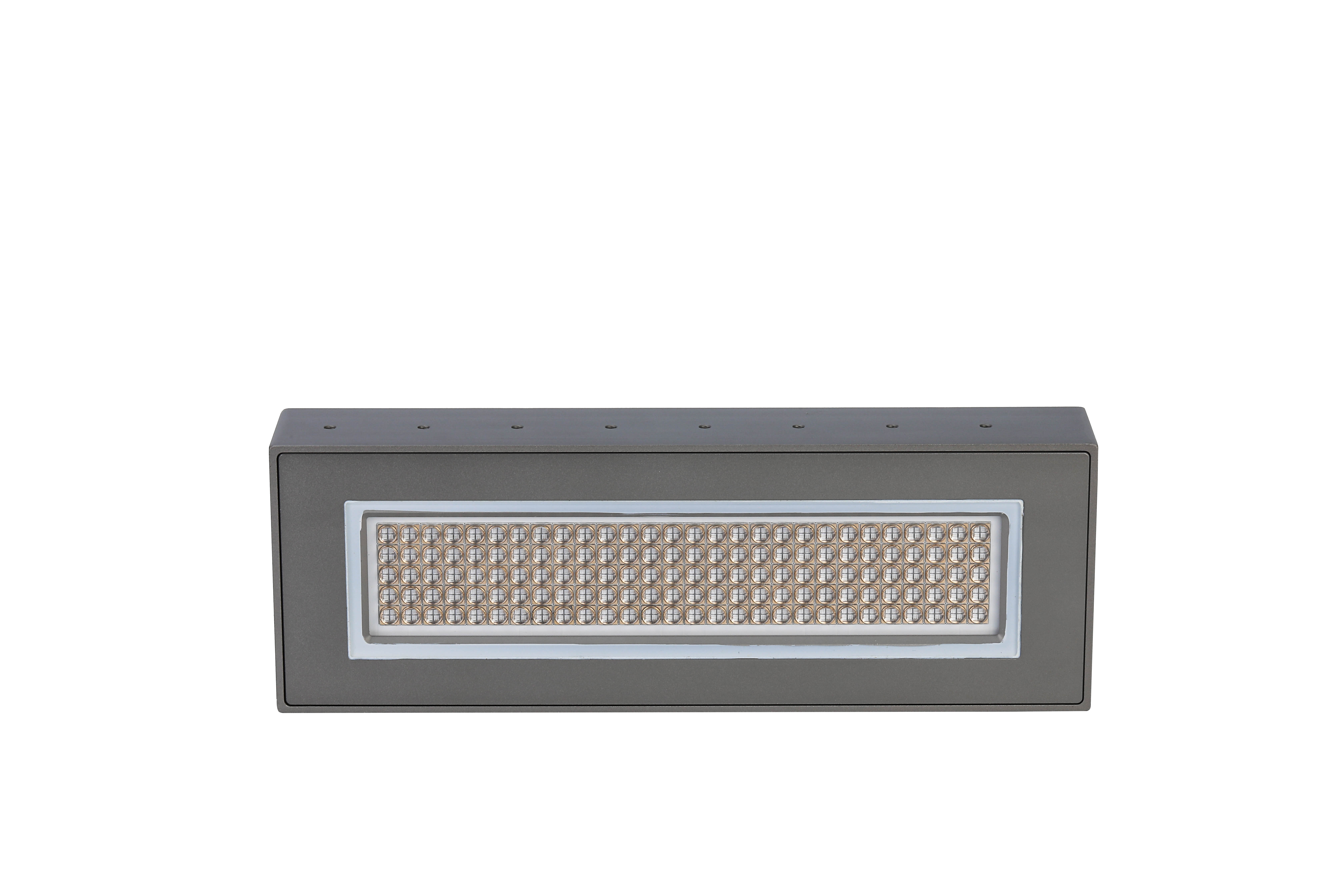

At the core of this UV curing chamber lies its high-performance UV LED light source, which is meticulously designed to meet the rigorous demands of industrial curing applications. Unlike traditional mercury lamps, the adopted UV LED light source boasts a series of superior technical advantages that significantly enhance curing efficiency, product quality, and operational convenience. First and foremost, it features instant startup capability with no preheating time required—once the device is turned on, the UV light reaches full intensity within 0.1 seconds, eliminating the waiting time associated with traditional light sources and greatly improving production throughput, especially for continuous production lines.

The UV LED light source is composed of high-quality imported LED chips, which ensure stable light output and consistent performance over a long service life. With a lifespan of over 20,000 hours, it is far more durable than mercury lamps (which typically last only 1,000-2,000 hours), reducing the frequency of light source replacement and lowering long-term maintenance costs for users. Additionally, the light source emits a narrow spectral bandwidth, which means it focuses energy on the effective wavelength range required for curing, minimizing energy waste and avoiding unnecessary heat generation. This targeted energy output not only improves curing speed but also reduces the risk of material deformation or discoloration caused by excessive heat.
