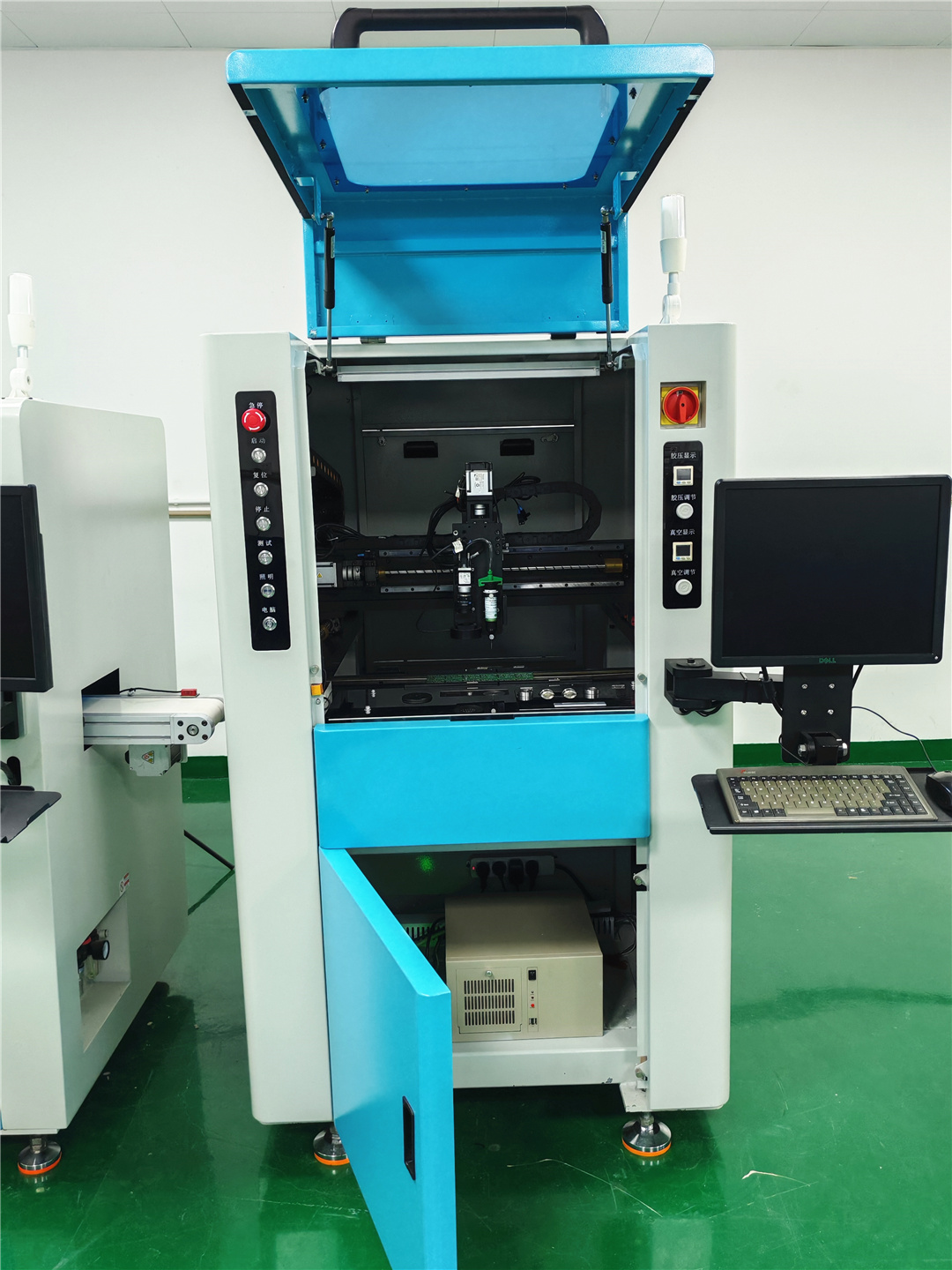

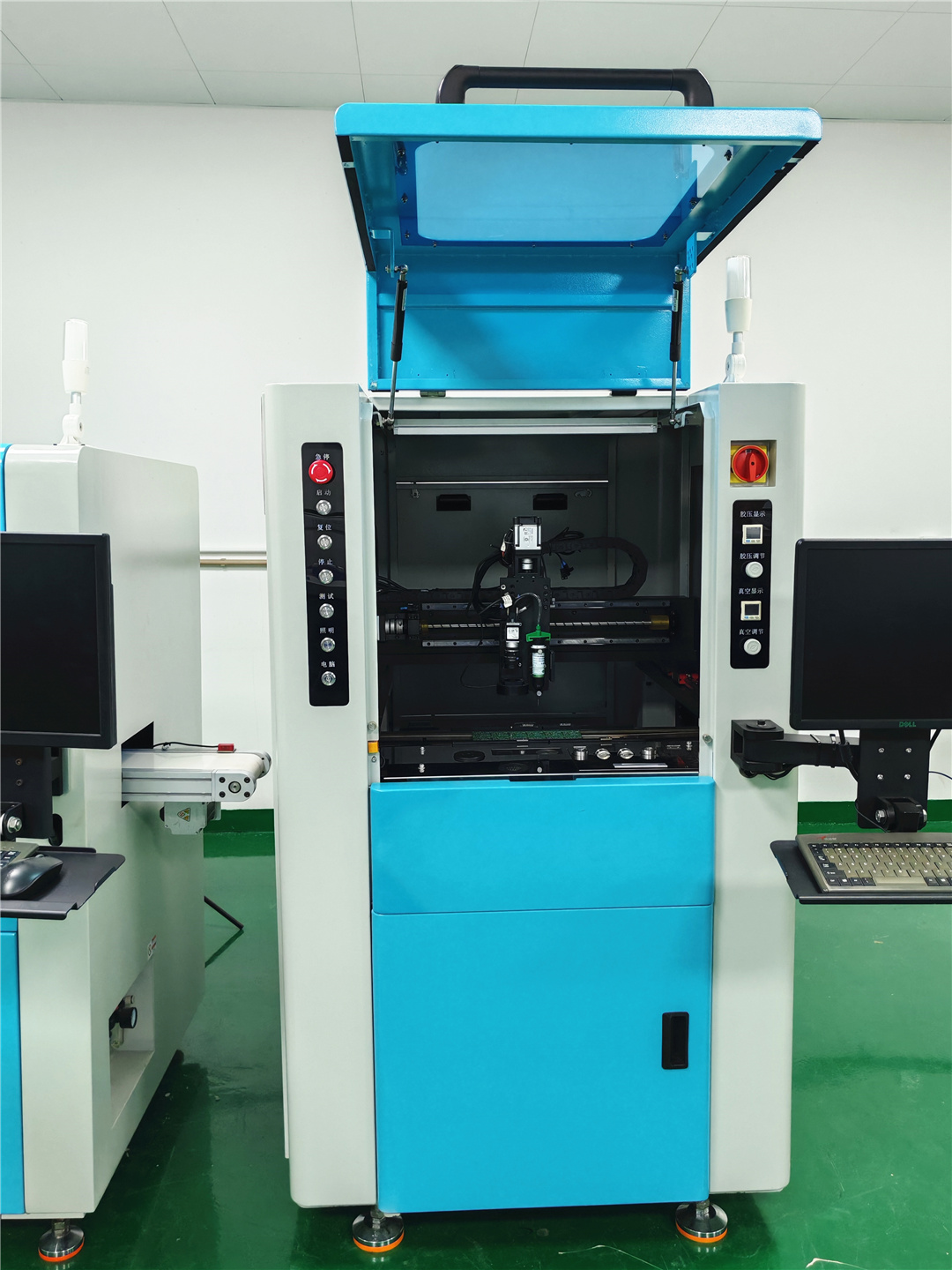

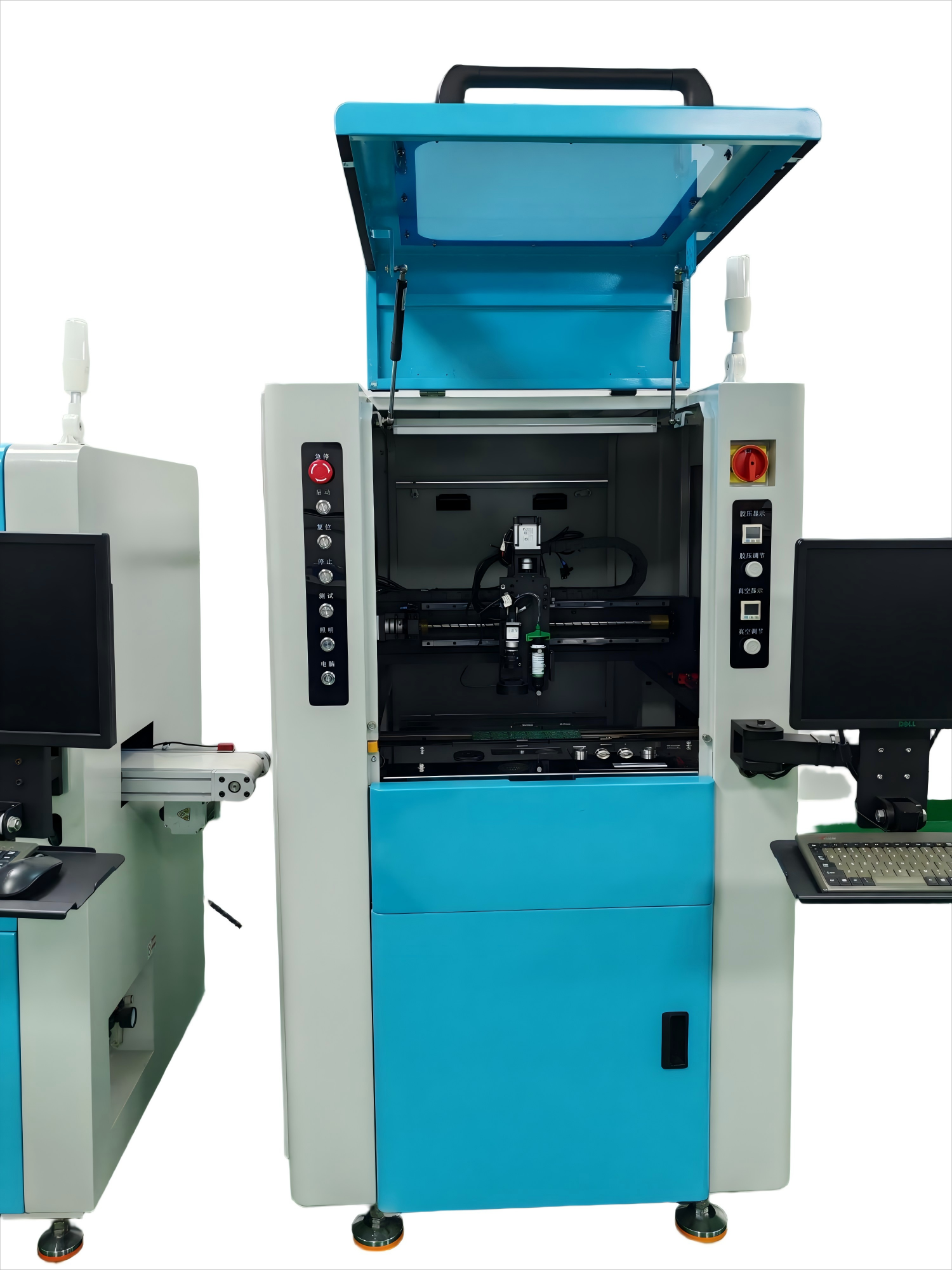

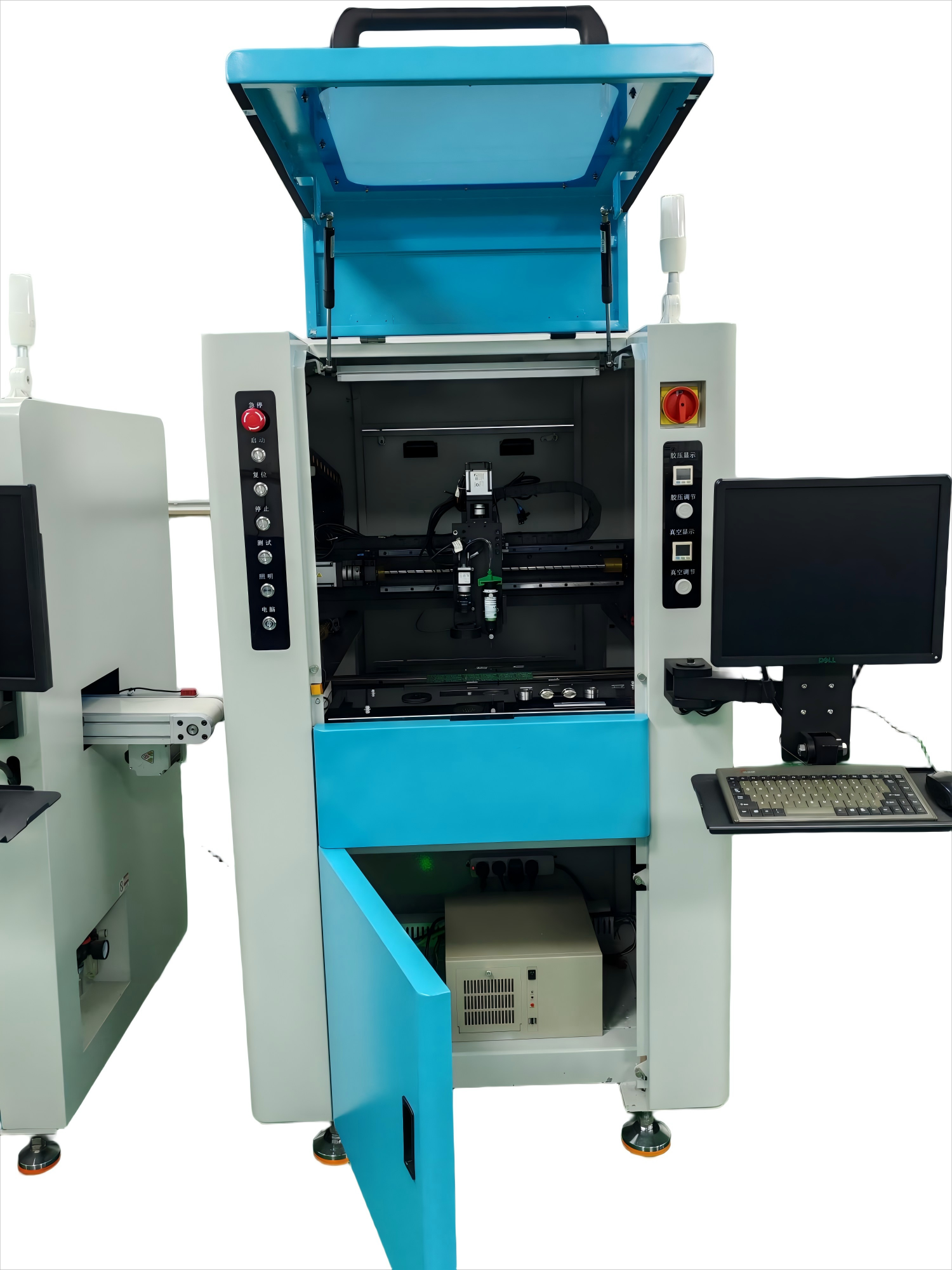

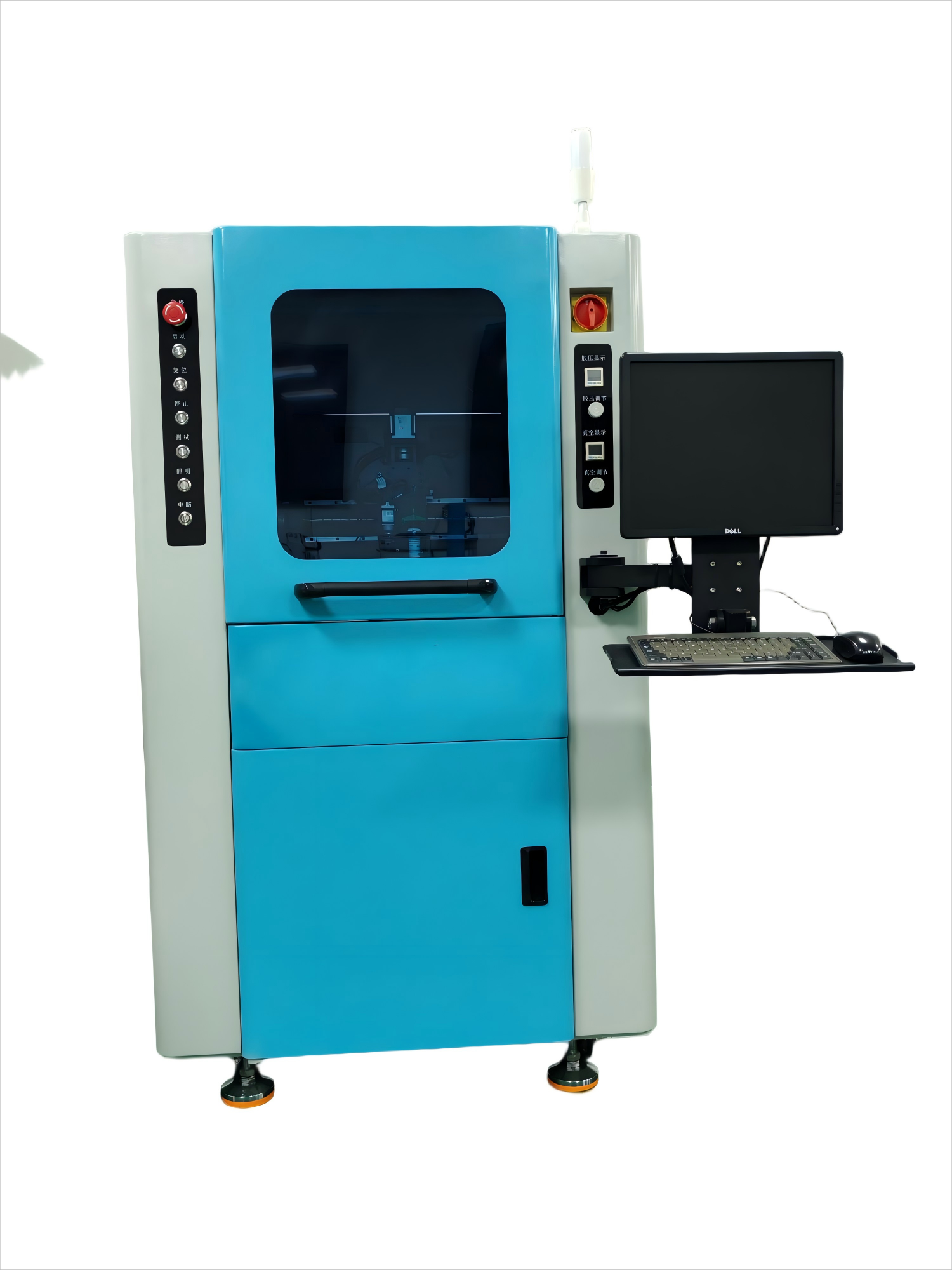

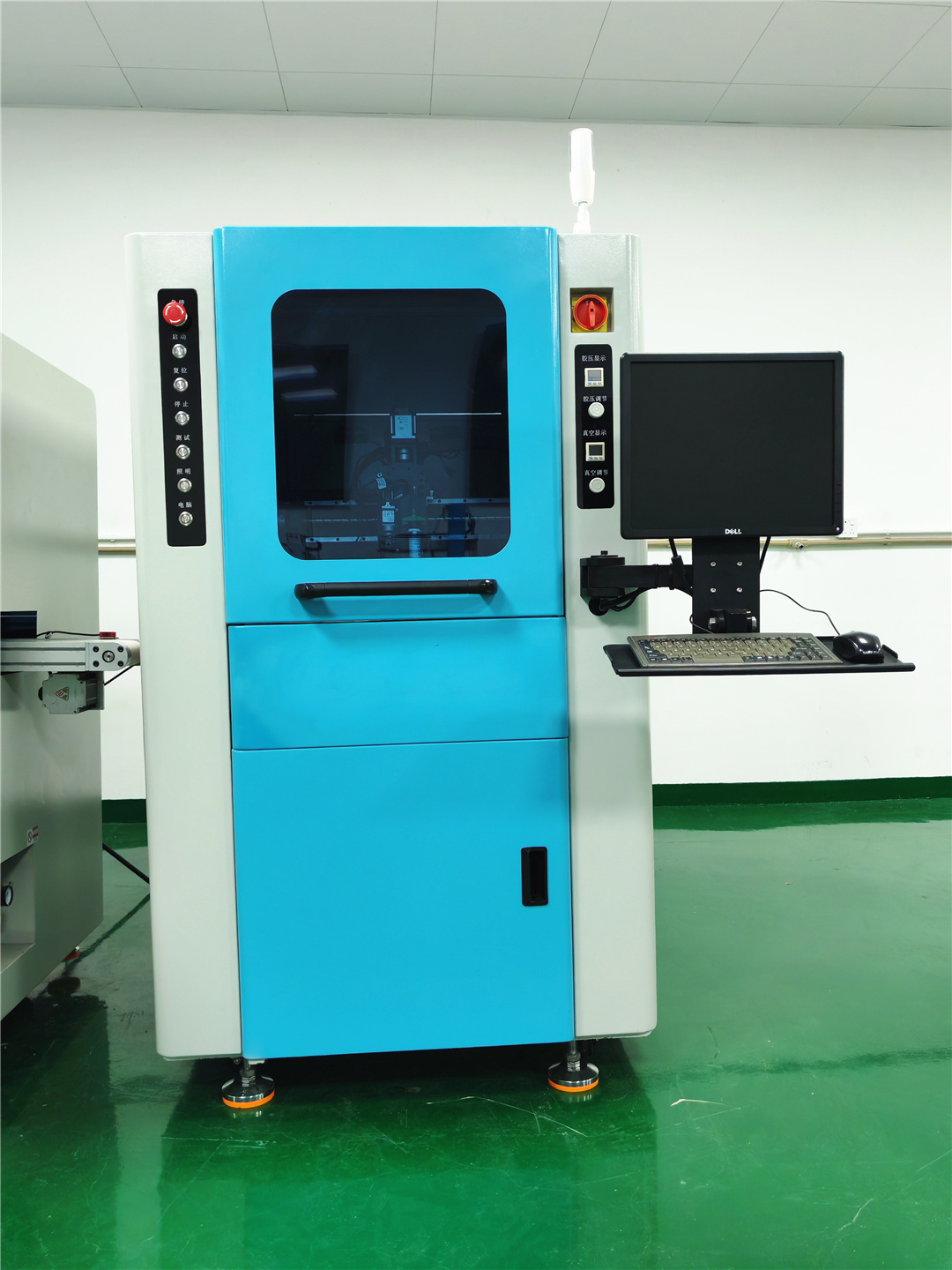

Online high-precision visual automatic dispensing machine
Applications:
It is equipped with laser height measurement, glue weight electronic scale stability and calibration, yin and yang board program automatic mirroring, flight jet, glue level alarm, tape and reel automatic cleaning, glue wiping, automatic correction, real-time detection and other functions.
It can be equipped with precision glue control devices such as screw valves, injection valves, needle valves, and air pressure valves.
Realize mechanical automatic production, high-speed, high-precision dispensing operations, convenient management, improve efficiency and save costs.
Floor-mounted high-strength aluminum alloy frame, good stability, easy movement of equipment, good safety protection.

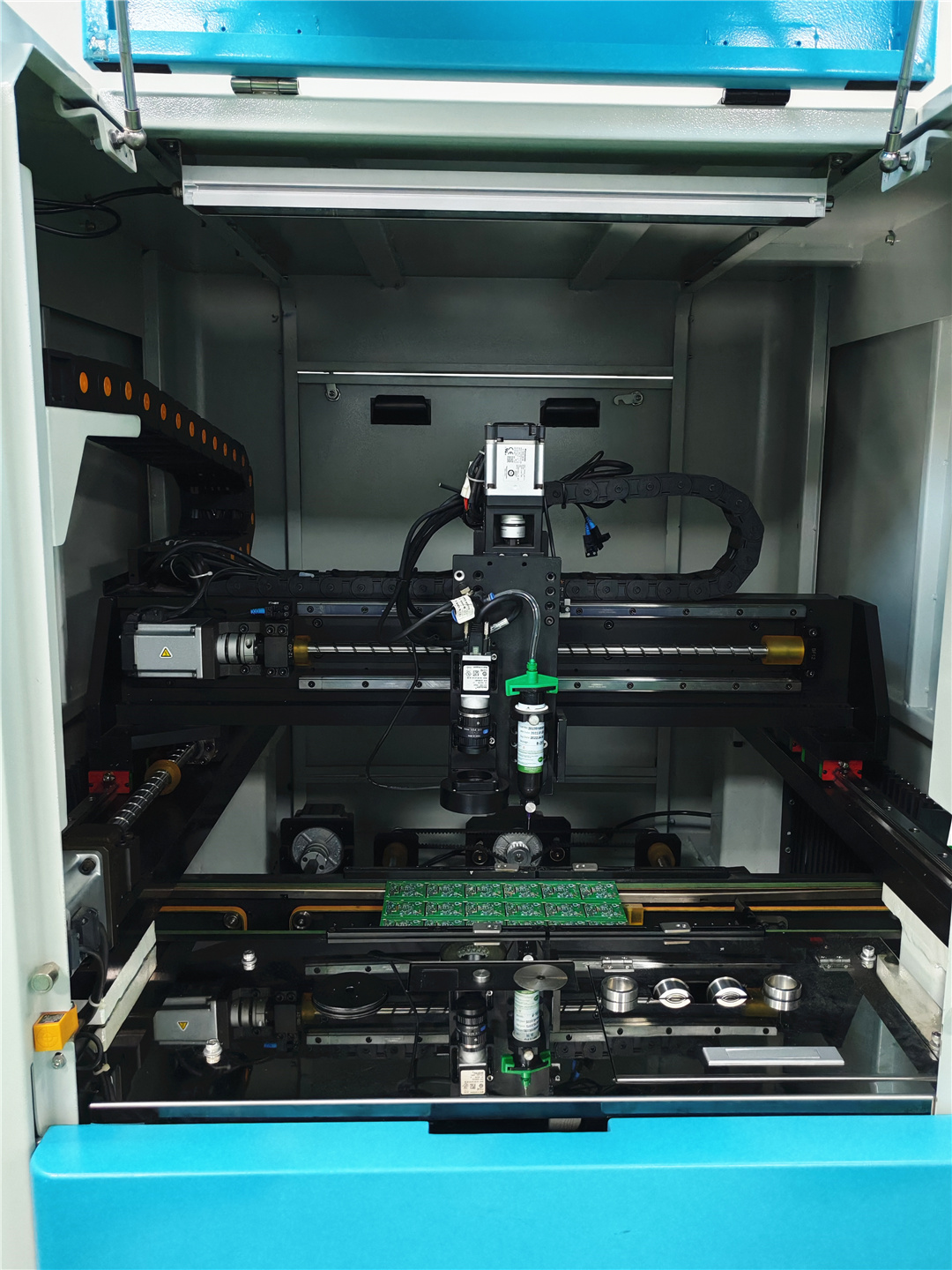

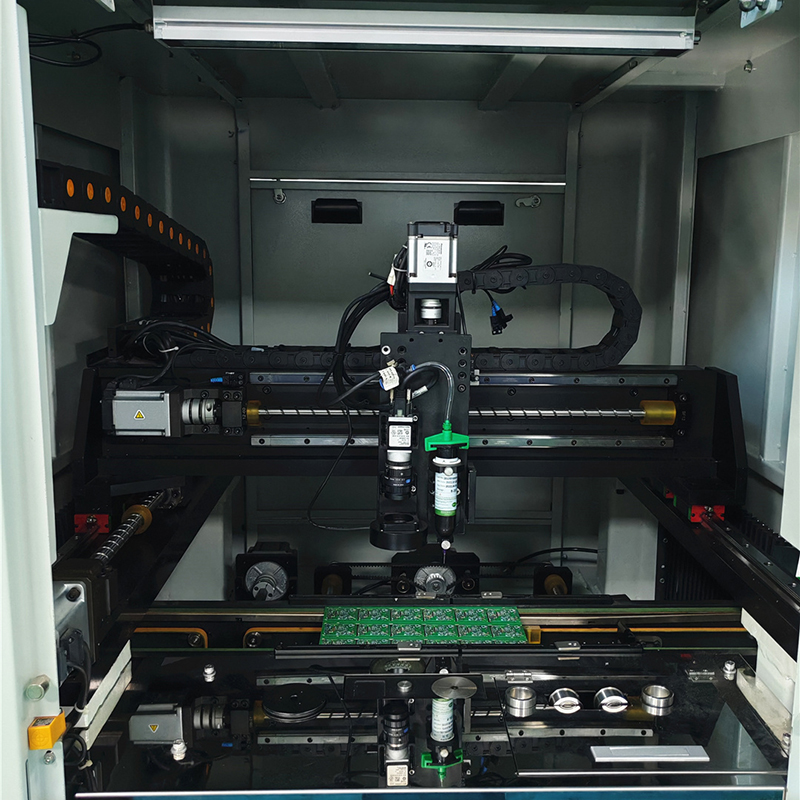

Professional servo control system, high-performance servo motor + precision screw + linear guide.

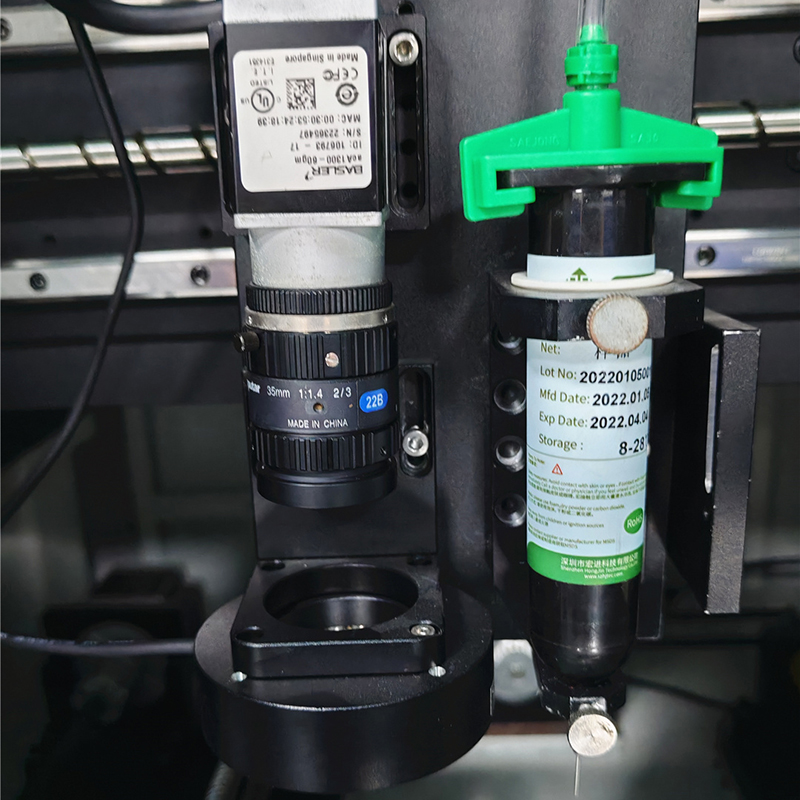

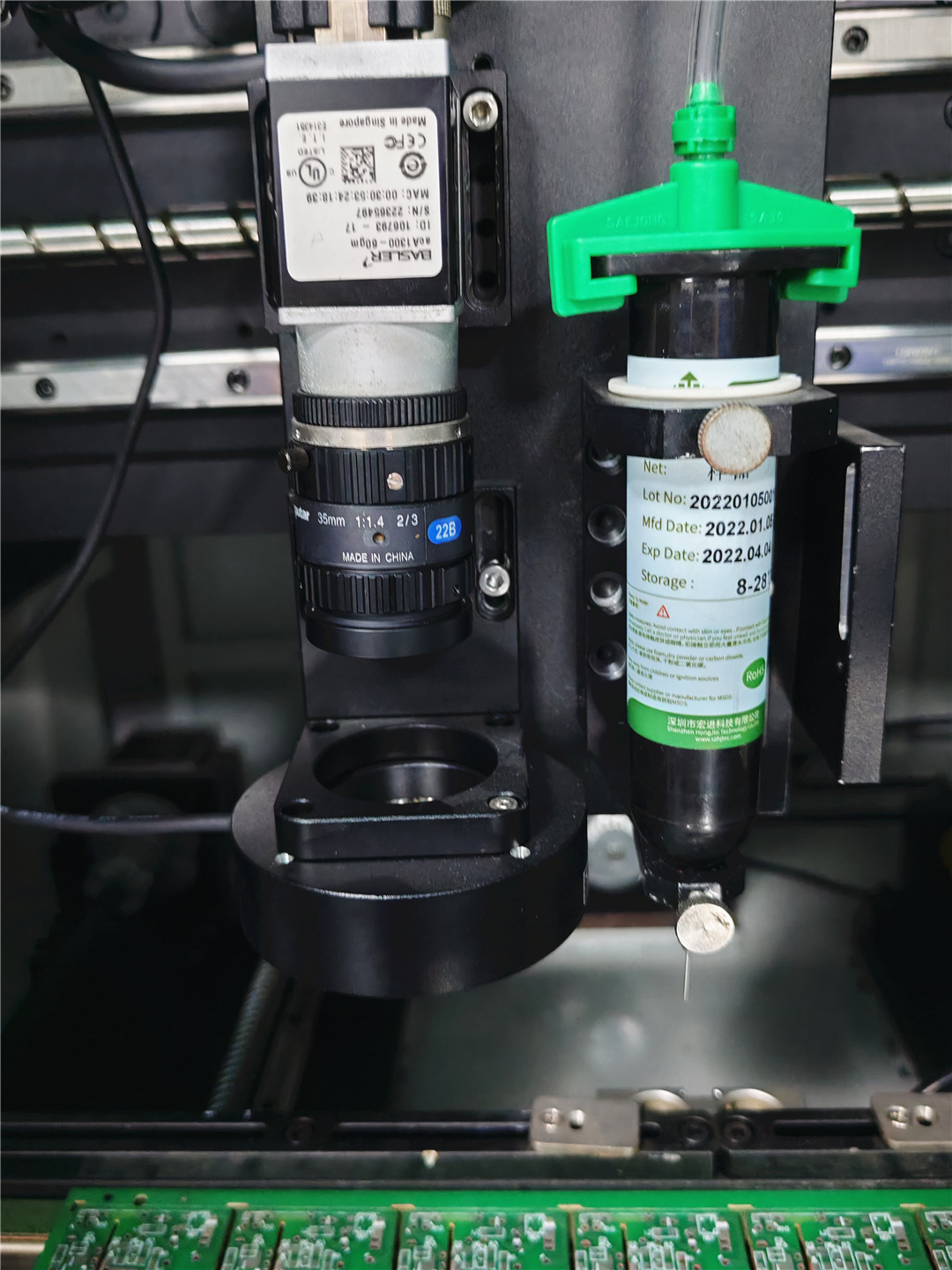

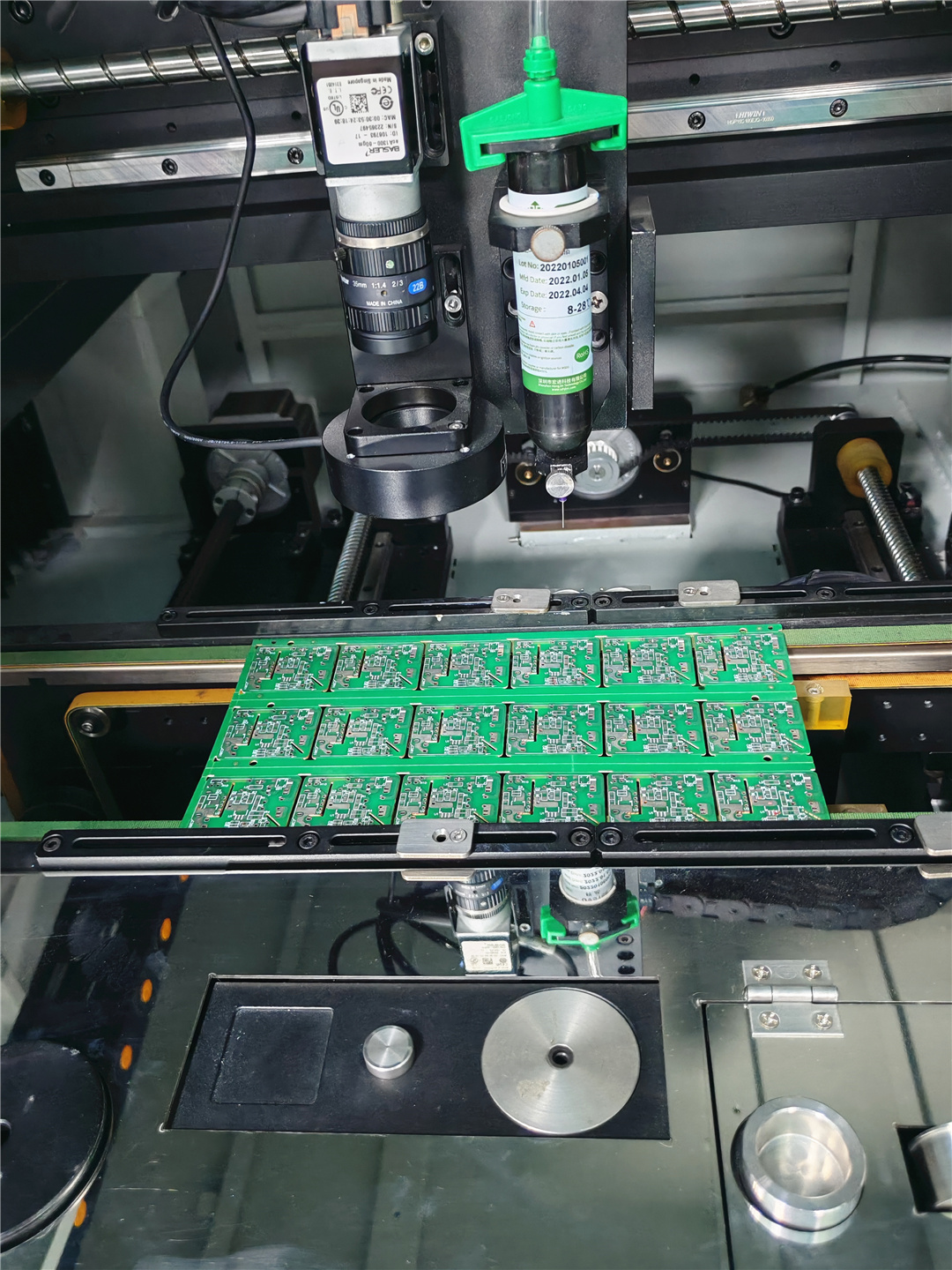

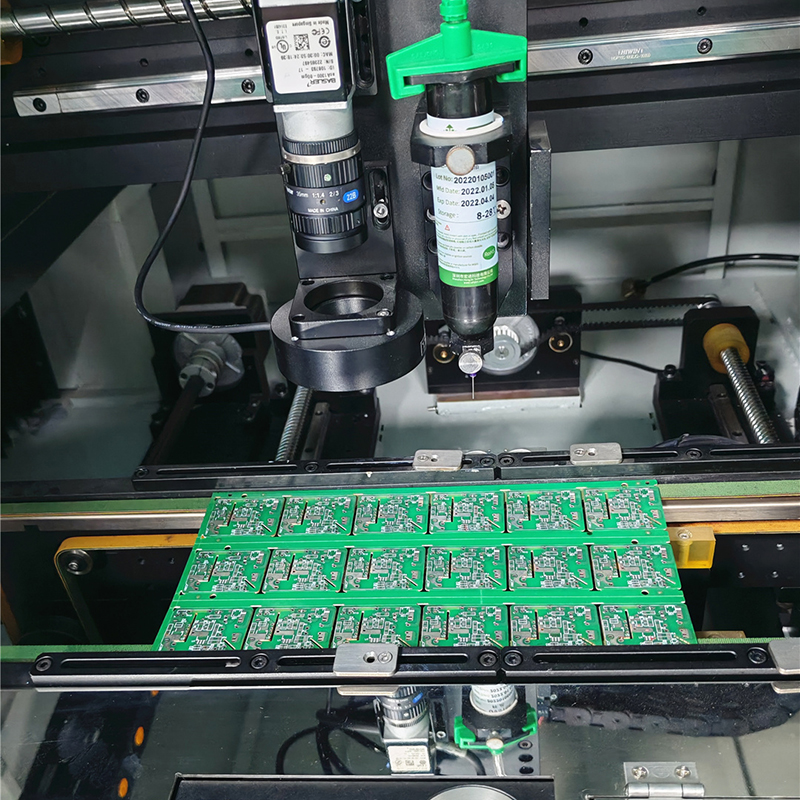

The CCD visual image system automatically calibrates and compensates the movement trajectory of the manipulator to achieve high-precision dispensing.
The program can quickly and accurately complete a variety of complex dispensing paths such as array dispensing, offset correction, and correction paths of flat fixtures and tilting fixtures.
For any 3D dispensing path, a variety of complex dispensing patterns and paths can be realized.
Product parameters
| Working range X-axis, Y-axis, Z-axis | 400×600×100 mm |
| Maximum load Y axis/Z axis | 6Kg/4Kg |
| Maximum movement speed XY axis, Z axis | 600mm/s 、400mm/s |
| Dimensions (W×D×H) | 100*110*162(CM) |

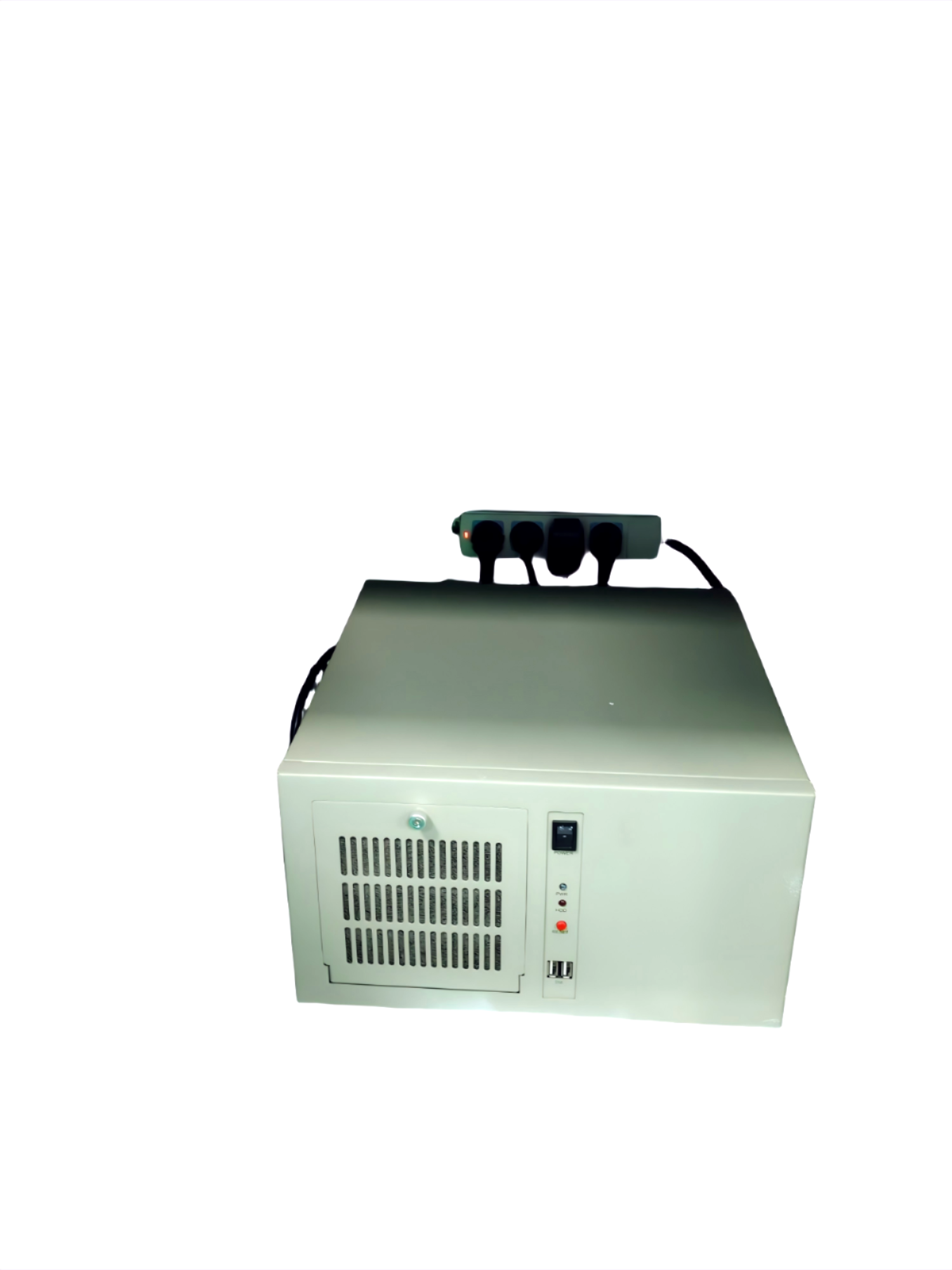

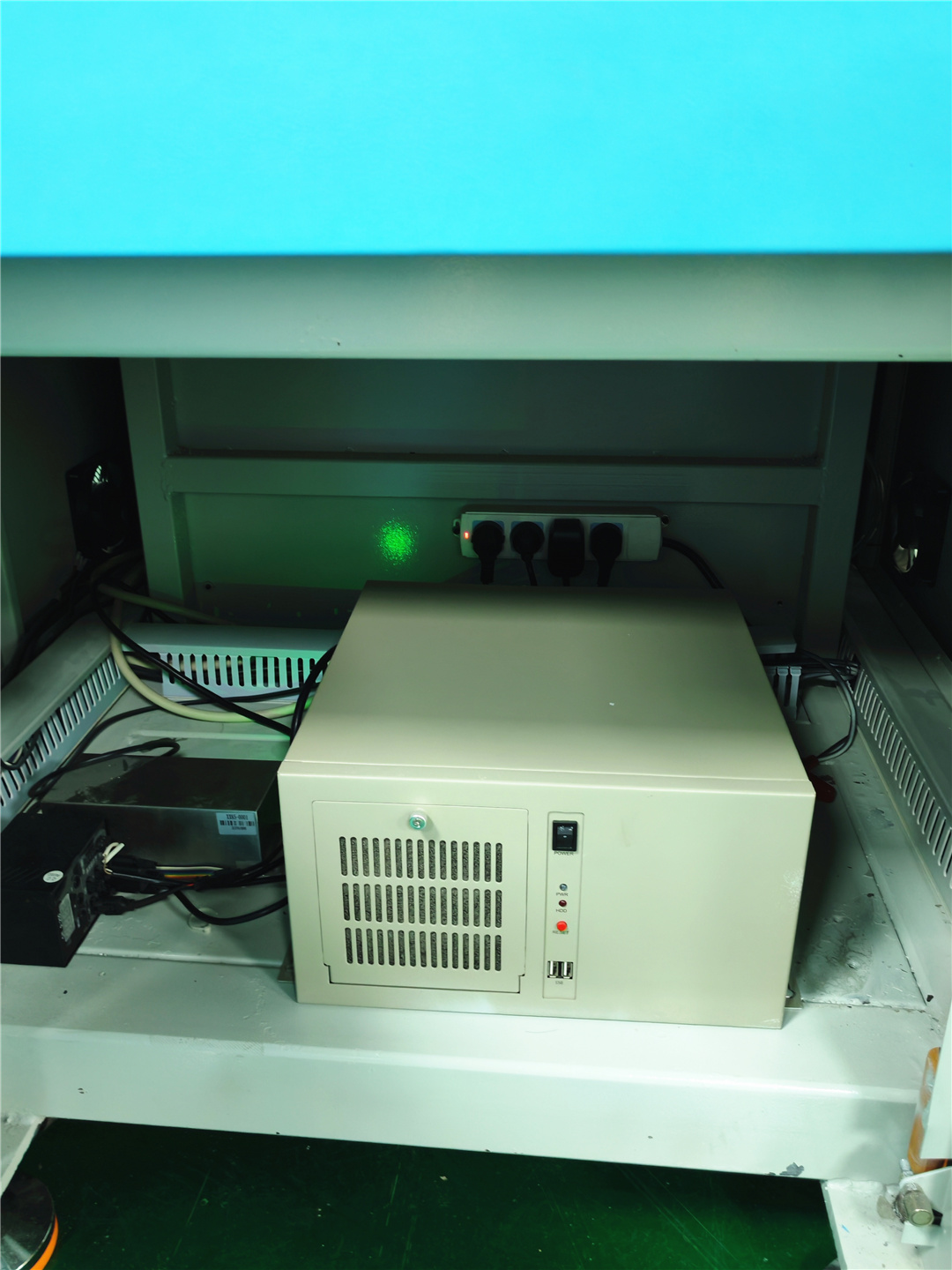

| Control scheme | Sagitar Vision Automatic Dispensing control system + CCD vision system |
| Display method/display language |

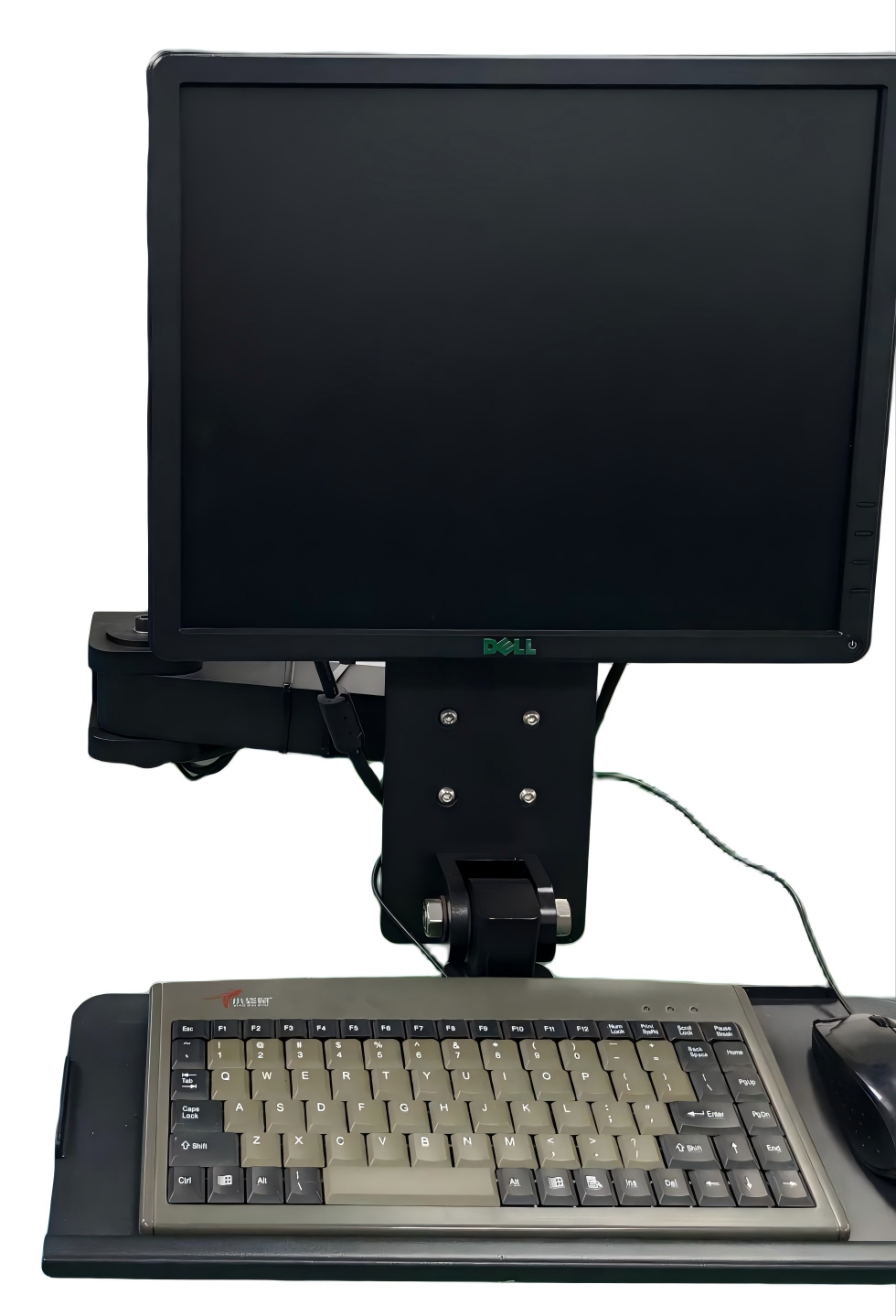

Computer display/Chinese |
| Programming method | Online visual programming, mouse and keyboard operation |
| CCD camera visual positioning | Automatically calibrate the trajectory |
| Laser altimeter (optional) | The laser automatically detects the height and automatically calibrates the dispensing height. |
| Repeatability | ±0.02 mm |
| Motion interpolation function | Any route in 3D stereo space is available |
| Drive mode/transmission mode | Servo system / Precision screw |
| Number of programs stored | More than 1000 groups |
| Input power | Full voltage AC220V 50/60HZ |
Product Details
