Non-contact fluid V6500- Pneumatic injection valve for Sealant application

Material supply assembly Stainless steel luer coupling for syringe (standard)

Inverted coupling for tubing (optional)

Cylinder sizes 3CC, 5CC, 10CC, 30CC, 55CC

Cylinder sizes 4-part tubing

Main valve body Stainless steel

Fluid lumen channel Stainless steel

Needle assembly Special high-strength material + SUS304

Nozzle assembly Special high-strength material

Fluid sealing ring PTFE+SUS 304

Gas sealing ring Polyurethane

Other O-rings Buna N

Solenoid Valve 24V (DC) 5W

Heater Block AL6061 Oxidized

Heater Tube 110V (DC) 50W

Maximum Heating Temperature 80°C

Applicable fluids: - Silicone rubber - Grease-Sealant -Red glue -Solder paste -Epoxy resin

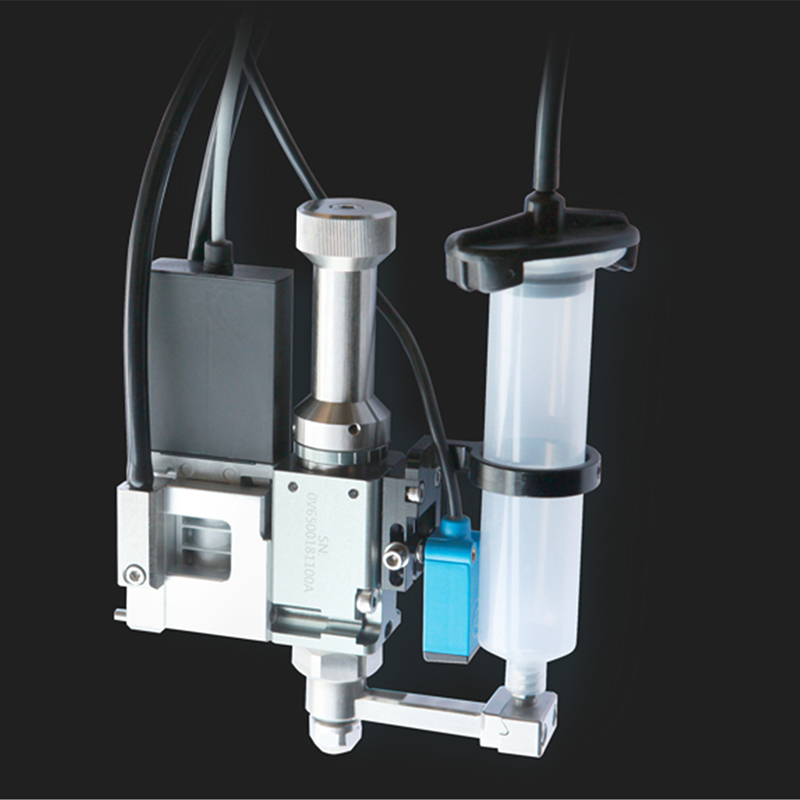

The Axxon V-6500 (Version 2) is a non-contact jet dispensing valve for controlled-flow, high-speed dispensing of a wide range of adhesives such as surface mount adhesives, conductive silver pastes, IC encapsulants, underfill adhesives, sealants, and surface coatings.

The V-6500 (Version 2) can dispense into confined spaces as small as 100 microns and can also dispense accurately and precisely in a given location at weights down to 0.01 milligrams. The V-6500 (Version 2) can be injected into confined spaces as small as 100 microns and dispense precisely in a given location with weights down to 0.01 milligrams.

The V-6500 (Version 2) Jet Valve, in conjunction with the AU series of automated dispensing platforms, maximizes the cost-effectiveness of dispensing in the electronics packaging, lighting, energy, life science and technology industries, as well as in other applications that require high-precision, high-efficiency, and space-constrained applications

Product Overview:

The V6500 is a premium pneumatic jetting valve system engineered for ultra-fast, non-contact dispensing of low to medium viscosity fluids. With its advanced air-controlled mechanism and intelligent controller, this system delivers exceptional precision for high-volume production environments.

Key Specifications:

Valve Type: Pneumatic jetting valve

Operating Pressure: 0.3-0.7 MPa

Dispensing Speed: Up to 800 dots per second

Dot Size Range: 0.2mm-3.0mm

Fluid Viscosity: 1-50,000 cP

Controller: Digital touchscreen with recipe storage

Technical Advantages:

High-speed performance with <2ms response time

Consistent droplet formation with ±1% repeatability

Anti-clog design for uninterrupted operation

Quick-change nozzle system for flexible applications

Integrated pressure regulation for stable output

Industrial Applications:

PCB assembly (solder paste, conductive adhesive)

Semiconductor packaging

Automotive electronics manufacturing

Medical device component bonding

Precision consumer electronics assembly

What We Can Do:

30% faster than conventional pneumatic valves

50% reduction in material waste

Tool-free maintenance design

Compatible with all major automation systems

Real-time performance monitoring

This system is particularly suitable for manufacturers requiring rapid, precise fluid deposition with minimal downtime. Custom configuration options available for specific production needs.
