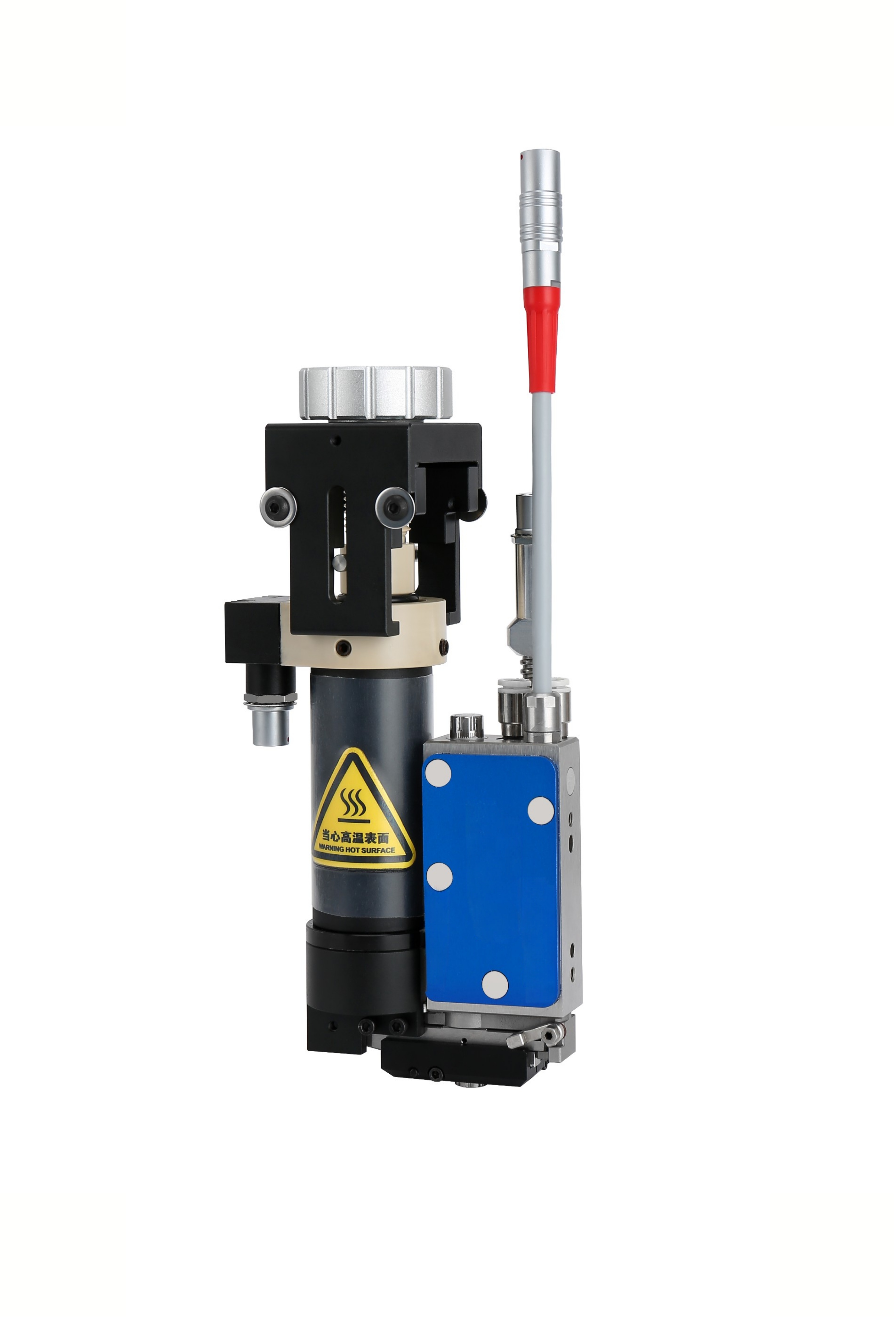

1800S Piezo-electric valve for UV adhesive

Size L 116* W72* H32(mm)
Weight 580g （valve body(without cartridge heater)
Applicable liquid viscosity 0～500000cps
Operating frequency Max:1200Hz
Maximum drive voltage 100%
Minimum single point diameter 0.2mm
Heating temperature upper limit 150°C

Applications:
Electronics: Solder paste, underfill, and conformal coating for PCBs.
Medical: Bio-adhesive dispensing for catheters and sensors.
Automotive: Sealants, lubricants, and LED encapsulation.
Consumer Goods: Precision bonding in smartphone/components.

Selling Points:
Speed & Accuracy: Outperforms Solenoid Valves in high-speed production (e.g., 1,000+ dots/sec).
Versatility: Handles fluids from solvents to thick epoxies without hardware changes.

Energy-Efficient: Low power consumption (<5W) vs. traditional valves.
Smart Integration: Compatible with PLCs and vision systems for Industry 4.0 automation.
Ideal for industries demanding repeatability, miniaturization, and zero downtime.

1800S piezoelectric valve is the third generation of piezoelectric injection system independently developed by our company, this product maintains excellent fluid injection performance based on the stability, consistency, and economy to further enhance the comprehensive service life of the product, and at the same time reduces the use of consumables to reduce the cost of maintenance for customers.

Suitable for fluids including but not limited to epoxy resin, UV adhesive, hot melt adhesive, red glue, silicone, ink, silver paste, solvent, flux.

Apply in Underfill,Hot Melt,Encapsulatin and Corner/Edge bonding,flux,sliver paste

Integrated nozzle holder design for quick disassembly/maintenance/upkeep.
Adjustable temperature control structure is equipped as standard, and the nozzle can be heated up to 150℃.
Quick nozzle calibration function
Easy-to-learn operation with 1600 Piezo Valve Controller
