Lab-Grade Precision Desktop UV Curing Oven for R&D
Applications:
Irradiance Range: Adjustable from 10–150 mW/cm² (±3% uniformity)
Curing Area: 300 × 250 × 200 mm (L×W×H) with quartz work platform
Timer Control: Digital countdown (1–999 seconds) with auto-shutoff
Temperature Management: Built-in cooling fan maintains <40°C surface temperature
Power Supply: 220V AC, 500W max power consumption
Control Interface: LCD touch panel with 10 programmable presets
Safety Features: UV-blocking window (OD4+), emergency stop button, overheat protection
Functional Description:
This compact yet powerful desktop UV curing oven delivers precision curing for industrial adhesives (epoxy, acrylic, UV-curable resins) in R&D, repair, and small-batch production environments.
Uniform Curing Performance – Multi-directional UV exposure ensures complete polymerization with no shadow areas, achieving >90% adhesive conversion in seconds.
Process Flexibility – Selectable wavelengths (365nm for deep cure, 405nm for surface tack-free) accommodate diverse materials from electronics encapsulants to medical-grade adhesives.
User-Centric Design – The quartz workplate allows bottom-side curing, while the transparent chamber enables real-time process observation without UV exposure risk.
Lab-Grade Accuracy – Integrated radiometer (optional) verifies UV dosage (0–2000 mJ/cm²) for quality documentation.
Key Applications:
Electronics: PCB component bonding, conformal coating curing
Medical Devices: Catheter assembly and disposable tool manufacturing
Automotive: Quick-cure repairs for sensors and interior trim
Operational Advantages:
Space-Saving: 30% smaller footprint than conventional ovens
Instant On/Off: No warm-up time vs. mercury lamp systems
Repeatable Results: MEMS-controlled UV output ensures batch-to-batch consistency
Ideal for laboratories and production cells requiring FDA/ISO-compliant curing with minimal energy consumption (60% savings vs. traditional systems). The oven includes calibration certificates and supports GMP documentation requirements.

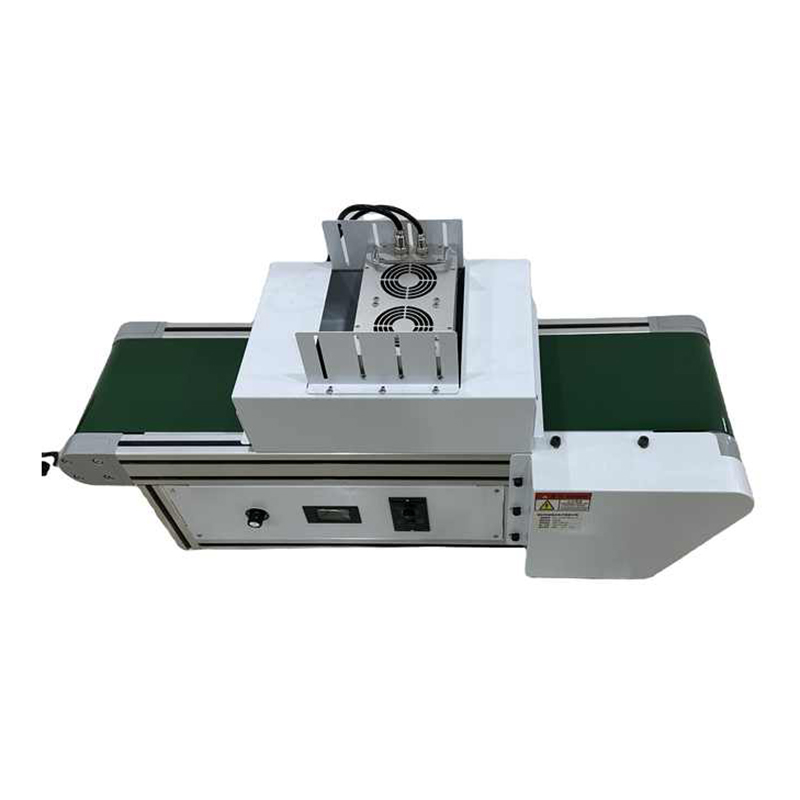

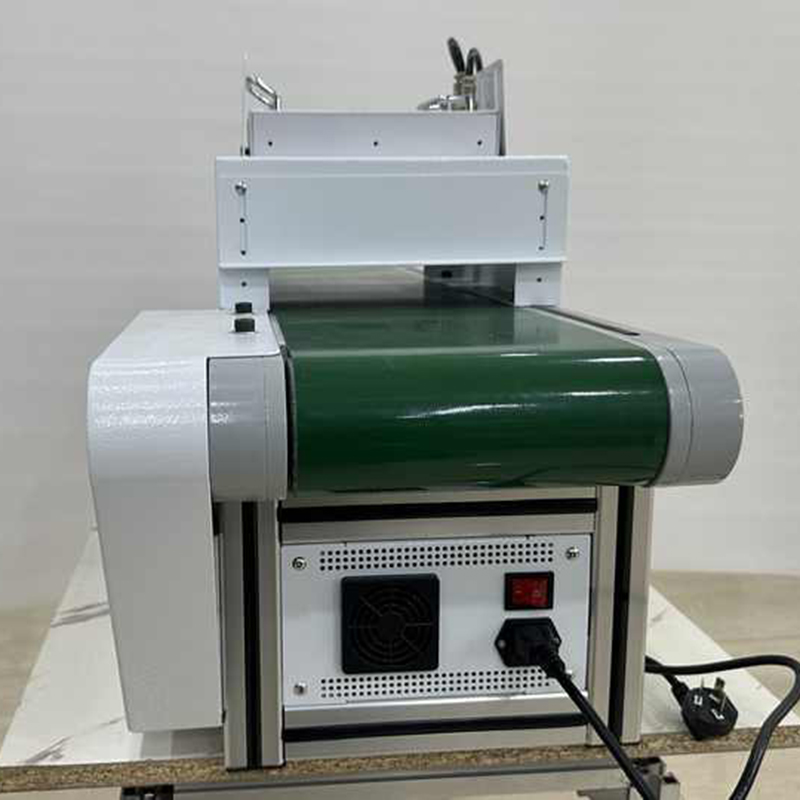

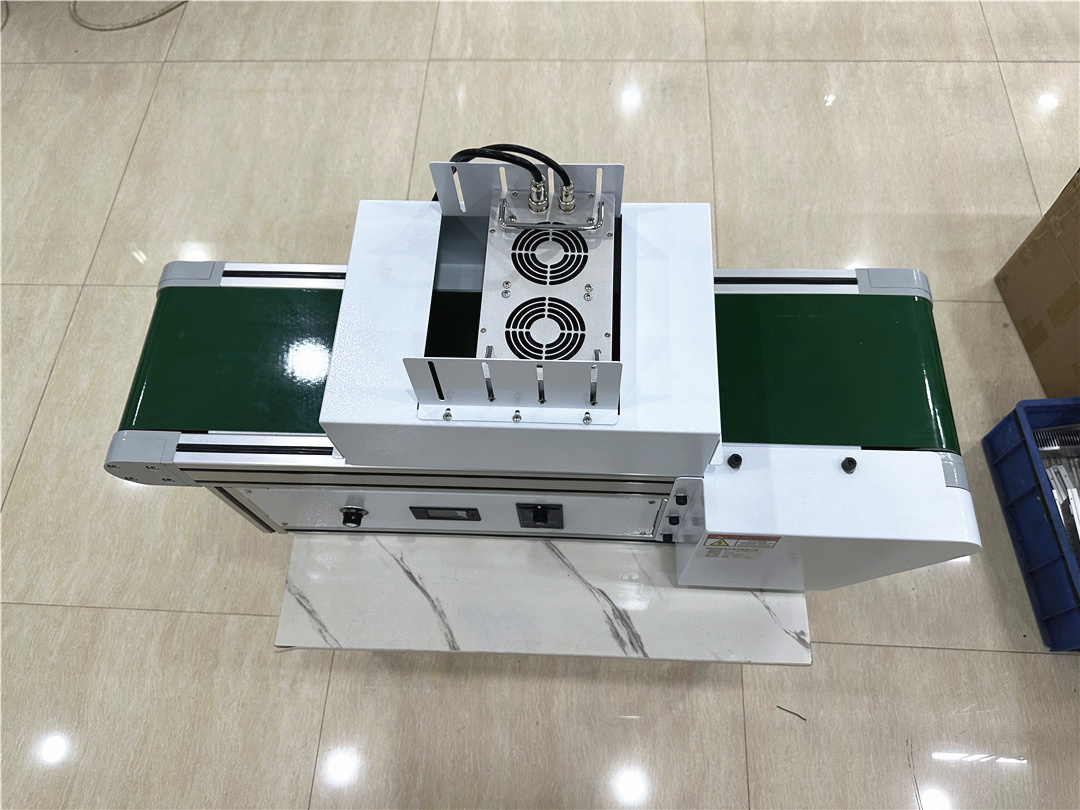

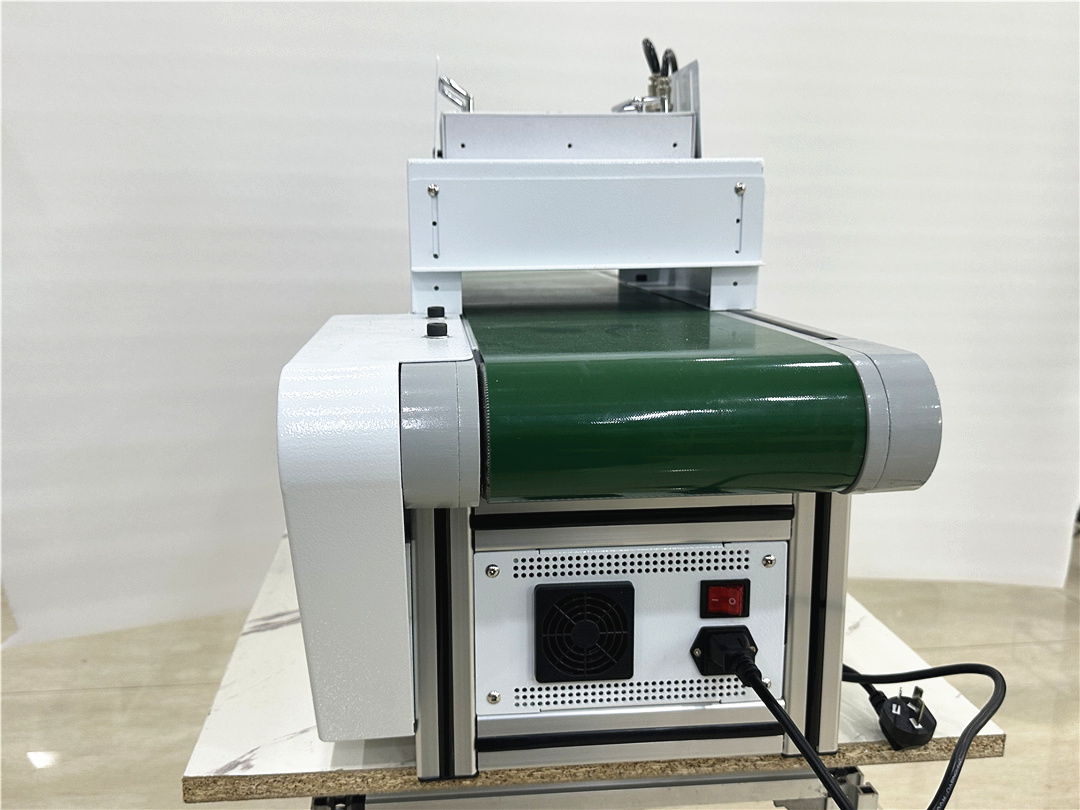

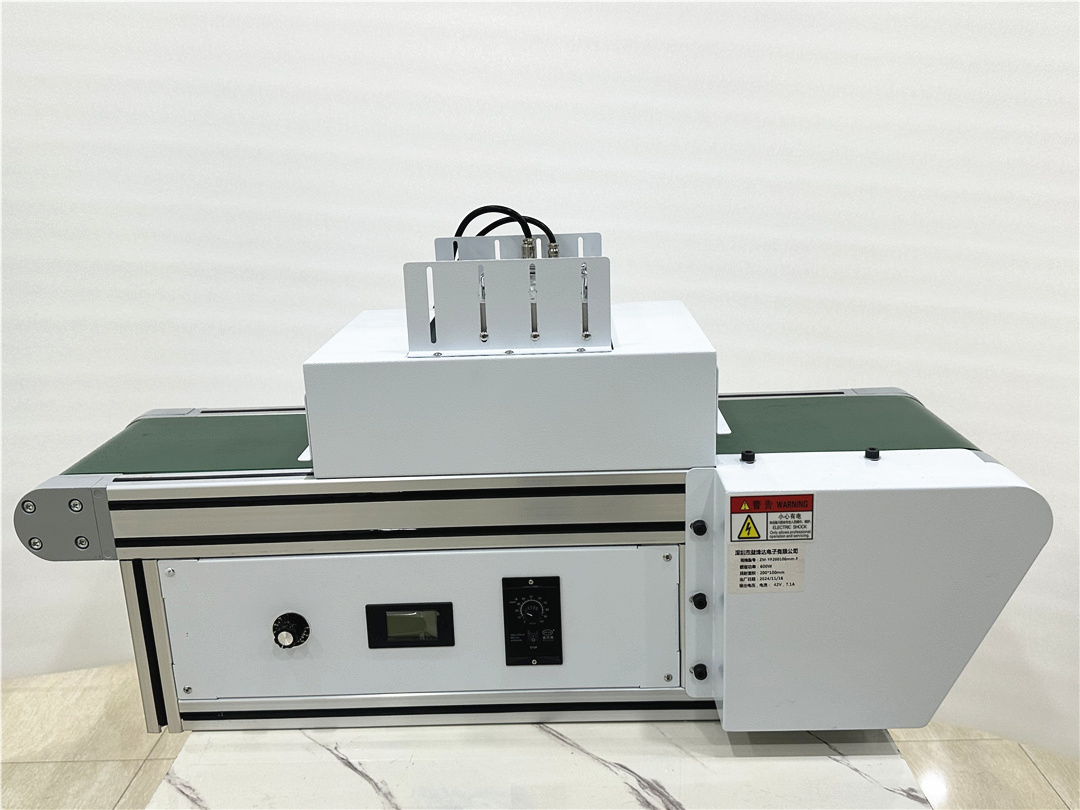

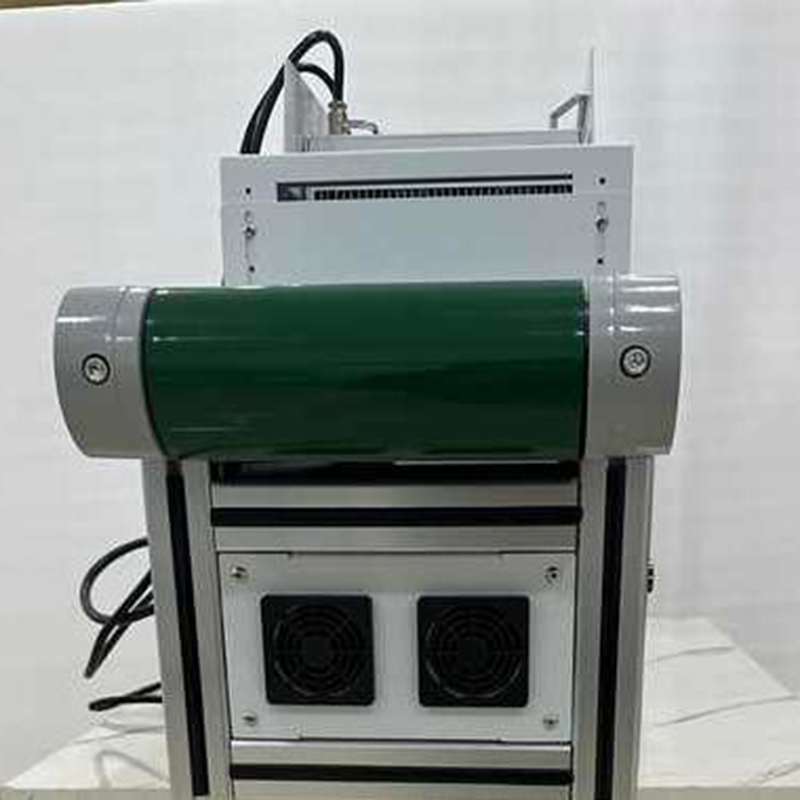

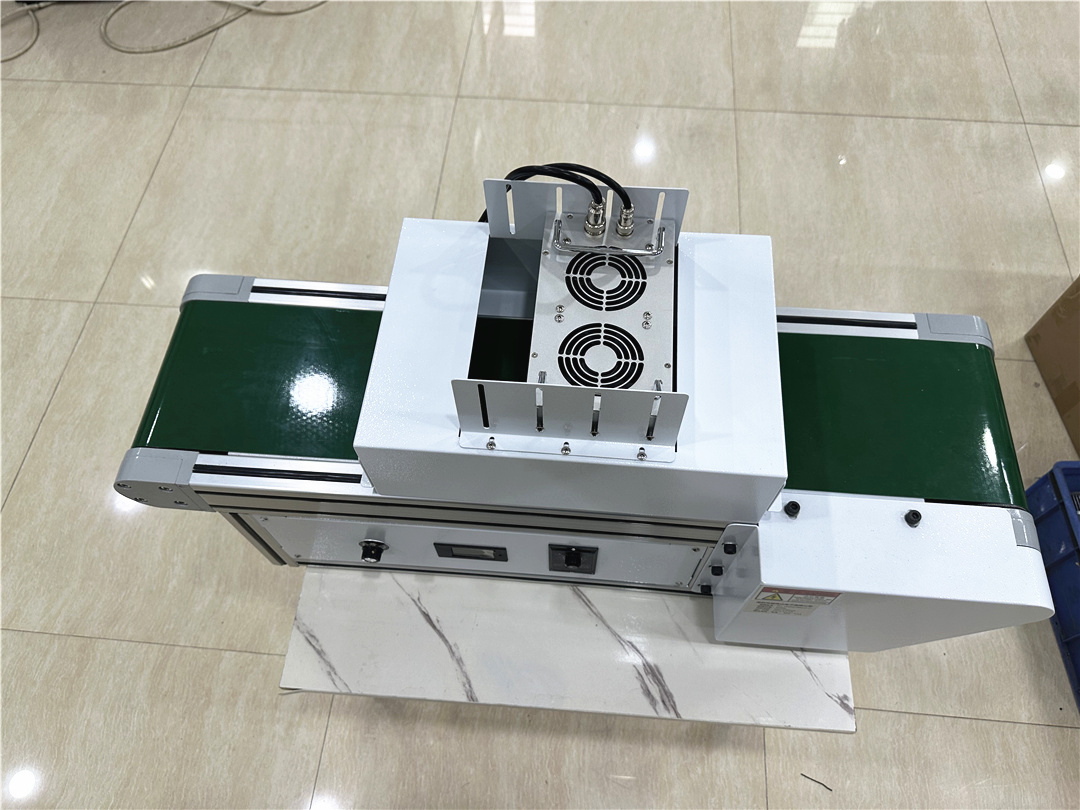

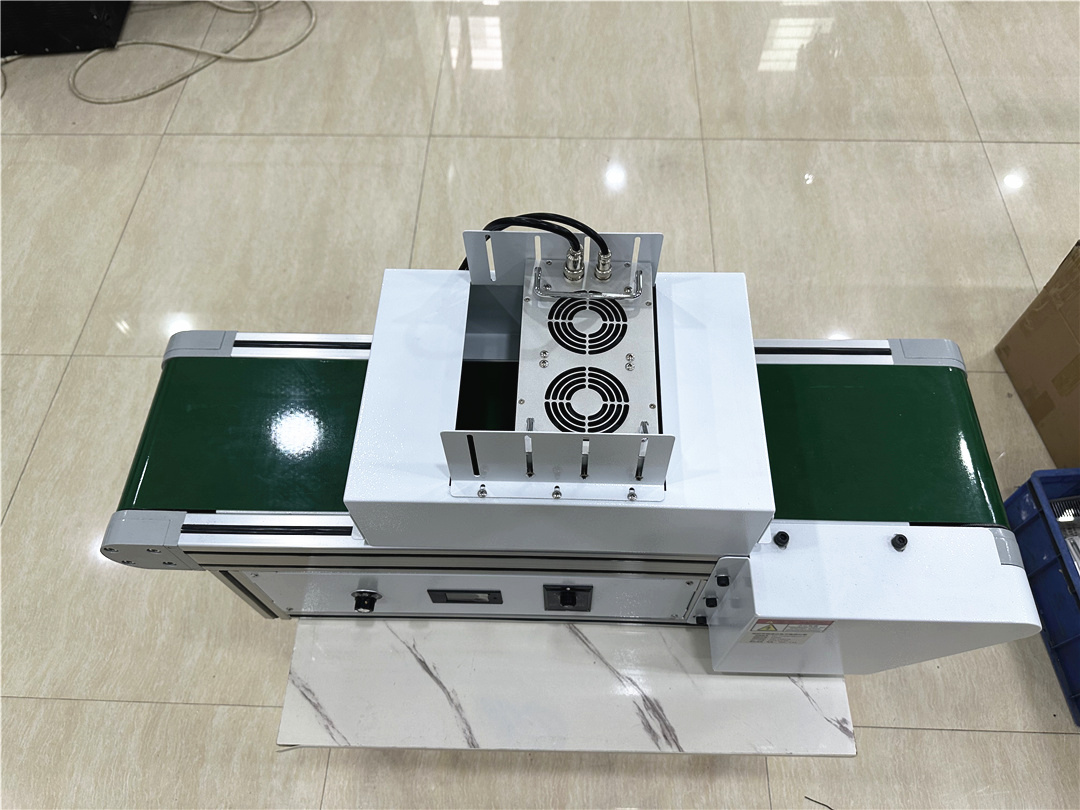

Product parameters
Mesh belt width |
100-500mm (width can be customized) |
Mesh belt material |
Teflon, PVC |
Overall material |
aluminum + sheet metal wrapped edge |
Conveyor speed |
0-5m\min adjustable (can be selected according to customer requirements) |
Overall length |
1-2m (length can be customized) |
Transmission direction |
positive and negative adjustable |
Dimming |
knob dimming, can add 7-inch touch screen |
Light height |
0-150mm adjustable |
Feeding height |
0-150mm adjustable |
Input voltage |
220VAC 50HZ |
Energy Adjustment |
0-100% |
UV lamp specifications size according to the actual requirements of customers to choose | |
PLC, handwheel adjustment height can be customized according to customer requirements | |

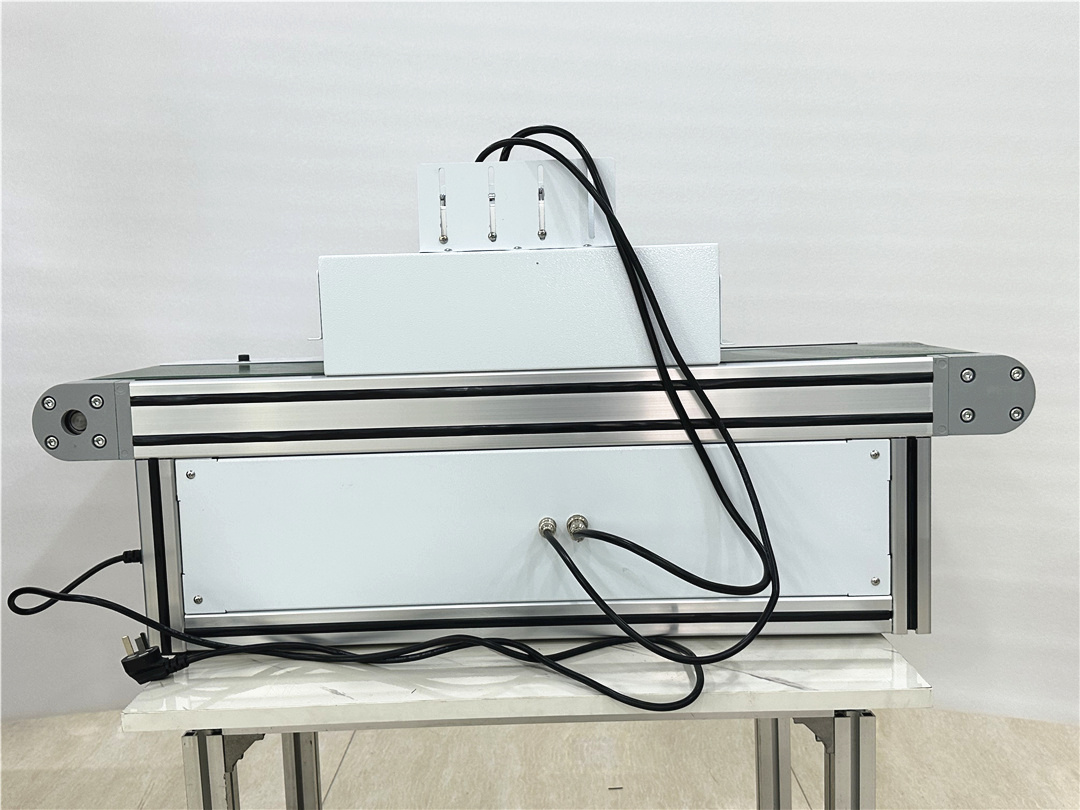

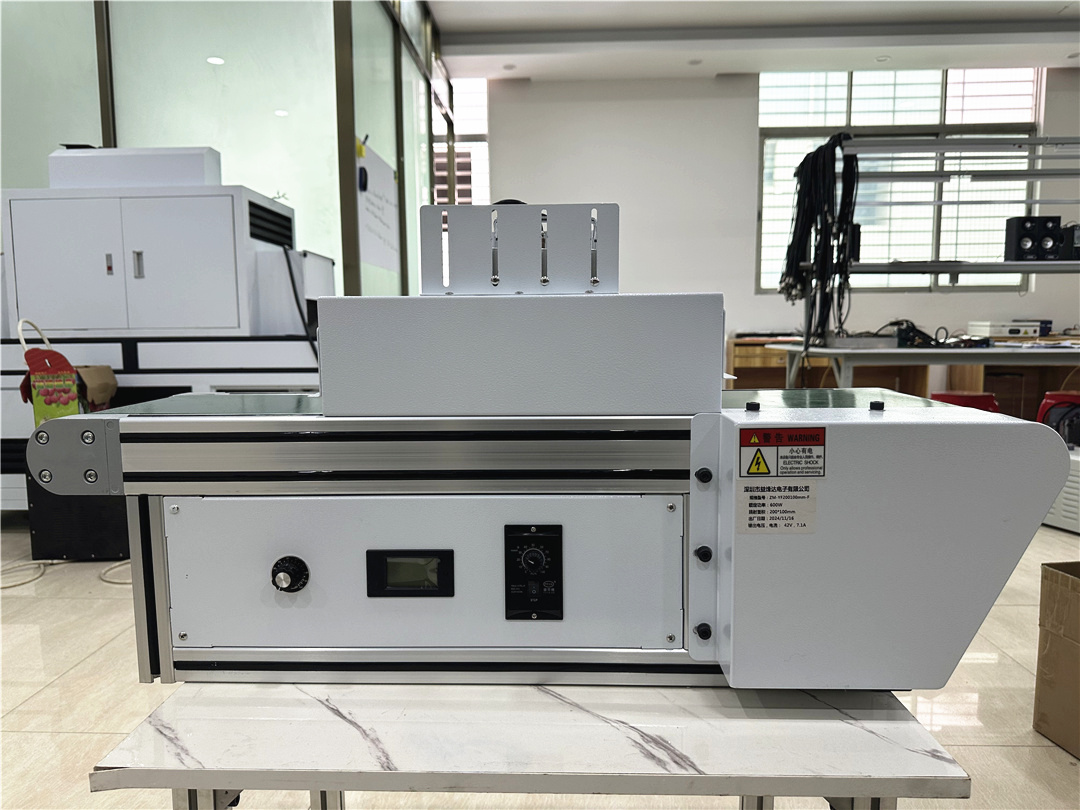

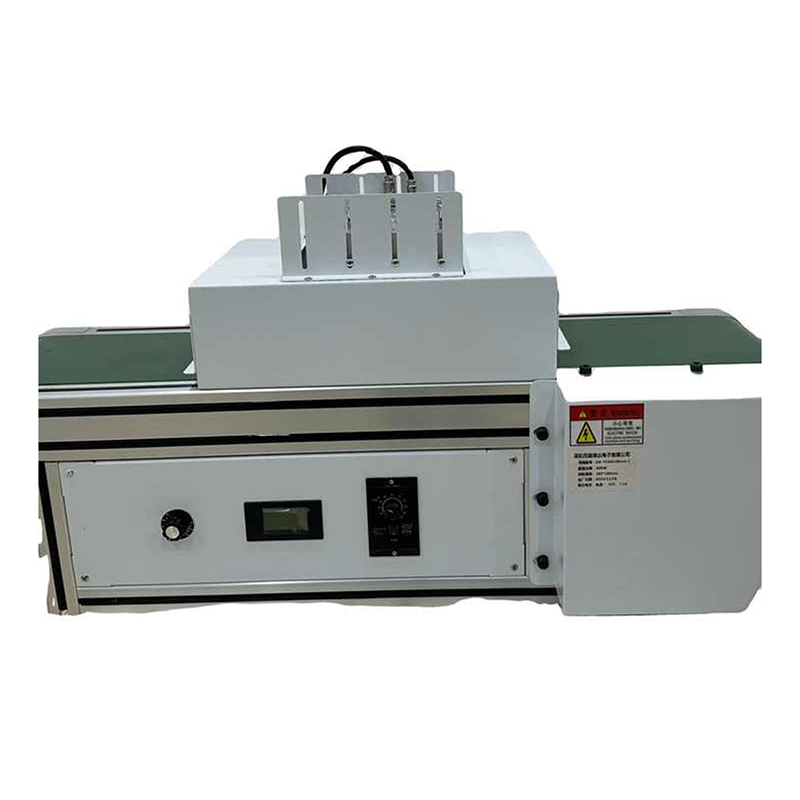

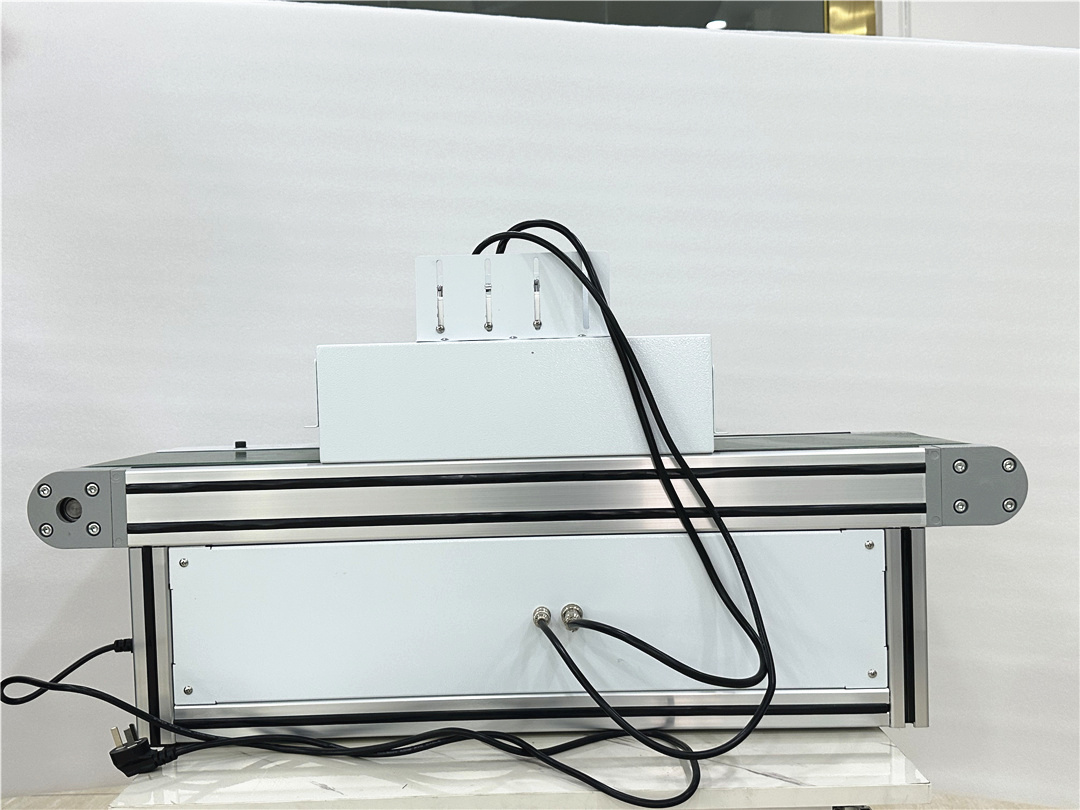

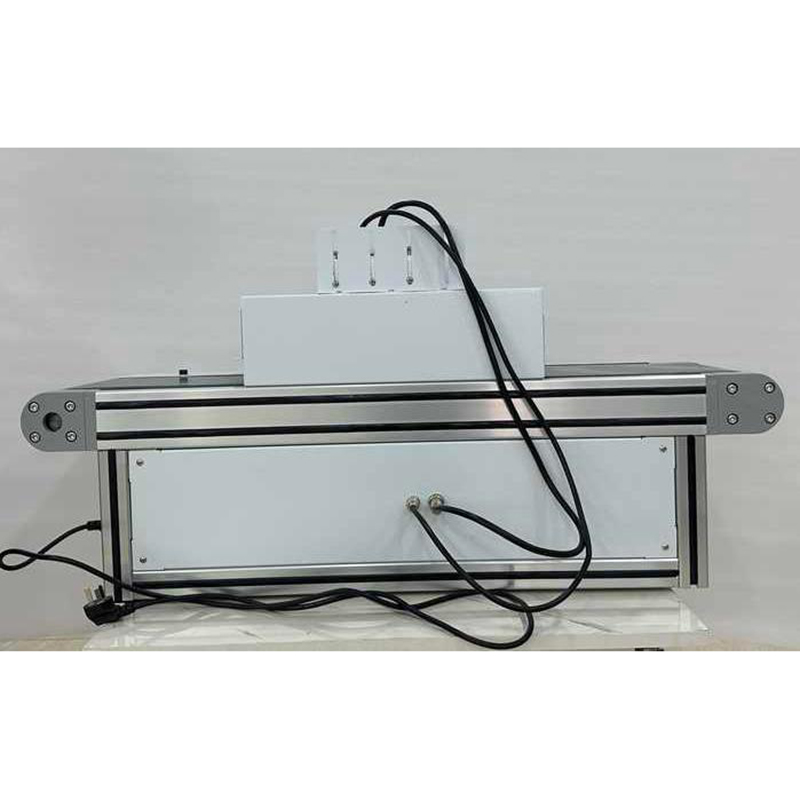

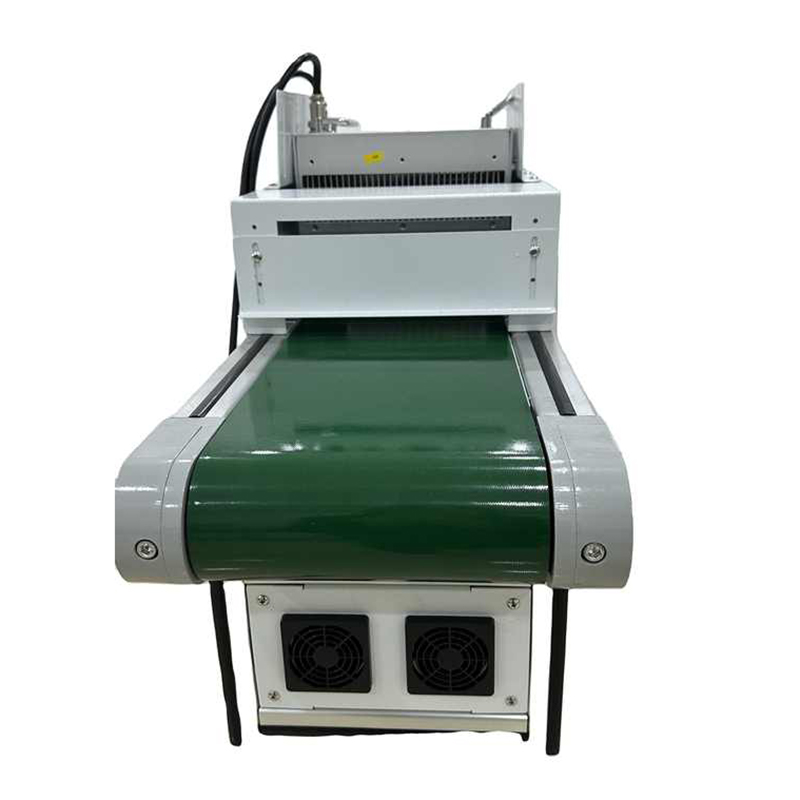

Product Details
