Industry 4.0-Ready Solution UV Automatic Curing Box
Applications:
Temperature Range: Ambient to 80°C (PID-controlled with ±1°C stability)
Power Supply: 3-phase 380V AC, 6kW max consumption
Control System: 10" HMI touchscreen with PLC, supports 99 preset recipes
Connectivity: Ethernet, RS485, OPC UA for Industry 4.0 integration
Safety: CE/UL certified, emergency stop, UV shielding (OD4+ protection)
Precision Curing - Multi-wavelength UV LEDs ensure complete cross-linking for both surface and deep-section curing, achieving >95% adhesive conversion rate.
Smart Process Control - Built-in radiometers and IR cameras monitor curing status in real-time, automatically adjusting conveyor speed and UV intensity.
Production Flexibility - Modular design accommodates various product geometries (PCB assemblies, medical devices, automotive parts) with quick-change fixtures.
Energy Efficiency - Water-cooled LED arrays reduce power consumption by 60% vs mercury systems, with 30,000+ hours lifespan.
Electronics: SMT component bonding, conformal coating curing
Medical: Disposable device assembly with ISO 13485 compliance
Automotive: Headlight lens bonding with <0.5% defect rate
Quality Assurance:
Meets IPC-A-610 Class 3 standards for electronics
Generates automated curing reports (time/temperature/UV dose) for traceability
Optional cleanroom (Class 1000) configuration available
The system's closed-loop automation eliminates human error while doubling production throughput compared to manual curing processes.
Product parameters
Model |
YF150150-F double-sided curing box |
Material |
Cold rolled plate baking paint |
Overall color |
Ivory + sand grain black |
Curing time |
countdown time can be set (touch screen setting) |

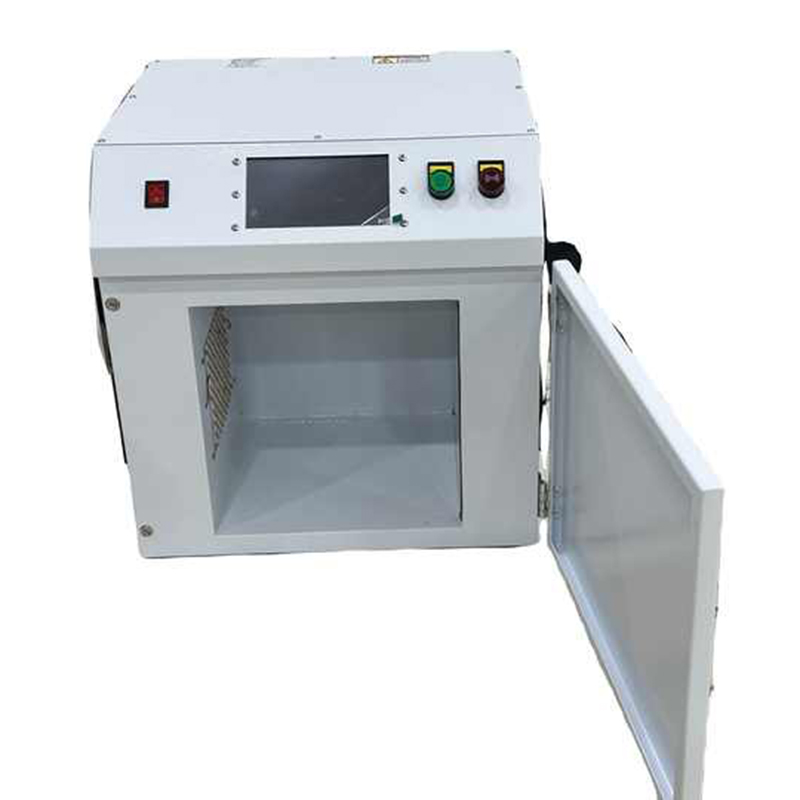

Opening mode |
automatic opening |

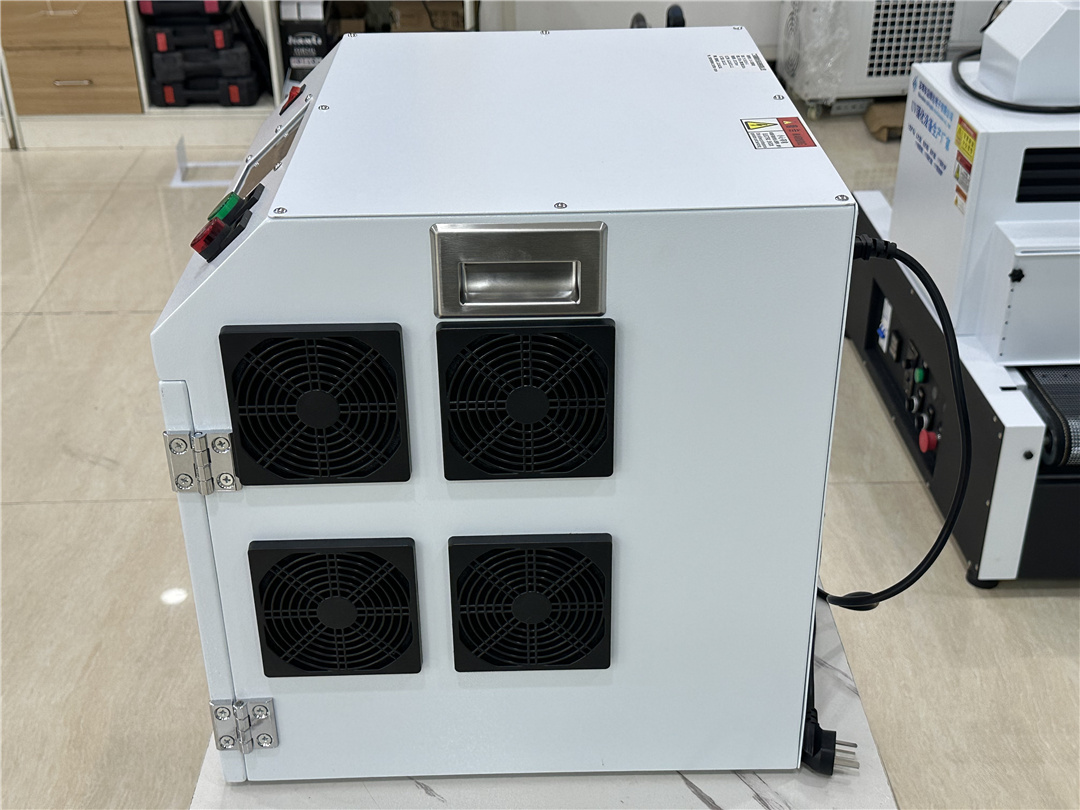

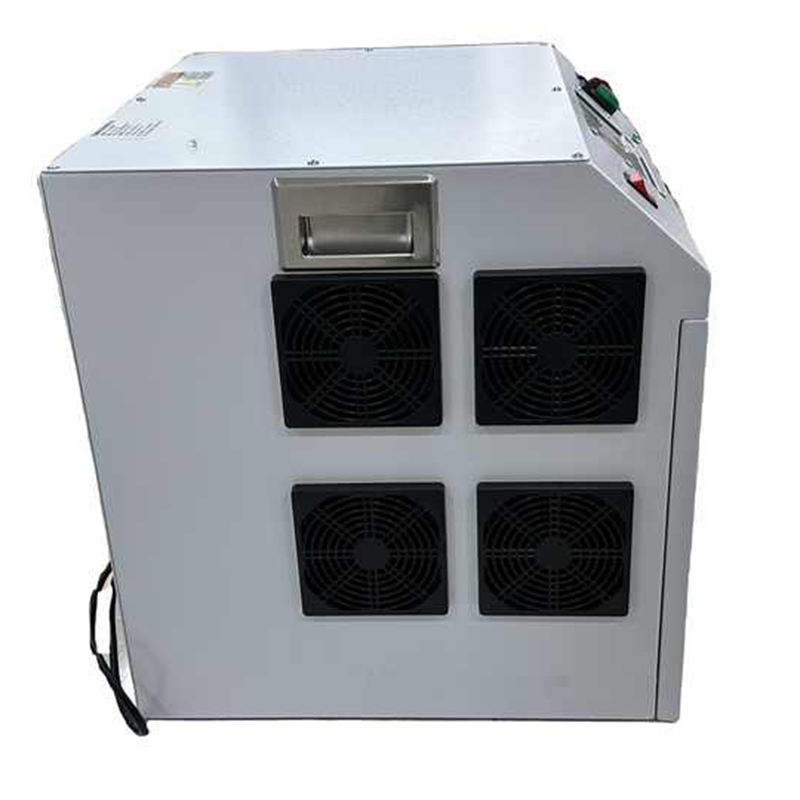

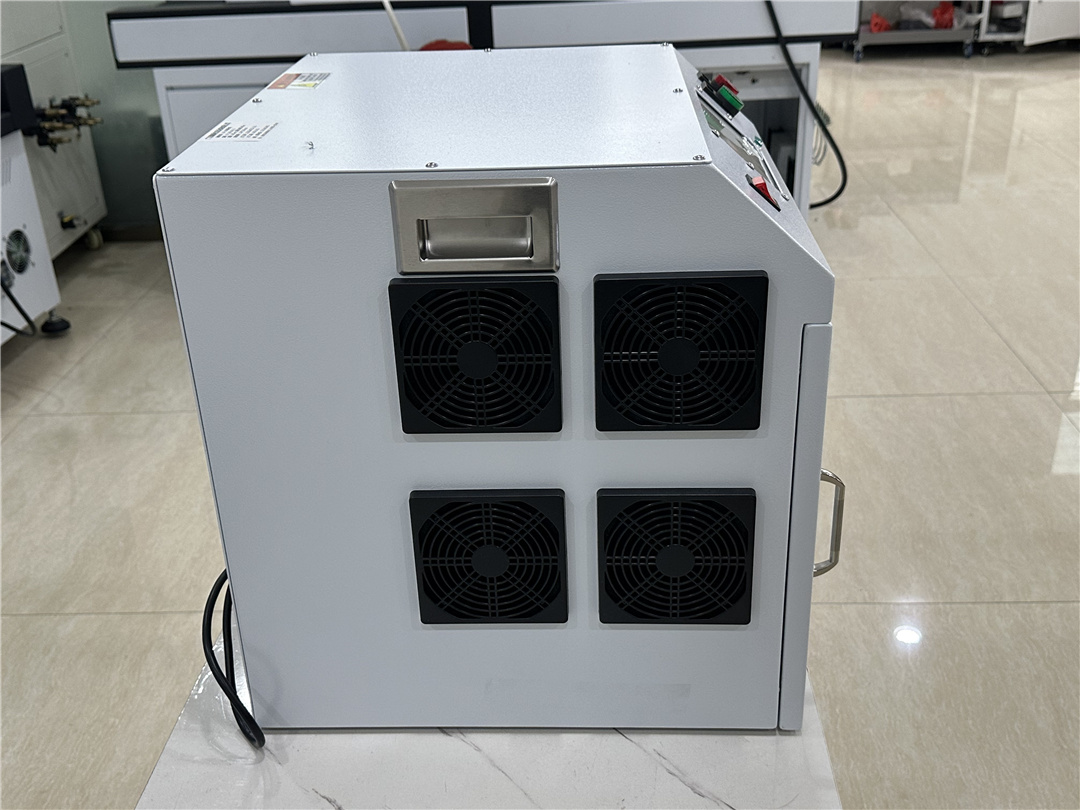

Heat dissipation |
air-cooled |

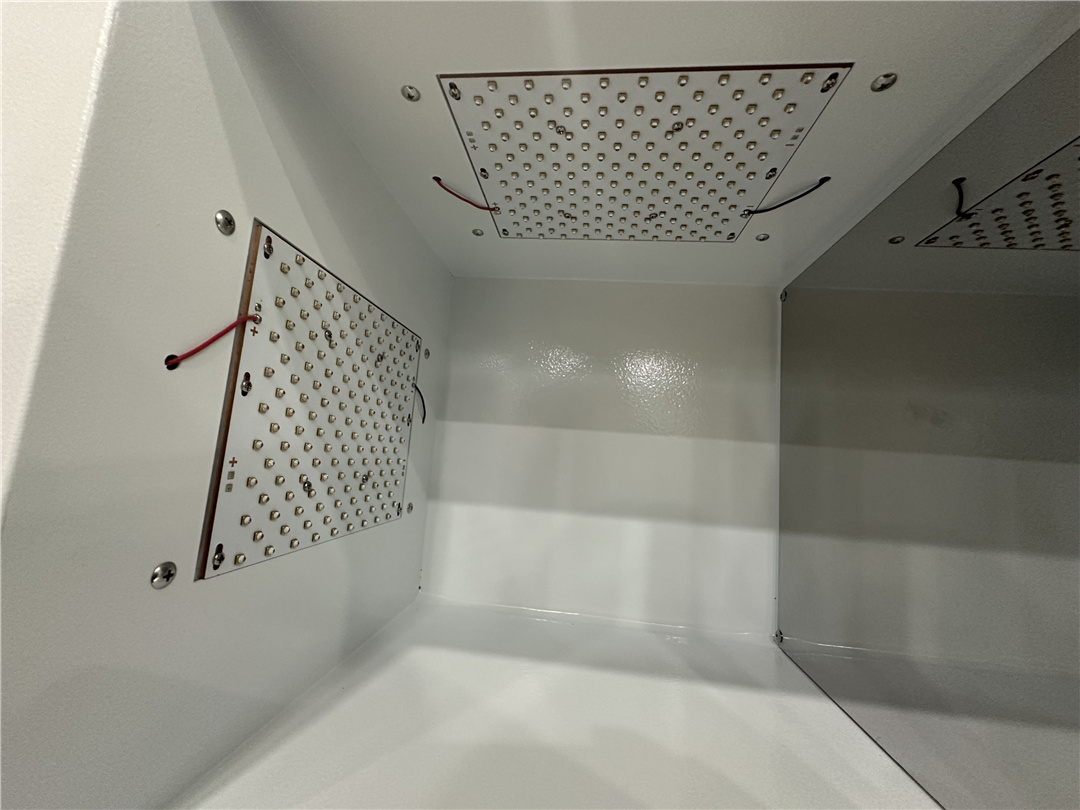

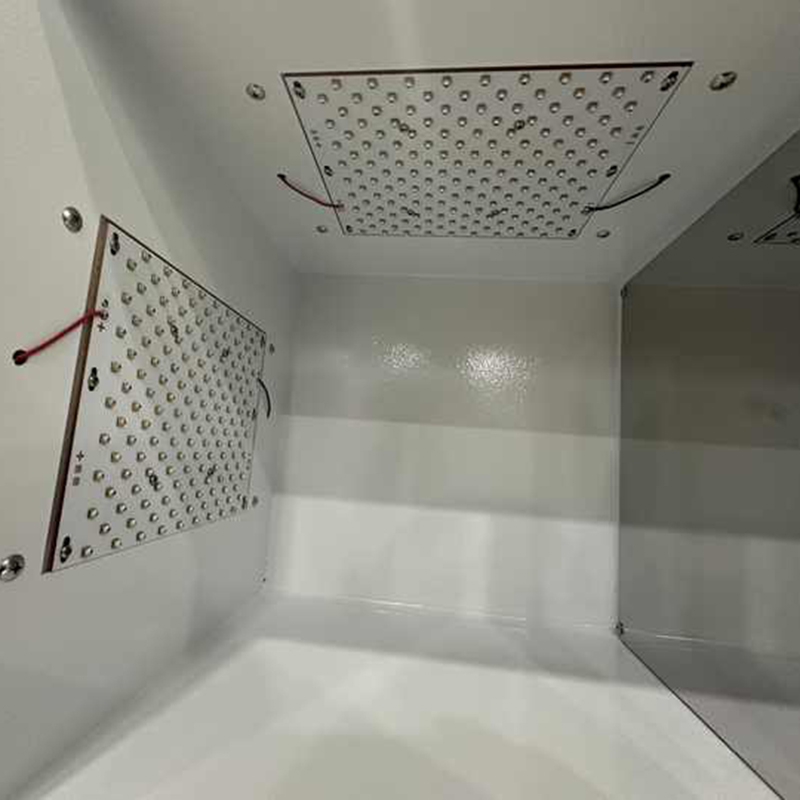

Radiation surface |
150*150mm*2 (can be customized) |
Abnormal monitoring |
over-temperature alarm, abnormal current alarm, power failure protection |
Dimming |

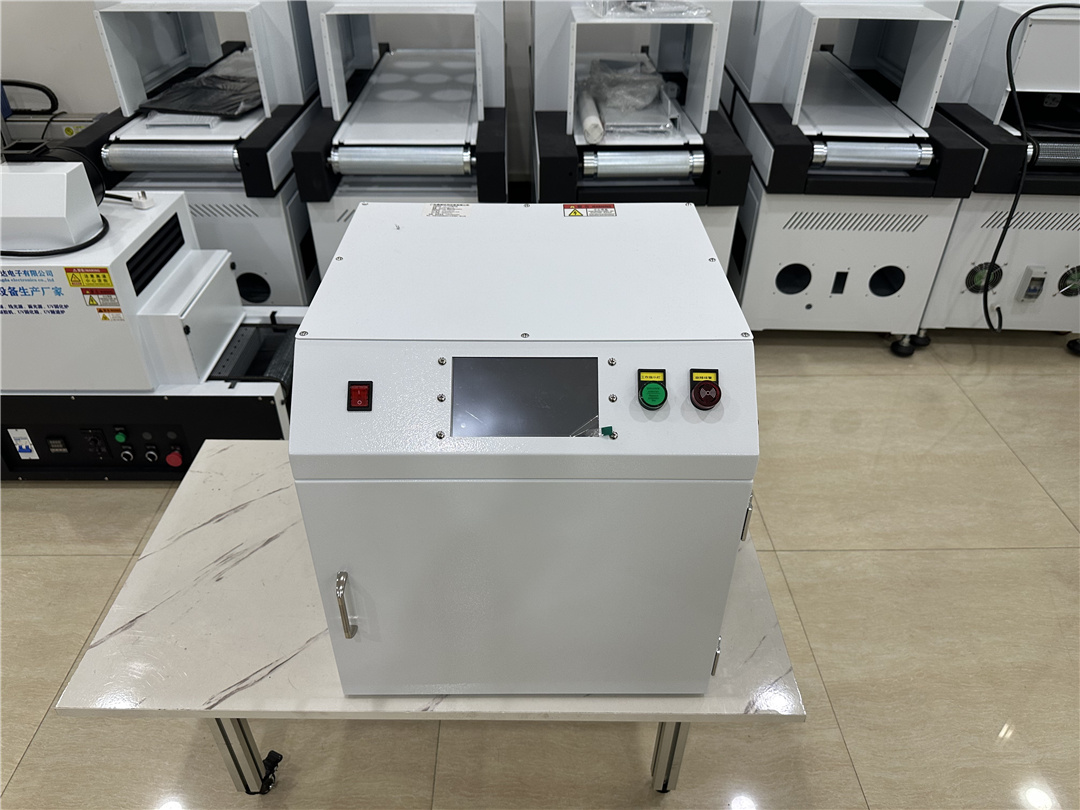

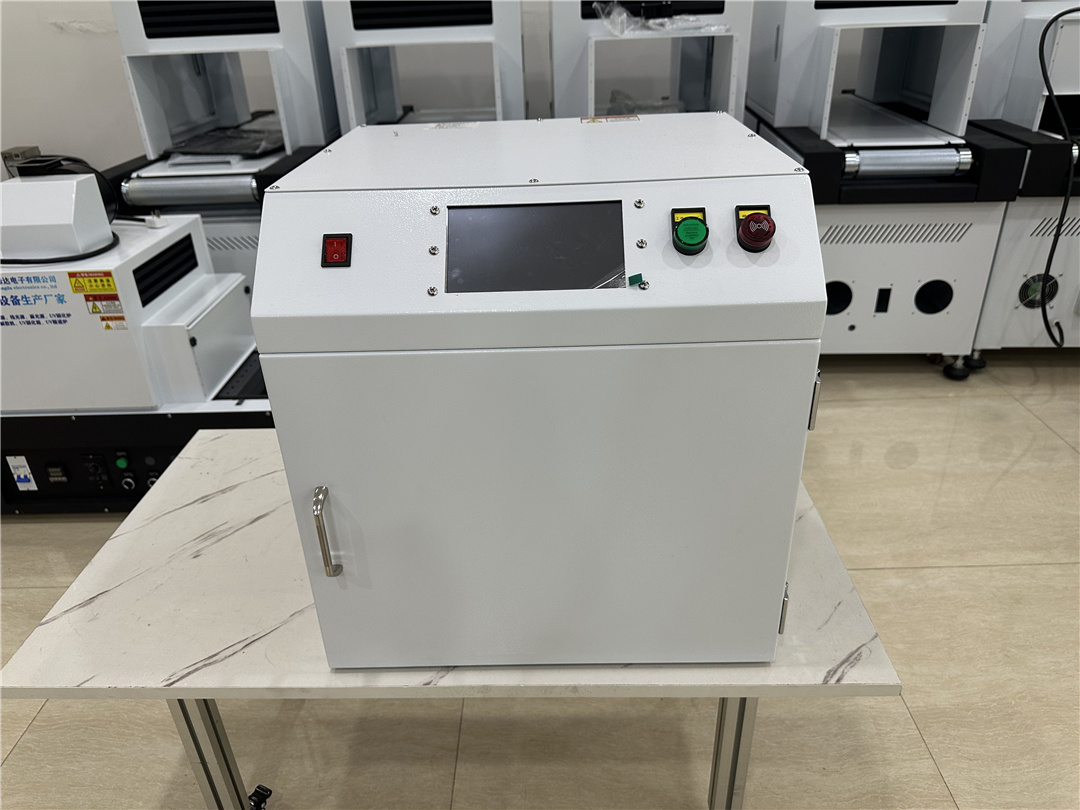

7-inch touch screen |
Three-color light |
red (abnormal), yellow (standby), green (running) |
Input voltage |
220VAC 50HZ |
Energy regulation |
0-100% |

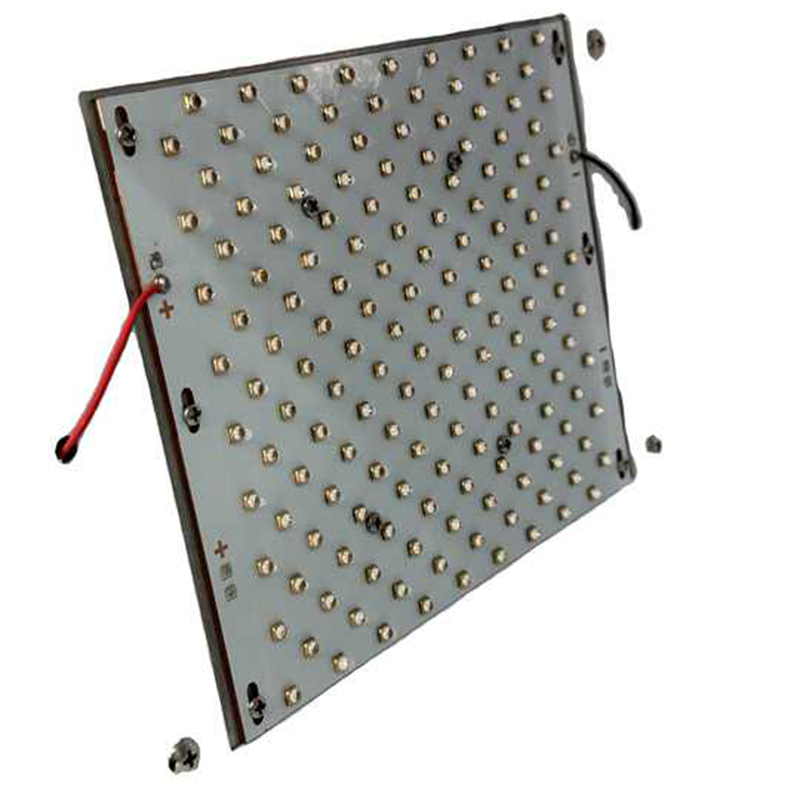

UV light specifications size according to the actual requirements of customers to choose | |

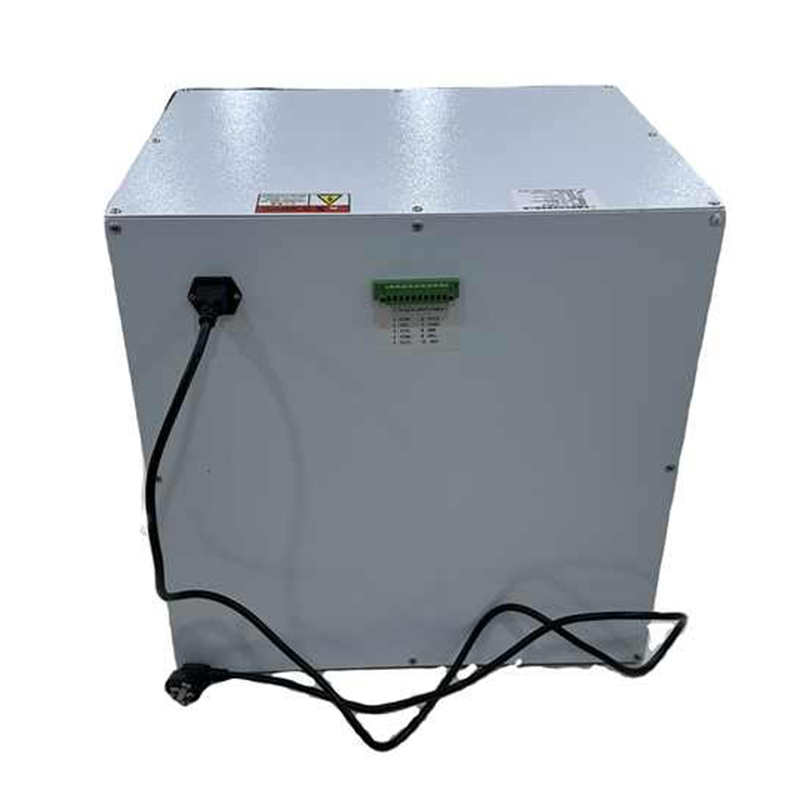

Product Details
