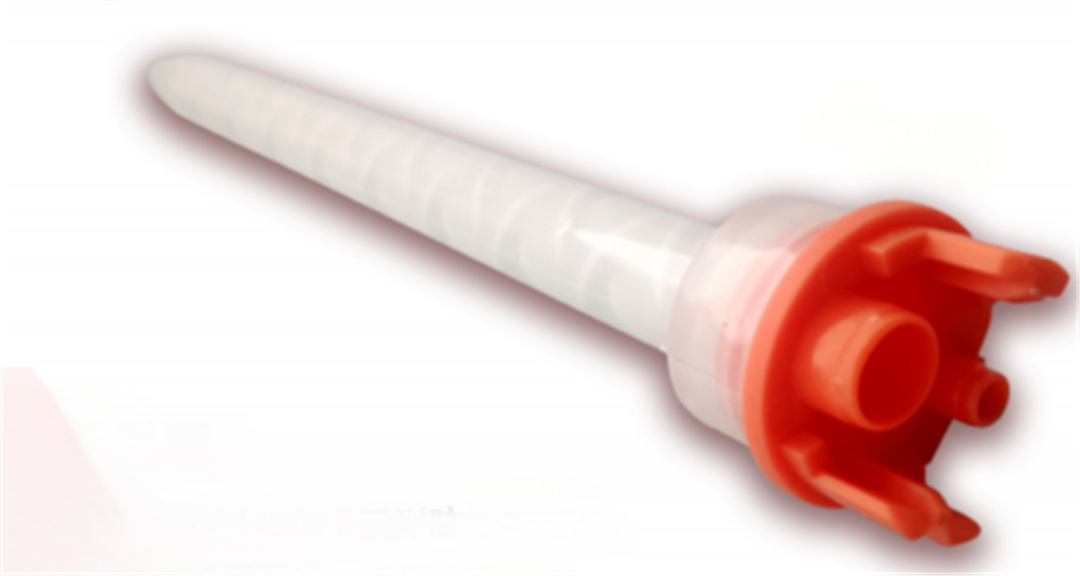

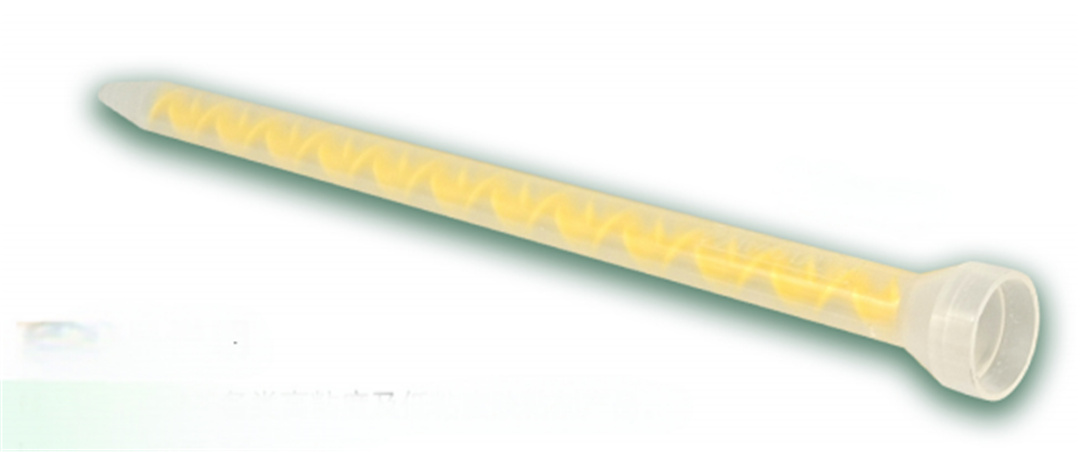

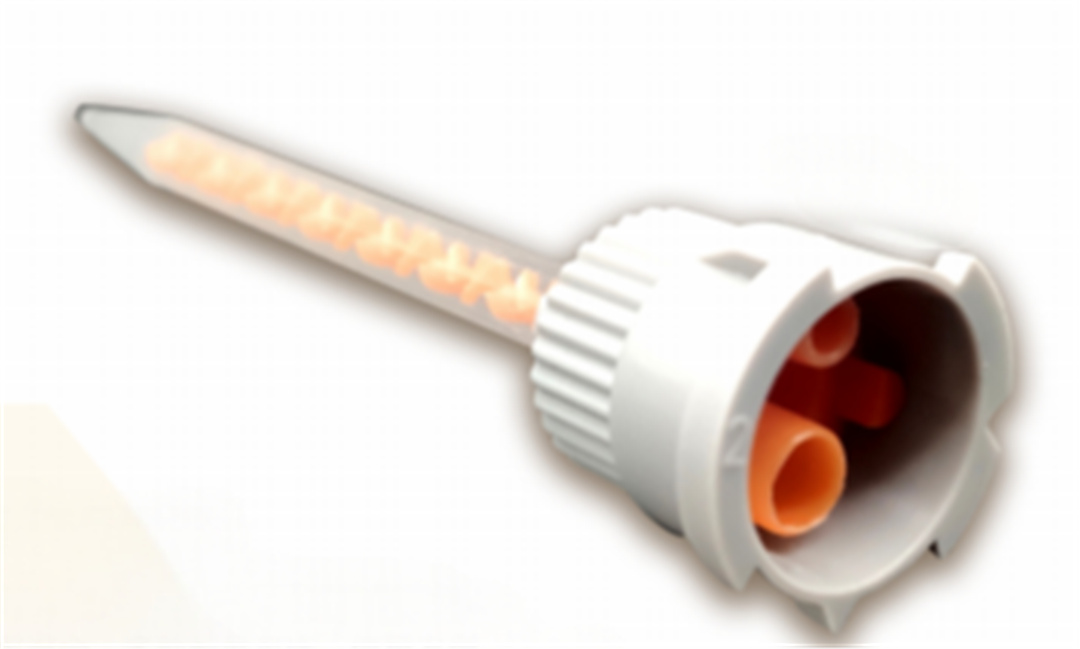

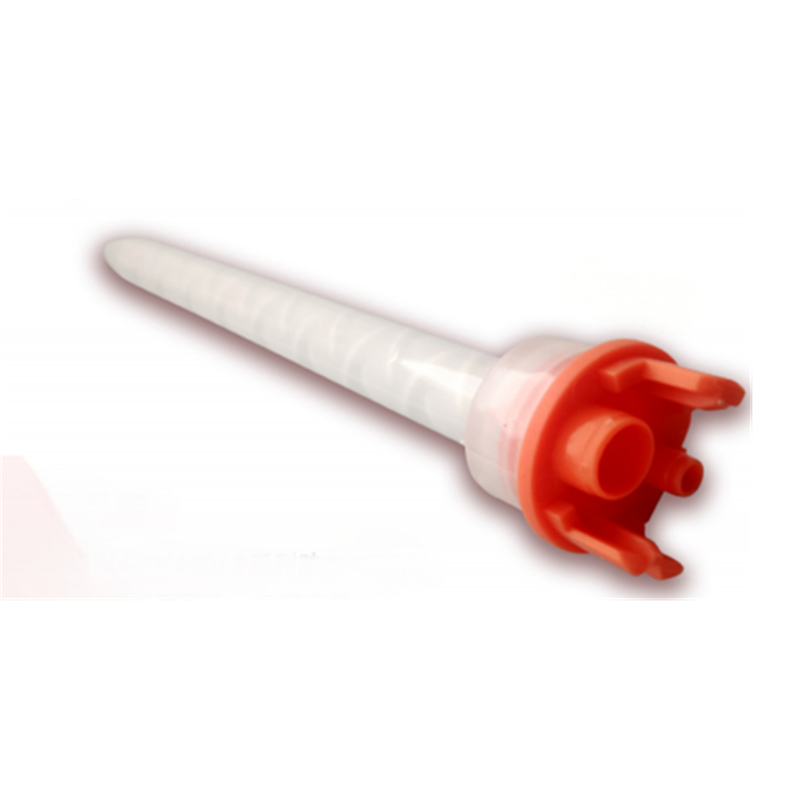

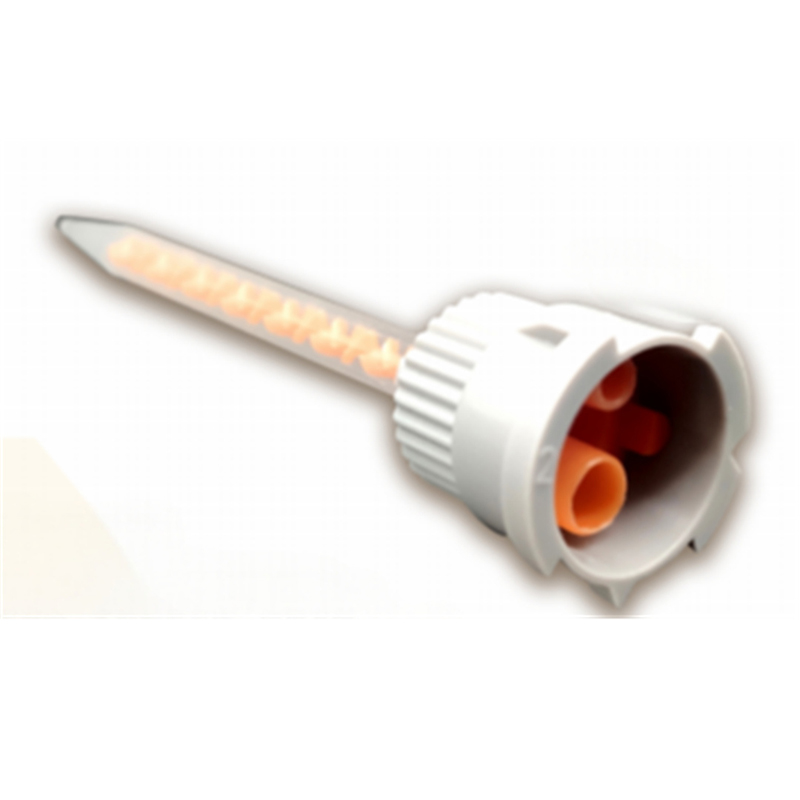

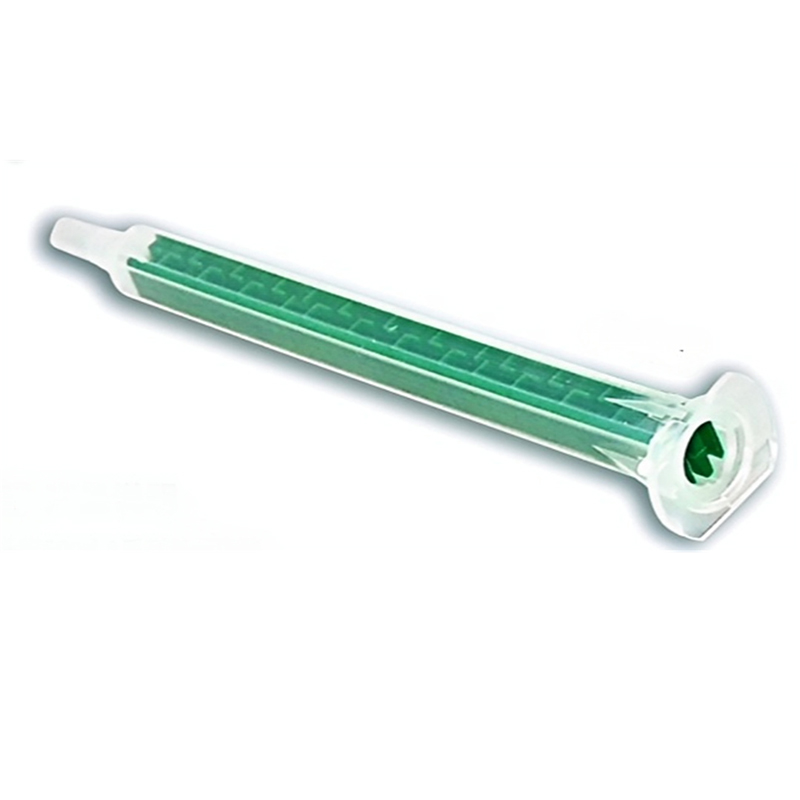

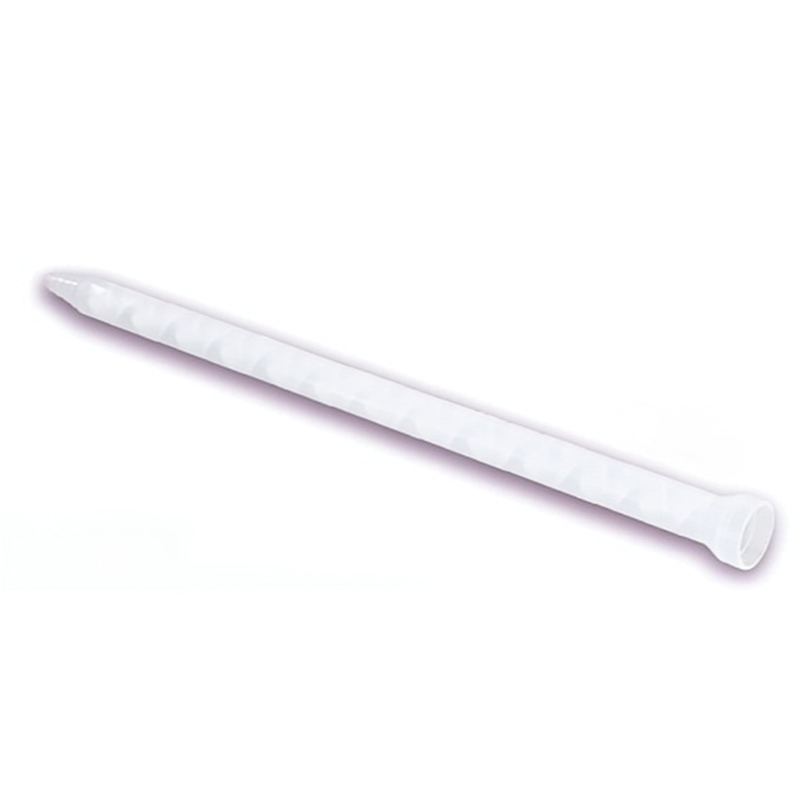

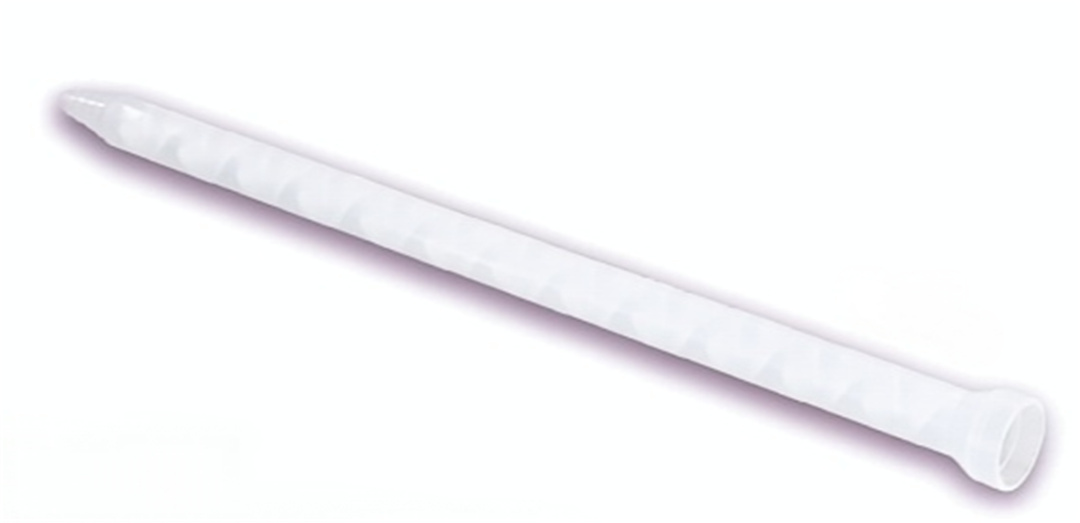

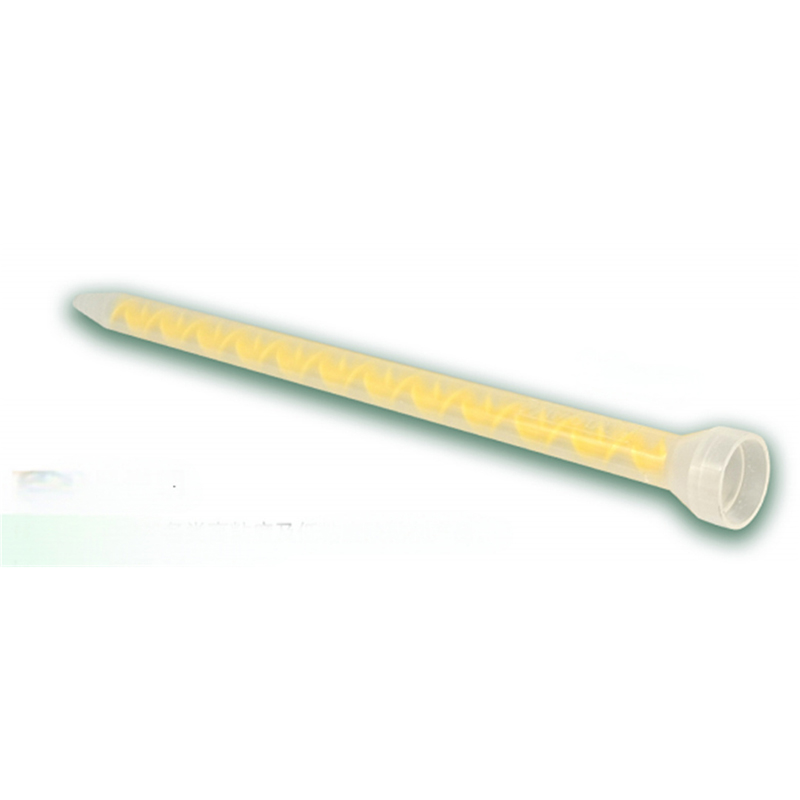

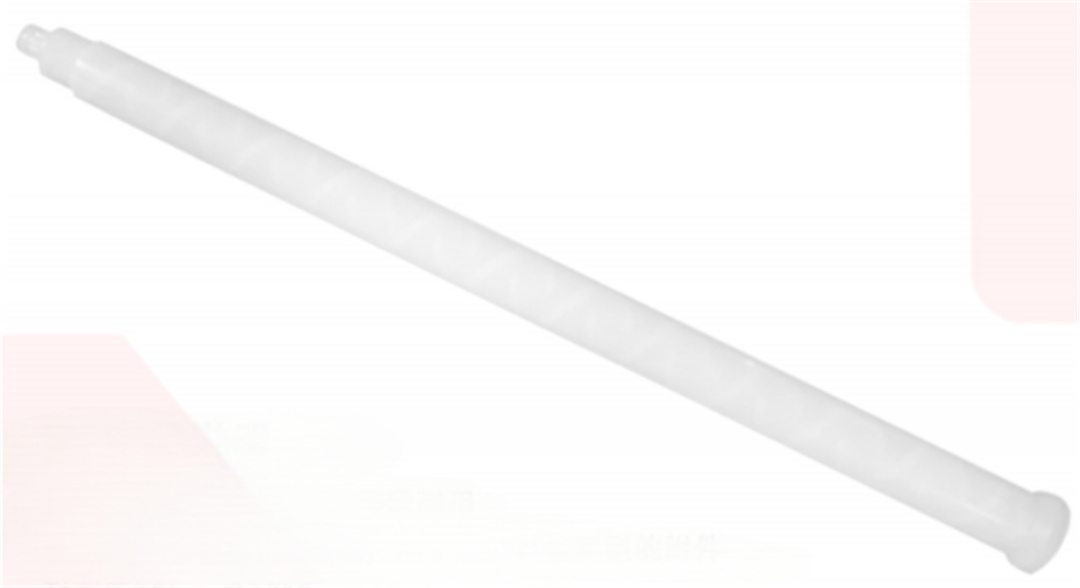

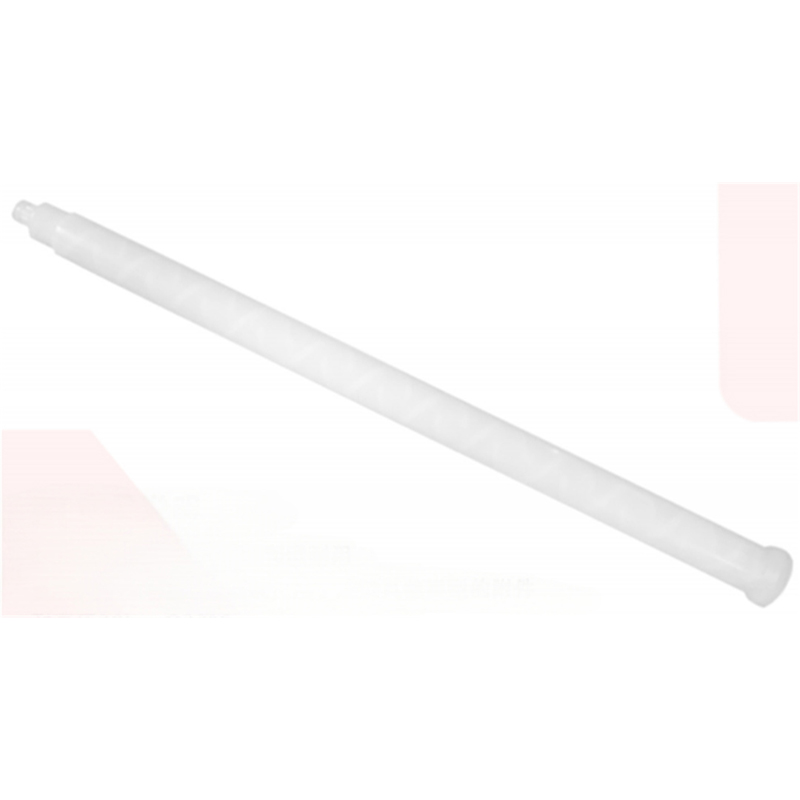

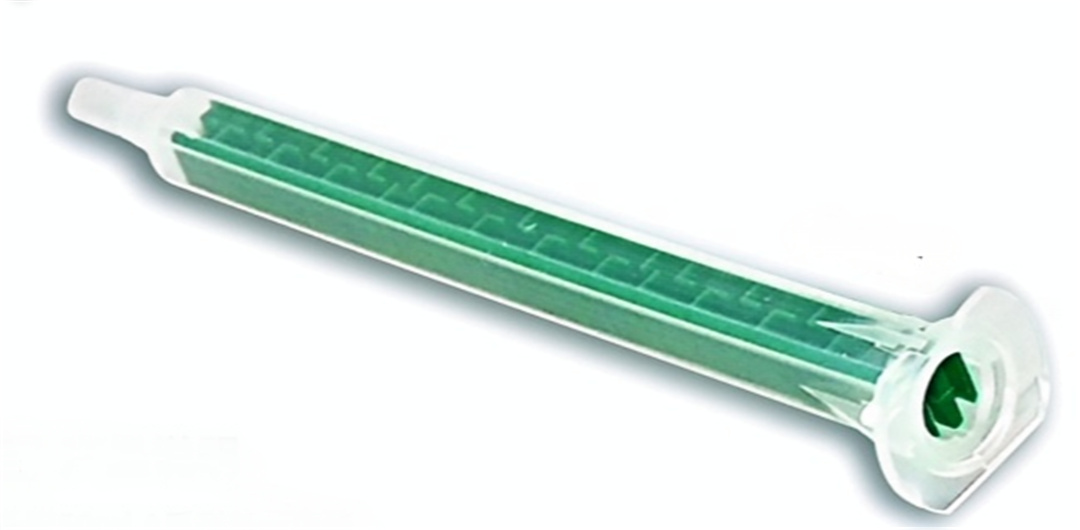

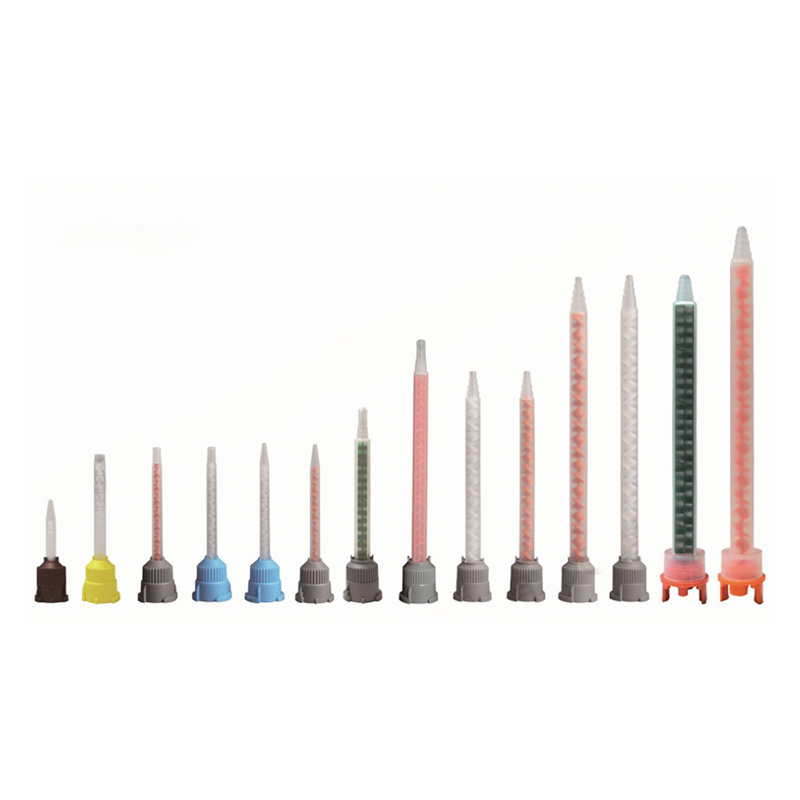

Industrial dispensing static mixing tube
Applications:
Key Functional Features:
Precision Dispensing: PP/glass syringes enable accurate 0.01mL dosing for electronics assembly
High-Temperature Resistance: Glass/SS syringes withstand autoclaving (medical device manufacturing)
Pressure Durability: Steel syringes maintain structural integrity at 10X higher pressures than plastics
Mixing Efficiency:
Helical elements (6-24 stages) achieve >98% homogeneity
Pressure drop <0.3bar at 10mL/s flow rate
Model-Specific Advantages:
Standard Mixers (6-12 Elements):
Fast curing for epoxy/acrylic (15-60 sec gel time)
Applications: General assembly, PCB potting
Precision Mixers (16-24 Elements):
Ultra-homogeneous output for medical-grade adhesives
Applications: Implantable device fabrication
High-Viscosity Series:
Wide-bore designs (4-8mm ID) handle 50,000-500,000cP materials
Applications: Automotive seam sealing, wind blade bonding
Technical Differentiators:
Smart Compatibility:
Luer lock/ISO thread adapters for Nordson/3M cartridges
RFID-tagged versions for automated dispensing systems
Quality Assurance:
100% bubble-free mixing verified by high-speed camera
Batch-tested for IPA/extractables (ISO 10993)
Application Matrix:
Mixer Type Element Count Best For
M4-PP06 6 Fast-cure cyanoacrylates
M8-SS24 24 Medical device encapsulation
M6-PT12 12 Corrosive polyurethane adhesives
Note: Custom configurations include:
Cleanroom-packed (ISO Class 5) versions
Conductive variants for static-sensitive environments
Dual-diameter designs for gradient-ratio adhesives
Compliance with FDA 21 CFR 177.1520 for food-contact applications
Core Functions:
Precision Mixing: Helical elements (6-24 stages) ensure 98%+ material homogeneity for consistent bond strength
Waste Reduction: Laminar flow design minimizes adhesive residue (<0.1g leftover)
Process Flexibility: Handles 2:1 to 10:1 mixing ratios with ±2% accuracy
Competitive Advantages:
Universal Compatibility:
Fits standard cartridges (Nordson/3M/EFD) with Luer lock/ISO threads
Color-coded by element count for quick identification
Material Innovation:
PP tubes with anti-static coating for electronics
PTFE-lined models prevent silicone adhesion
Smart Manufacturing Ready:
RFID tags enable automated usage tracking
Laser-etched batch codes for full traceability
Application-Specific Benefits:
Electronics: Bubble-free mixing prevents voiding in underfill applications
Medical: ISO 10993-compliant materials for implant-grade adhesives
Automotive: High-pressure designs (10bar rating) for structural bonds
Technical Highlights:
30% lower pressure drop vs competitors
Reusable stainless steel versions withstand 500+ cycles
Cleanroom-packed options available
