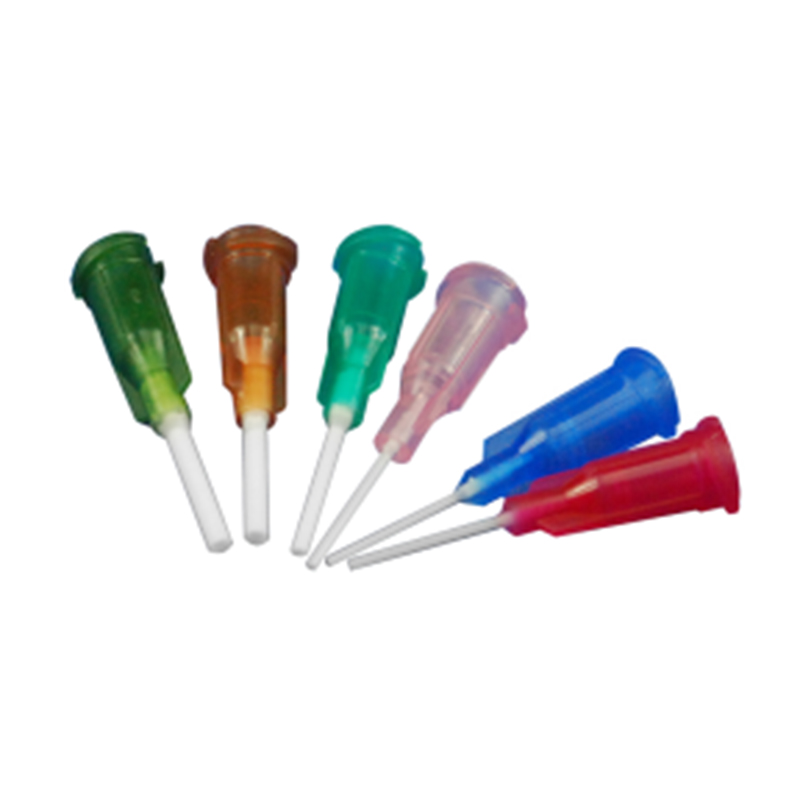

Dispensing (1).jpg

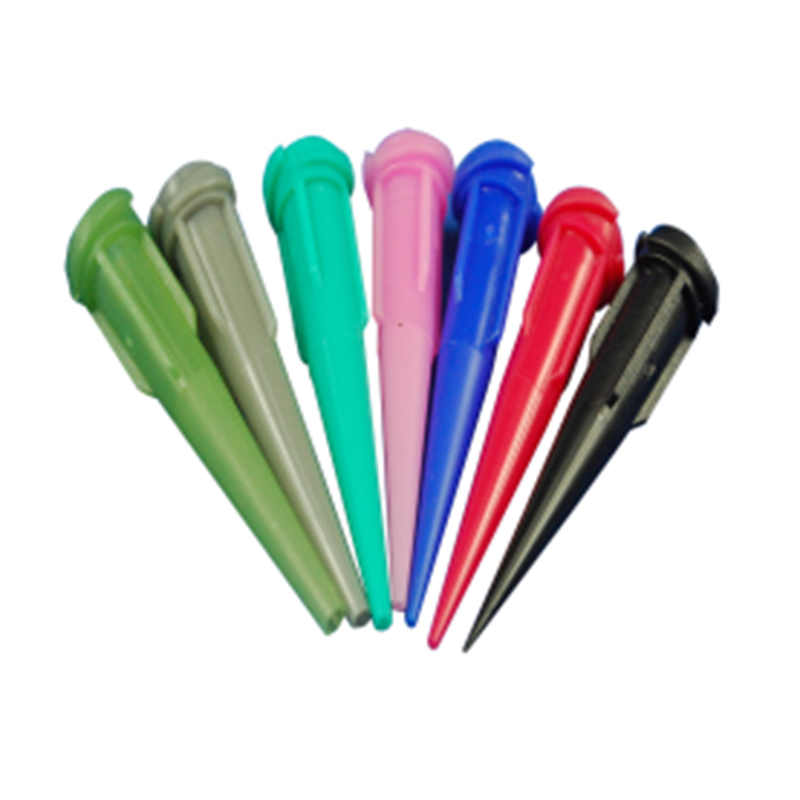

Dispensing (2).jpg

Industrial Dispensing Metal/Plastic/PP/TT (Double Threaded /Single Barrel) Needles

Precision Application: Delivers 0.1mm-2.0mm bead widths with ±5% consistency

Material Optimization: Stainless steel/ETFE/Teflon coatings prevent clogging (100+ hour continuous use)

Flow Control: Tapered designs (15°-30°) enable low-pressure dispensing of 50-500,000cP fluids

    Contact us
    product details

    Applications:

    Key Application Scenarios:
    Electronics Assembly:
    25G-34G blunt tips for PCB conformal coating
    ESD-safe versions for static-sensitive components
    Medical Device Fabrication:
    Sterilizable 316L stainless steel needles for implant bonding
    Luer-lock connectors for disposable systems
    Automotive Manufacturing:
    14G-18G reinforced needles for glass primer application
    90° bent tips for hard-to-reach areas
    Performance Highlights:
    Ultra-Durability: Tungsten carbide tips last 3X longer than standard steel
    Smart Compatibility:
    Universal Luer slip/lock fittings (ISO 594)
    Adaptable to robotic arms via quick-change chucks
    Specialized Designs:
    Anti-static needles for conductive adhesives
    Heatable versions (200°C) for hot-melt applications
    Technical Specifications:
    Pressure Rating: 0-8bar (116psi) burst pressure
    Temp Range: -40°C to 250°C (PTFE-coated)
    Surface Finish: <0.2μm Ra for smooth material flow
    Material Grades:
    304/316L Stainless Steel: Standard corrosion resistance (0-150°C)
    Tungsten Carbide: 5X wear resistance for abrasive fillers
    PTFE-Coated: Non-stick surface for UV-curable adhesives
    Precision Metrics:
    Inner diameter tolerance: ±0.01mm (18G-34G sizes)
    Tip concentricity: <0.05mm runout
    Surface roughness: Ra 0.1μm (mirror finish)
    Model-Specific Advantages:
    Ultra-Fine Series (34G-27G):
    0.1-0.3mm inner diameter for micro-dot dispensing
    Electronics: Chip bonding under microscopy
    High-Flow Series (22G-14G):
    0.5-1.6mm ID for sealants/solder paste
    Automotive: Windshield urethane application
    Specialty Series:
    Bent Tips (30°/60°/90°): Access complex geometries
    Heatable Needles: Maintain 80-200°C for hot melts
    Technical Differentiators:
    Interchangeability: Compatible with Nordson/EFD/Musashi dispensers
    Smart Features:
    Color-coded collars for quick size identification
    Laser-etched scale marks for depth control
    Durability:
    50,000+ cycle lifespan (3X industry standard)
    Burst pressure tested to 15bar

    Product parameters

    Industrial Dispensing Metal Single Barrel Needles

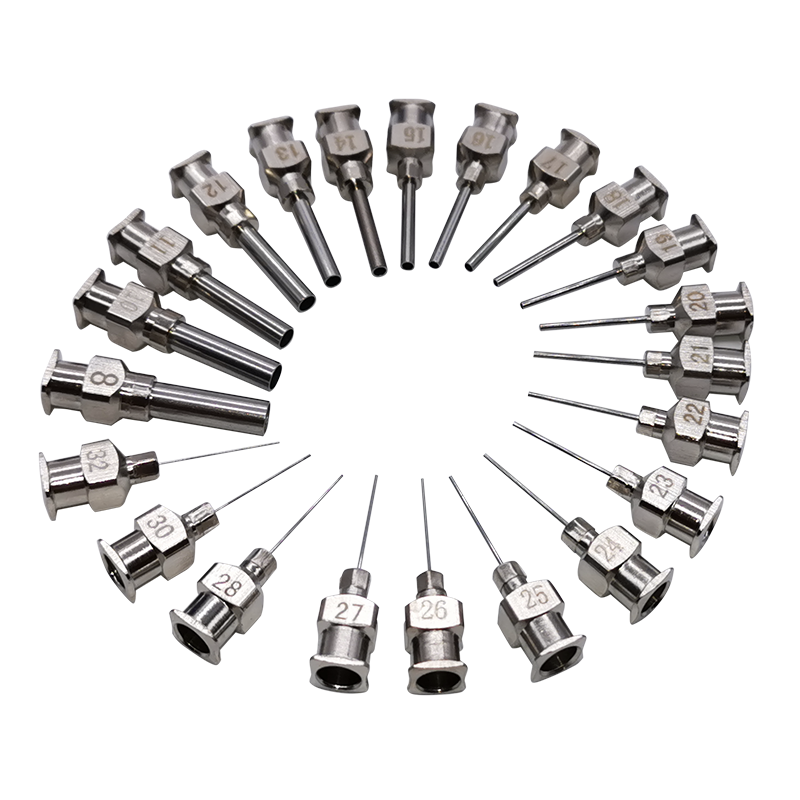

    		 Tbodytrtd (1)

    Specification 30G  outer diameter 0.3  inner diameter 0.15
    model MDN-30G-A  Length 1/4 inch  6.5mm
    model MDN-30G-C  Length 1/2 inch  13mm
    model MDN-30G-D  Length 1 inch  25mm
    model MDN-30G-E  Length 1.5 inch  38mm

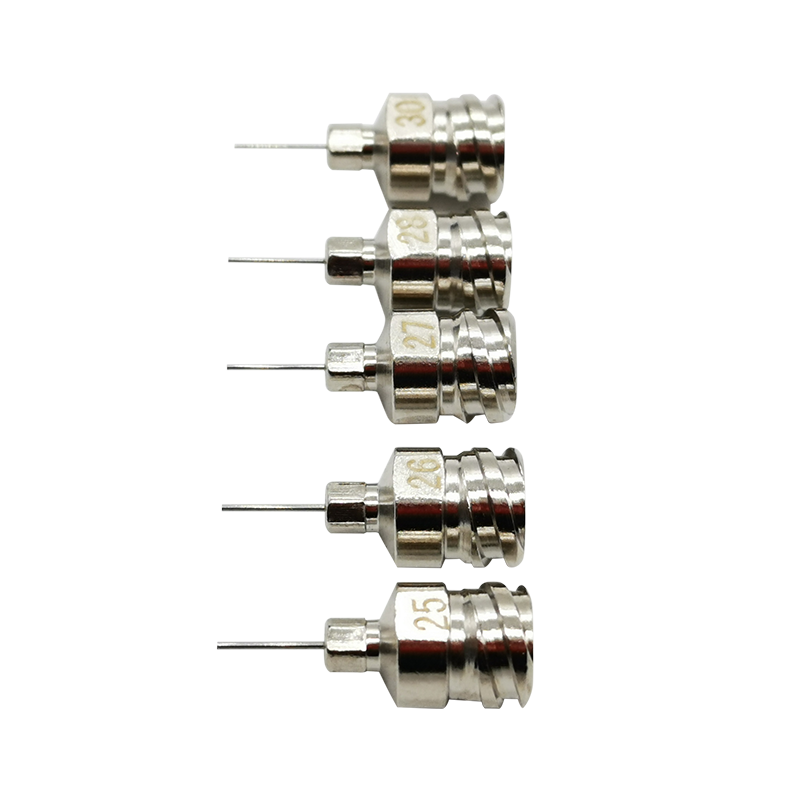

    Double Threaded Metal Needles

    		 Tbodytrtd (2)

    Specification 30G  outer diameter 0.3  inner diameter 0.15
    model MDN-30G-A  Length 1/4 inch  6.5mm
    model MDN-30G-C  Length 1/2 inch  13mm
    model MDN-30G-D  Length 1 inch  25.4mm

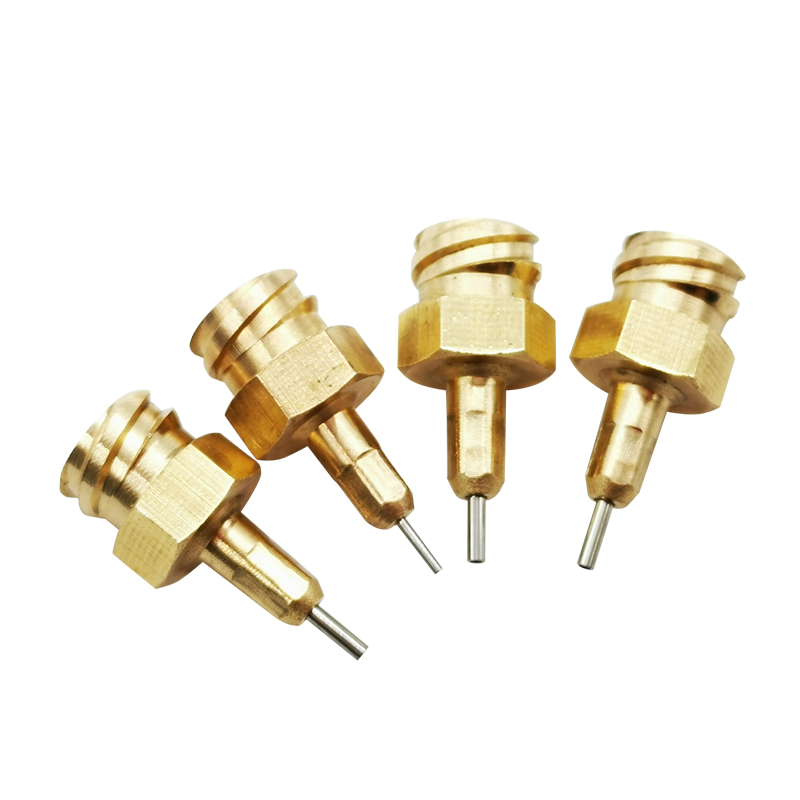

    PUR Metal Needles

    		 Tbodytrtd (3)

    Specification 14G  outer diameter 2.1  inner diameter 1.6  model PUR-14G-B  length 4mm
    model PUR-14G-A  length 6.5mm

    Split precision needles

    		 Tbodytrtd (4)

    Single needle tip SPN-0.1,SPN-0.15
    Bayonet headstock model SPN-0.1-K, SPN-0.15-K
    Double Threaded Head Models SPN-0.1-S, SPN-0.15-S

    Chamfered metal needles

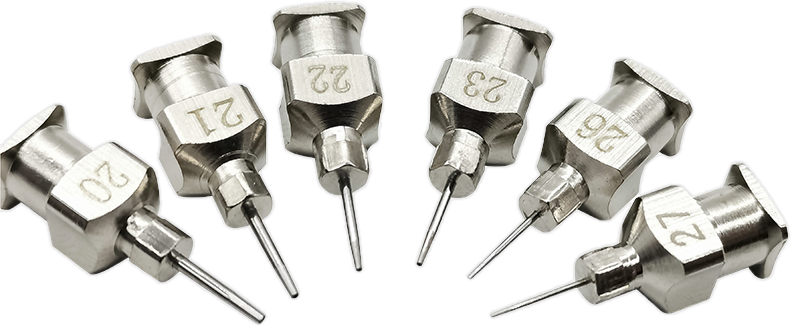

    		 Tbodytrtd (5)

    Specification 30G  outer diameter 0.31  inner diameter 0.16
    Needle tip top taper length    0.6
    Needle front outer diameter  0.24
    model MDN-30G-A  Length 1/4 inch  6.5mm
    model MDN-30G-C  Length 1/2 inch  13mm

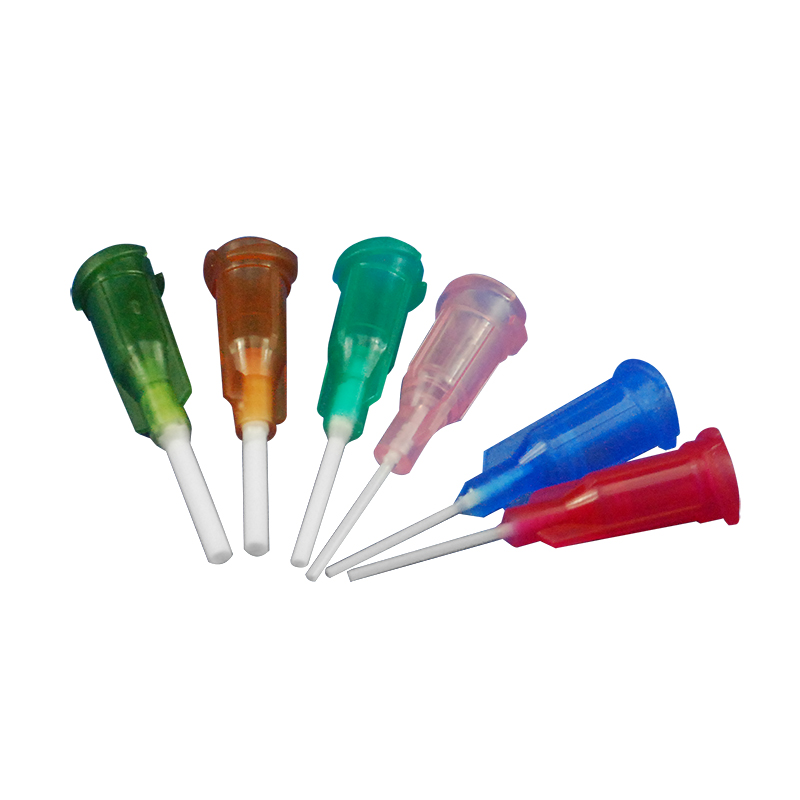

    PP needles

    		 Tbodytrtd (8)

    Specification 30G  outer diameter 0.31  inner diameter 0.15
    model AC730025  length 1/4 inch  6.5mm
    model AC730050 length 1/2 inch  13mm
    model AC730100 length 1 inch  25.4mm
    moddel  AC730150  length 1.5inch  38.1mm
    Specification 32G  outer diameter 0.25  inner diameter 0.1
    model AC732025  length 1/4 inch  6.5mm
    model AC732050 length 1/2 inch  13mm
    model AC732100 length 1 inch  25.4mm
    moddel  AC732150  length 1.5inch  38.1mm

    TT needles

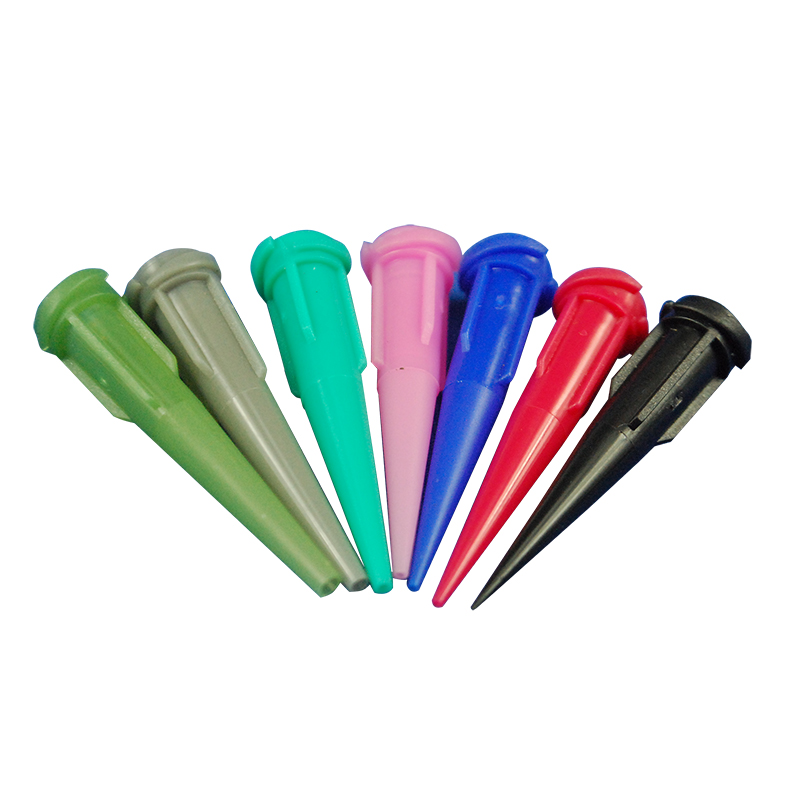

    		 Tbodytrtd (9)

    Specification 14G  outer diameter 1.8  inner diameter 1.3
    moddel  PP14G-A  length 1/4 inch  6.5mm
    moddel  PP14G-C length 1/2 inch  13mm
    moddel  PP14G-D  length 1 inch  25mm

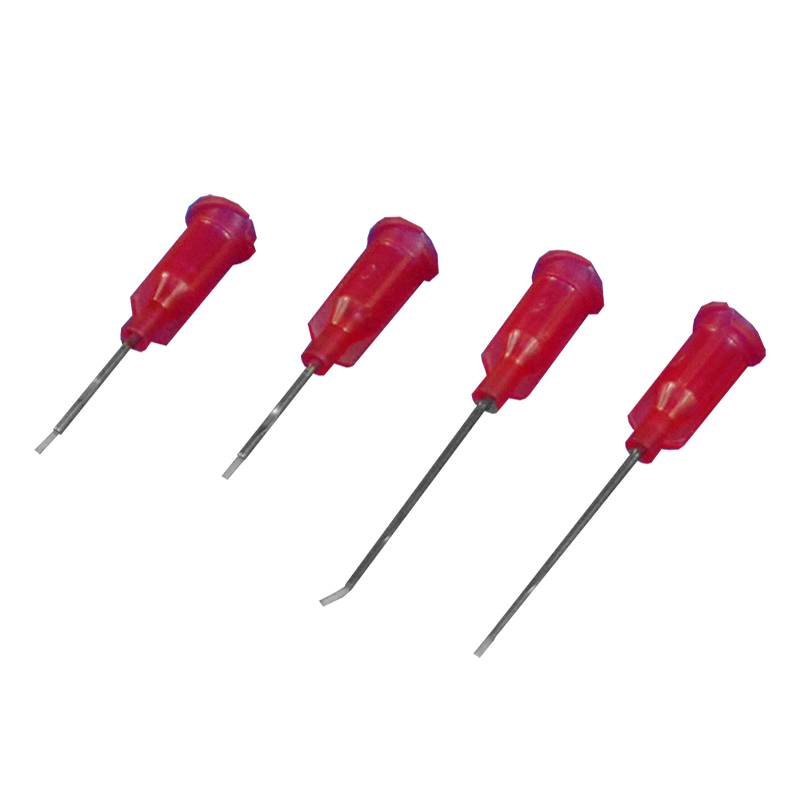

    Teflon needles

    		 Tbodytrtd (10)

    Specification 14G  outer diameter 1.84  inner diameter 1.56
    model AC-14G TT    length 31mm
    Specification 30G  outer diameter 0.35  inner diameter 0.16
    model AC-30G TT    length 31mm

    Product Details

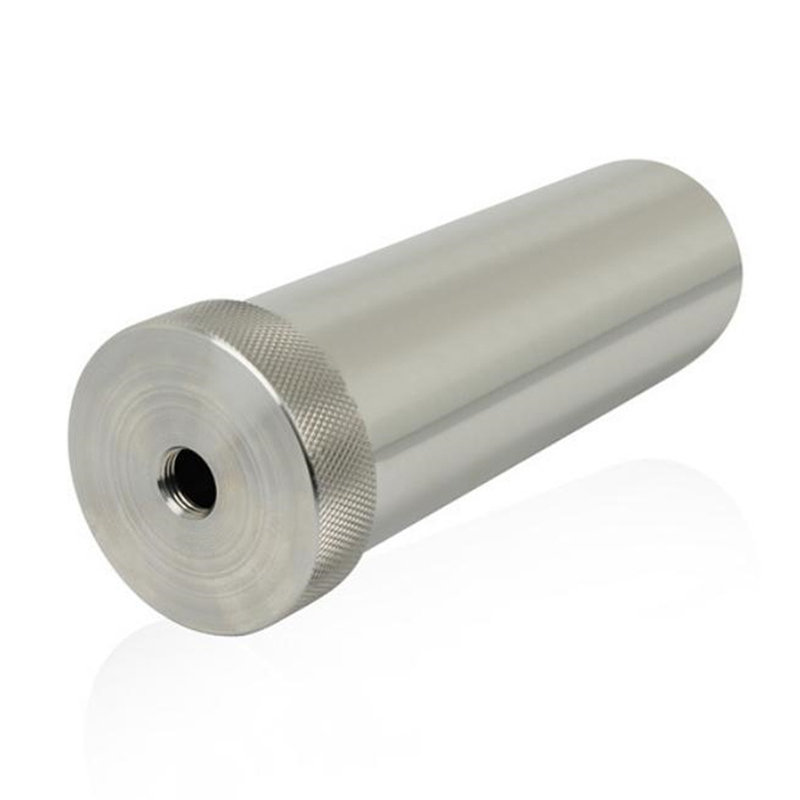

    asd (1)

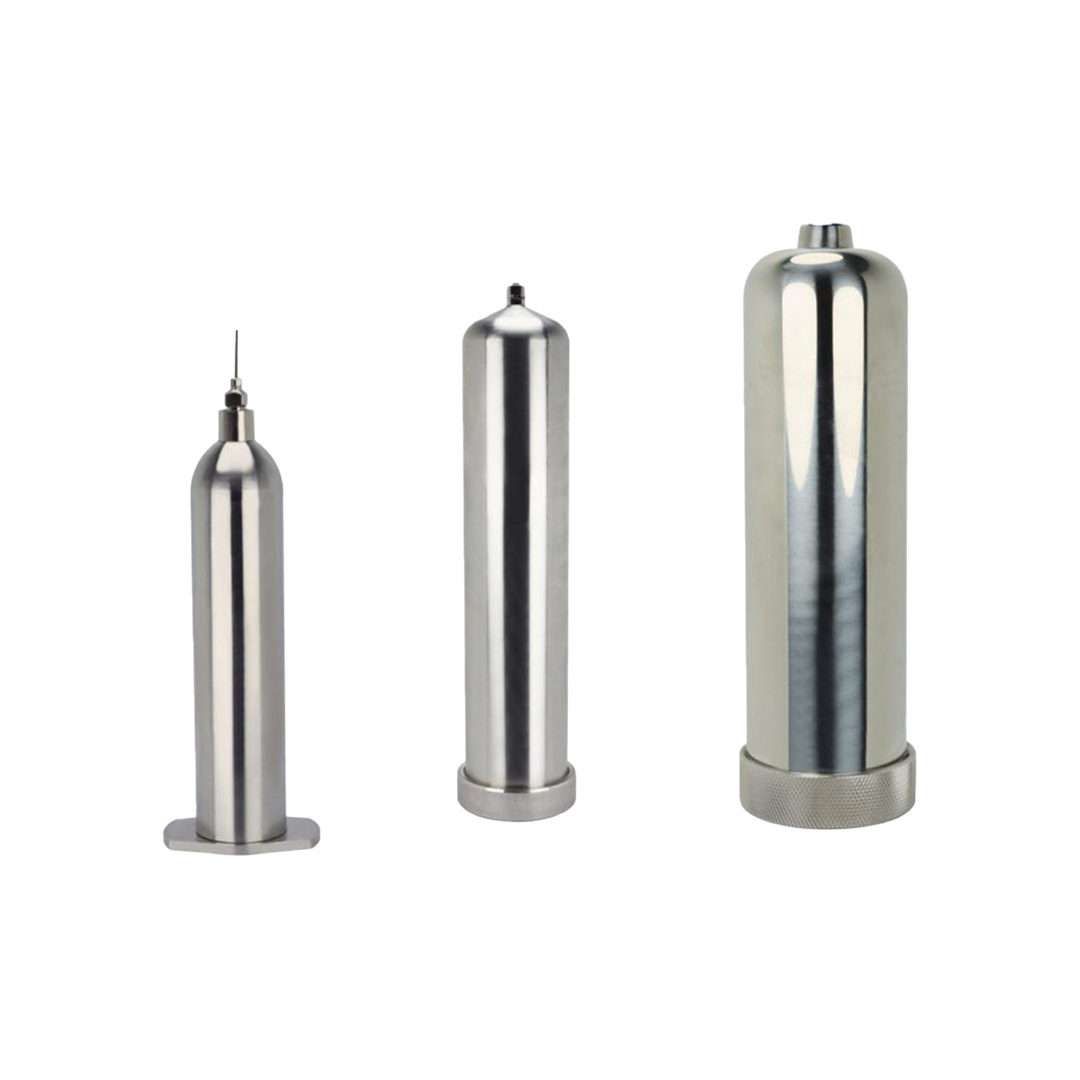

    asd (2)
    asd (3)
    asd (4)

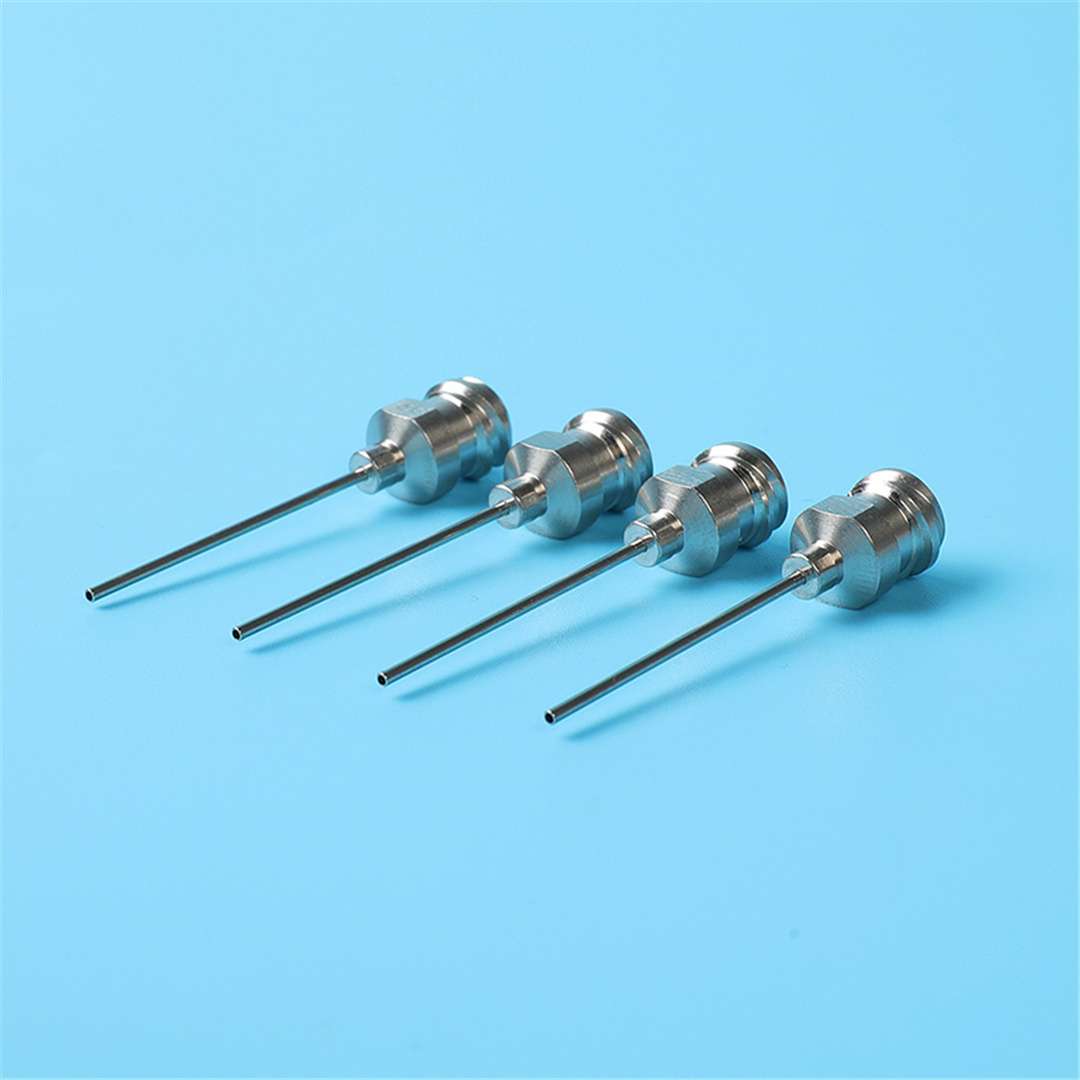

    asd (5)

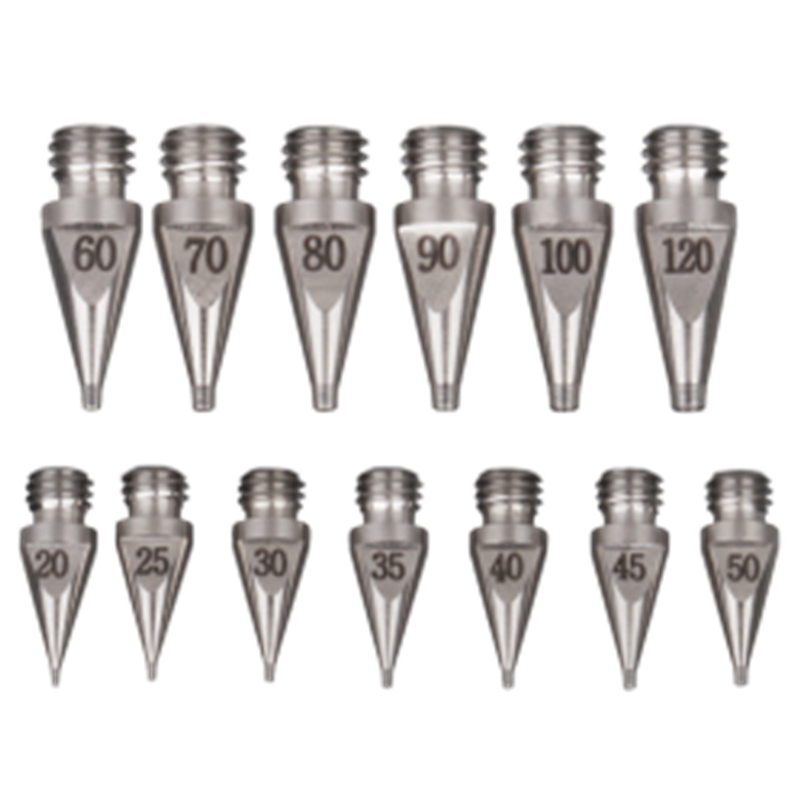

    asd (6)
    asd (7)
    asd (8)
