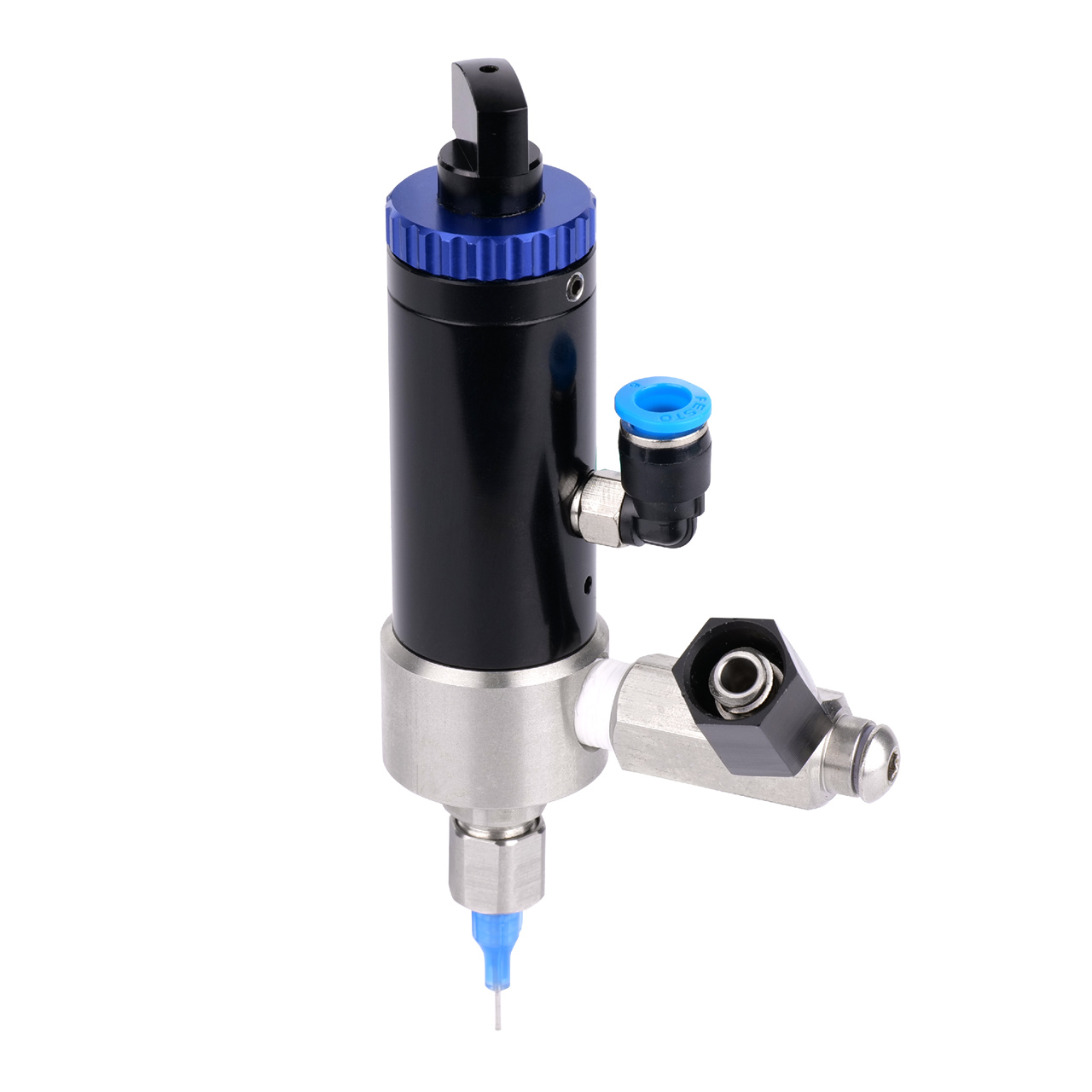

High-speed AC-741GM Diaphragm Micro Impingement Needle Valve

AC-741GM: This design is ideal for micro-precision dispensing, the firing pin impact needle bore plane off the glue, with a small aperture needle does not drip.

Suitable for: catalyst, marking ink number, silicone oil, UV glue, solvents, adhesives

1. The flow rate is adjustable, easy to calibrate and adjust, short adjustment time;

2. Small traveling cavity in the glue valve, clean glue break;

3. Easy disassembly, less maintenance;

4. Cylinder body, firing pin and nozzle, fluid bad, atomizing cap, piston are made of 303 stainless steel, long service life, wear and tear;

Apply to: catalysts, ink marking, silicone oil, UV glue, solvents, adhesives

The AC-741GM is a high-precision diaphragm needle valve designed for controlled micro-dispensing of low to medium-viscosity fluids. With its robust construction and responsive digital controller, it ensures consistent performance in automated production environments.

Key Specifications:

Valve Type: Solenoid-driven diaphragm needle valve

Flow Rate: 0.01 – 50 mL/min (adjustable)

Max Pressure: 0.8 MPa

Fluid Viscosity: 1 – 50,000 cP

Response Time: <5 ms

Seal Material: PTFE (chemical-resistant)

Controller: Programmable with touchscreen & PLC interface

Features & Benefits:

Precise Micro-Dispensing – Minimal dripping, ideal for small dots/lines

Durable Diaphragm Design – No internal leakage, long service life

Wide Fluid Compatibility – Works with adhesives, solvents, greases

Fast Switching – Improves production efficiency

Easy Maintenance – Simple disassembly & cleaning

Typical Applications:

Electronics: PCB encapsulation, glue dispensing

Automotive: Gasket sealing, O-ring lubrication

Medical: Catheter bonding, syringe assembly

General Industry: Precision coating, small part bonding

Competitive Advantages:

Cost-Effective – Reliable performance at competitive pricing

Low Maintenance – Fewer wear parts vs. traditional needle valves

Flexible Control – Supports manual or automated operation

Compact Design – Saves space in production lines

Ideal for manufacturers seeking repeatable, leak-free fluid dispensing in high-mix production. Custom configurations available.
