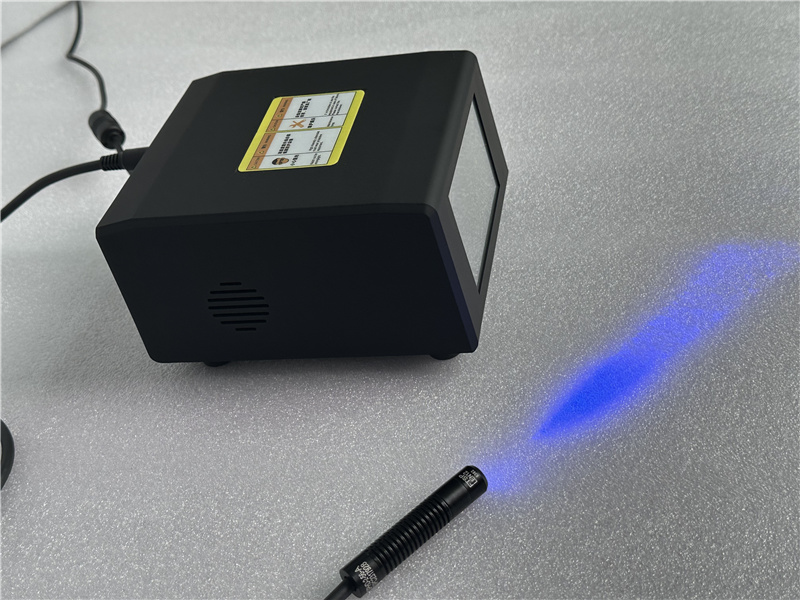

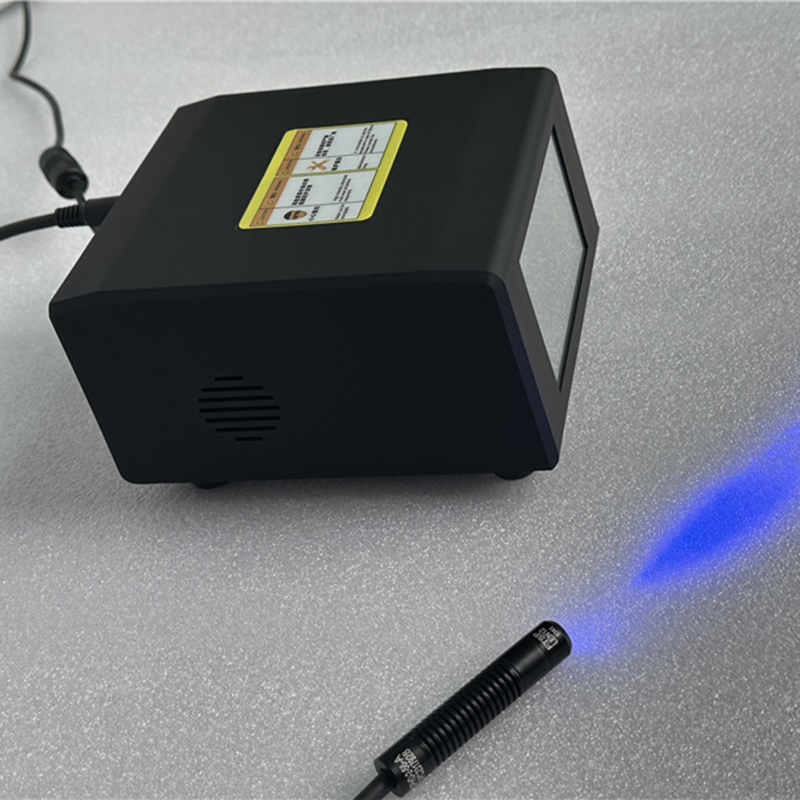

High-Precision Point UV Curing Light for Micro-Scale Applications
Applications:
High-Precision, On-Demand UV Curing for Micro-Scale Applications
Our UV spot curing system delivers ultra-focused 365nm/395nm UV energy through high-transmission quartz lenses, achieving pinpoint accuracy with adjustable irradiation areas from 0.5mm² to 20mm² (±3% intensity uniformity). Designed for precision bonding in electronics, medical devices, and optical assemblies, this system features intelligent thermal management, maintaining surface temperatures below 40°C even at maximum 5W/cm² output to prevent heat damage to sensitive components.
Key Features & Benefits:
Smart Pulse Control: Programmable curing cycles (1ms–9999ms) with motion-activated triggering for automated production lines.
Multi-Wavelength Options: Dual-band 365nm (deep curing) + 405nm (surface tack-free) for versatile adhesive compatibility.
Robotic Integration: RS485/Modbus protocol support for seamless automation with 6-axis robots.
Real-Time Energy Monitoring: Built-in radiometer ensures consistent UV dosage (0–2000mJ/cm²).
Industry Applications:
PCB Repair: Zero overflow curing with 0.1mm positioning accuracy, reducing rework by 60%.
Medical Device Assembly: FDA-compliant non-contact curing for catheters and implants.
Consumer Electronics: High-speed bonding of camera modules and flex circuits.
Why Choose Our System?
Unlike traditional flood curing, our spot system reduces energy waste by 70% and enables selective curing for complex geometries. The rugged aluminum housing (IP54 rated) ensures durability in harsh environments.
This precision spot curing system delivers focused UV energy for micro-scale adhesive applications:
Pinpoint Accuracy - 0.1mm positioning repeatability for delicate components
Instant Curing - Achieves full bond strength in milliseconds
Non-Contact Process - Eliminates part distortion from mechanical pressure
Key Applications:
Medical device micro-assembly
Electronics component bonding
Optical lens fixation
Technical Advantages:
80% energy savings compared to flood curing systems
Integrated radiometer for dosage verification (optional)
Compatible with robotic automation (RS485 interface)
Note: Optional accessories include:
Articulating light guide arms
Stereo microscope adapter
Multi-channel controller for simultaneous curing
Compliance with FDA 21 CFR 1040.10 laser safety standards
Product Details
Model |
DGY-04-φ12mm |
Chip |
Nichia |
Band |
365nm (optional band) |
Control |

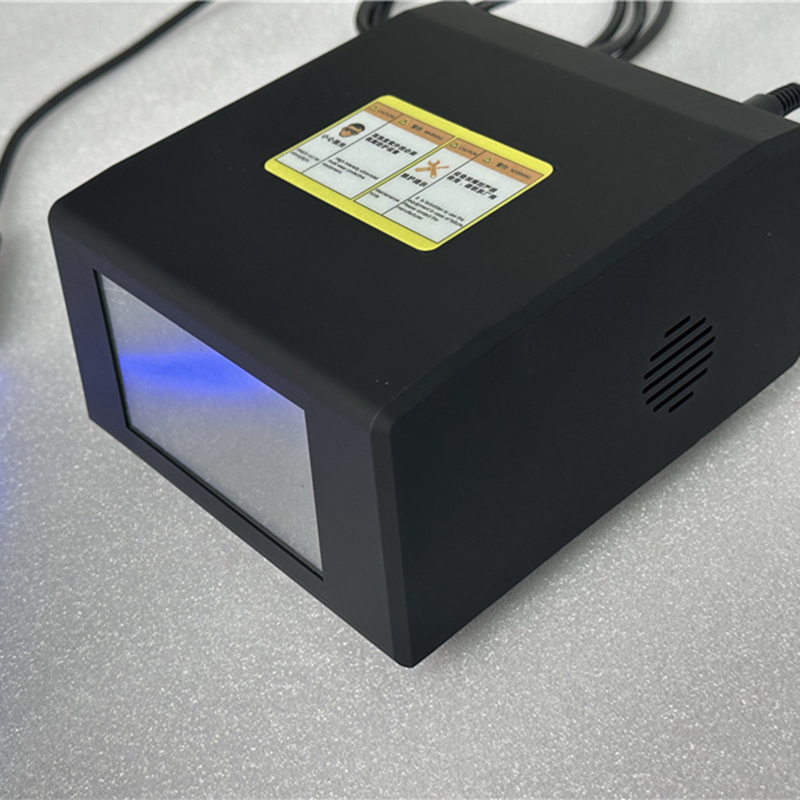

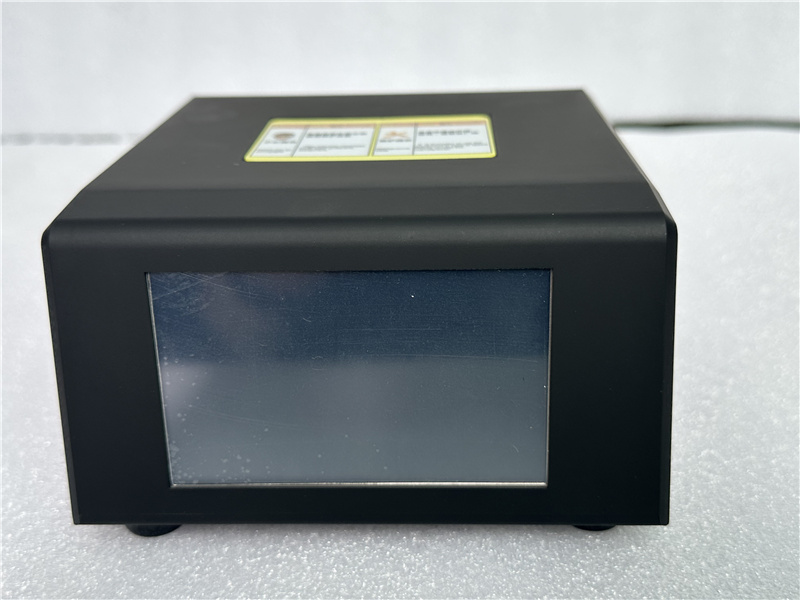

touch screen control |
Channel |

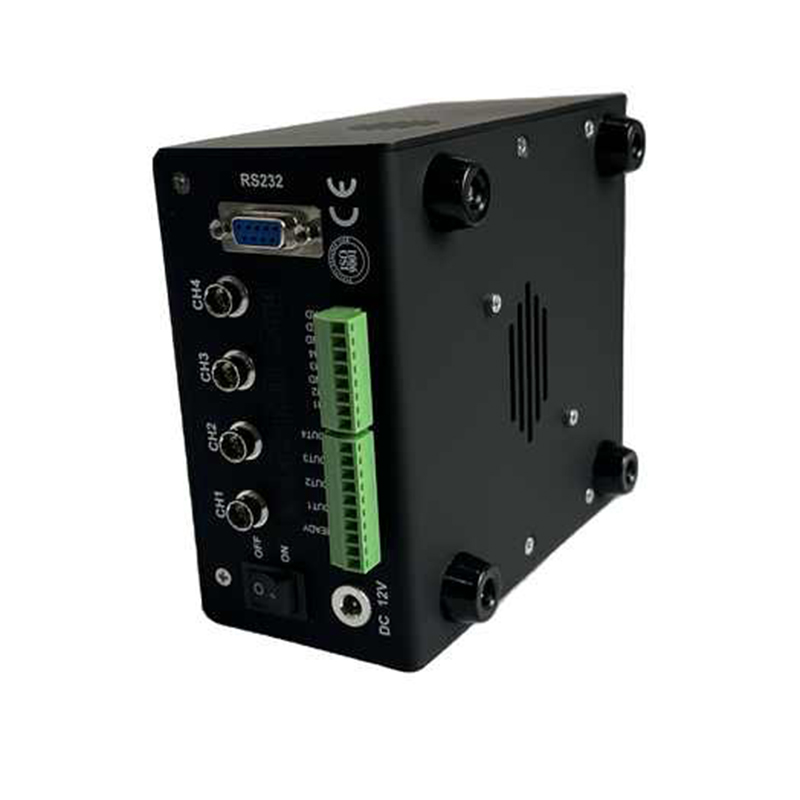

1-4 channels optional |
Mode |
Auto\Manual\Ladder mode |
Signal |
pulse\level signal |
Lifetime |
20000H |
Energy Adjustment |
0-100% |
Spot size |
3,5,6,8,10,12,15,16,20mm |
