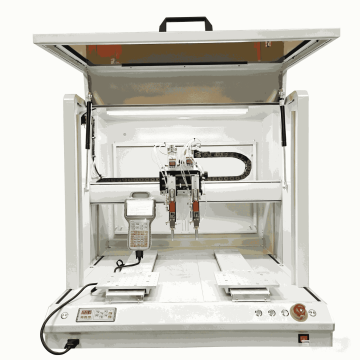

AC-T7441-2 Desktop Conformal Coating Machine

AC-T7441-2 Desktop Conformal Coating Machine

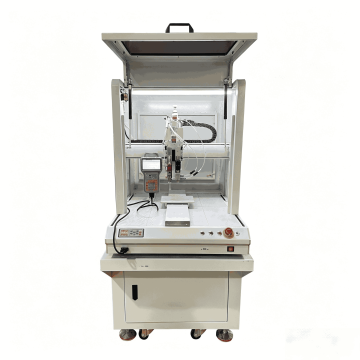

AC-T551-2 Desktop Conformal Coating Machine

AC-T551-2 Desktop Conformal Coating Machine

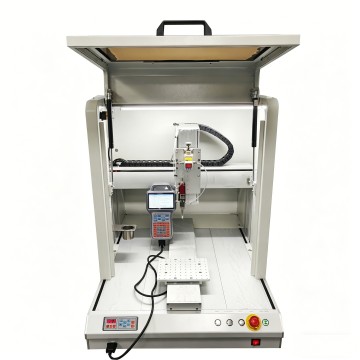

AC-T551-1 Desktop Conformal Coating Machine

AC-T551-1 Desktop Conformal Coating Machine

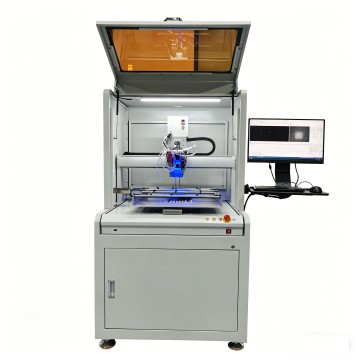

AC-T761-2 Floor-Standing Vision Conformal Coating Machine

AC-T761-2 Floor-Standing Vision Conformal Coating Machine

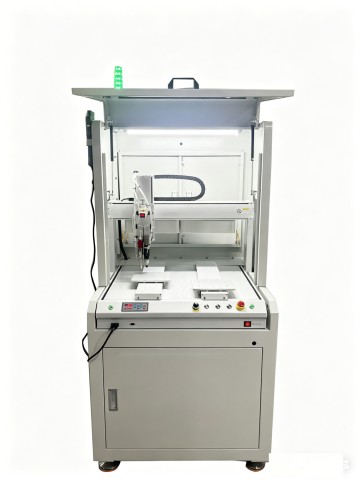

UV Curing Integrated Conformal Coating Machine

UV Curing Integrated Conformal Coating Machine

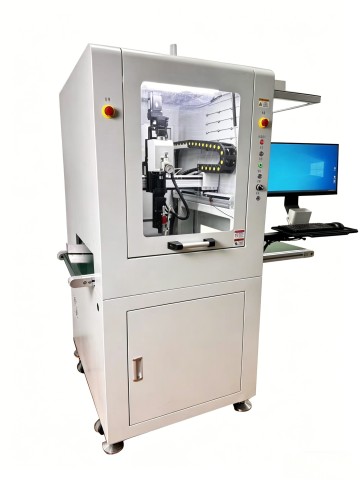

AC-M30 Follow-Up Conformal Coating Machine

AC-M30 Follow-Up Conformal Coating Machine

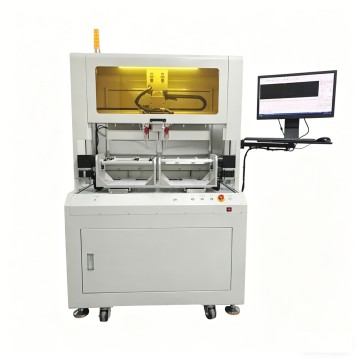

AC-T95511-2F Conformal Coating Machine

AC-T95511-2F Conformal Coating Machine

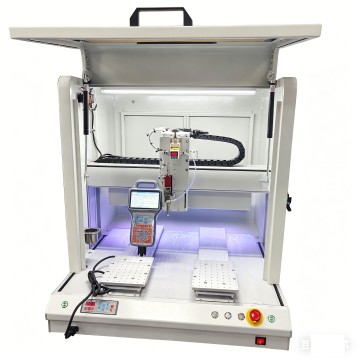

AC-T6441-1 Desktop Conformal Coating Machine

AC-T6441-1 Desktop Conformal Coating Machine

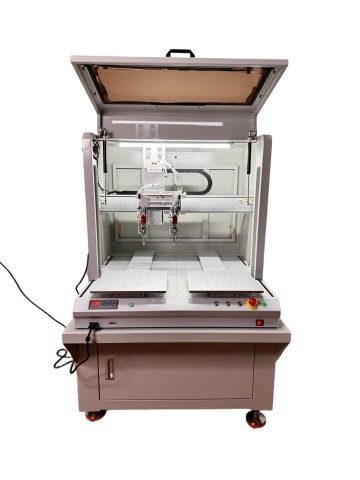

AC-7661 Floor-Standing Conformal Coating Machine

AC-7661 Floor-Standing Conformal Coating Machine
Desktop screw-type high-precision dispensing machine

Desktop screw-type high-precision dispensing machine
01

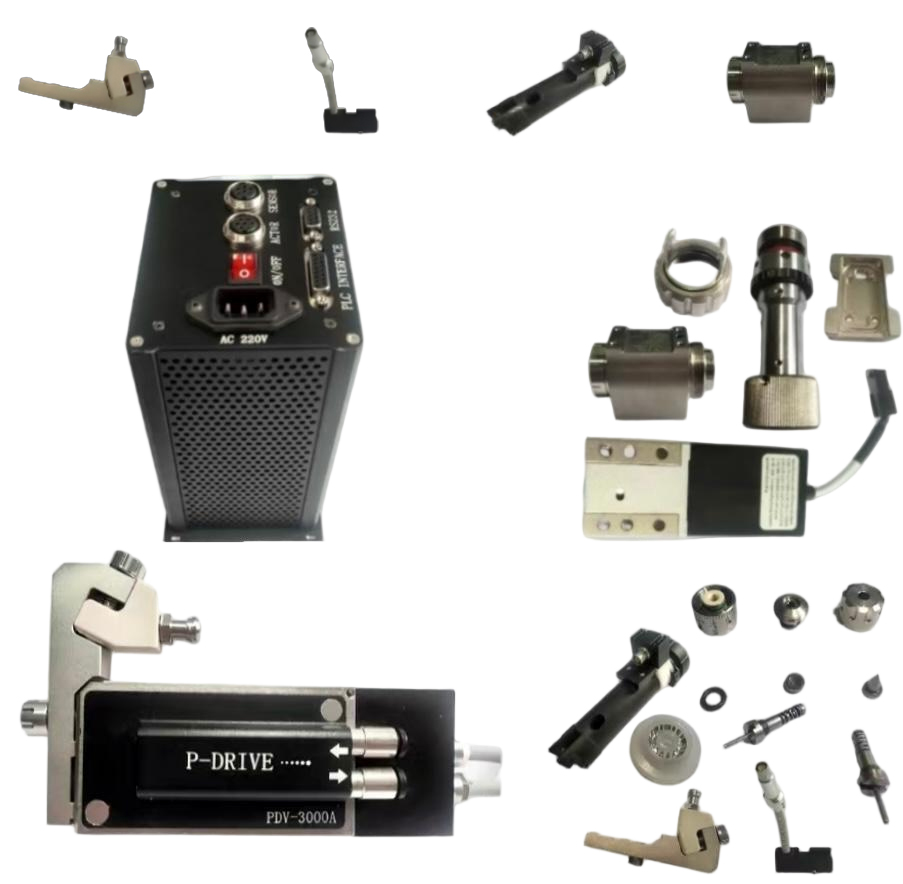

Domestic Industrial Dispensing Jet Valve accessories.jpg

Domestic Industrial Dispensing Jet Valve accessories

Jet Valve Accessories

Orifice Size: 0.1-0.5mm (±0.01mm precision

Max Frequency: 500Hz (2ms response time)

Material: Tungsten carbide nozzles with <5μm surface finish

Function: Enables non-contact dispensing of dots/lines (50μm-3mm width) for PCB underfill and precision bonding

    Contact us
    product details

    Applications:

    1. Piezoelectric Jet Valve Accessories
    Precision Nozzles: 50-200μm orifice (±2μm tolerance) for micro-dot dispensing
    Ceramic Components: Alumina-based parts withstand 10 million+ cycles
    Frequency Response: Up to 1kHz operation for high-speed applications
    Key Benefit: Enables non-contact dispensing with <0.5% variation in droplet size
    2. Pneumatic Valve Accessories
    Voltage Range: 60-150V DC
    Displacement Accuracy: ±0.1μL/drop
    Temperature Range: -10°C to 80°C
    Function: Provides ultra-precise (<1% CV) micro-droplet deposition for medical device assembly
    Quick-Change Kits: Tool-less nozzle replacement in <15 seconds
    PTFE Seals: Chemical-resistant for aggressive adhesives (epoxy, silicone)
    Pressure Range: 0-100psi (0-7bar) adjustable with precision regulators
    Key Benefit: 50% faster cycle times than standard pneumatic valves
    Operating Pressure: 0.2-0.7MPa
    Flow Rate: 0.01-10mL/s adjustable
    Seal Material: FKM/Viton for solvent resistance
    Function: Delivers high-speed (300 cycles/min) dispensing for automotive sealants
    3. Solenoid Valve Accessories
    Low-Energy Coils: 24V DC operation at just 8W power consumption
    Anti-Clog Design: Self-cleaning 0.3mm fluid path for particle-filled materials
    Response Time: <5ms opening/closing for precise shot control
    Key Benefit: IP67 rated for harsh environments (washdown capable)
    Coil Rating: 24V DC/220V AC
    Response Time: <10ms
    Port Size: 1/8" to 1/4" NPT
    Function: Enables on/off control for medium-viscosity (50-50,000cP) adhesives
    Cross-Platform Performance Features:
    Pressure Rating: 0-1MPa (145psi)
    Viscosity Range: 1-200,000cP
    Chemical Compatibility: Resists epoxy, silicone, UV adhesives
    Thermal Stability: -30°C to 150°C
    4. Universal Performance Features
    Material Compatibility: Works with viscosities from 50-500,000cP
    Temperature Resistance: -20°C to 120°C operational range
    Quick Disconnect: Stainless steel fittings with leak-proof connections
    5. Industry-Leading Advantages:
    30% longer service life than OEM components
    100% tested for flow consistency (ISO 9001 certified)
    Retrofit kits available for Nordson/EFD/Fisnar valves 50% longer lifespan than standard components
    Interchangeable with major brands (Nordson/EFD/Musashi)
    Leak-proof designs with <0.1% fluid waste

    Product parameters

    PDV-3000A Piezoelectric Jet Valve

    114mm×69mm×15mm Including Flow Channel Assembly

    Piezoelectric Valve Flow Channel Assembly

    69*10*40mm

    Nozzle heatter

    57*25*26mm Without wave soldering

    Hot melt glue heatting barrel

    140*45*26.5mm

    Piezoelectric Valve Nozzle Assembly

    10*7.5*2.5mm

    Piezoelectric Valve Nozzle

    Tungsten steel-Nozzle diameter 0.05-0.6mm

    Piezoelectric Valve Striker Assembly

    17.3*R0.75mm Without impact needle

    Piezoelectric Valve Striker

    Tungsten steel-Nozzle diameter 33*1.5mm

    Piezoelectric Valve High-Temperature Sealing Ring

    PEEK-1.5*5*7.7*2.7mm

    PDV-3000A Piezoelectric Jet Valve Controller

    Length,Width-Height 197-95-115mm

    Pneumatic Valve Cavity

    52*29.532.5mm

    Solenoid Valve

    73.5*31*10mm Without cable

    Stroke Adjustable Assembly

    Adjustment mark 5lc-1cl

    Nozzle Fixing Assembly

    27*30.5mm

    Valve Body Fixing Block

    45*33*8mm

    Pneumatic valve 3rd Generation Heater

    24V Heating

    Pneumatic Valve High-Temperature Sealing Ring

    PEEK-3*8*3mm

    Pneumatic Valve Striker，Tungsten ASSY pin

    CL model，1.3mm-6.4mm
