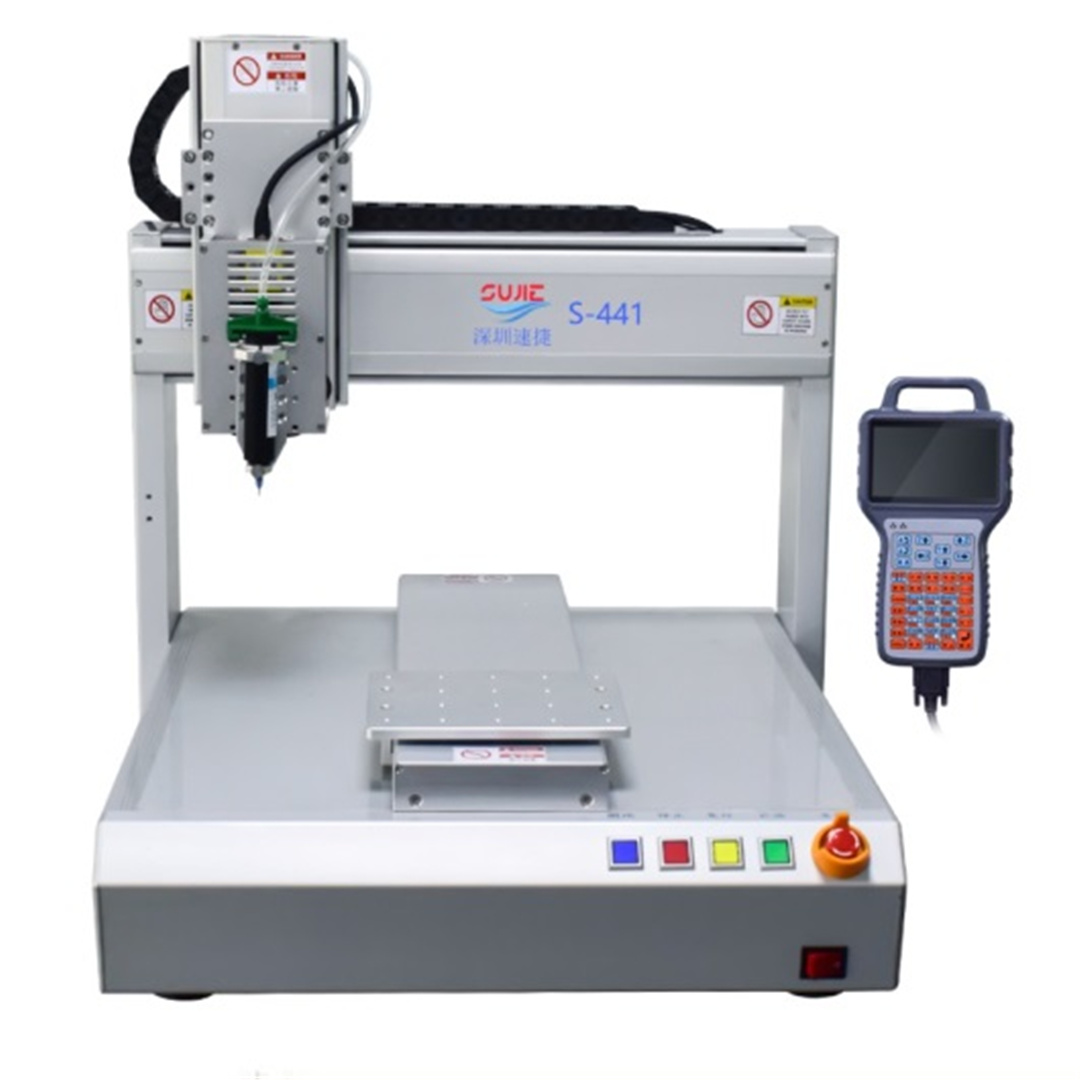

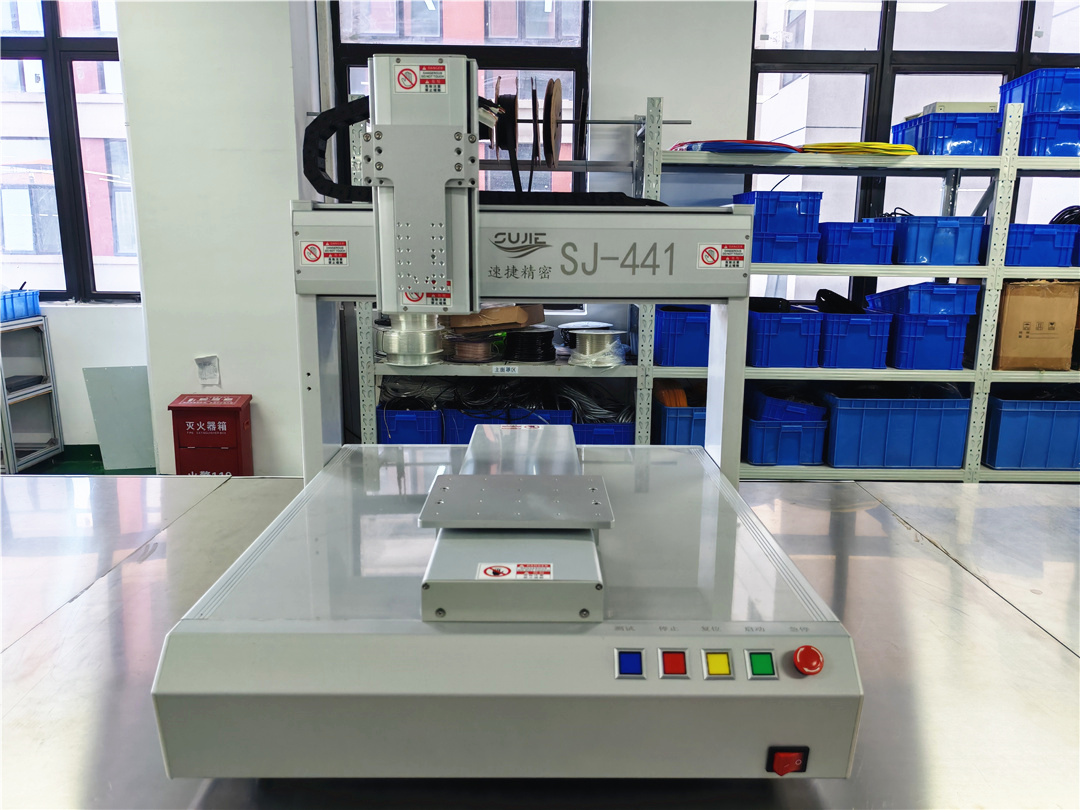

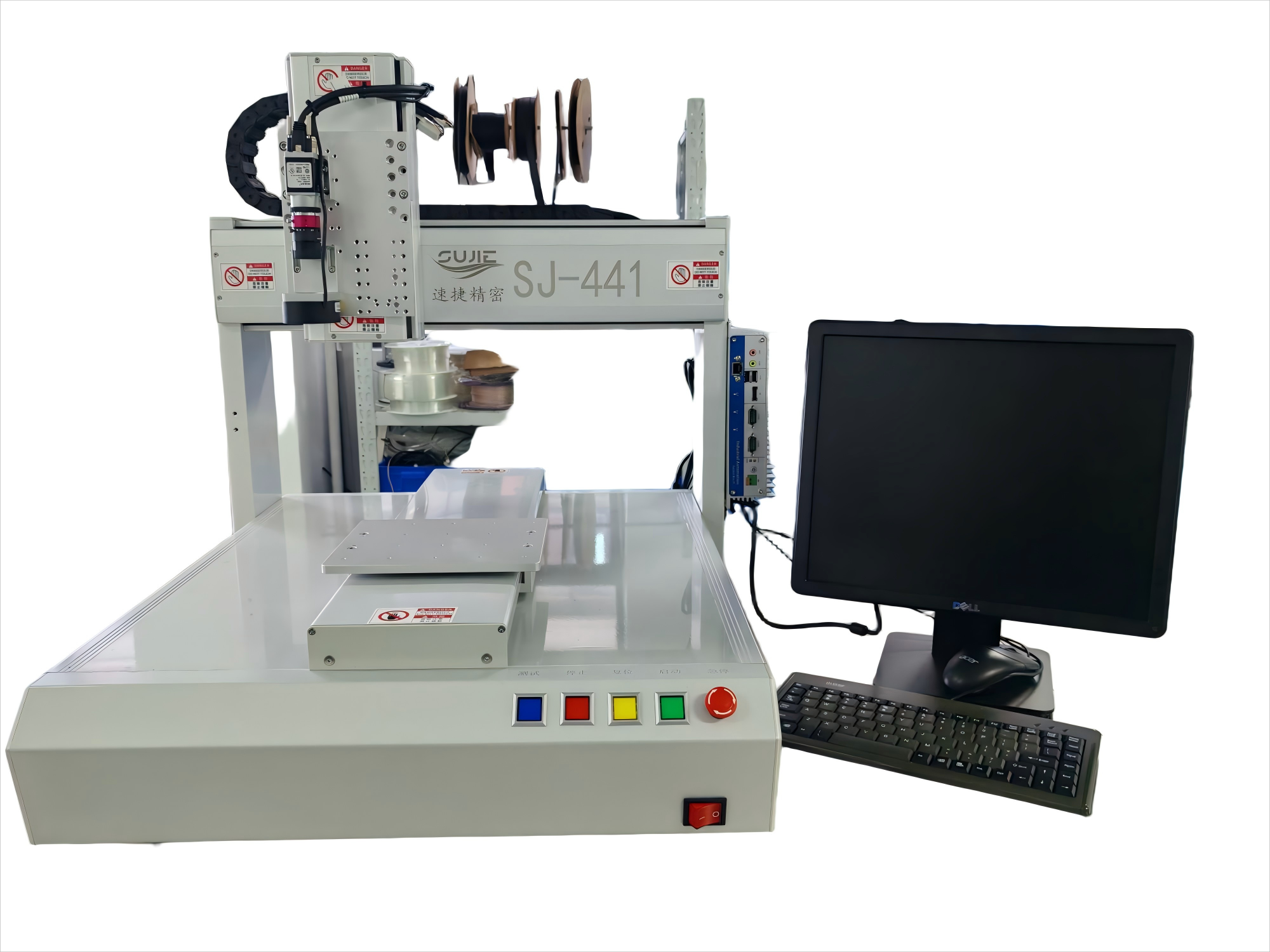

Desktop standard screw servo automatic dispensing machine (single station)
Applications:
The three-axis automatic dispensing machine can be taught to operate without an external computer, which is convenient to install and easy to operate and set.
Streamlining the program setting of the humanized teaching box, it can quickly and accurately complete various spatial complex dispensing paths such as flat fixture and inclined fixture array dispensing, offset correction, correction path setting, arc, point, etc., and realize convenient setting of data transmission between machines and computers, with simple operation and complete functions.
It is used in various demand dispensing industries
Generally, UV glue, A B glue, COB glue, EPOXY, red glue, silver glue, instant glue, conductive glue, heat dissipation aluminum glue and other dispensing are common.
Product parameters
| Model | S-221 、S-331、S-441、S-551 |
| Scope of work (mm ）Xaxis、Yaxis、Zaxis | 200×200×100、300×300×100 |
| 400×400×100、500×500×100 | |
|
Maximum load Yaxis/ Zaxis |
6Kg/4Kg |
| Maximum movement speed XYaxis、Zaxis | 600mm/s、400mm/s |
| Control scheme | Sagitar automatic dispensing control system |
| Display method/Position input method/Display language | Teaching box/Teach box operation/Chinese |
| Motion interpolation function | 3DAny route in the three-dimensional space is available |
| Drive mode | Servo drive |
| Transmission method | Screw |
| Number of programs stored | 1000group |
| Maximum recording point of a single set of programs | 4000 |
| Decomposition ability/Repeatability | 0.0035mm / 0.01mm |
| External interface | RS-232(For teaching box) |
| Input power | Full voltage AC220V 50/60HZ |
| Operating ambient temperature/Relative humidity | 0-50℃/20-90% |
| weight | 60KG、65KG、70KG、75KG |
| Dimensions(W*D*H) mm | 468*532*622、568*632*622、 668*732*622、768*832*622 |

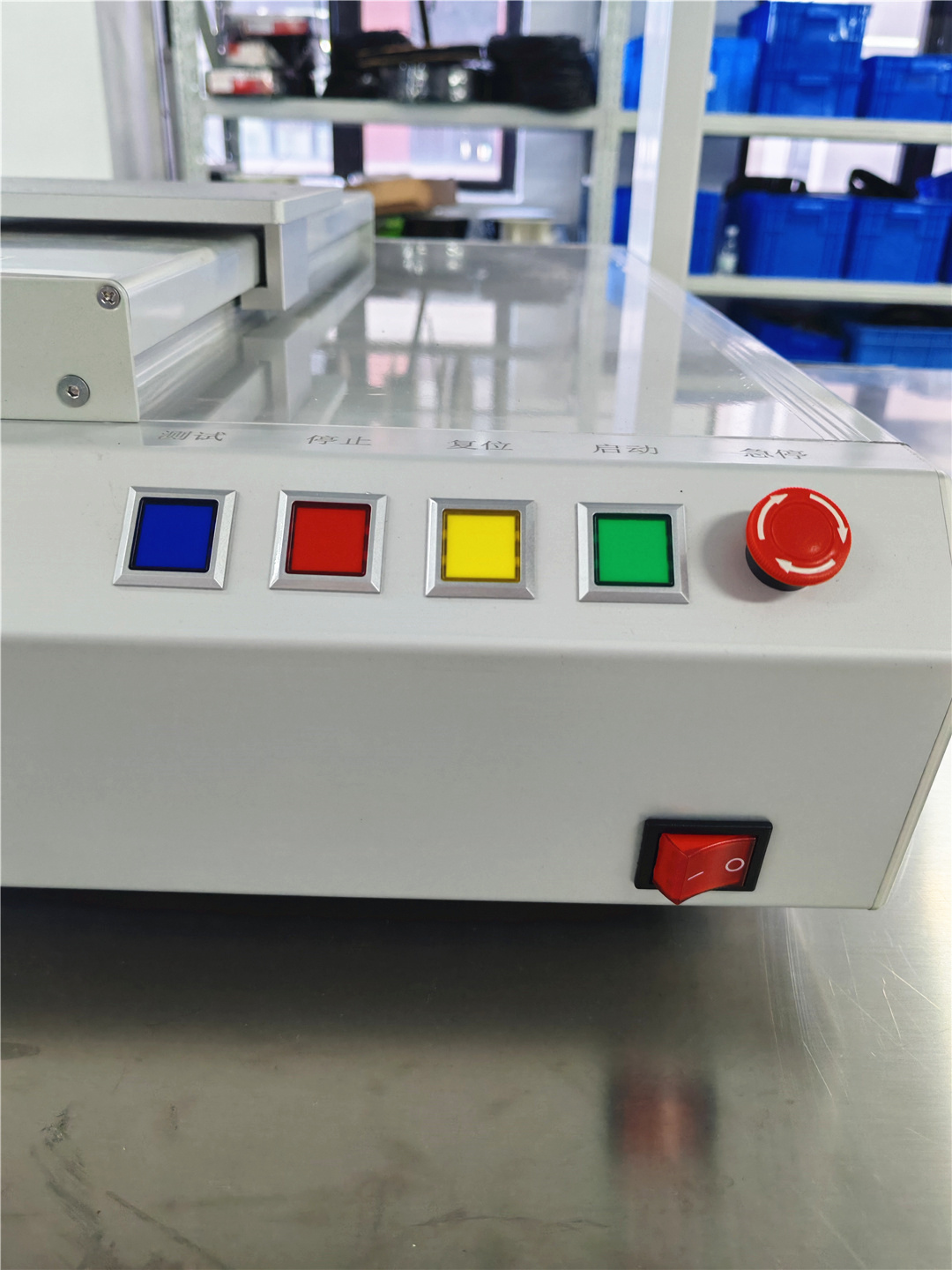

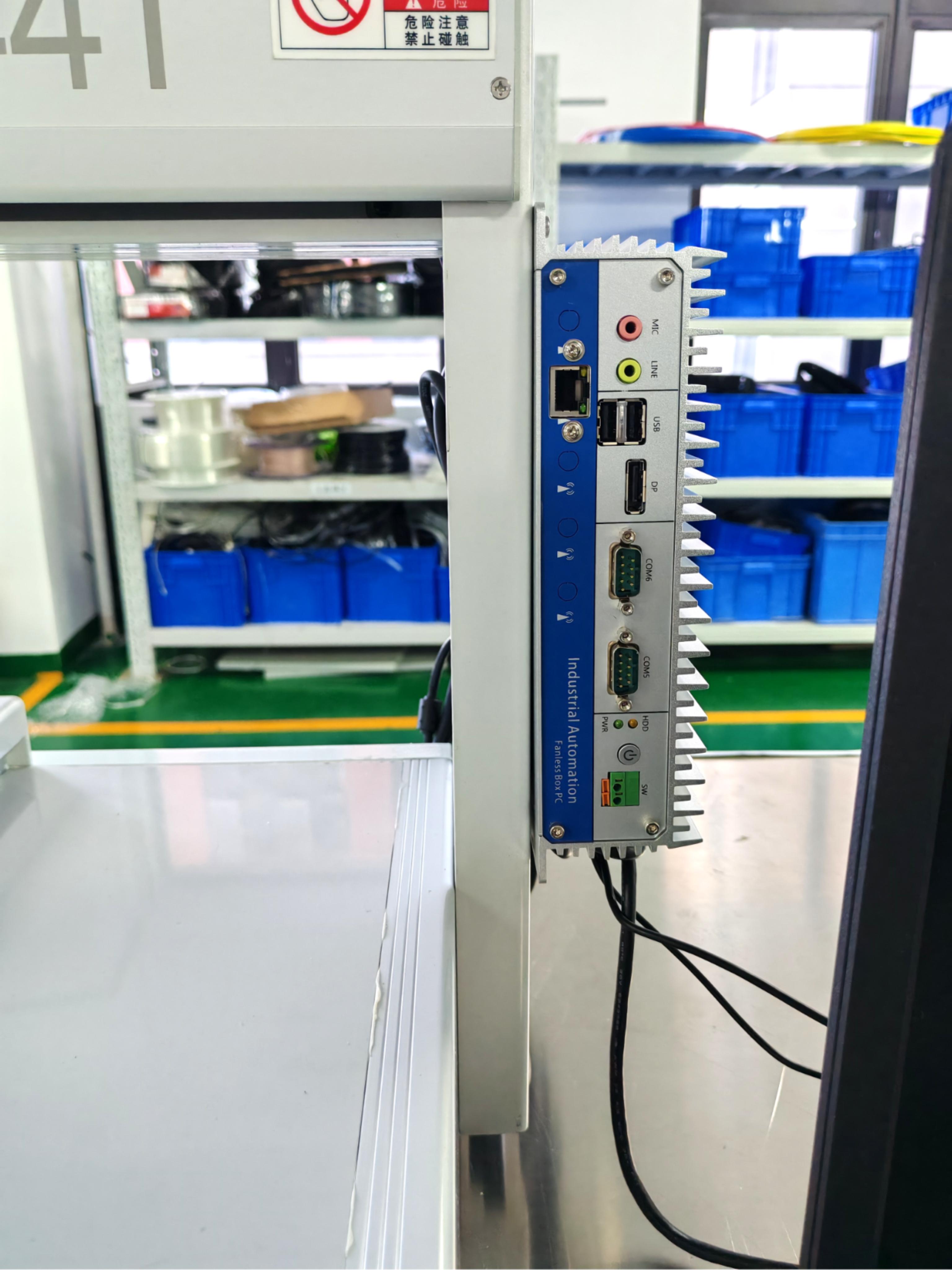

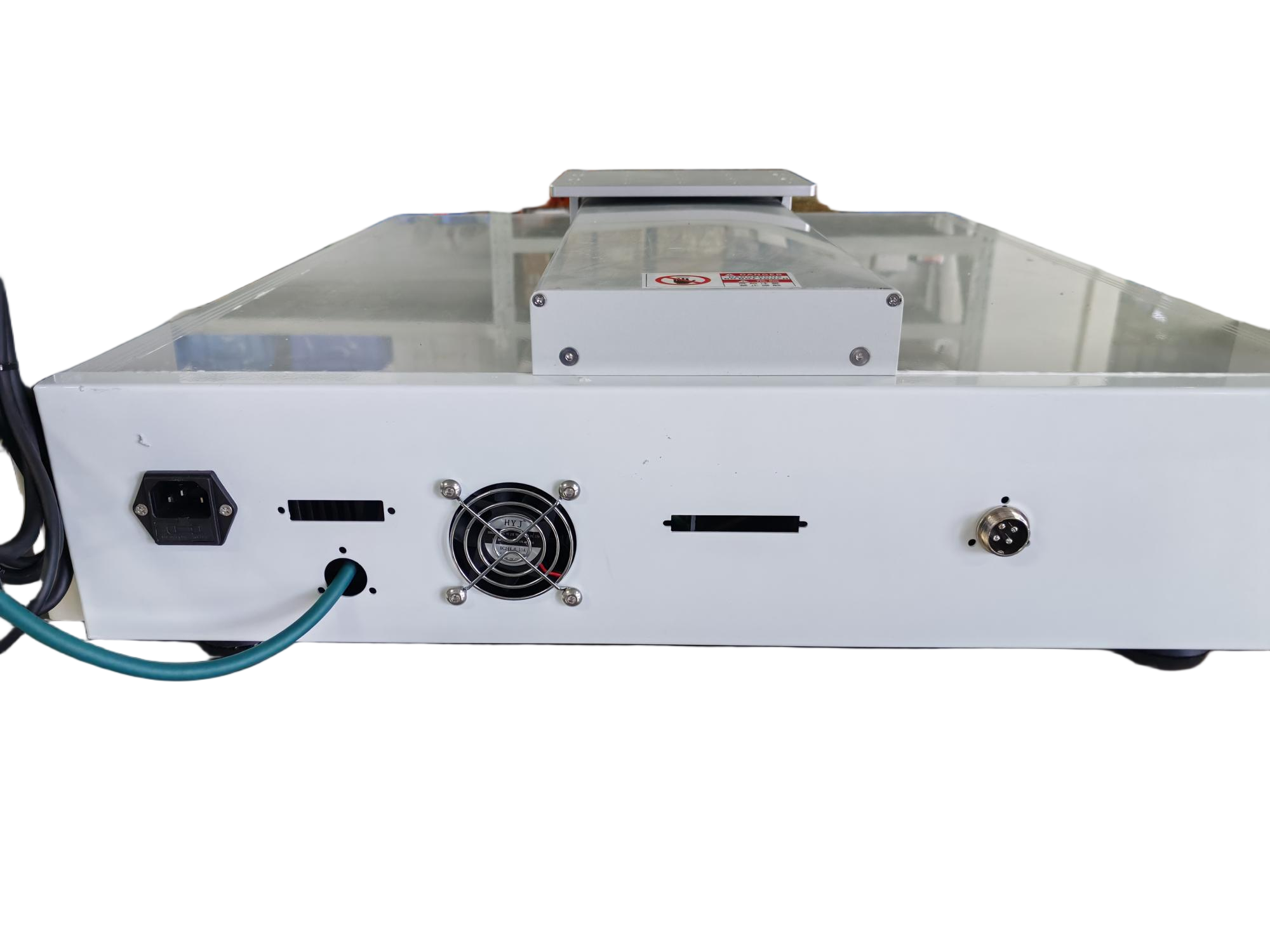

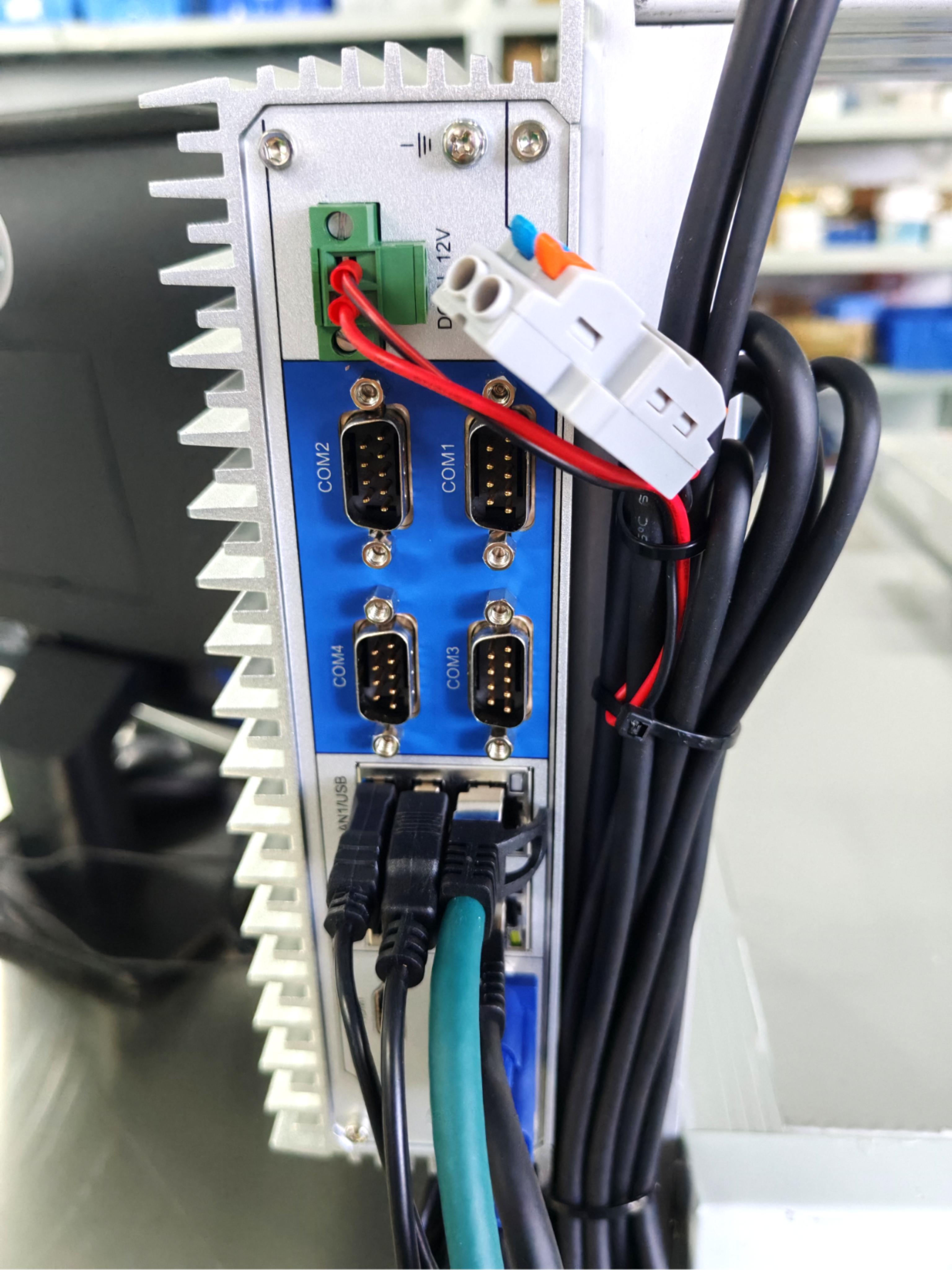

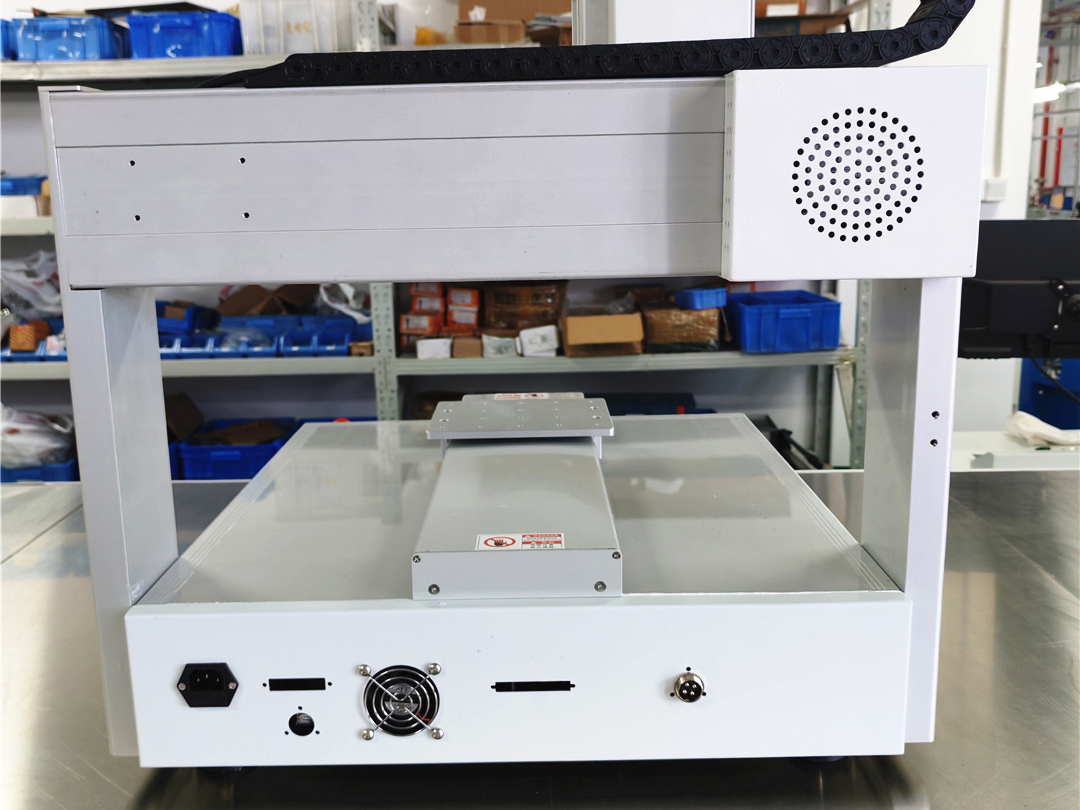

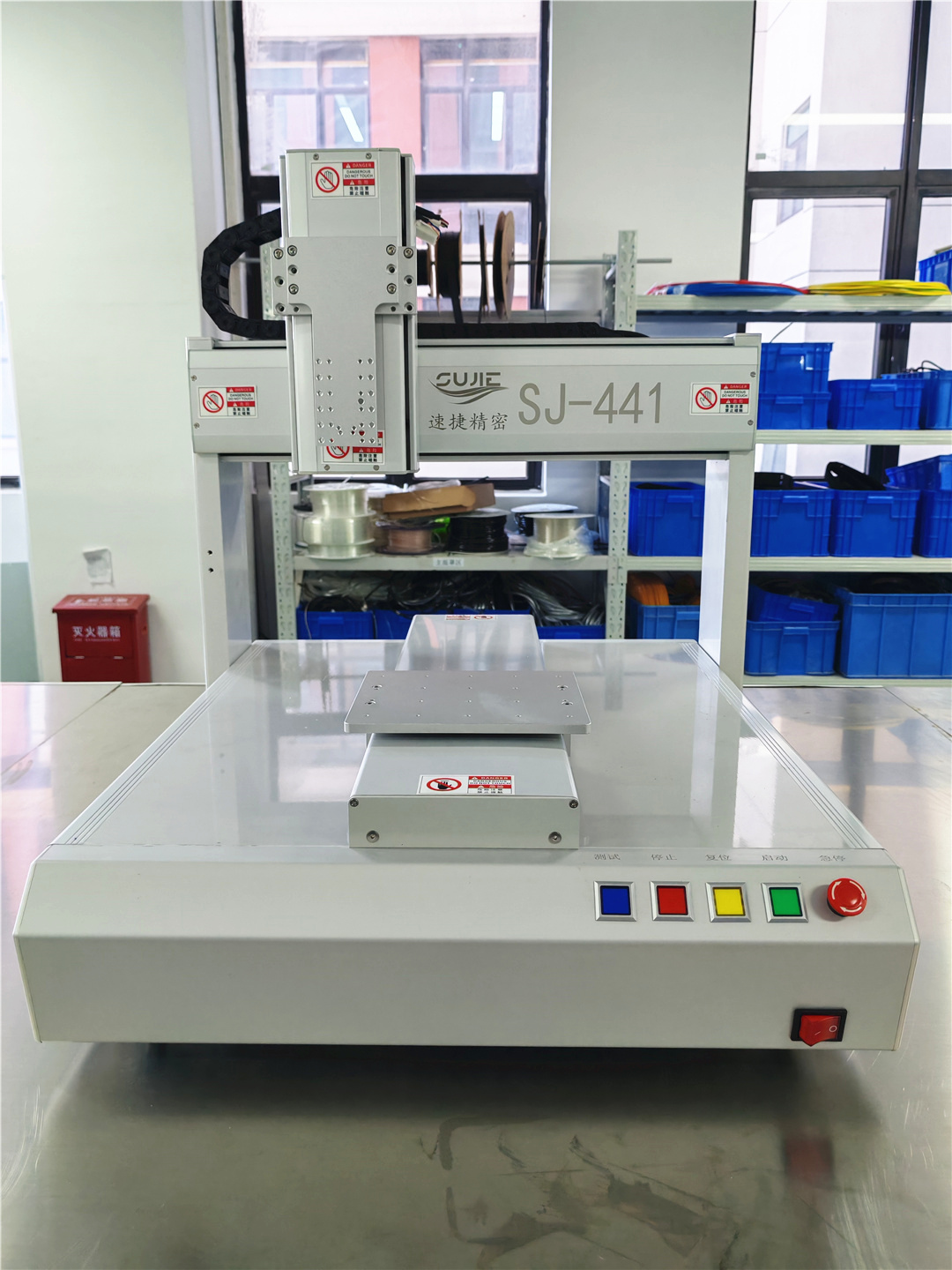

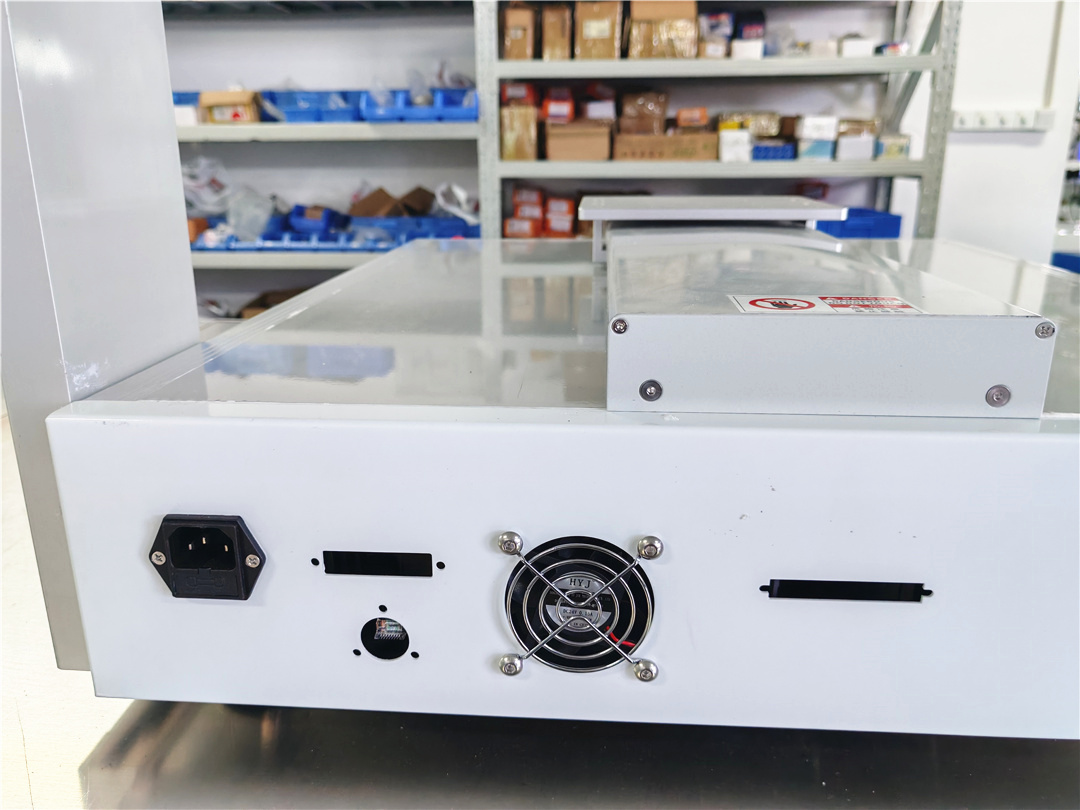

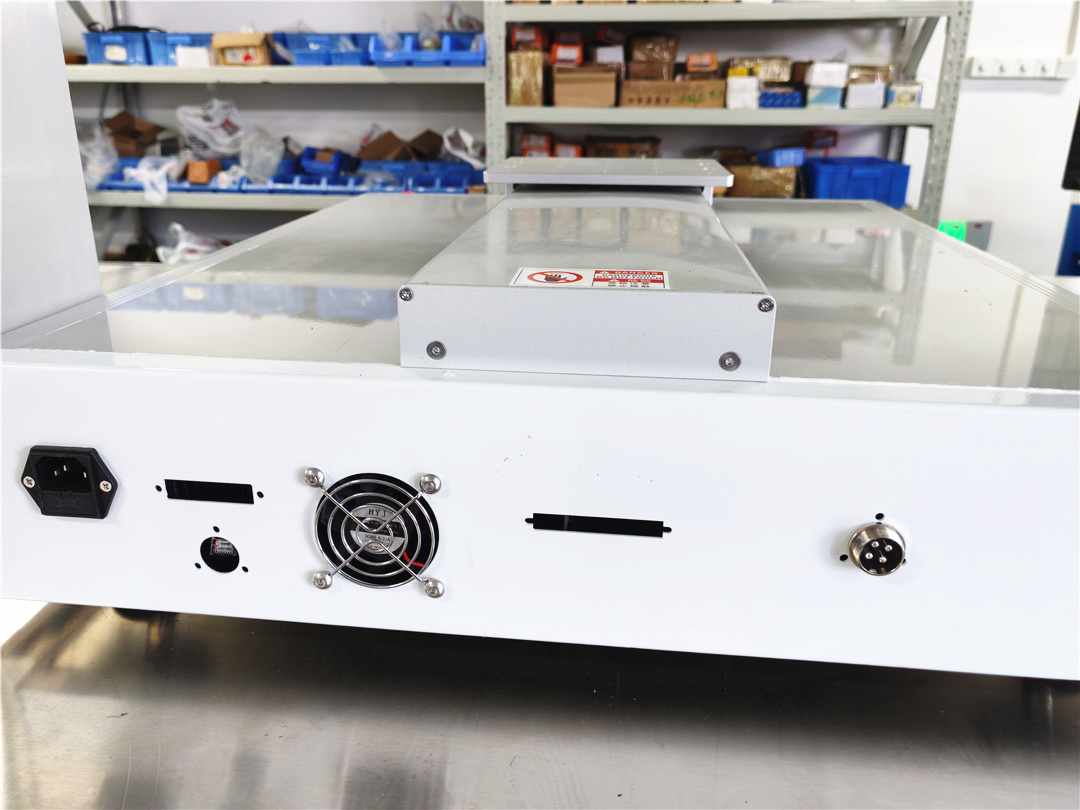

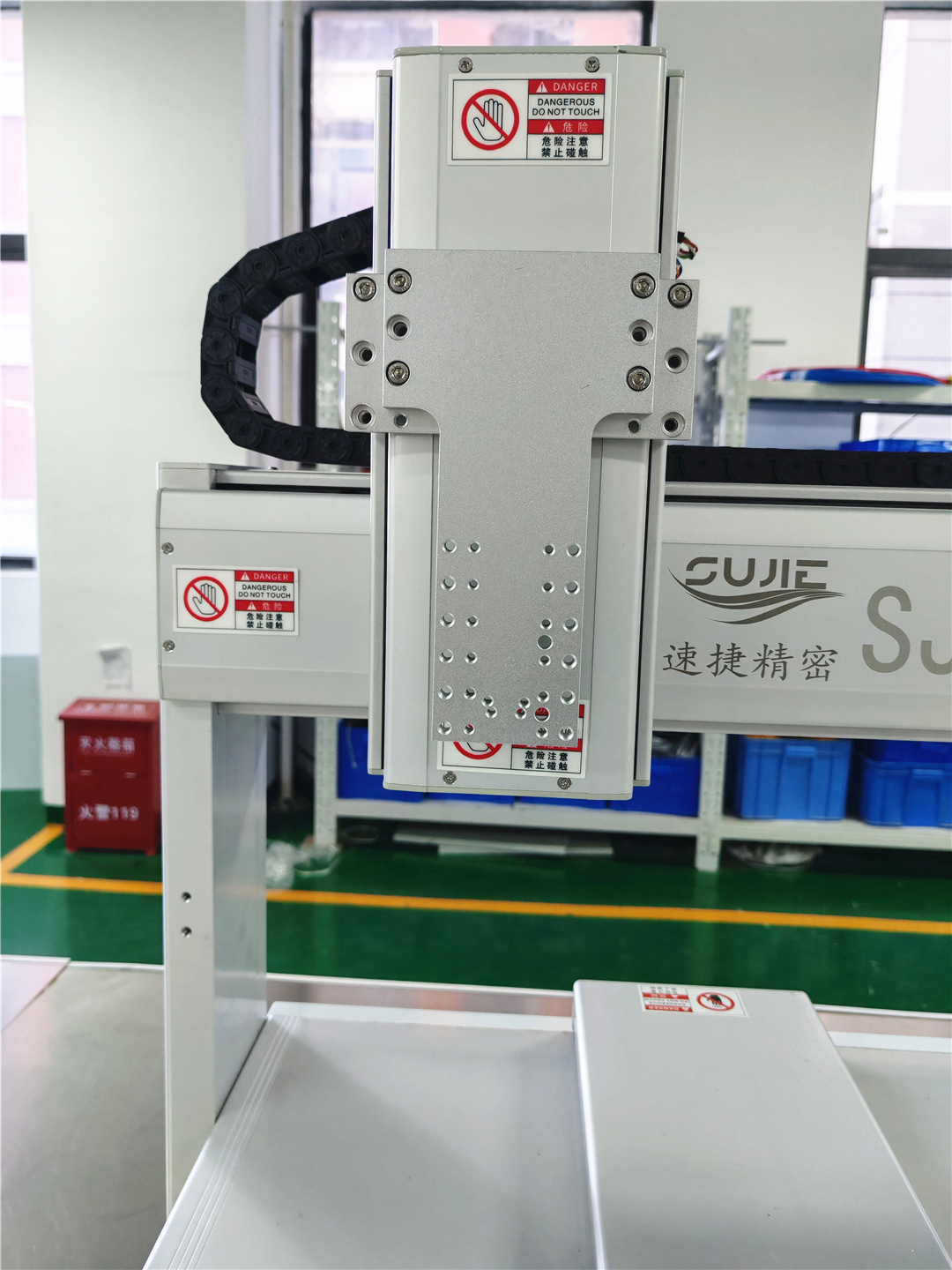

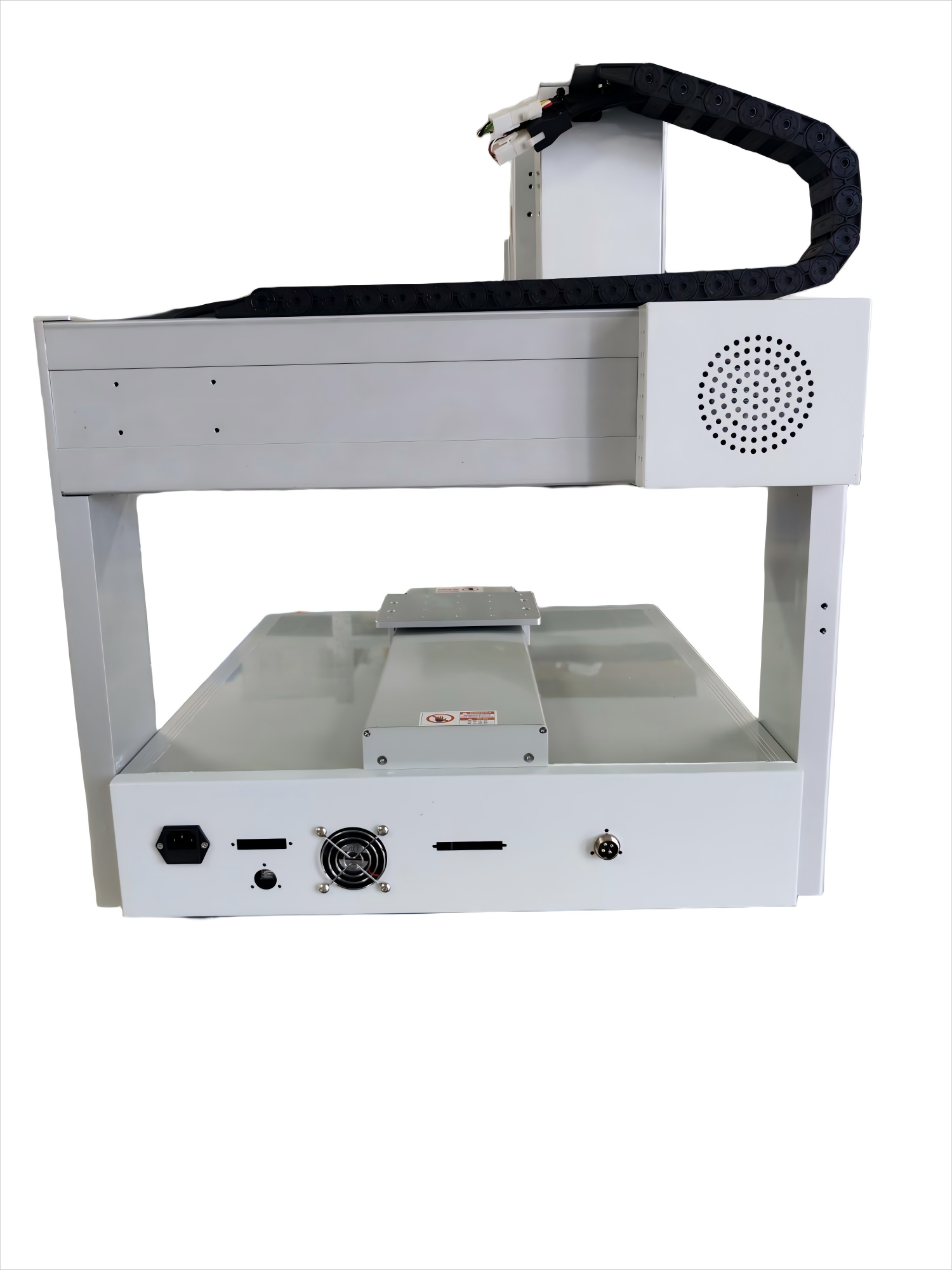

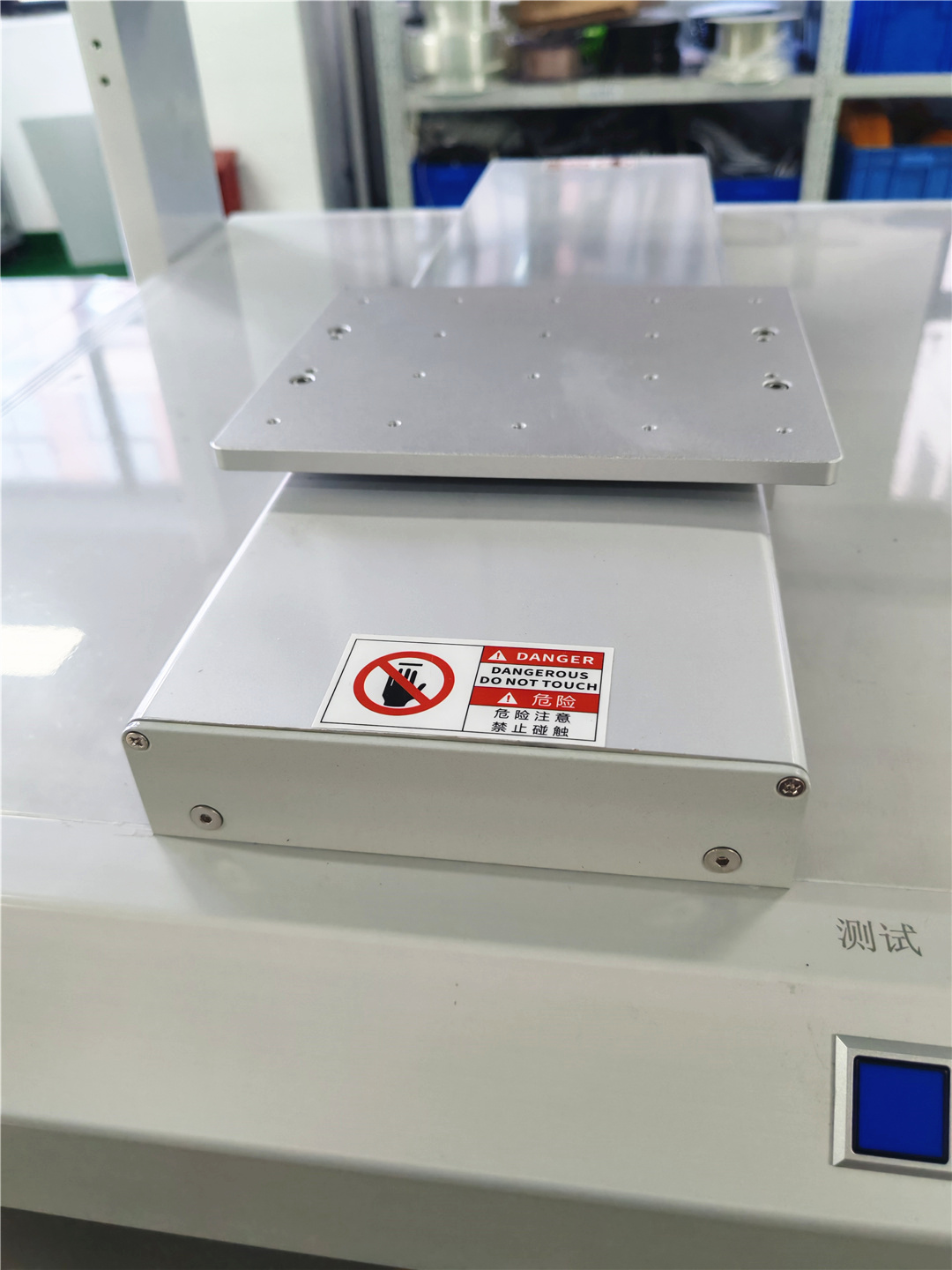

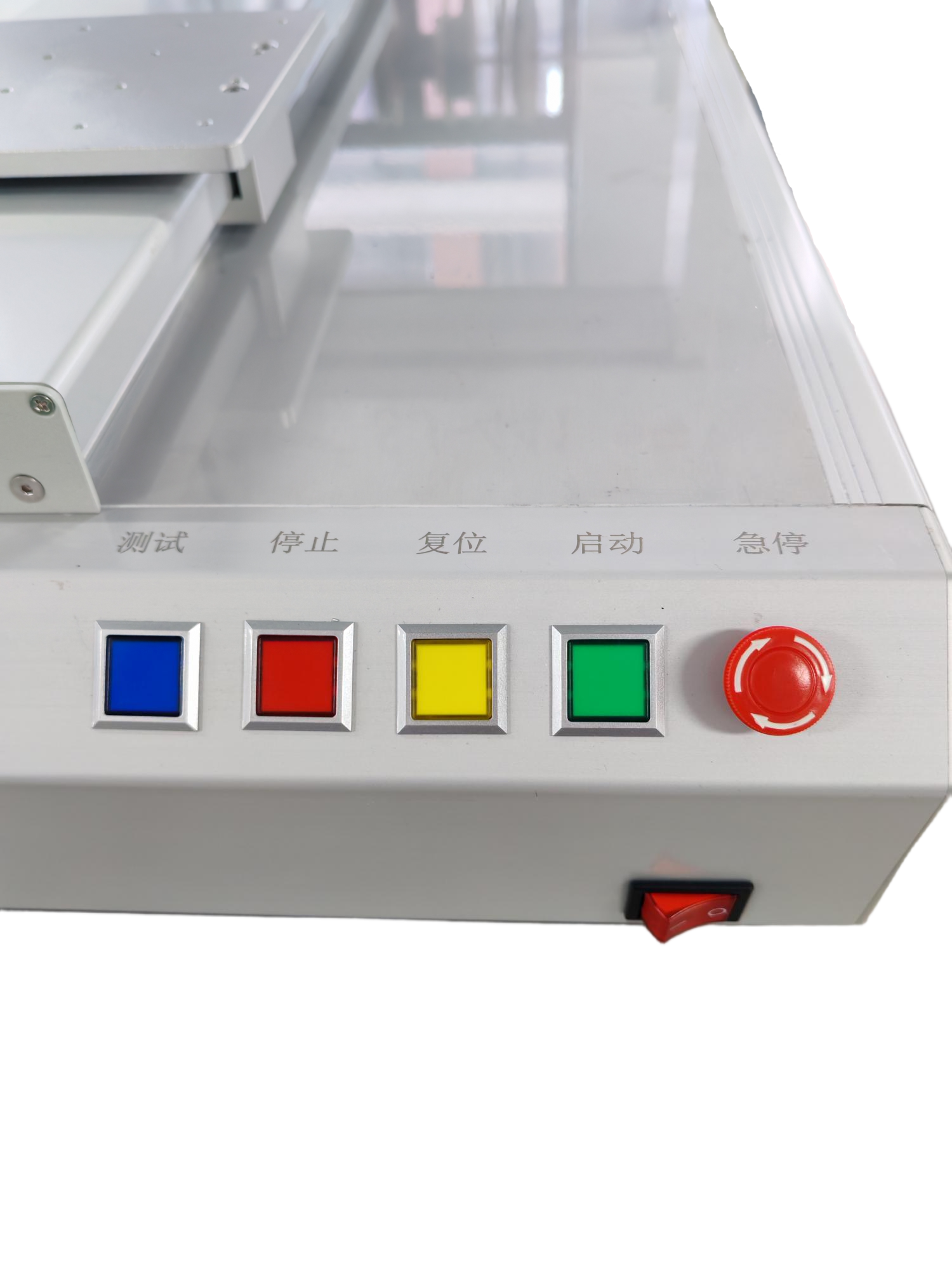

Product Details
